Description

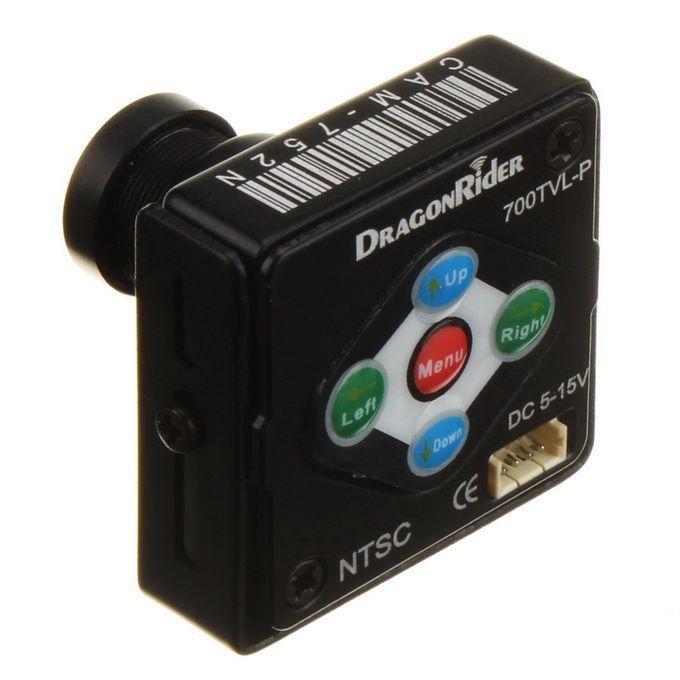

This is the camera with the best chips used in the FPV field: 1/3" Sony ExView 960H HAD CCD II, Sony Effio-P wide dynamic range PSD. The camera is described as 700 TVL due to the limitation of standard video. The sensor, in fact, has over 960 horizontal pixels of resolution. Please check the above photos for wiring details.
Specifications:
Model: CAM-752N Encoding
system: NTSC
CCD: Sony 1/3" 960H Exview HAD CCD II
PSD: Sony Effio-P wide dynamic range
Resolution: 700 TVL OSD
Function: built-in Lens: 3.6mm standard
Dimensions: 32x32x30mm
Weight: 40g
Camera case: black zinc alloy
Contents: 1 x 752N camera 1 x AV cable 1 x lens cap 1 x camera bracket
