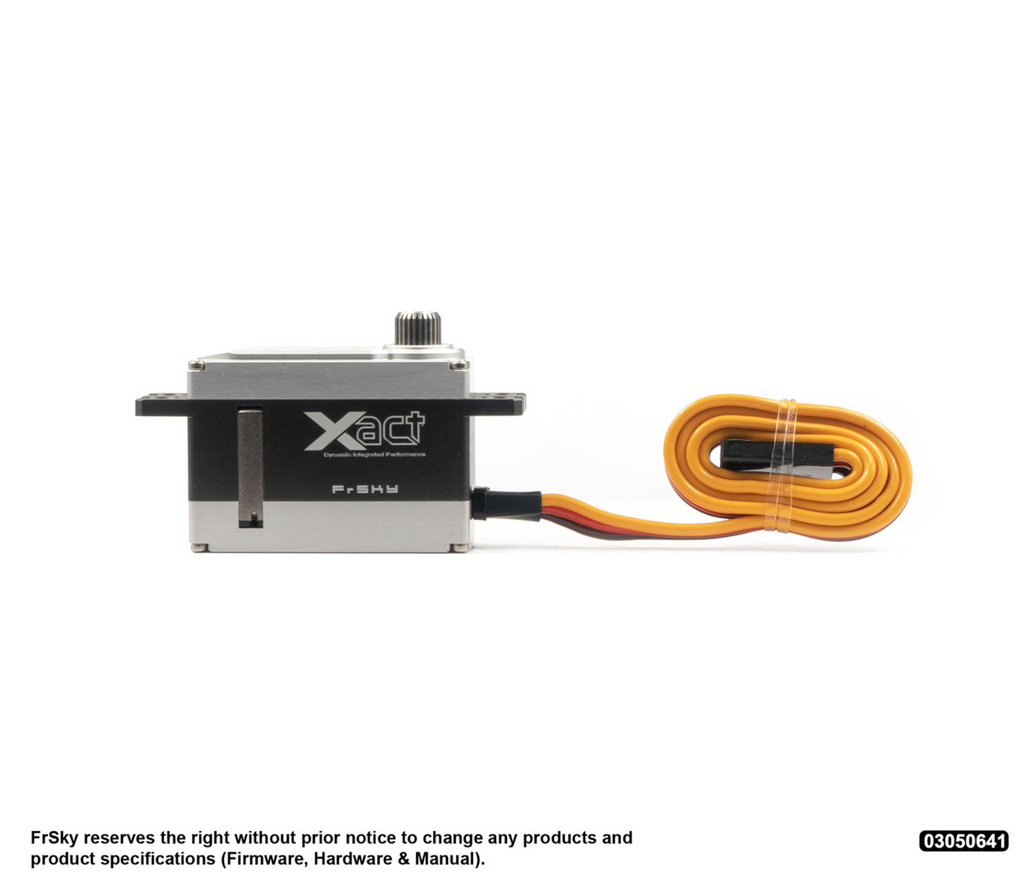

FrSky XACT CORELESS SERIES MD5301H High-Voltage Servo

Xact Coreless 5300 Series High-Voltage Servos

DIMENSION (L*W*H)

HV5301 : 35*15*31mm

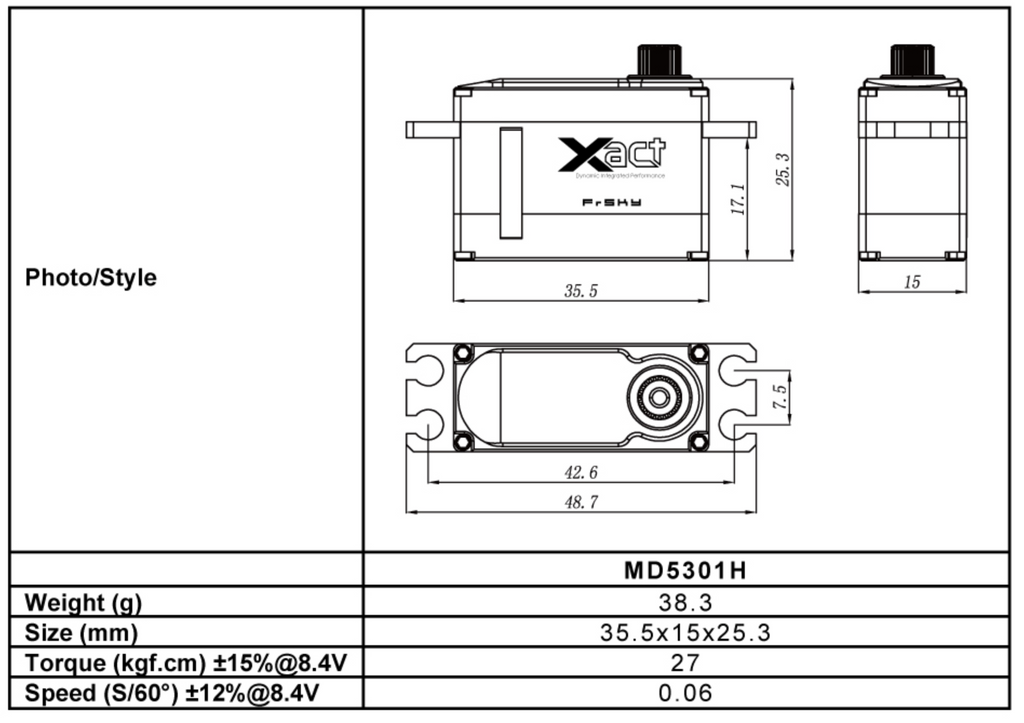

MD5301H : 35.5*15*25.3mm

WEIGHT

HV5301 : 41g

MD5301H : 38.3g

HORN SPLINE

Φ6 25T

STALL CURRENT

HV5301 : 1.43A@6.0v / 1.67A@7.0v / 2.0A@8.4v

MD5301H : 2.7A@6.0v / 3.5A@7.4v / 3.9A@8.4v

OPERATING VOLTAGE RANGE

4.8-8.4V

REFLASH RATE

1520us/333Hz | 760us/700Hz

PERFORMANCE

TORQUE|SPEED @6.0V

TORQUE|SPEED @7.0V

TORQUE|SPEED @8.4V

HV5301

4.4 kgf.cm

61.1 Oz-in

0.11 sec/60°

5.2 kgf.cm

72.2 Oz-in

0.09 sec/60°

6.1 kgf.cm

84.7 Oz-in

0.08 sec/60°

PERFORMANCE

TORQUE|SPEED @6.0V

TORQUE|SPEED @7.4V

TORQUE|SPEED @8.4V

MD5301H

20kgf.cm

277.7Oz-in

0.1 sec/60°

23kgf.cm

319.4Oz-in

0.08sec/60°

27 kgf.cm

374.9 Oz-in

0.06sec/60°
