$55.20
Availability: 84 In Stock
Sku: SS-V4004-300
Description

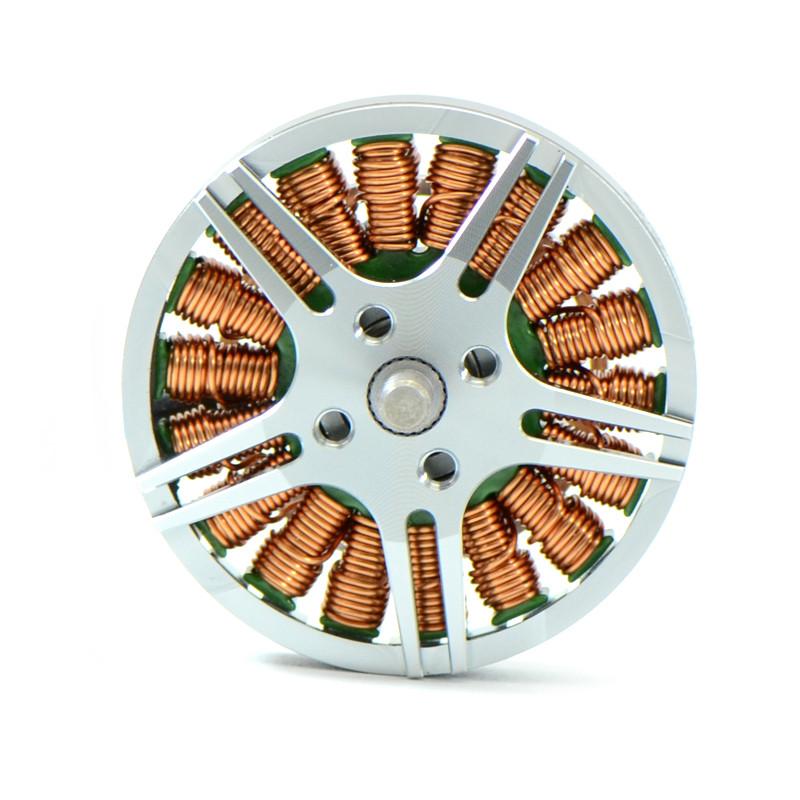

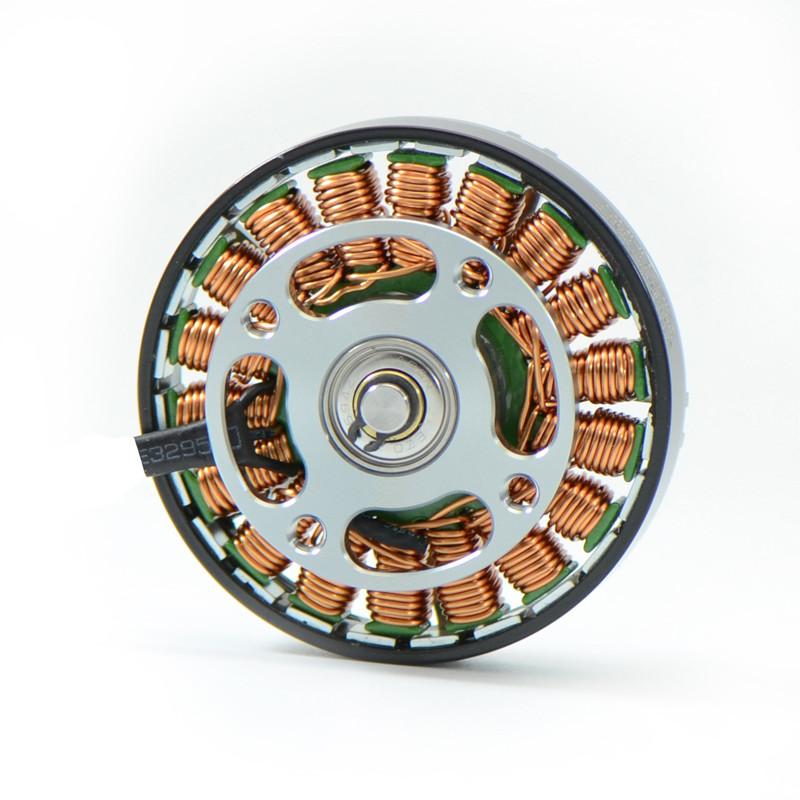

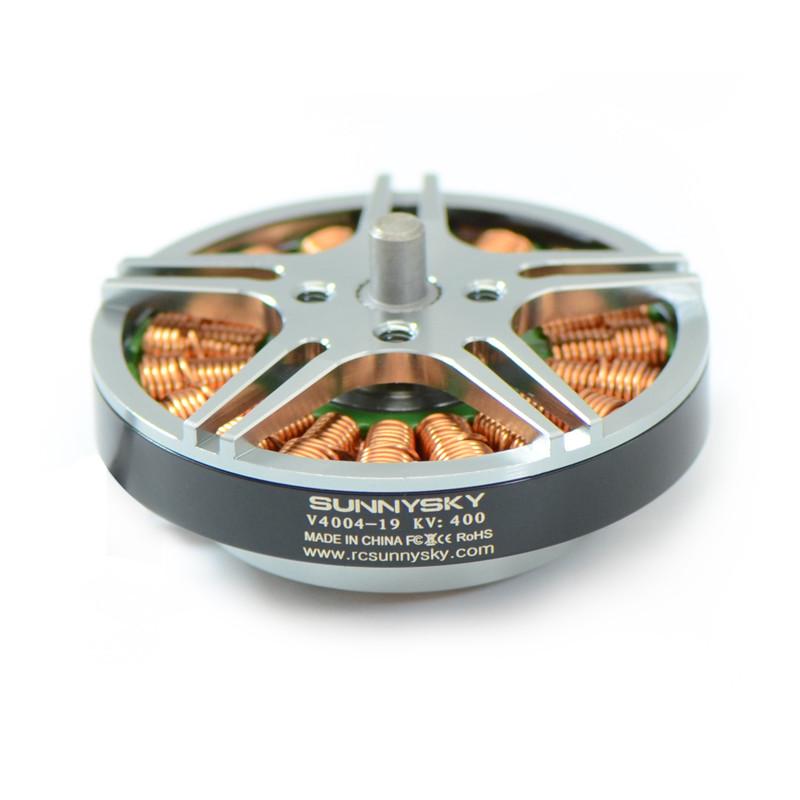

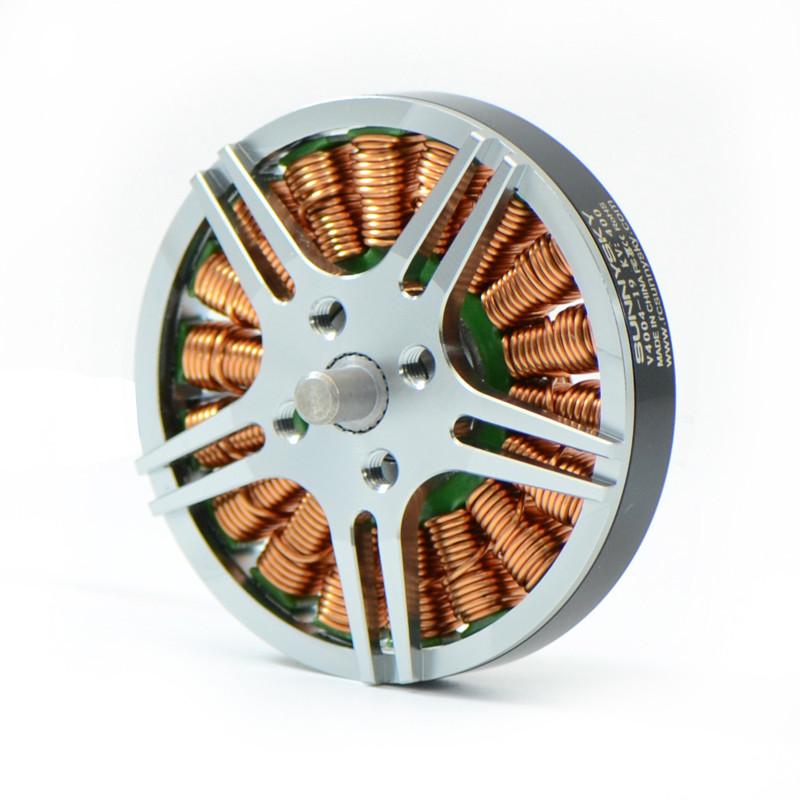

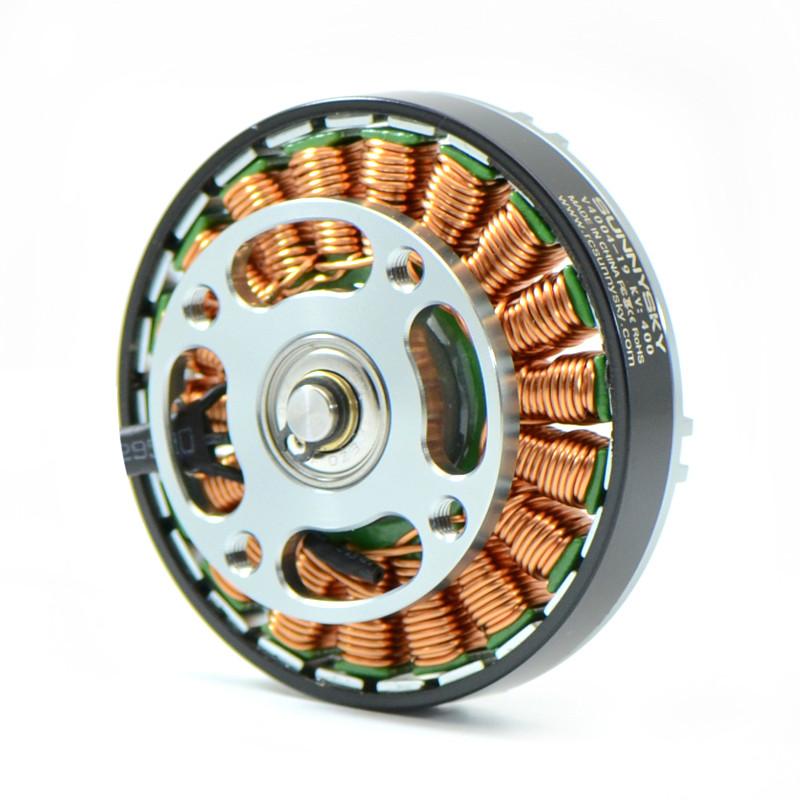

Sunnysky V series of motors are specially designed power for long-endurance multirotor aircraft. Designing style of the whole series are high efficiency, stable stable structure, light weight, high consistency etc..

These flat V series motors are designed for long flight time multirotors. These motors
can produce enough torque at low RPM and work at peak efficiency during flight.

The whole series uses Sunnysky patented Stepped and knurled design that not only
efficiently prevent motors from getting loose, but also reduce the probability of
malfunction and unstable output power. The whole series use original Japanese EZO
bearings that provide quiet and stable flight in the air.

With the guarantee of strength, the caps of V motors are highly hollow-cutted to save
weight, so that these motors can reach maximum thrust-to-weight ratio and gain more
flight time.

V series motors are tested with the strictest procedures of SunnySky?? QC protocols.
Each of these motors are dynamically balanced with our hightest standard. The axial
and radial runouts of each rotor are tested strictly according to its design. The
difference in performance of each motor is controlled within 3% so that these products
can provide precise and stable power for professional applications..

[TABS]OVERVIEW

KV300
Stator Diameter 40mm Rotor Diameter 43.6mm
Stator Thickness 4mm Body Length 16mm
No.of Stator Slots 18 Max Lipo Cell 4-6S
No.of Rotor Poles 24 ESC 20A
Motor Kv 300 Recommended Prop(inch) EOLO CN12*5/CN13*5/CN15*5.5
No-load current 0.2A/10V Recommended single take-off Weight ≤400g
Motor Resistance 448mΩ
Max Continuous Current 10A/60s
Max Continuous Power 250W
Weight

51g

Prop(inch) Voltage(V) RPM Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
EOLO CN12*5 22.2 2860 0.6 200 13 15.02 55℃ 10min
3541 1 300 22 13.51
4013 1.6 400 36 11.26
4430 2.1 500 47 10.73
5044 3.2 659 71 9.28
25 2890 0.5 200 13 16.00
3501 0.9 300 23 13.33
4043 1.4 400 35 11.43
4440 1.9 500 48 10.53
4845 2.5 600 63 9.60
5185 3.1 700 78 9.03
5541 3.7 800 93 8.65
EOLO CN13*5 22.2 2410 0.5 200 11 18.02 55℃
2940 0.9 300 20 15.02
3377 1.4 400 31 12.87
3752 1.9 500 42 11.85
4090 2.5 600 56 10.81
4433 3.2 700 71 9.85
4792 4.1 834 91 9.16
25 2422 0.5 200 13 16.00
2950 0.8 300 20 15.00
3397 1.25 400 31 12.80
3760 1.7 500 43 11.76
4090 2.2 600 55 10.91
4450 2.8 700 70 10.00
4673 3.45 800 86 9.28
4961 4.2 900 105 8.57
5276 5 1028 125 8.22
EOLO CN15*5.5 14.8 1916 0.7 200 10 19.31 107℃6min
2350 1.2 300 18 16.89
2612 1.9 400 28 14.22
2976 2.6 500 38 12.99
3222 3.3 596 49 12.20
16 1920 0.6 200 10 20.83
2370 1.1 300 18 17.05
2640 1.7 400 27 14.71
2950 2.4 500 38 13.02
3390 3.7 664 59 11.22
22.2 1920 0.4 200 9 22.52
2380 0.8 300 18 16.89
2670 1.3 400 29 13.86
2916 1.8 500 40 12.51
3233 2.3 600 51 11.75
3469 2.9 700 64 10.87
3721 3.6 800 80 10.01
3920 4.35 900 97 9.32
4143 5.2 1000 115 8.66
4362 6.3 1153 140 8.24
25 1918 0.4 200 10 20.00
2360 0.8 300 20 15.00
2650 1.1 400 28 14.55
2986 1.6 500 40 12.50
3203 2.1 600 53 11.43
3465 2.6 700 65 10.77
3701 3.2 800 80 10.00
3910 3.8 900 95 9.47
4120 4.6 1000 115 8.70
4460 6.4 1200 160 7.50
4715 7.9 1364 198 6.91

KV400
Stator Diameter 40mm Rotor Diameter 43.6mm
Stator Thickness 4mm Body Length 16mm
No.of Stator Slots 18 Max Lipo Cell 4-6S
No.of Rotor Poles 24 ESC 20A
Motor Kv 400 Recommended Prop(inch) EOLO  CN12*5/CN13*5
No-load current 0.3A/10V Recommended single take-off Weight ≤450g
Motor Resistance 288mΩ
Max Continuous Current 13A/60s
Max Continuous Power 310W
Weight

51g

Prop(inch) Voltage(V) RPM Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
EOLO CN12*5 22.2 2876 0.6 200 13 15.02 100℃ 5min
3514 1.1 300 24 12.29
4029 1.6 400 36 11.26
4467 2.2 500 49 10.24
4836 2.9 600 64 9.32
5264 3.6 700 80 8.76
5536 4.4 800 98 8.19
5797 5.3 900 118 7.65
6243 6.4 1042 142 7.33
25 2890 0.5 200 13 16.00
3500 1 300 25 12.00
4013 1.5 400 38 10.67
4435 2 500 50 10.00
4828 2.6 600 65 9.23
5238 3.2 700 80 8.75
5526 3.9 800 98 8.21
5800 4.7 900 118 7.66
6194 5.4 1000 135 7.41
6911 7.9 1270 198 6.43
EOLO CN13*5 14.8 2465 0.8 200 12 16.89 108℃ 2min
2965 1.4 300 21 14.48
3370 2.2 400 33 12.29
3792 3 500 44 11.26
4300 4.4 659 65 10.12
16 2461 0.8 200 13 15.63
2960 1.3 300 21 14.42
3400 2 400 32 12.50
3777 2.8 500 45 11.16
4095 3.6 600 58 10.42
4564 5 740 80 9.25
22.2 2463 0.6 200 13 15.02
2961 1 300 22 13.51
3367 1.5 400 33 12.01
3790 2 500 44 11.26
4125 2.6 600 58 10.40
4414 3.3 700 73 9.56
4734 4.1 800 91 8.79
4956 4.9 900 109 8.27
5283 5.7 1000 127 7.90
5917 8.6 1297 191 6.79
25 2471 0.5 200 13 16.00
2966 0.9 300 23 13.33
3349 1.3 400 33 12.31
3845 1.8 500 45 11.11
4115 2.3 600 58 10.43
4494 3 700 75 9.33
4736 3.6 800 90 8.89
4988 4.3 900 108 8.37
5247 5.1 1000 128 7.84
5718 6.8 1200 170 7.06
6148 9.2 1400 230 6.09
6506 11.2 1600 280 5.71

[/TABS]
