Hitec Micro & Mini Servos (Analog & Digital) HS-125MG

HitecSKU: HS-125MG

Price:
Sale price$39.99

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Download Manual

Description

Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description

The analog HS-125MG is truly a super thin servo measuring 1.2” x 0.4” x 1.3”. Featuring Hitec’s MP Gear, the HS-125MG is very durable, and a perfect fit in the slim wings of today’s high performance gliders.

Features

  • Super Thin Wing Servo
  • Strong Metal Gears
  • Dual Ball Bearings
  • Perfectly Designed to Fit in Slim Aircraft and Glider Wings

Accessories

  • Metal Gear Set | Link |
  • Metal / Plastic 1st Gear Set | Link |
  • Plastic Case Set | Link |
  • Applicable Horns


HS-125MG Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.17 ~ 0.13
Maximum Torque Range oz. / in. 42 ~ 49
Maximum Torque Range kg. / cm. 3.0 ~ 3.5
Current Draw at Idle 8 mA
No Load Operating Current Draw 230 mA
Stall Current Draw 1,200 mA
Dead Band Width 1 µs
Physical Specifications

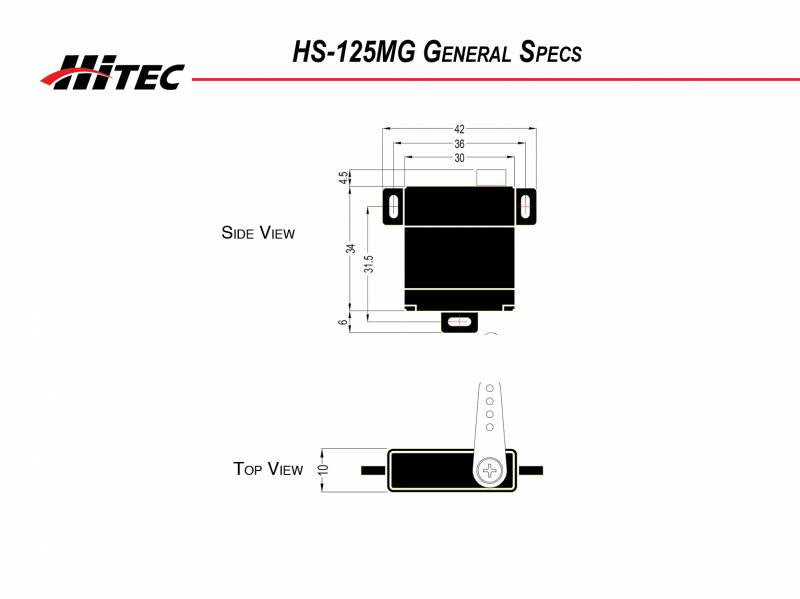

Dimensions (Inches) 1.18 x 0.39 x 1.33
Dimensions (Metric) 30.0 x 10.0 x 34.0
Weight (Ounces) 0.84
Weight (Gram) 24.0
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Micro 23
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
Radio Control Applications
Parkflyer N / A
Sport Plane 42 - 50 oz.
Sailplane 3 Meter
3D Performance 42 - 50 oz.
Scale N / A
Electric Helicopter N / A
Gas Helicopter N / A
On Road N / A
Monster Truck N / A
Buggies N / A
Truggies N / A
Short Course / Truck N / A
Crawlers N / A
Sail Boat N / A
Power Boat 1/16th
