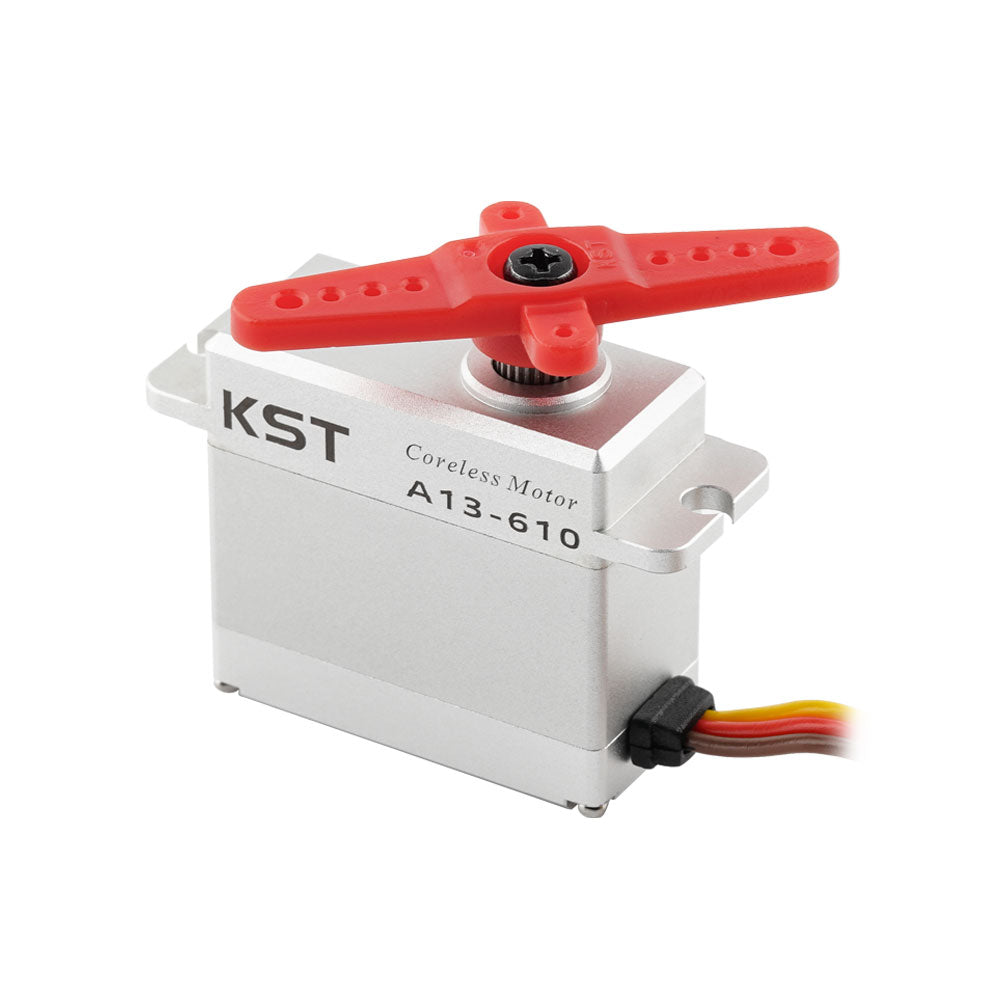

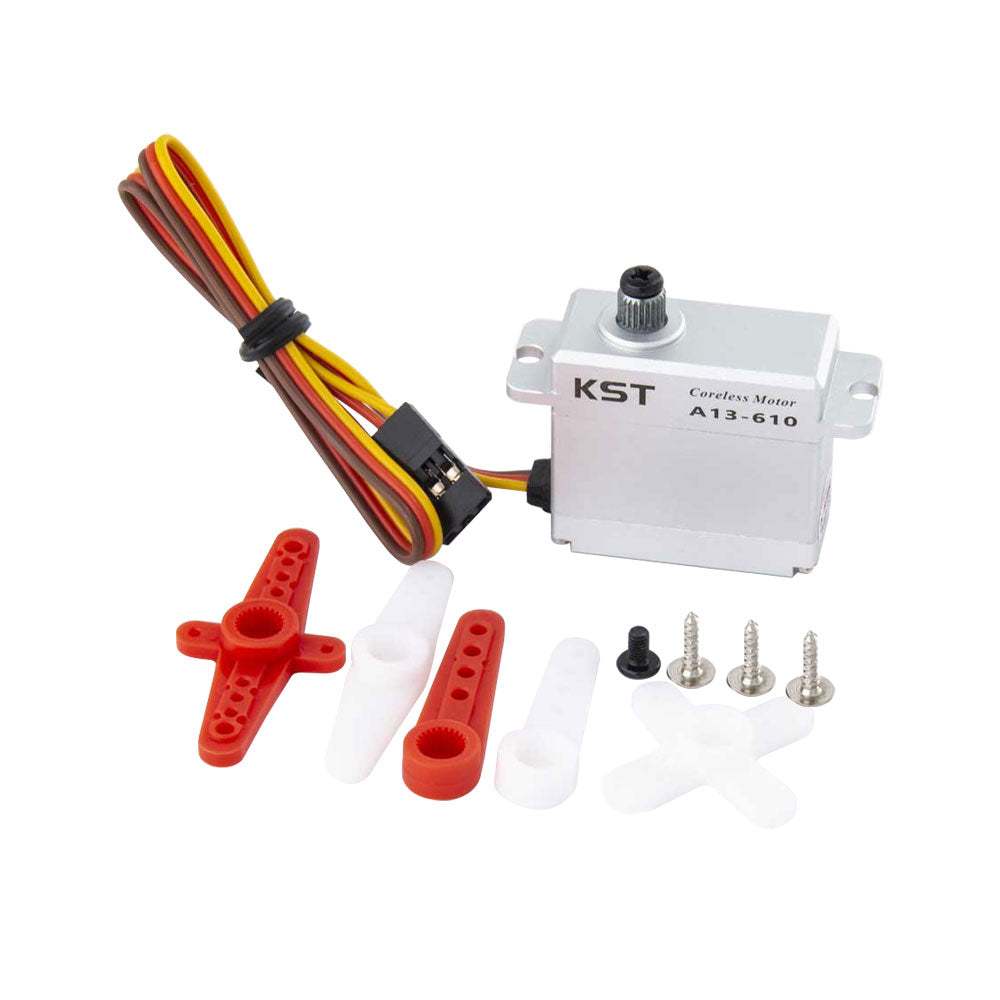

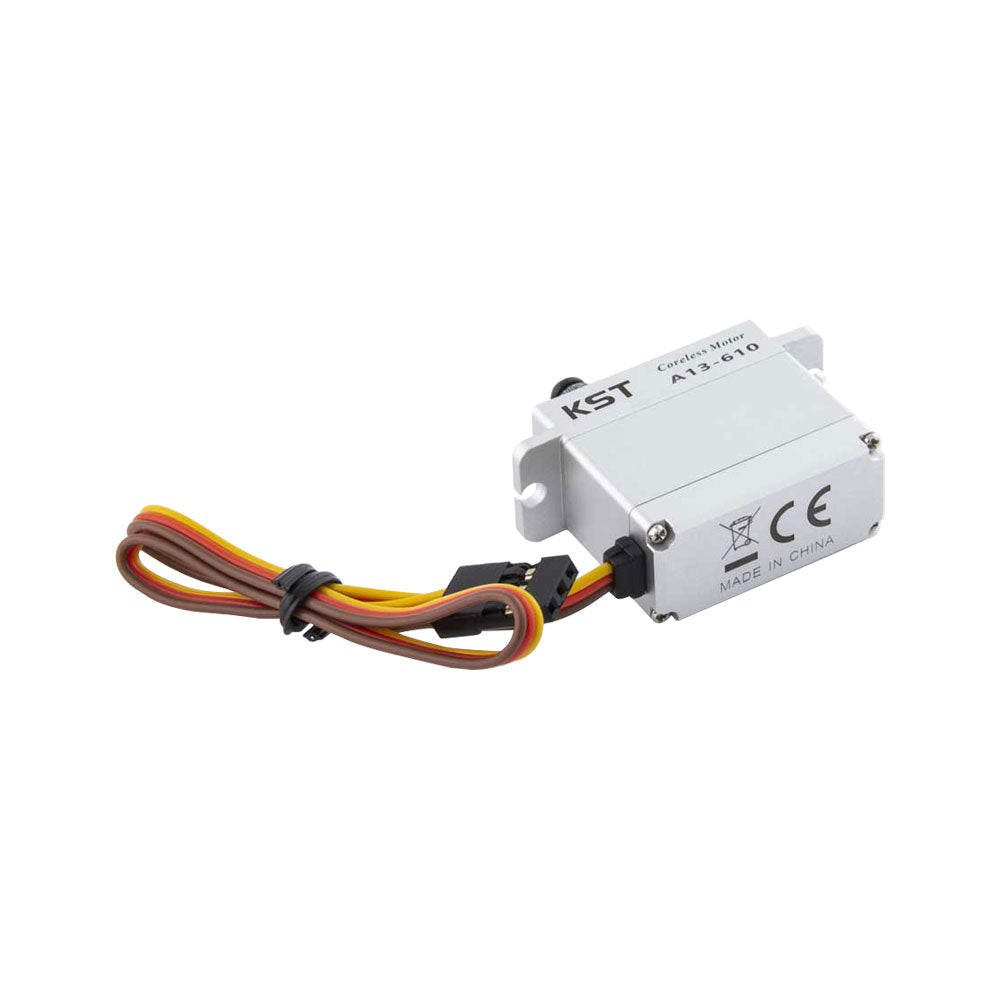

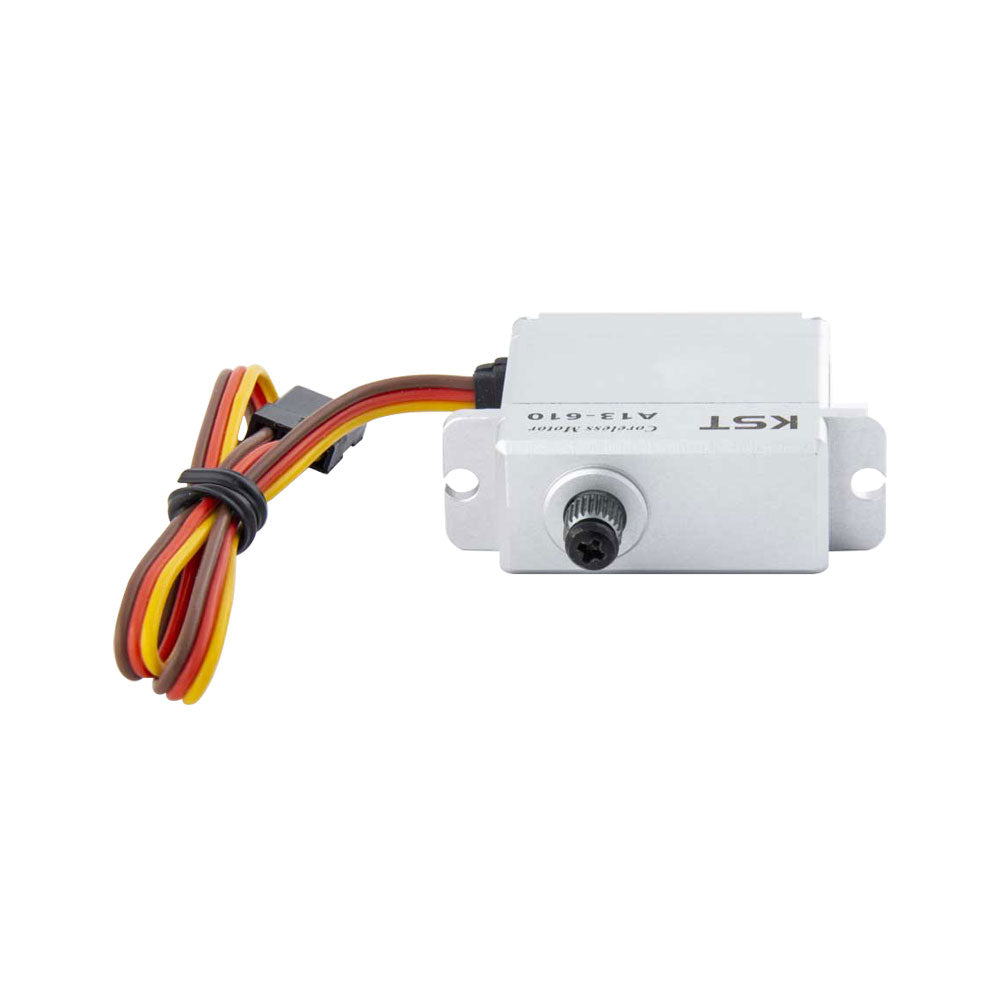

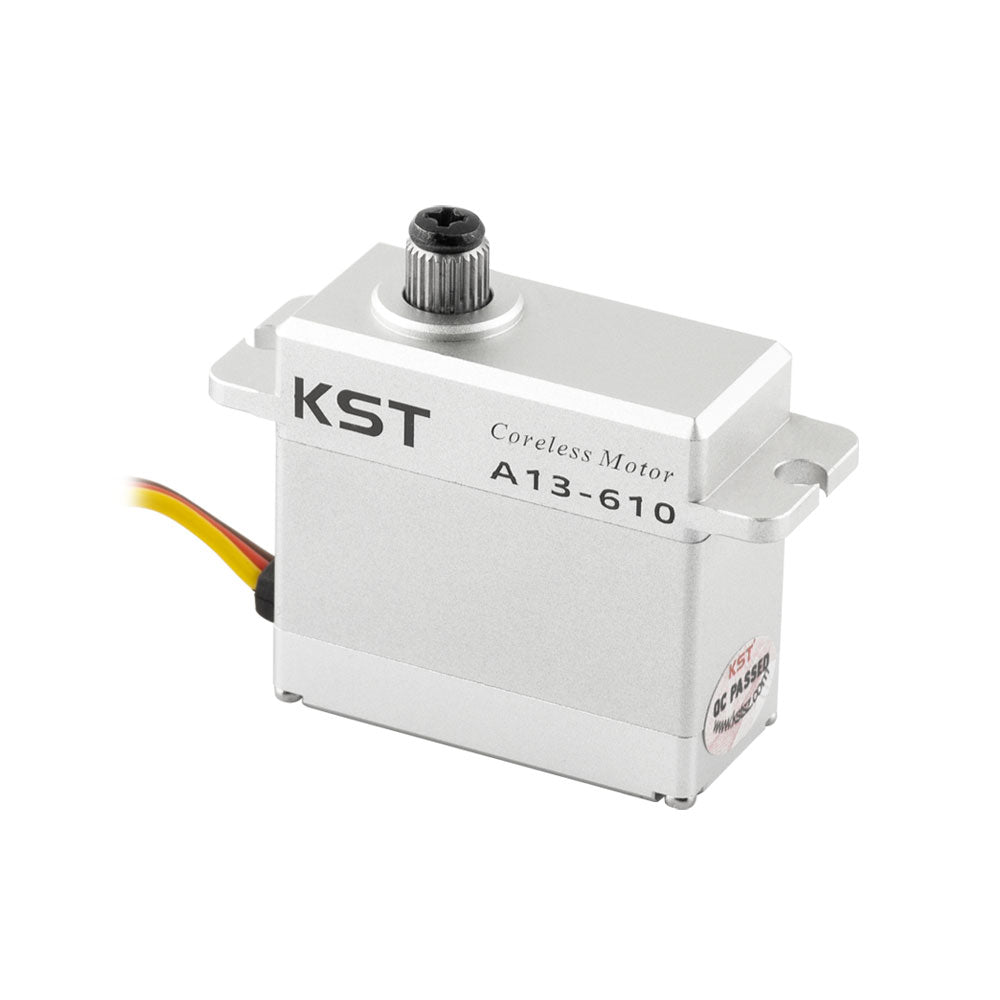

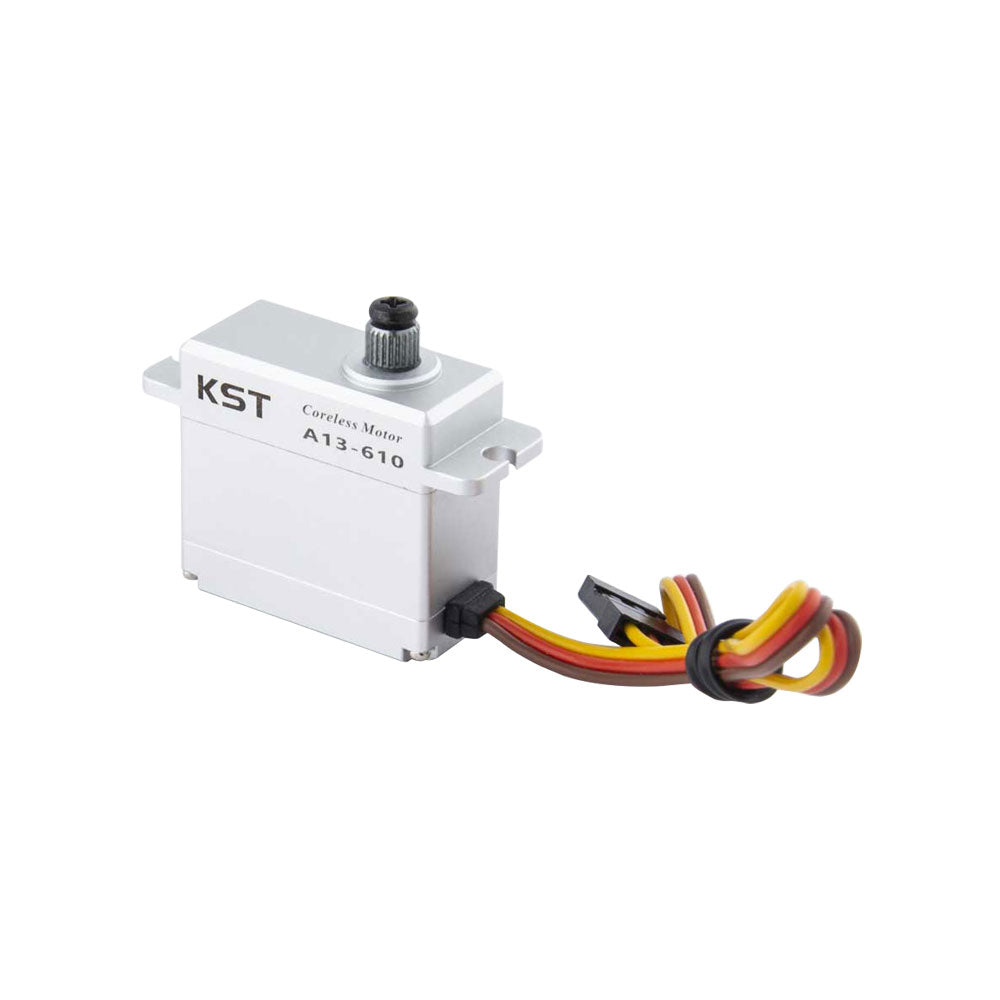

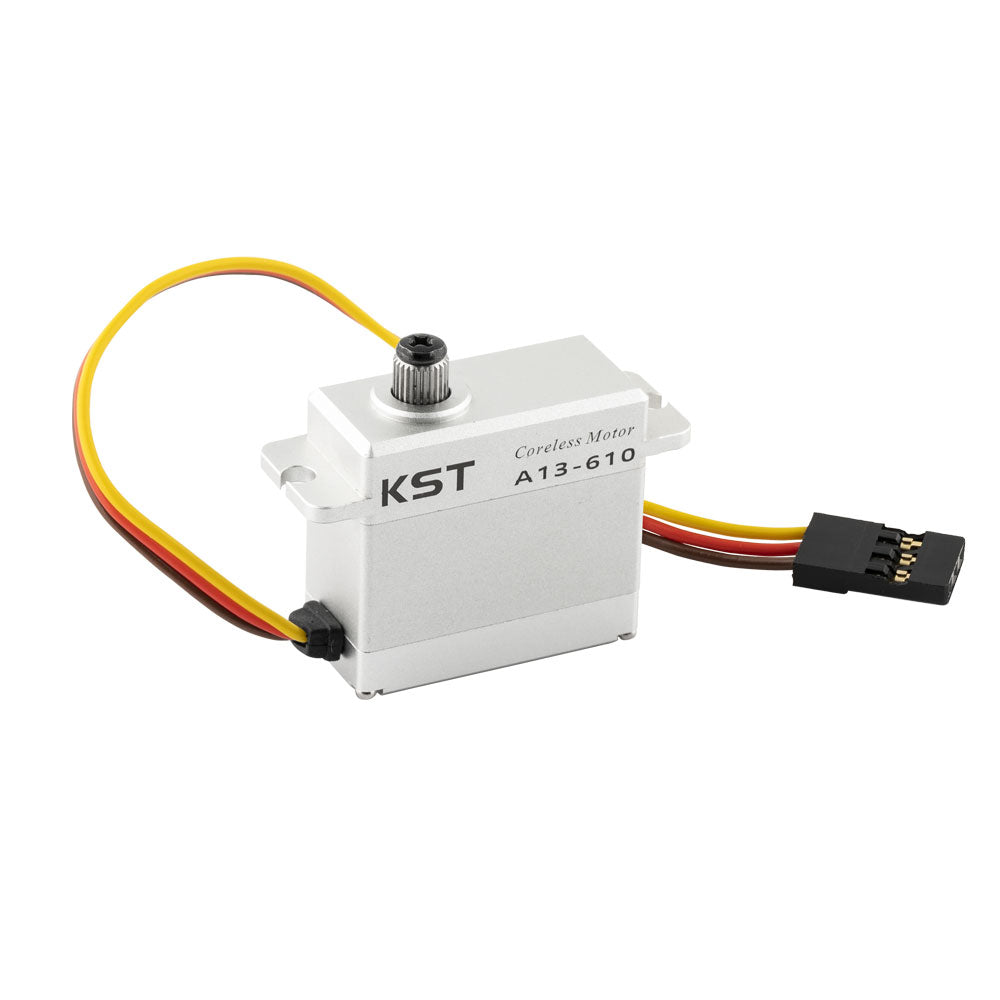

KST A13-610 V8.0 Digital Servo 8.4V 0.10s 9kg.cm 124oz.in

KSTSKU: KST-A13-610V8

Price:
Sale price$47.99

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Download Manual

Description

KST A13-610 V8.0 Digital Servo 8.4V 0.10s 9kg.cm 124oz.in

KST Servos are known for their high-quality and affordable prices. Whether you need a servo for a hobby helicopter, glider, industrial equipment, or UAV, KST has a solution for you. With a reputation for performance even under the most demanding conditions, KST servos are the ideal choice for your next competition, mission-critical project, or custom installation. Contact our sales team today to learn more about our OEM and ODM services.

Features:

  • Compact and lightweight design
  • Excellent torque and speed
  • Designed for high-performance RC gliders
  • Excellent heat dissipation
  • Ultra-slim 13mm body
  • Programmable with KST-Tool 1

Specifications:

  • Operation Voltage (rated): DC 7.4V
  • Operation Voltage Range: DC 6.0V-8.4V
  • Torque: 6.5Kg.cm @ 6.0V, 8.0Kg.cm @ 7.4V, 9Kg.cm @ 8.4V
  • Speed: 0.12sec/60° @ 6.0V, 0.11sec/60° @ 7.4V, 0.10sec/60° @ 8.4V

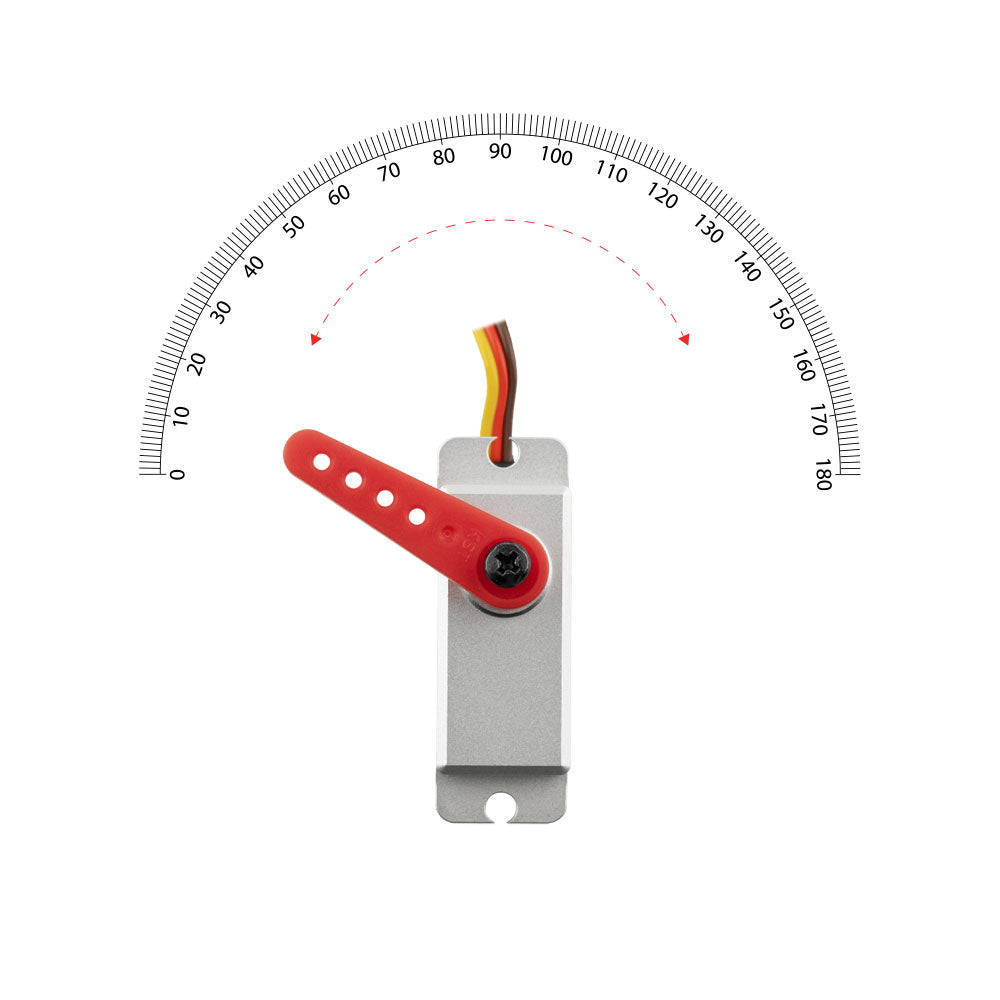

  • Travel Angle: ±50° when 1000-2000us
  • Operating Temperature Range: -10℃ to +55℃
  • Motor Type: Coreless
  • Gear Set Material: Hardened Steel
  • Shielded Connecting Cable: 26AWG

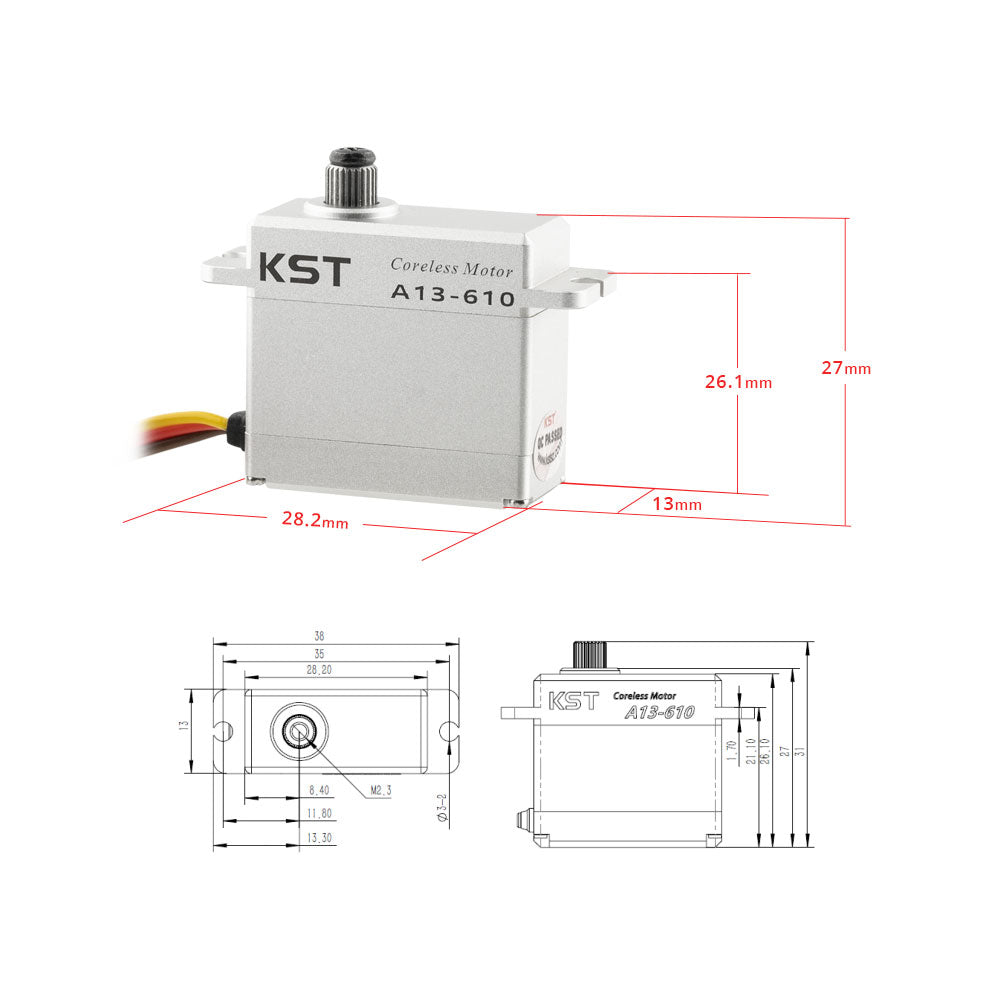

  • Case Dimensions: 28.2 * 13 * 27mm
  • Weight: 24g
