Description
DIATONE MAMBA TOKA 1206 Series Racing motor

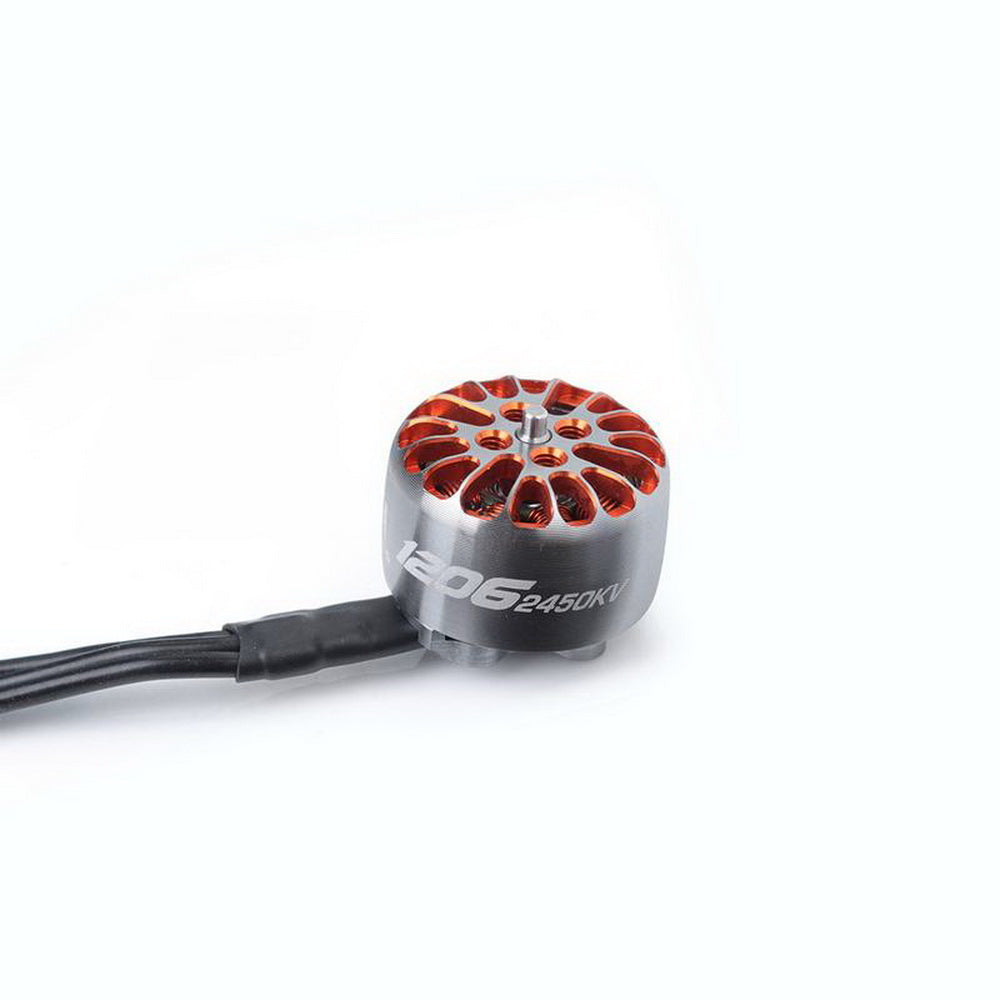

MAMBA TOKA 1206 2450KV Racing motor
Overall Dimension:Φ17×13.4mm
prop mounting shaft diameter:1.5mm
Installation hole position: 9×9mm，M2
Prop: 2inch~3inch
Bearing：5*2*2.5
Shaft Diameter:2mm
Lead Wire Size：24AWG×150mm
Configuration:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：12mm
Stator Height:6mm
Rated Voltage:4~6S (16.8V~25.2V)
Peak Current: 5.8A
ldle Current：6V/0.4A
Maximum Power: 160W
Internal Resistance：456Ω
MAMBA TOKA 1206 3600KV Racing motor
Overall Dimension:Φ17×13.4mm
prop mounting shaft diameter:1.5mm
Installation hole position:9×9mm，M2
Prop: 2inch~3inch
Bearing：5*2*2.5
Shaft Diameter:2mm
Lead Wire Size：24AWG×150mm
Configuration:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：12mm
Stator Height:6mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 10A
ldle Current：6V/0.4A
Maximum Power: 160W
Internal Resistance：236Ω
MAMBA TOKA 1206 4500KV Racing motor
Overall Dimension:Φ17×13.4mm
prop mounting shaft diameter:1.5mm
Installation hole position:9×9mm，M2
Prop: 2inch~3inch
Bearing： 5*2*2.5
Shaft Diameter:2mm
Lead Wire Size：24AWG×150mm
Configuration:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：12mm
Stator Height:6mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 10.7A
ldle Current：6V/0.6A
Maximum Power: 128W
Internal Resistance：168Ω
