Hitec HSR-1425CR Continuous Rotation Robot Servo

HitecSKU: HS-1425CR

Price:
Sale price$21.99

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Download Manual

Description

Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description

The HSR-1425CR is the continuous rotation (non-proprtional) version of the HS-425HB ideal for robotic applications.


HS-1425CR Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (RPM) 43 ~ 52
Maximum Torque Range oz. / in. 39 ~ 47
Maximum Torque Range kg. / cm. 2.8 ~ 3.4
Current Draw at Idle 8 mA
No Load Operating Current Draw 150 mA
Stall Current Draw 640 mA
Dead Band Width 10 µs

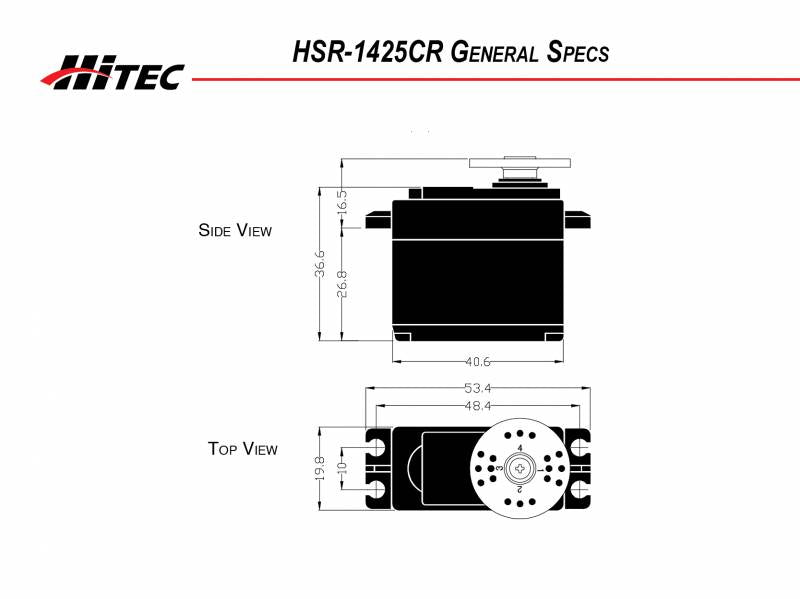

Physical Specifications
Dimensions (Inches) 1.59 x 0.77 x 1.44
Dimensions (Metric) 40.6 x 19.8 x 36.6
Weight (Ounces) 1.47
Weight (Gram) 41.7
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Nylon
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
Radio Control Applications
Parkflyer N / A
Sport Plane N / A
Sailplane N / A
3D Performance N / A
Scale N / A
Electric Helicopter N / A
Gas Helicopter N / A
On Road N / A
Monster Truck N / A
Buggies N / A
Truggies N / A
Short Course / Truck N / A
Crawlers N / A
Sail Boat =>1M+ & Scale
Power Boat N / A
