Description

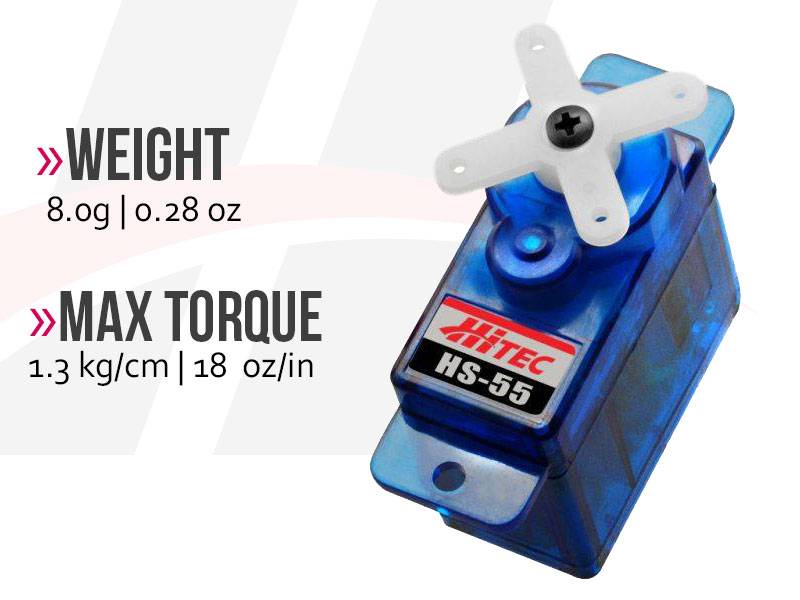

Product Description: The HS-55 micro servo is the perfect choice for controlling smaller electric and park flyers. It features precision components that have been engineered to provide long-lasting, trouble-free service. The HS-55 has set the standard for affordable performance, and it has been featured in hundreds of model aircraft reviews worldwide.
Features:
- Affordable Performance
- Precision Components
- Strong, Long-Lasting Nylon Gears
- Market's Most Reliable Micro Servo
- Most Popular Servo
HS-55 Servo Specifications: Performance Specifications:
- Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
- Speed (Second @ 60°): 0.17 ~ 0.14
- Maximum Torque Range oz./in.: 15 ~ 18
- Maximum Torque Range kg./cm.: 1.1 ~ 1.3
- Current Draw at Idle: 5.5 mA
- No Load Operating Current Draw: 150 mA
- Stall Current Draw: 450 mA
- Dead Band Width: 8 µs
Physical Specifications:
- Dimensions (Inches): 0.89 x 0.45 x 0.94
- Dimensions (Metric): 22.8 x 11.6 x 24.0
- Weight (Ounces): 0.28
- Weight (Gram): 8.0
- Circuit Type: HT7003 Analog SMT
- Motor Type: Coreless Metal Brush
- Gear Material: Nylon
- Bearing Type: None
- Output Shaft (type/Ømm): Feather 15/8
- Case Material: Plastic
- Dust/Water Resistance: N/A
- Connector Gauge (AWG)/Strand Count: 28/20
Radio Control Applications:
- Parkflyer: < 36 oz.
- Sport Plane: 20 - 35 oz.
- Sailplane: < 2 meters/DLG
- 3D Performance: Foamie
- Scale: N/A
- Electric Helicopter: 200mm
- Gas Helicopter: N/A
- On Road: N/A
- Monster Truck: N/A
- Buggies: N/A
- Truggies: N/A
- Short Course/Truck: 1/8th
- Crawlers: N/A
- Sail Boat: N/A
- Power Boat: 1/8th
