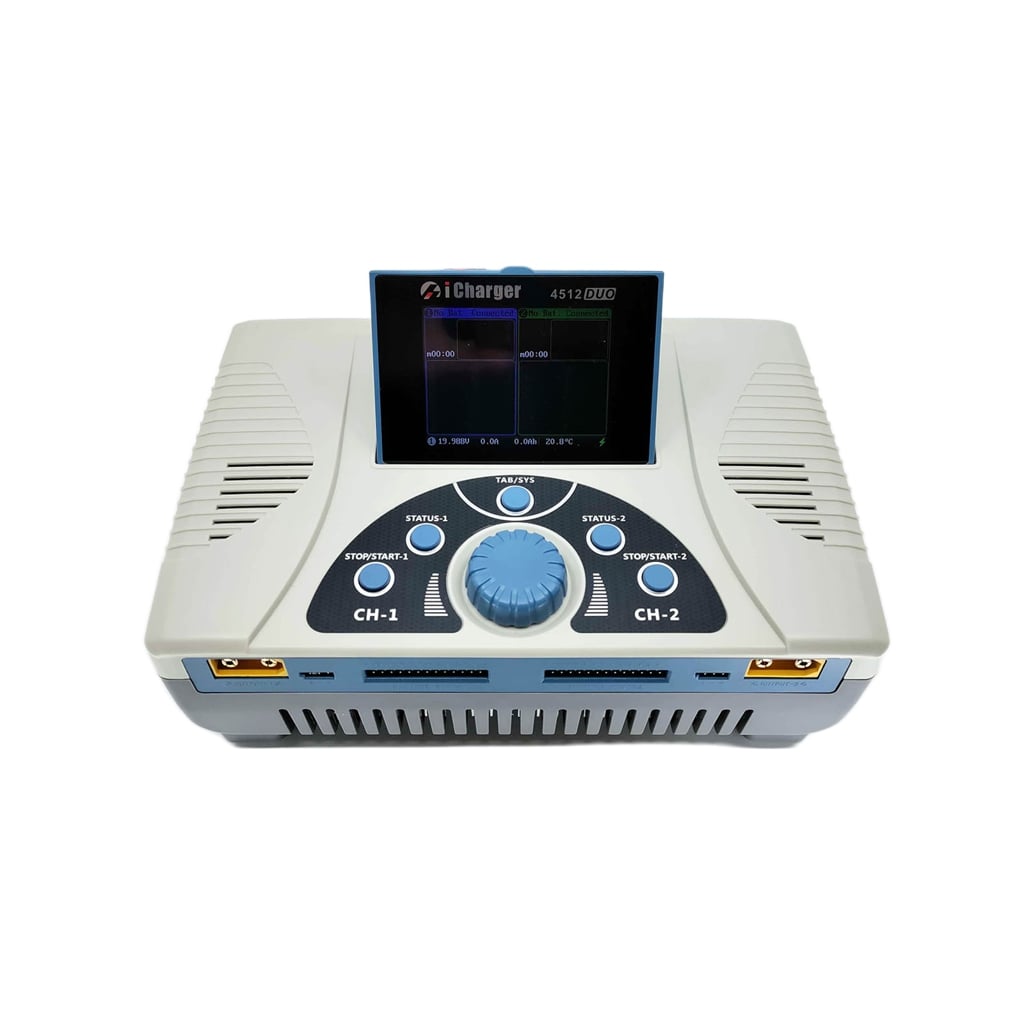

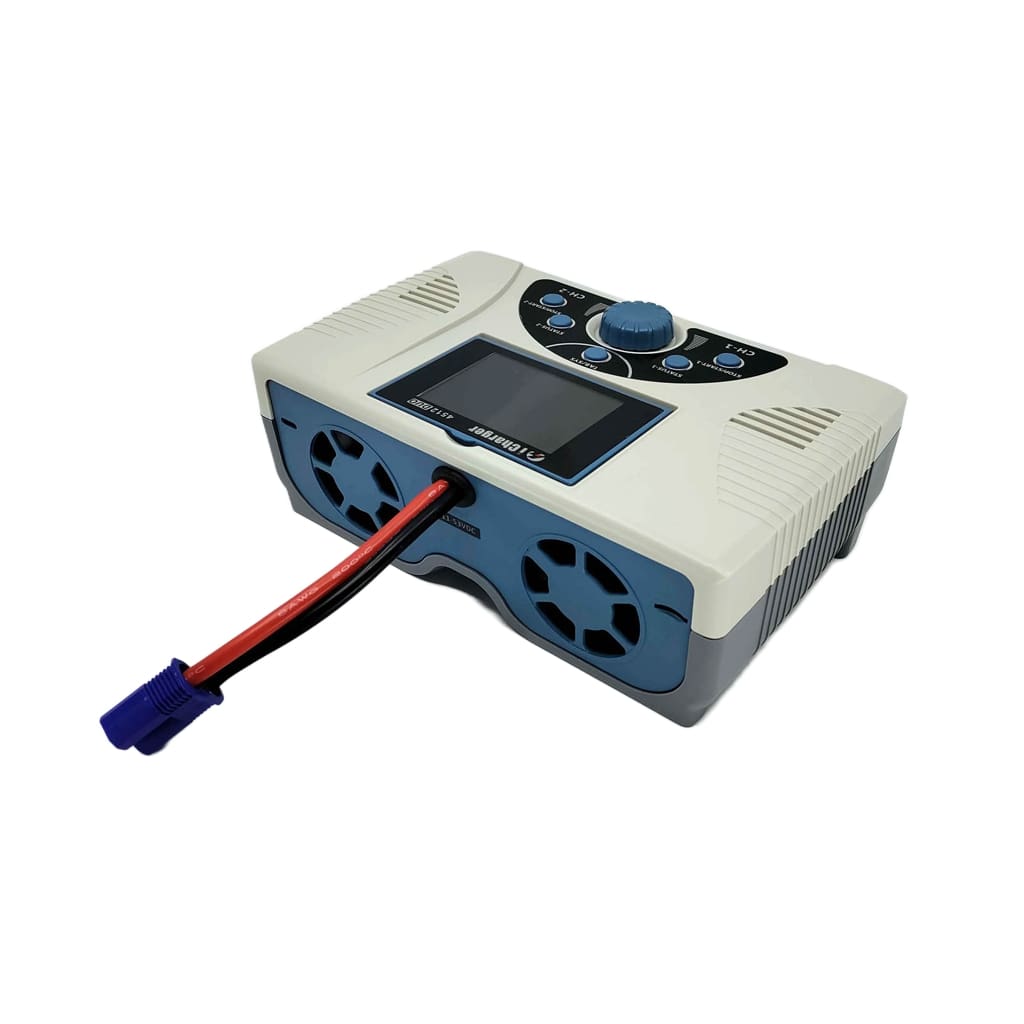

iCharger 4512 Duo 2800W 45A 12s Dual Port Charger
Introducing the latest iCharger 4512Duo, a top-of-the-line charger designed for exceptional performance. With a remarkable 45A charge rate and an impressive total output of 2800W, this model has evolved from its 4010Duo predecessor.
The 4512Duo boasts upgraded connections on both input and output to effortlessly handle higher current levels. Featuring innovative open-port style balance connections, it eliminates the need for separate balance boards. The charger also sports a sleek IPS display, enhanced temperature ports, a USB-C fast-charge port, and more!
Experience the unmatched quality of an iCharger, coupled with the convenience of a dual-port design. This compact unit offers two independent charging channels, allowing simultaneous charging of batteries with different cell counts at up to 45A per channel. For those seeking maximum power, combine both channels to charge at an impressive 70A!
Charge Power (Max) 2800W (2000W per channel)
Charge Current Range 0.1-45A per channel (80A in sync mode)
Discharge (Max) 200W (130W per channel)
External Discharge (Max) 2800W (2000W per channel)
Regenerative Discharge (Max) 2800W (2000W per channel)
Discharge Current Range 0.1-45A (80A in sync mode)
Balance Current 2A per channel
Maximum Output Voltage 40V DC
Input Voltage 11-53V DC
Input Current Limit 80A
Input Connector Female EC8 (female housing, male bullets)
Main Charge Connector Female XT90 (female housing, male bullets)
Balance Connector 12S JST-XH (open-port connection for 2S-12S)
Supported Battery Types LiPo, LiHV, Li-Ion, LiFe, LTO, NiZn, NiMH, NiCd, Pb
USB Charge Type-C Charge Port: 5V/3A, 9V/2A, 12V/1.5A
Warranty 1 year
Dimensions 210x140x80mm
Weight 1530g
