Description

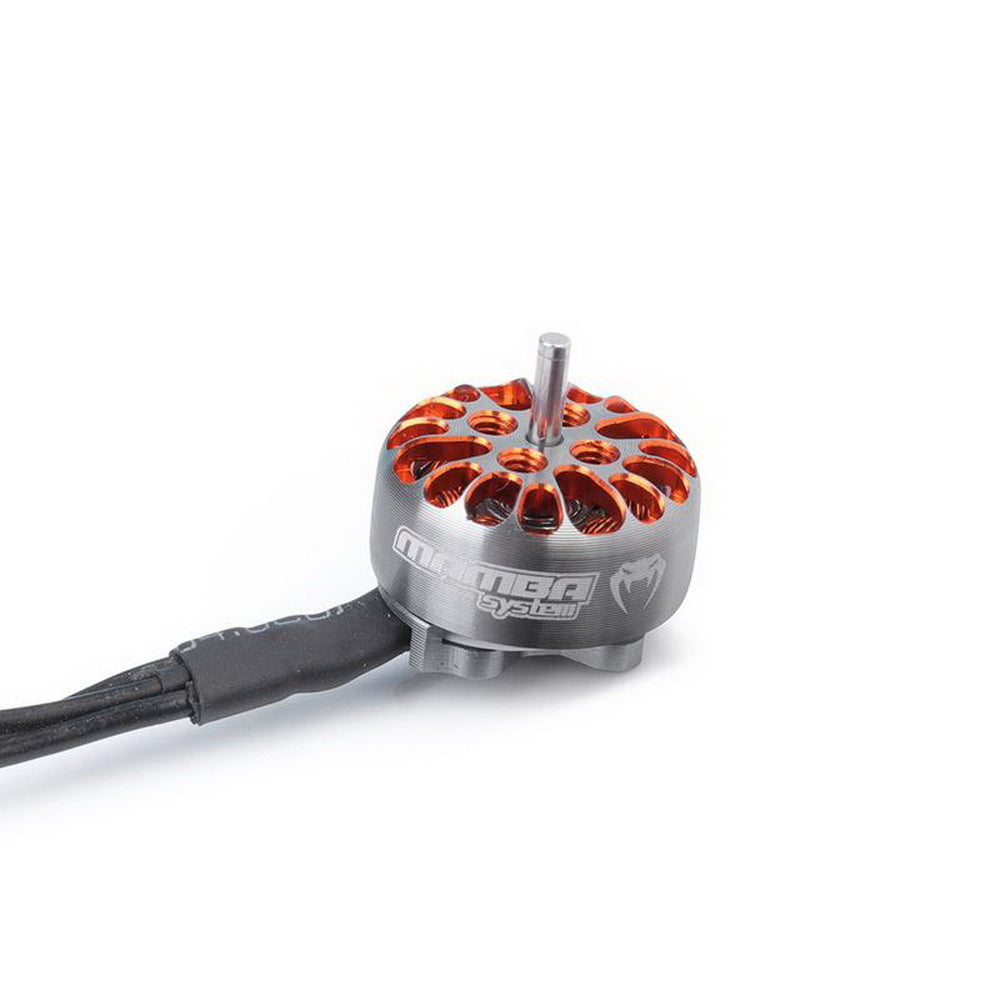

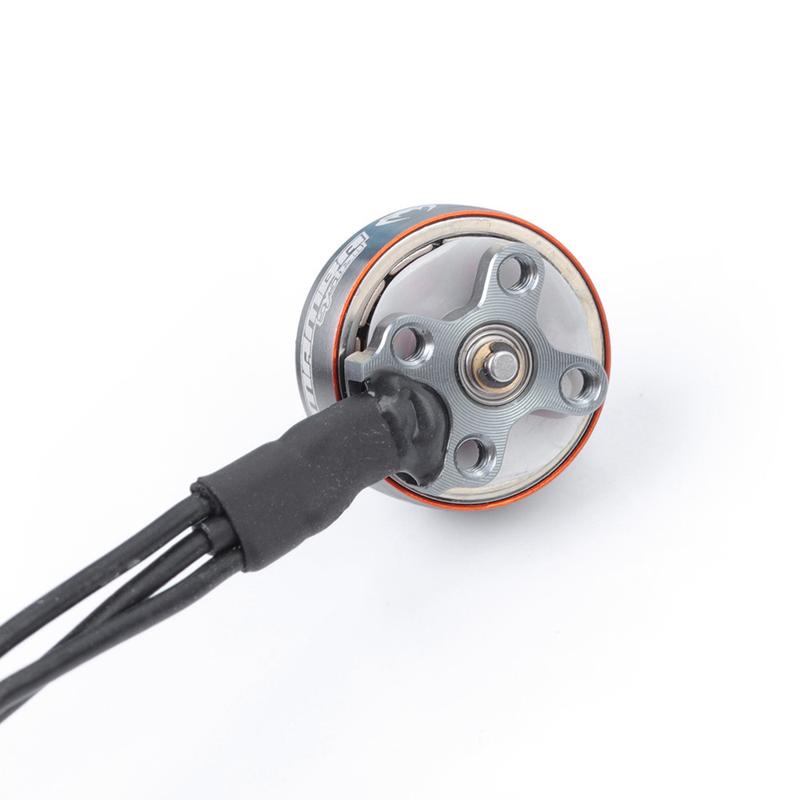

Diatone MAMBA TOKA 1103 8500KV or 10000KV Racing motor

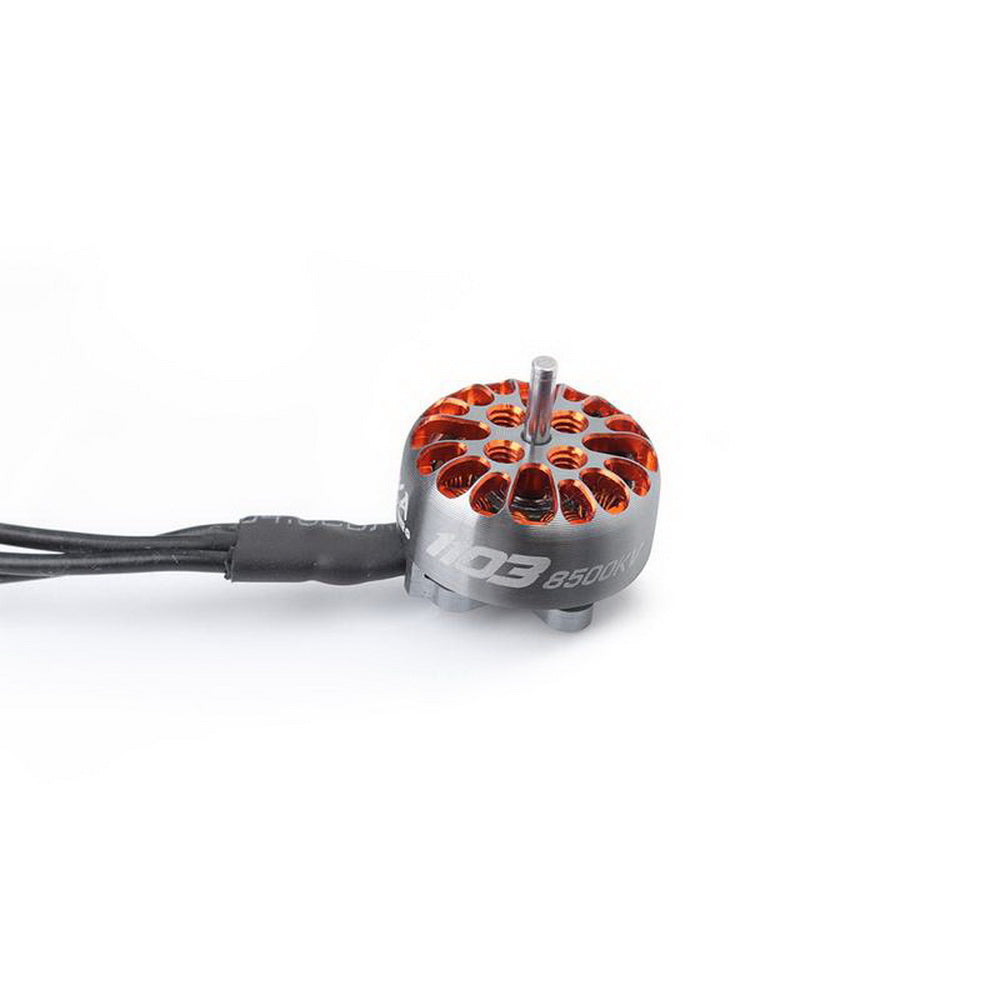

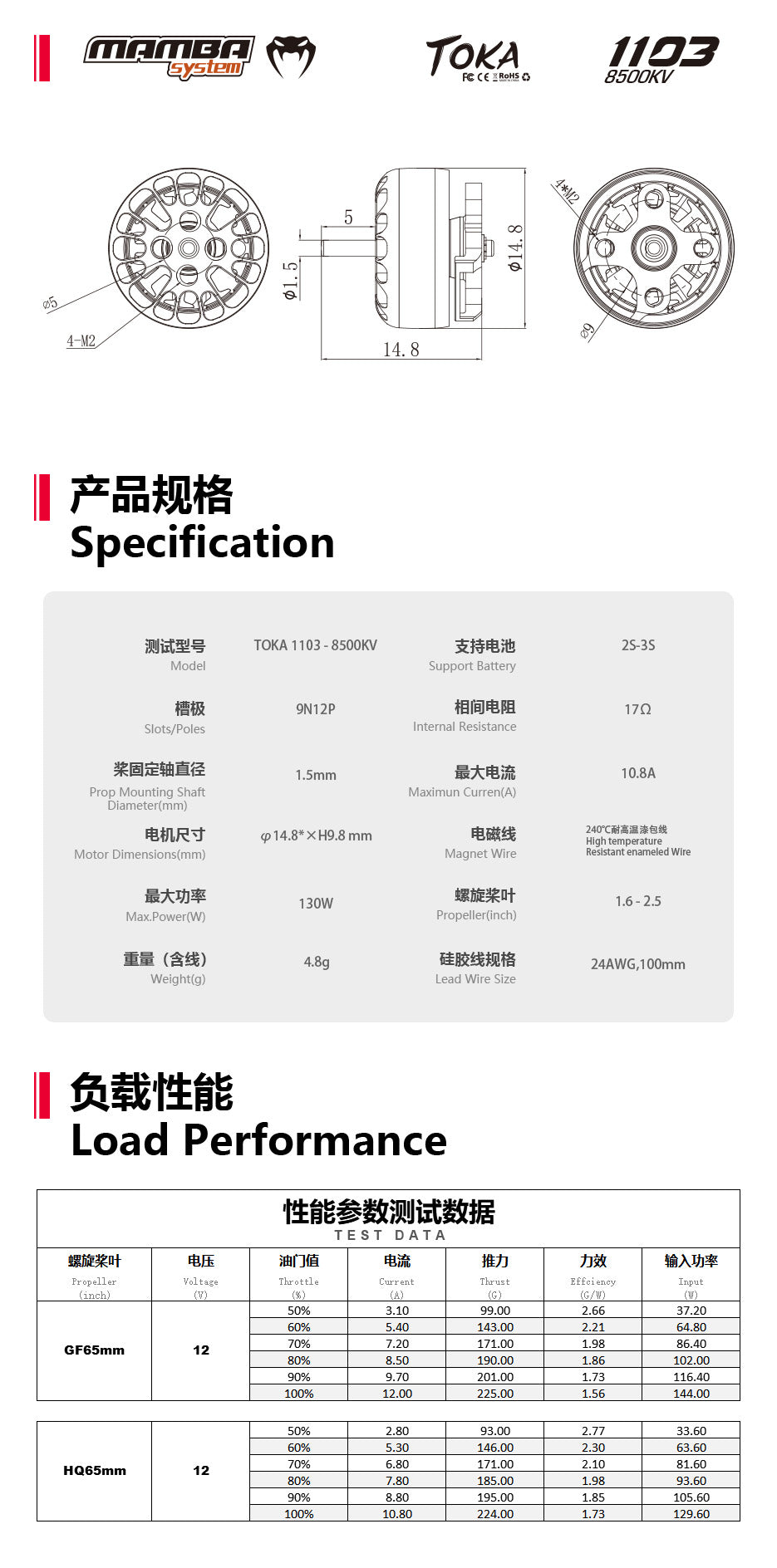

MAMBA TOKA 1103 8500KV Racing motor
Overall Dimension:Φ14.8×9.8mm
prop mounting shaft diameter:1.5mm
Installation hole position: 9×9mm，M2
Prop: 1.6inch~3inch
Bearing：4*1.5*2
Shaft Diameter:1.5mm
Lead Wire Size：24AWG×100mm
slots/poles:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：11mm
Stator Height:3mm
Rated Voltage:2~3S (8.4V~12.6V)
Peak Current: 10.8A
ldle Current：4V/0.42A
Maximum Power: 130W
Internal Resistance：170Ω

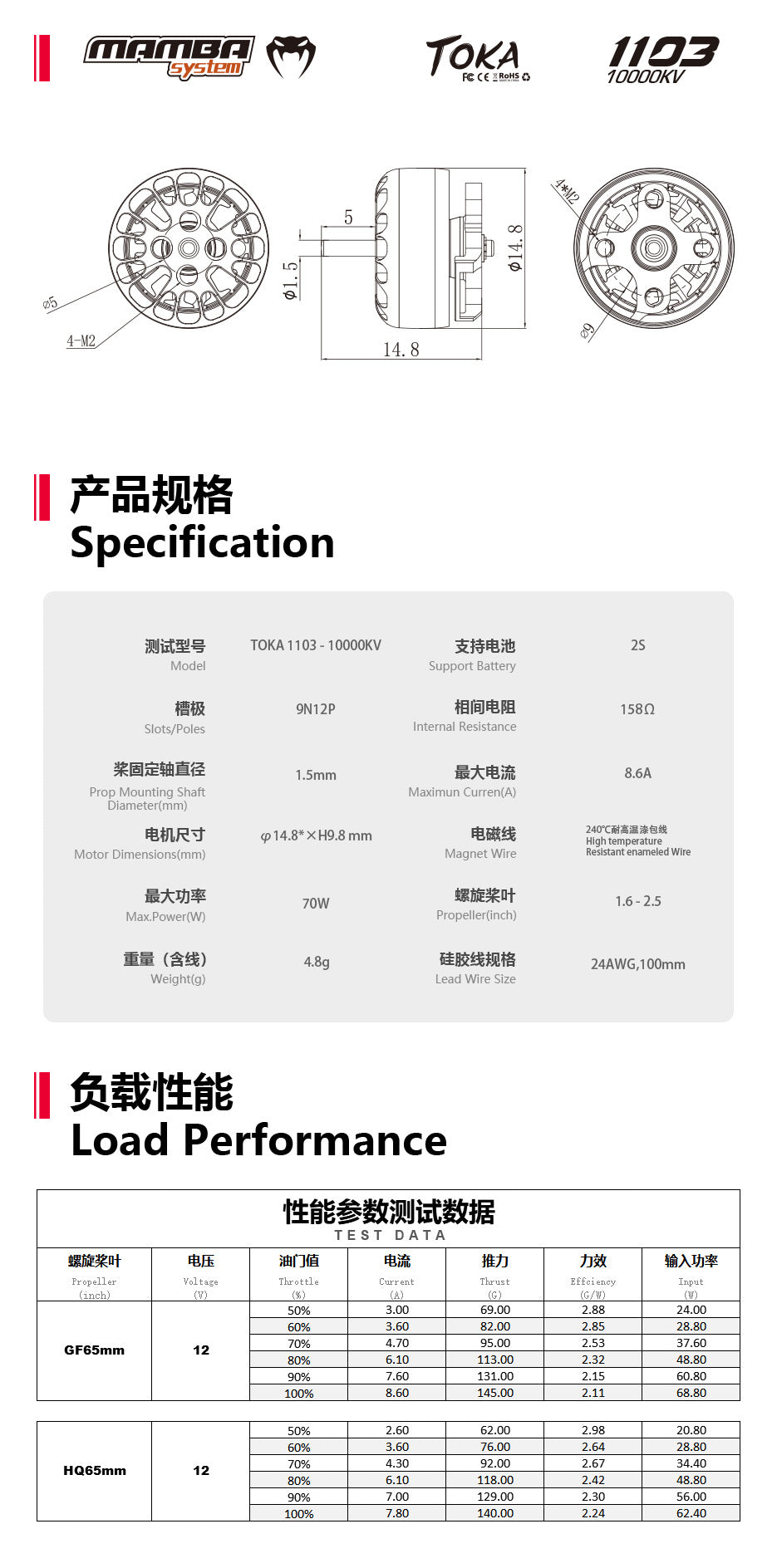

MAMBA TOKA 1103 10000KV Racing motor
Overall Dimension:Φ14.8×9.8mm
prop mounting shaft diameter:1.5mm
Installation hole position: 9×9mm，M2
Prop: 1.6inch~3inch
Bearing：4*1.5*2
Shaft Diameter:1.5mm
Lead Wire Size：24AWG×100mm
slots/poles:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：11mm
Stator Height:3mm
Rated Voltage:2S (8.4V)
Peak Current: 8.6A
idle Current：4V/0.5A
Maximum Power: 70W
Internal Resistance：158Ω
