Description
RadioMaster TX16S MKII Radio Transparent Version MCK Edition with ELRS
Meet the TX16S MKII Radio Transparent edition, a fusion of technology and breathtaking aesthetics, drawing inspiration from MCK. Dive into its clear case design and cutting-edge RGB lighting system, featuring four mesmerizing RGB modes and a selection of five vivid colors. Customize your radio to match your mood or personal style. Express your individuality and creativity with the TX16S MKII Radio Transparent edition!
Features
- Clear Crystal Case and surrounding RGB lights design, experience the Heartbeat of Technology
- CNC metal folding handle, easy to carry and storage
- Updated sticky360 gimbal stick ends to bring you a comfortable, zero-slip experience
- Improved internal circuitry and optimized power supply
- New charge circuitry with integrated reverse-polarity protection
- Optimized charge IC now allows up to 2.2A internal USB-C charge current
- Rear-mounted audio jack provided headphone output
- V4.0 Gimbal improved centering and temperature stability
- Optional high/low rear grips are included for improved ergonomics
- Improved S1/S2 knobs with clear center-detents
- Improved LS/RS Sliders with smoother feel and better center-detents
- Redesigned battery cover for improved battery access
- Retooled body shell with improved fit and finish
- Trainer socket changed to standard TRS 3.5mm socket
- Rear DIY Socket added for personalized mods
- Improved internal plastics for better longevity
- Built-in ExpressLRS Backpack
Specification
- Item: TX16S MKII Radio Transparent Version
- Size: 287x129x184mm
- Weight: 750g (without battery)
- Transmission frequency: 2.400GHz-2.480GHz
- Transmitter module: Internal ELRS (SX1280)
- SD card: Newly updated 512MB card as standard
- Working current: 400mA
- Working voltage: 6.6-8.4v DC
- Radio firmware: EdgeTX
- Module Firmware: ExpressLRS (ELRS)
- Channels: Up to 16 channels (depending on the receiver)
- Display: 4.3-inch TFT full-color touch display with a resolution of 480 * 272
- Gimbal: V4.0 Hall sensor
- Module Bay: JR compatible module bay
- Upgrade method: Supports USB-C online / SD card offline upgrade
Standard FCC Version
- ELRS (FCC) is pre-installed with ExpressLRS ISM FW (Max power is hardware dependent)

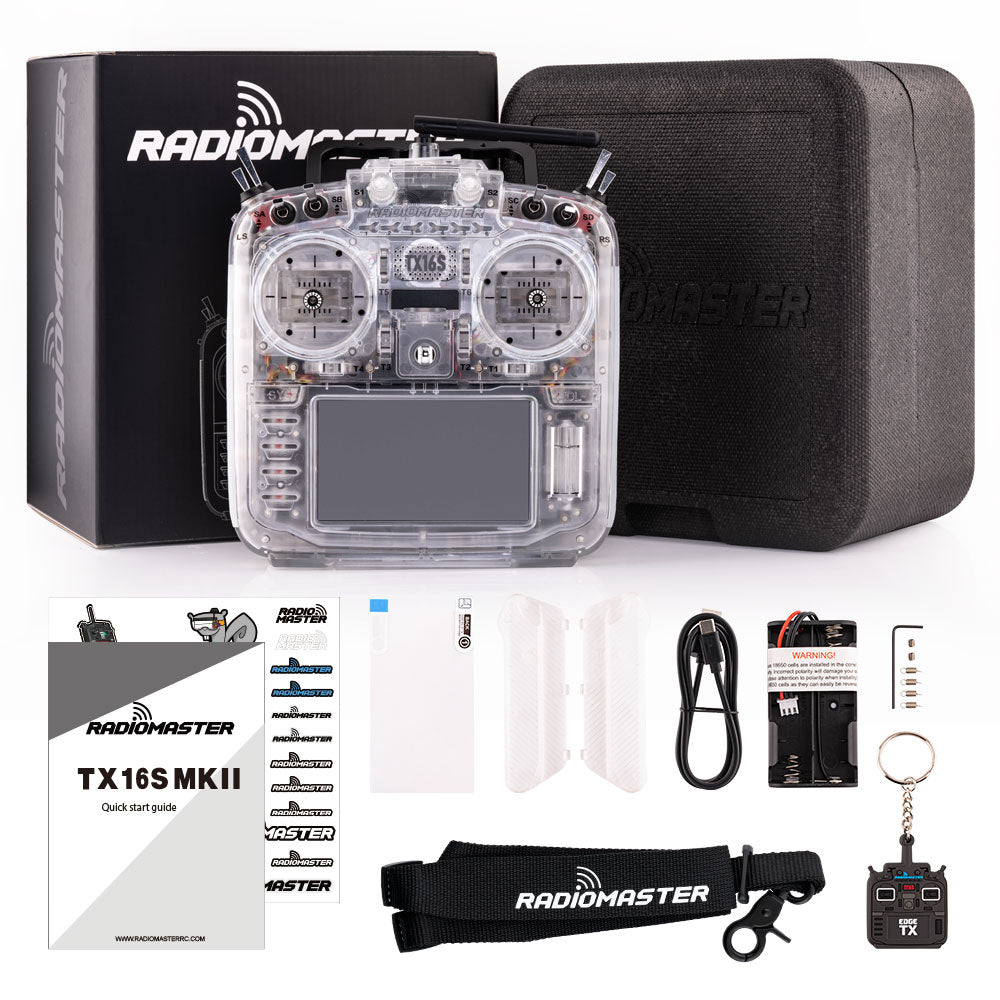

Package Includes
- 1 * TX16S MKII Radio Transparent Version
- 1 * 18650 Tray
- 1 * USB-C Cable
- 1 * Screen Protector
- 4 * Low Tension Springs
- 1 * 1.5mm Allen Key
- 1 pair of flat grips
- 1 pair of raised grips (installed on radio by default)
- 1 * TX16S Key Chain
- 1 * RadioMaster Neck Strap
- 1 * Stickers
- 1 * Manual
