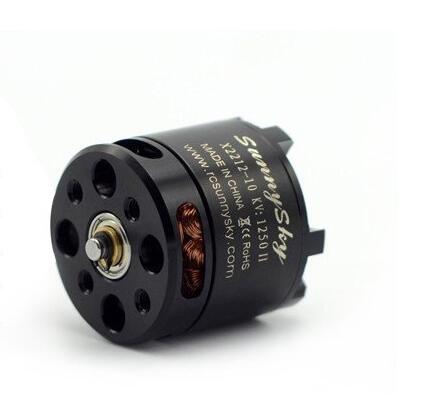

SunnySky X2212 Brushless Motors
Roll over image to zoom in Click on image to zoom
SunnySky X2212 Brushless Motors

SunnySky X2212 Brushless Motors

SunnySky USASKU: SS-X2212-980
KV: 980
Price:
$16.99

Customer Reviews

Based on 7 reviews
71%
(5)
29%
(2)
0%
(0)
0%
(0)
0%
(0)
j
jrs
WOW!

Amazing motor (x2212). Turns a 13x4APCSF on 2s1000mah in a 3dFoamie for 8mins. with no straining and no apparent heating of motor, ESC or batt. Quiet, powerful, responsive to the stick, useful speed range, and .... wait for it ...... WELL MADE! All the machining, assembly, and finishing is very high quality. Plus there is that price advantage. I will buy more SS motors. Further, BuddyRC is an amazing fast shipper and seems to keep all this good stuff in stock.

V
Verne K.
SunnySky X2212

Great motor

T
Travis L.
not reliable on 4s

its a good motor, but use 3s only, 4s with a 7 or 8 inch prop will make the motor stop, im currently running it 3s with an 8X4 on a bixler3 and its great.

D
David B.
SunnySky X2212-2450Kv motor

I bought the SunnySky 2212-2450kv motor to replace a Suppo A2212-6 2200kv motor I had on my 1 pound pylon racer. The motor mounting holes are the same for both motors. The SunnySky X2212 weighs 57 grams, versus 47 grams for the Suppo, but the SunnySky motor has a prop hub held on to the rotor case with three screws and it is easy to add a spinner. No collet clamps to slip off here. The Sunny Sky X2212 motors come in many kv ratings and the permissible continuous current (power) varies significantly between them. My SunnySky X2212-2450kv motor turning a EMP 6-4 prop and powered by a 3S-1300 mah 50C Lipo measured 30.8 amps and 375 watts on my watt meter. Significantly more powerful than the Suppo which only pulled 21.9 amps and 255 watts. I only have a dozen flights on the new SunnySky, but so far I am quite glad that I bought three of them instead of just one. My next racer will also use the SunnySky instead of another Suppo I have lying around. So far I am very pleased with the other SunnSky motors I have tried (X2206-1900kv, X2305-V3-1850kv).

M
Matt C.
Happy!

Trusted motors, great value, and they come with all necessary accessories for installation. Only downside is Buddy RCs preferred shipping provider charge excessive handling fees for importing into Canada so the price ends up not-so-good by the time they arrive. Would prefer the option for slower ground shipping via USPS.

12
Download Manual

Description

Specifications: The X series motors are CNC-milled and feature a hollow-designed appearance that ensures efficient heat dissipation and reduces the motor's weight. The unique design also gives the motors a strong and sturdy appearance.

Stainless steel solid shaft: The motor shaft is made of 420 stainless steel imported from Japan and undergoes heat treatment for improved strength, ductility, and resistance to bending and breaking.

6061-T6 aviation aluminum alloy: The top and bottom caps of the motor are made of high-strength 6061-T6 aviation aluminum alloy, which ensures reliable performance and has excellent hardness and tensile strength.

Imported NMB bearings: The X series uses customized NMB mini bearings imported from Japan, which provide longer life, stable operation, and quieter performance for the motors.

Hand-wound: All X motors are hand-wound by skilled staff to create tight and neat coils, resulting in a better coil space factor and increased continuous power output. This manufacturing process requires more labor, but the result is worth it.

KV980
Stator Diameter 22mm Shaft Diameter 3.175mm
Stator Thickness 12mm Body Length   (Without Shaft) 30mm
No.of Stator Slots 12 Body Length 32mm
No.of Rotor Poles 14 Max Lipo Cell 2-4S
Motor Kv 980 ESC 20A
No-load current 0.3A/10V Recommended Prop(inch) APC8038/APC9047/APC1047/GWS8043/APC8038
Motor Resistance 133mΩ Weight for training airplane 650g (3S 1047)
Max Continuous Current 15A/30s Single weight for multirotors 300g (3S 1038\1047)
Max Continuous Power 300W Single weight for multirotors 400g (4S 8038\8043\8045\9047)
Weight

58.5g

 Weight for 3D airplane 450g (3S 1038\1047)
Rotor Diameter

27.5mm





Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
APC9047 11.1 0.9 100 9.99 10.01001001 52°
2.1 200 23.31 8.58000858
3.6 300 39.96 7.507507508
5.2 400 57.72 6.93000693
7.1 500 78.81 6.344372542
9.2 600 102.12 5.875440658
10 650 111 5.855855856
14.8 0.7 100 10.36 9.652509653
1.6 200 23.68 8.445945946
2.8 300 41.44 7.239382239
4.2 400 62.16 6.435006435
5.5 500 81.4 6.142506143
7.2 600 106.56 5.630630631
8.9 700 131.72 5.314303067
10.9 800 161.32 4.959087528
13 900 192.4 4.677754678
14.9 1020 220.52 4.6254308
APC9045 11.1 0.9 100 9.99 10.01001001 52°
2.2 200 24.42 8.19000819
3.6 300 39.96 7.507507508
5.4 400 59.94 6.673340007
6.9 500 76.59 6.528267398
9.2 610 102.12 5.973364669
14.8 0.7 100 10.36 9.652509653
1.7 200 25.16 7.949125596
2.8 300 41.44 7.239382239
4.2 400 62.16 6.435006435
5.8 500 85.84 5.824790308
7.3 600 108.04 5.553498704
8.9 700 131.72 5.314303067
10.7 800 158.36 5.051780753
12.7 900 187.96 4.78825282
14.4 990 213.12 4.64527027
APC1047 11.1 0.7 100 7.77 12.87001287 77°全油门过载
1.8 200 19.98 10.01001001
3 300 33.3 9.009009009
4.6 400 51.06 7.833920877
6.2 500 68.82 7.265329846
8.4 600 93.24 6.435006435
10.8 700 119.88 5.839172506
13 800 144.3 5.544005544
15.5 910 172.05 5.289160128
14.8 0.5 100 7.4 13.51351351
1.3 200 19.24 10.3950104
2.5 300 37 8.108108108
3.8 400 56.24 7.112375533
5.2 500 76.96 6.496881497
6.7 600 99.16 6.050826946
8.5 700 125.8 5.564387917
10.6 800 156.88 5.099439062
13 900 192.4 4.677754678
15.2 1000 224.96 4.445234708
20.2 1150 298.96 3.846668451
GWS8043 14.8 0.7 100 10.36 9.652509653 37°
1.7 200 25.16 7.949125596
2.9 300 42.92 6.989748369
4.3 400 63.64 6.285355123
5.7 500 84.36 5.926979611
7.3 600 108.04 5.553498704
8.8 700 130.24 5.374692875
10 750 148 5.067567568
APC1038 11.1 0.8 100 8.88 11.26126126 53°
1.8 200 19.98 10.01001001
3.2 300 35.52 8.445945946
4.6 400 51.06 7.833920877
6.3 500 69.93 7.15000715
8.3 600 92.13 6.512536633
10.5 700 116.55 6.006006006
13.2 800 146.52 5.46000546
15 890 166.5 5.345345345
APC8038 14.8 0.7 100 10.36 9.652509653 43°
1.8 200 26.64 7.507507508
3 300 44.4 6.756756757
4.4 400 65.12 6.142506143
6 500 88.8 5.630630631
7.9 600 116.92 5.131713992
9.8 700 145.04 4.826254826
11.3 800 167.24 4.783544607
12.5 840 185 4.540540541






KV1250
Stator Diameter 22mm Rotor Diameter 27.5mm
Stator Thickness 12mm Shaft Diameter 3.175mm
No.of Stator Slots 12 Body Length    (Without Shaft) 30mm
No.of Rotor Poles 14 Body Length 32mm
Motor Kv 1250 Max Lipo Cell 2-4S
No-load current 0.6A/10V ESC 30A
Motor Resistance 79mΩ Recommended Prop(inch) APC8060/APC9047/APC9045/APC9060
Max Continuous Current 25A/10s Weight for aerobatics airplane 600g (3S 9047\9060\9045\8060)
Max Continuous Power 390W Weight for 3D airplane 400g (3S 9047\9045)
Weight

58g






Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
APC9047 11.1 0.8 100 8.88 11.26126126 45°
2.1 200 23.31 8.58000858
3.5 300 38.85 7.722007722
5.4 400 59.94 6.673340007
7.4 500 82.14 6.087168249
9.3 600 103.23 5.812263877
11.6 700 128.76 5.436470954
14.1 800 156.51 5.111494473
18.4 990 204.24 4.847238543
APC9060 11.1 0.9 100 9.99 10.01001001 46°
2.3 200 25.53 7.833920877
4 300 44.4 6.756756757
5.7 400 63.27 6.322111585
7.7 500 85.47 5.85000585
10.3 600 114.33 5.247966413
12.6 700 139.86 5.005005005
15.3 800 169.83 4.710592946
18.4 900 204.24 4.406580494
20.9 1000 231.99 4.310530626
APC9045 11.1 1 100 11.1 9.009009009 42°
2.2 200 24.42 8.19000819
3.8 300 42.18 7.112375533
5.3 400 58.83 6.799252082
7.5 500 83.25 6.006006006
9.3 600 103.23 5.812263877
11.5 700 127.65 5.483744614
13.9 800 154.29 5.185041156
17.7 950 196.47 4.835343818
APC8060 11.1 1.2 100 13.32 7.507507508 65°
3 200 33.3 6.006006006
5.1 300 56.61 5.299417064
7.3 400 81.03 4.936443293
10 500 111 4.504504505
13 600 144.3 4.158004158
16 700 177.6 3.941441441
17 730 188.7 3.868574457
14.8 0.9 100 13.32 7.507507508
2.2 200 32.56 6.142506143
3.8 300 56.24 5.33428165
5.8 400 85.84 4.659832246
8.1 500 119.88 4.170837504
10.5 600 155.4 3.861003861
12.8 700 189.44 3.695101351
15.7 800 232.36 3.442933379
19 900 281.2 3.20056899
22.2 1000 328.56 3.043584125
26.4 1130 390.72 2.892096642





KV1400
Stator Diameter 22mm Rotor Diameter 27.5mm
Stator Thickness 12mm Shaft Diameter 3.175mm
No.of Stator Slots 12 Body Length    (Without Shaft) 30mm
No.of Rotor Poles 14 Body Length 32mm
Motor Kv 1400 Max Lipo Cell 2-4S
No-load current 0.9A/10V ESC 30A
Motor Resistance 65mΩ Recommended Prop(inch) APC9047/APC9045/APC8060/APC8038/APC7060
Max Continuous Current 28A/15s Weight for aerobatics airplane 600g (3S 9047\9045\8060) (4S 7060)
Max Continuous Power 365W
Weight

59g






Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
APC9047 11.1 0.8 100 8.88 11.26126126 55°
2.1 200 23.31 8.58000858
3.7 300 41.07 7.304601899
5.4 400 59.94 6.673340007
7.4 500 82.14 6.087168249
9.8 600 108.78 5.515719801
11.8 700 130.98 5.344327378
14.4 800 159.84 5.005005005
17 900 188.7 4.769475358
20.1 1000 223.11 4.482094034
22.1 1070 245.31 4.361827891
APC8038 11.1 0.9 100 9.99 10.01001001 42°
2.2 200 24.42 8.19000819
4.2 300 46.62 6.435006435
6.1 400 67.71 5.907546891
8.2 500 91.02 5.493298176
10.5 600 116.55 5.148005148
13.1 700 145.41 4.81397428
15.9 800 176.49 4.532834722
20.2 950 224.22 4.236910178
APC9045 11.1 1 100 11.1 9.009009009 47°
2.3 200 25.53 7.833920877
3.9 300 43.29 6.93000693
5.7 400 63.27 6.322111585
7.7 500 85.47 5.85000585
10 600 111 5.405405405
12.1 700 134.31 5.211823394
14.8 800 164.28 4.869734599
17.3 900 192.03 4.686767693
20.7 1000 229.77 4.352178265
22.5 1080 249.75 4.324324324
APC8060 11.1 1.2 100 13.32 7.507507508 43°
3.2 200 35.52 5.630630631
5.4 300 59.94 5.005005005
7.8 400 86.58 4.62000462
10.4 500 115.44 4.331254331
13.3 600 147.63 4.064214591
16.8 700 186.48 3.753753754
22 830 244.2 3.398853399
APC7060 11.1 1.5 100 16.65 6.006006006 46°
3.8 200 42.18 4.741583689
6.6 300 73.26 4.095004095
9.4 400 104.34 3.833620855
12.7 500 140.97 3.546853941
16 600 177.6 3.378378378
14.8 1.3 100 19.24 5.197505198
3 200 44.4 4.504504505
5 300 74 4.054054054
7.6 400 112.48 3.556187767
10.1 500 149.48 3.344929088
13.2 600 195.36 3.071253071
16.2 700 239.76 2.919586253
19.8 800 293.04 2.73000273
24.6 930 364.08 2.554383652





KV2450
Stator Diameter 22mm Rotor Diameter 27.5mm
Stator Thickness 12mm Shaft Diameter 3.175mm
No.of Stator Slots 12 Body Length    (Without Shaft) 30mm
No.of Rotor Poles 10 Body Length 32mm
Motor Kv 2450 Max Lipo Cell 2-3S
No-load current 1.6A/10V ESC 40A
Motor Resistance 32mΩ Recommended Prop(inch) APC6040
Max Continuous Current 40A/30s Weight for tail-pushed Aerobatics 550g (3S 6040)
Max Continuous Power 450W
Weight

57g








Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
APC6040 11.1 2.2 100 24.42 4.095004095 50°
4.6 200 51.06 3.916960439
7.2 300 79.92 3.753753754
10.8 400 119.88 3.336670003
14.2 500 157.62 3.172186271
18.3 600 203.13 2.953773446
22.4 700 248.64 2.815315315
28.5 880 316.35 2.781729098




KV3000

Stator Diameter 22mm Rotor Diameter 27.5mm
Stator Thickness 12mm Shaft Diameter 3.175mm
No.of Stator Slots 12 Body Length    (Without Shaft) 30mm
No.of Rotor Poles 10 Body Length 32mm
Motor Kv 3000 Max Lipo Cell 2-3S
No-load current 1.6A/10V ESC 40A
Motor Resistance mΩ Recommended Prop(inch) APC6040
Max Continuous Current 40A/30s Weight for tail-pushed Aerobatics 550g (3S 6040)
Max Continuous Power 450W
Weight

57g







Prop(inch)
Voltage(V)
Amps(A)
Thrust(gf)
Watts(W)
Efficiency(g/W)
Load temperature in 100% throttle
0.0 27.7 0.38 0.00000000
0.0 27.9 0.34 0.00000000
0.8 64.1 9.94 6.44734920
2.3 156.2 28.34 5.51235332
Gemfan 6x3x2 11.1 4.6 278.7 56.81 4.90556165
7.7 415.5 94.75 4.38493495
11.5 560.4 140.33 3.99331485
16.1 706.8 195.00 3.62472348
22.1 868.3 263.22 3.29871163
29.1 1021.4 342.11 2.98554813
30.5 1055.9 356.73 2.95986538                            90F
Voltage(V)
Amps(A)
Thrust(gf)
Watts(W)
Efficiency(g/W)
0.0 14.0 0.35 0
0.0 12.9 0.38 0
0.8 51.6 10.45 4.940995253
GemFan 5x4x3 11.1 2.5 140.9 31.05 4.537518329
5.3 259.9 65.12 3.991561918
9.0 391.7 109.13 3.589338686
13.4 524.5 161.68 3.243757959
19.1 677.6 227.67 2.976271942
26.0 818.6 305.90 2.67593178
34.0 956.1 391.93 2.439540245
35.5 979.3 407.54 2.402967077                             85F



[/TABS]
