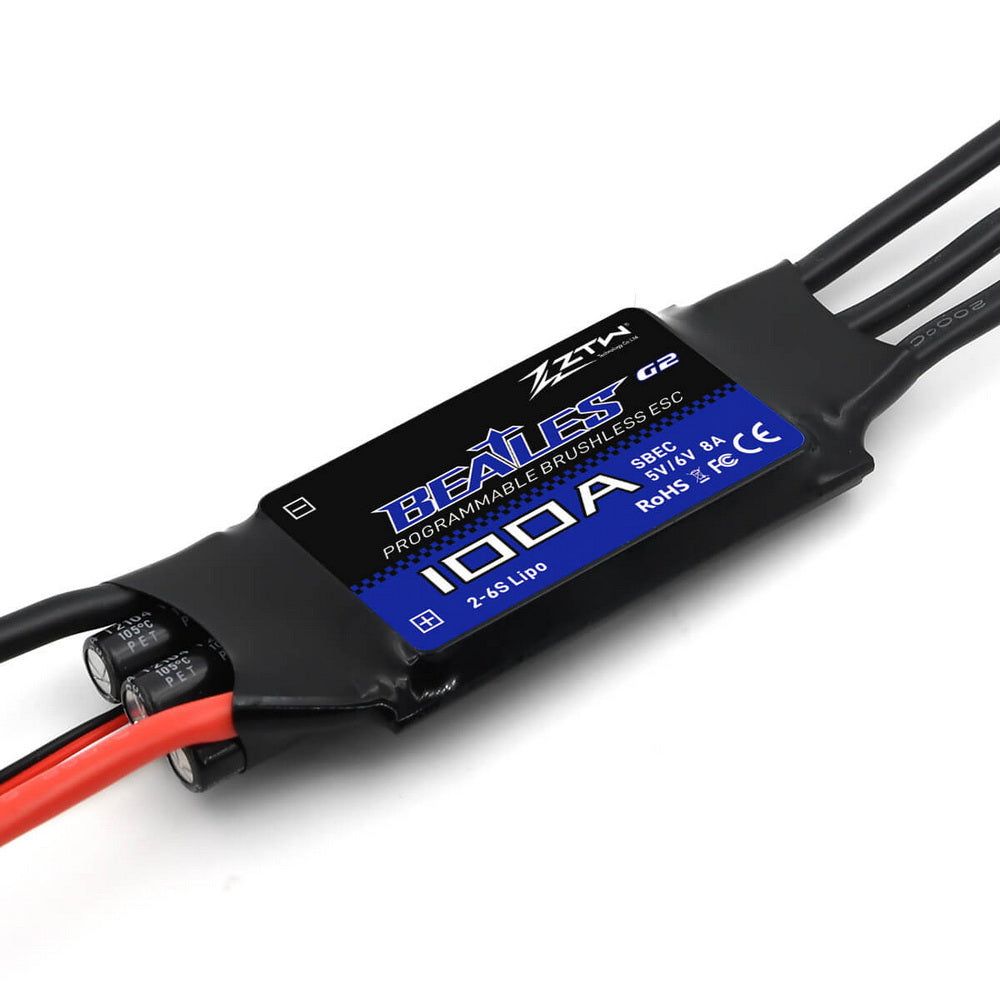

ZTW Beatles 100A SBEC G2 Series ESC for Airplanes
Key Features :
Protections: Phase Loss Protection, Signal Loss Protection, Over-Heat Protection,
Synchronous rectification which with more energy-saving and high efficiency.
Functions programmable : Brake, cut off voltage, soft start, motor direction etc.
Adjustable soft start according to different RPM and Pole Motor.
Supporting High RPM and Pole Motor.
Description :
Size:90mm x 37mm x 10mm (LxWxH).
Battery : 2-6S Lipo / 5-18NC.
Voltage : 7.6V-22.8V.
Current :100A ,peak 120A for 10 seconds.
BEC output : 8A/5V or 6V, peak 18A
Weight : 80g.
Motor Type : Brushless
RPM support：200,000 for 2 P ,82,000 for 6 P,42,000 for 12 P.
Package includes :
ESC x 1
User Manual x 1
Application
RC Airplane with inrunner motor or EDF system.
RC Multicopter multirotor or any other DIY project of industry.
