Castle Creations Mamba Micro X2 16.8V WP Sensored ESC with 1406 1900KV Combo

Castle CreationsSKU: CC-A171-01

Sale price$169.95

Customer Reviews

Be the first to write a review
Download Manual

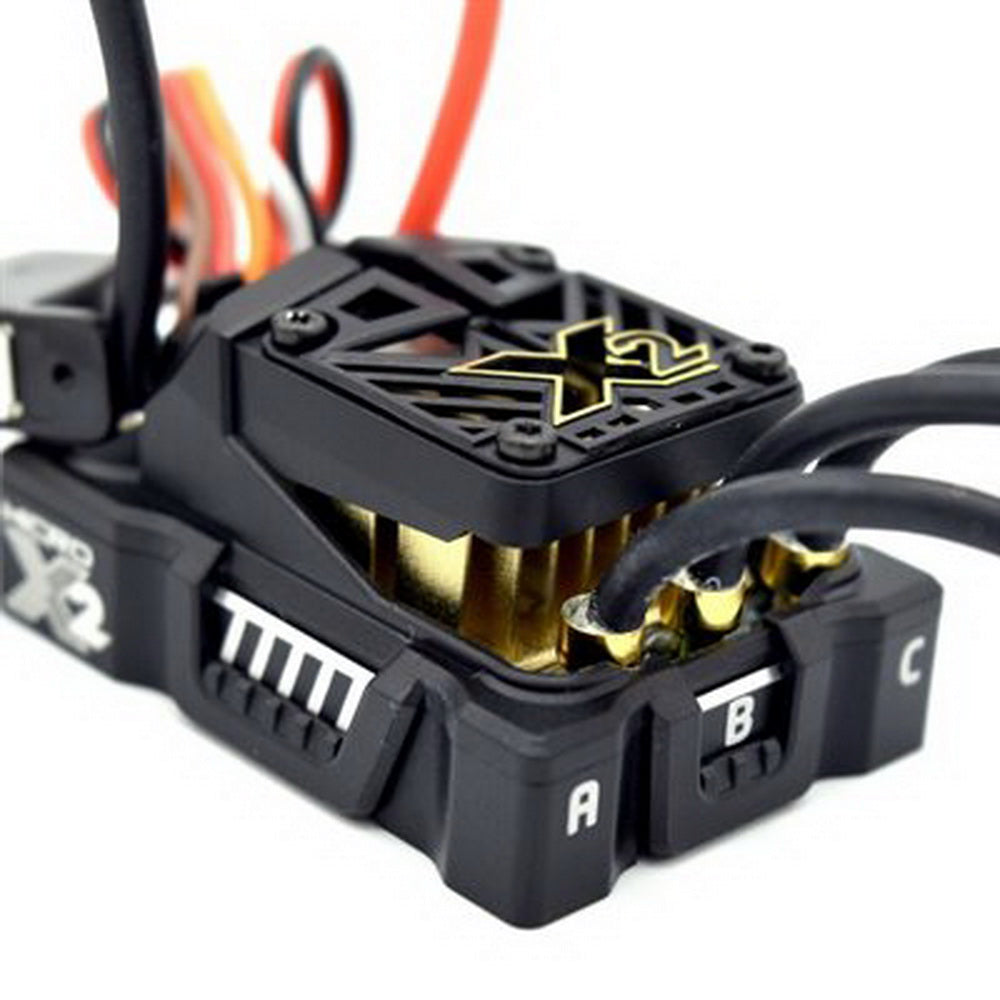

Introducing Extreme Innovation: The Mamba Micro X2!

The Mamba Micro X2 represents an exciting update to our beloved Mamba Micro X. This enhanced ESC now supports a maximum input voltage of 4s, elevating your experience to new heights. We've also integrated DATA LOGGING and introduced our cutting-edge CRYO-DRIVE™ TECHNOLOGY, which ensures the ESC operates at optimal temperatures and efficiency, especially during partial throttle usage. Just like its predecessor, it maintains its waterproof* design and offers full SENSORED MOTOR SUPPORT.

This ESC and Motor Combo is perfect for those who prioritize weight and space constraints, making it an excellent choice for 1:10 scale low-speed rock crawlers and trail runners powered by 3S-4S batteries and weighing under 8lbs. It can also excel in more aggressive setups within lighter 1:10 scale touring cars, stadium trucks, or buggies weighing up to 5lbs.

Important Product Update as of June 14, 2023: The internal BEC is making a comeback! All Micro X2s produced on or after June 2023 will once again feature the internal BEC. You can easily identify the manufacturing date on the ESC box's side or the ESC's receiver wire. ESCs manufactured between August 2022 and May 2023 do not include an internal BEC but come with an external 10-amp CC BEC; for further details, please refer to this link.

For those seeking a more aggressive setup in heavier rigs, such as rock racing and extended hill climbing, we recommend using the Mamba X ESC. Similar to its predecessor, it boasts enhanced features for rock crawling, including active drag brake and drag brake ramp.

Notable Features:

  • Input Voltage range: 2S-4S
  • Waterproof design
  • Sensored Motor capable
  • Convenient transmitter programming for six commonly adjustable settings.
  • Additional settings and software updates accessible via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App and a B-LINK Bluetooth Adapter (sold separately)
  • Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX, and T7PXR transmitters)
  • Auxiliary Wire Functionality allowing "on-the-fly" adjustments such as Max Power and Max Brake.

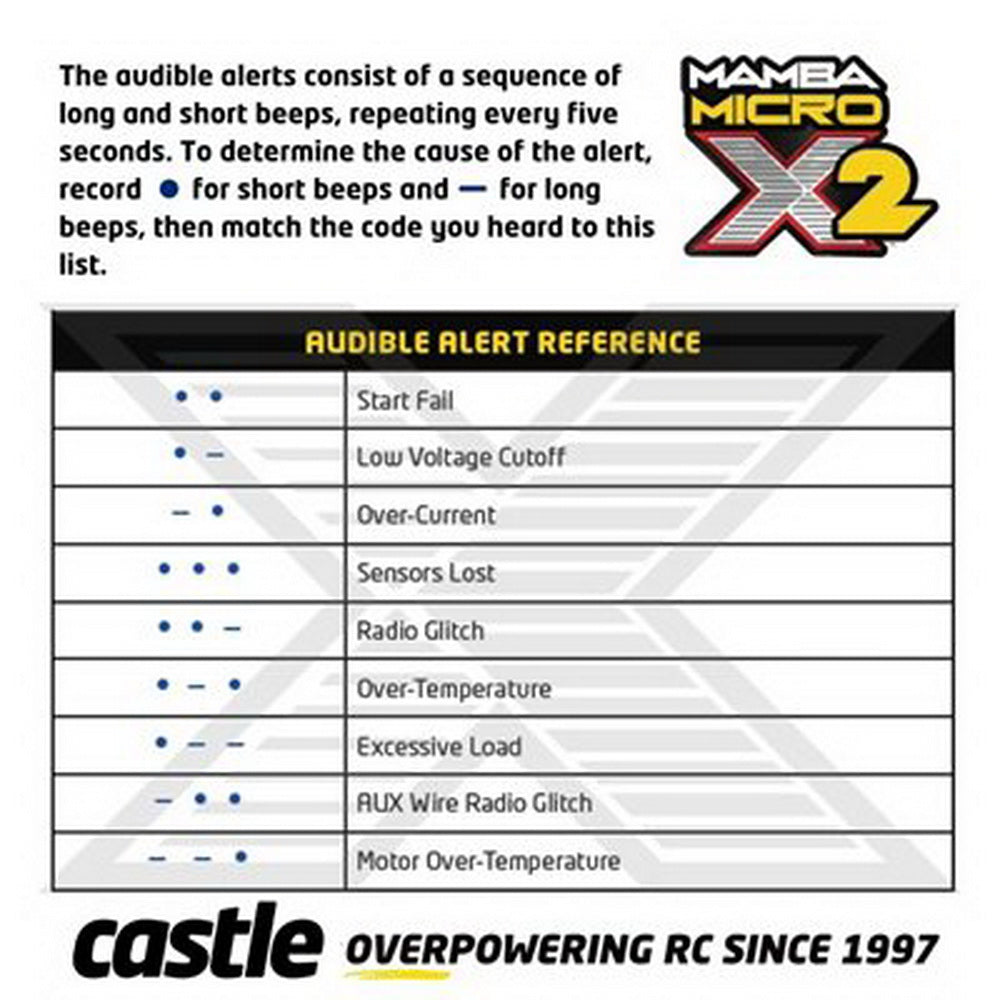

  • Audible Alerts for instant notifications regarding calibrations and error conditions.
  • Crafted and manufactured in Olathe, Kansas, backed by our reliable 1-year warranty.

Your Mamba Micro X2 w/1406-1900Kv Purchase Includes:

  • Mamba Micro X2 ESC with 4mm Connectors
  • 1406-1900Kv Sensored Motor
  • Sensor Harness
  • Coupon for a complimentary Castle Link USB adapter
  • Driver's Ed and Quick Start Guide
  • Castle Decals
Technical Specs Mamba Micro X2 ESC
Input Voltage Range: 2S-4S LiPo (16.8V Max)
BEC Specifications: 2A Peak, 5.5v or 7.5v (5.5v default)
Operating Environment: Waterproof* design allows for use in nearly any environment; included CC BEC is not waterproof.
Brake: Proportional
Reversible: Yes, but may be disabled
On/Off Switch: Yes, waterproof
Cooling Fan: Coming soon, uses 25mm size fan
Size (L x W x H): 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")
Weight (with wires): 1.66 oz / 47 grams
Connectors: 4.0 mm bullets
Items Needed for Operation: Battery Connector required: Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended.
Product Use Statements:
  • Applying voltages higher than 16.8 volts will cause irreparable damage to your controller, voiding your warranty.
  • Recommended battery capacity for 1:18 scale vehicles is 1500mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
  • Mamba Micro X has 4.0mm bullet connectors on the motor wires and the battery input wires are bare. You must add the connector of your choice to the battery leads. We recommend a high current connector rated for at least 40 amps.
Programmability: Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters.
Tech Notes:
*Although the Mamba Micro X2 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

Technical Specs 1406-1900Kv Sensored Motor
Input Voltage Range: 3S-4S LiPo
Kv: 1900
Max. RPM: 100,000
Size: Length: 49.5mm
Diameter: 36mm
Weight (w/wires): 197 g / 6.9oz
Shaft Size: Length: 15mm
Diameter: 1/8" (3.17mm)
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional - Coming Soon
Connectors: 4mm male Castle Bullet Connectors attached to replaceable 13 gauge wire; includes 210mm length sensored wire.
Application Guidelines: Ideal for 1:10 scale low speed rock crawlers/trail runners on 3S-4S weighing less than 8lbs. Can also be used in more aggressive setups in lighter 1:10 scale touring cars, stadium trucks or buggies weighing up to 5lbs.
Max. Recommended Vehicle Weight: 8lbs when used for low speed/moderate driving style like rock crawling and trail running;
5lbs for more racing and aggressive driving styles.
Tech Notes:

Running modes: SmartSense™ Sensored and an ultra-efficient Sensorless mode.

If running on 4s, and using two 2s LiPos in series, please refer to this BEC wiring diagram.

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommends applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
