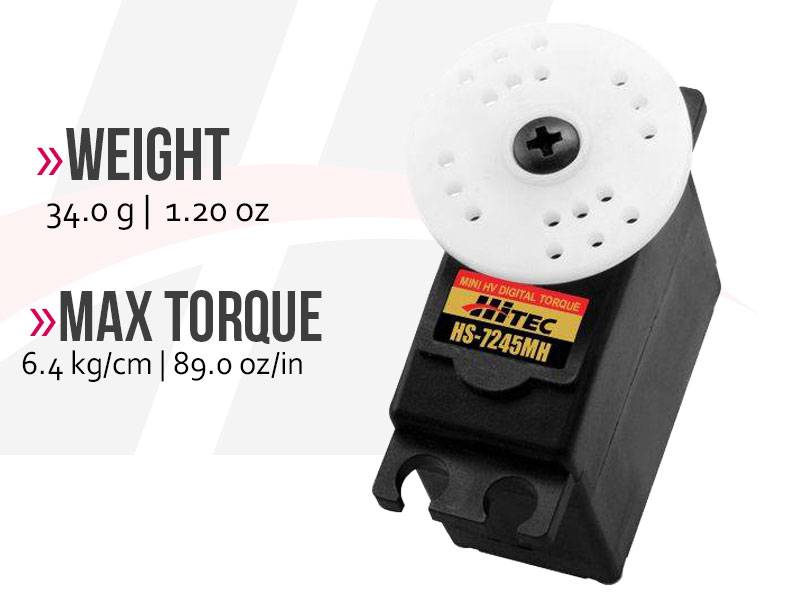

Hitec HS-7245MH High Voltage, High Torque, Metal Gear, Coreless Mini Servo

HitecSKU: HS-7245MH

Price:
Sale price$76.99

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Download Manual

Description

Product Description

Watch out, here it comes! Our new high voltage, coreless HS-7245MH servo delivers exceptional speed and torque in a compact package. Built with an efficient coreless motor optimized for 7.4V operation and heavy-duty metal gear train with dual ball bearings, this high-end mini servo delivers unbridled performance just like its brother, the HS-7235MH.

Whether you are flying mid-size gas and electric airplanes, 500-550 electric helis, or driving 1/12th scale on-road racers and 1/18th scale rock crawlers, the full-size muscle of this servo will make you the master of your RC domain.



Features

  • Our Best High Speed Mini Servo
  • Efficient Coreless Motor
  • Heavy Duty Metal Gear Train
  • Dual Ball Bearing
  • 7.4v 2-Cell LiPo Capability
  • G2.5 Fully Programmable Digital Circuitry

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Overload Protection
  • Resolution
  • Data Save / Load
  • Program Reset

Accessories

  • Metal Gear Set | Link |
  • Metal / Plastic 1st Gear Set | Link |
  • Plastic Case Set | Link |
  • Applicable Horns


HS-7245MH Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 6.0V ~ 7.4V
Speed (Second @ 60°) 0.13 ~ 0.11
Maximum Torque Range oz. / in. 72 ~ 89
Maximum Torque Range kg. / cm. 5.2 ~ 6.4
Current Draw at Idle 12 mA
No Load Operating Current Draw 190 mA
Stall Current Draw 1,600 mA
Dead Band Width 2 µs
Physical Specifications
Dimensions (Inches) 1.28 x 0.66 x 1.29
Dimensions (Metric) 32.4 x 16.8 x 32.8
Weight (Ounces) 1.20
Weight (Gram) 34.0
Circuit Type G2.5 Programable Digital
Motor Type Coreless Metal Brush
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 22 / 60
Radio Control Applications
Parkflyer N / A
Sport Plane 4 - 12 lbs.
Sailplane 2 meters
3D Performance 4 - 12 lbs.
Scale 4 - 12 lbs.
Electric Helicopter 500mm
Gas Helicopter 50-59 Class
On Road 1/12th
Monster Truck N / A
Buggies 1/12th
Truggies N / A
Short Course / Truck N / A
Crawlers N / A
Sail Boat <1 meter
Power Boat N / A
