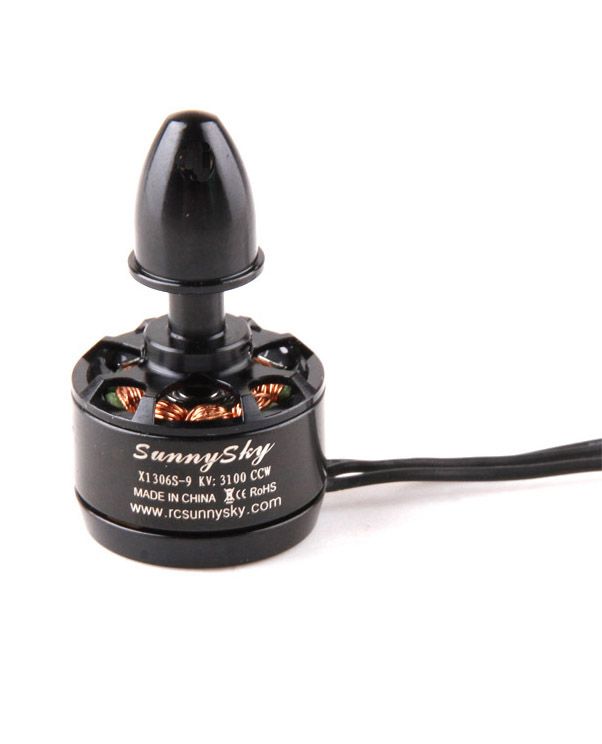

SunnySky X1306S 3100KV Brushless Motor CCW

Save $2.96
SunnySkySKU: SNS-X1306S-3100KV-CCW

Sale price$14.99 Regular price$17.95

Customer Reviews

Based on 2 reviews
John C.
SunnySky x1306s, great little motor!

The sweet x2306s motor has been the heart of my indoor planes for the past 2 years. They are smooth, quiet and powerful. Excellence in motors for sure…wingman John

Tremayne D.
Sunnysky x1306S 3100kv motor

These are good motors and at great price to boot. The come all hardware needed for mounting the motors. The only miss in my book are the thin motor wires, which I'm assuming we're for weight savings. Instead they make the motor look cheap! I've seen motors in the same class with better motor wires incase in silicon.

Download Manual


Please note that this package only includes one SunnySky X1306S 3100KV CCW Brushless motor and does not come with screws or motor mounts. This motor is designed for 200 size multirotors and is compatible with 2S LiPo batteries and 4-6 inch propellers. Each motor has a weight of approximately 11 grams.

Here are the specifications of the motor:

  • Stator Diameter: 13mm
  • Stator Thickness: 6mm
  • Number of Stator Arms: 9
  • Number of Stator Poles: 12
  • Motor KV: 3100
  • No-load Current(A/10V): 0.6A
  • Motor Resistance: 0.28Ω
  • Max Continuous Current: 8A/30S
  • Max Continuous Power: 75W
  • Weight: 11g
  • Outside Diameter: 17.7mm
  • Shaft Diameter: M4
  • Body Length: 14.5mm
  • Overall Shaft Length: 27.5mm
  • Max LiPo Cell: 2S
  • Recommended Propeller Size (inch): 5043
