$249.99
Availability: 66 In Stock
Sku: JNS-DX8

 iCharger DX8 manual

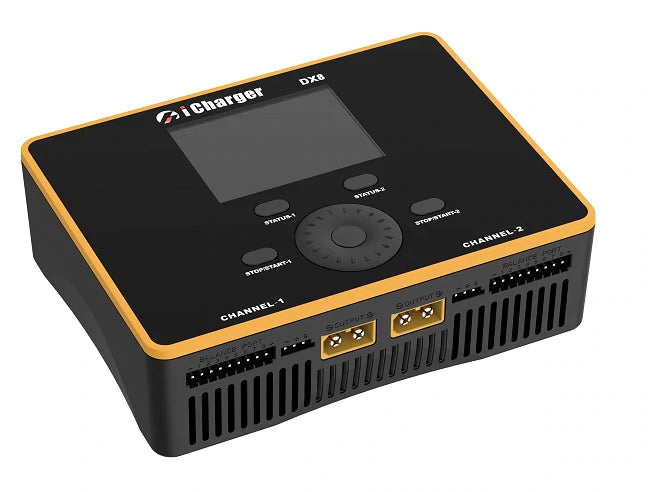

The Junsi iCharger DX8 DC Battery Charger is a high power charger that is capable of charging at up to 1600 watts. Using extreme accuracy, this charger features different balance modes keeping your LiPo batteries fresh and performing at their best. The charger shares the accessible and easy-to-understand user interface found in the other popular Junsi iChargers. Charge at peak performance with the Junsi DX8 charger.

Features:

  • High efficiency synchronous buck boost technology, high power, high current and high efficiency
  • 1600W peak charging power with up to 50A charging and discharging in synchronous mode
  • Supports up to 8S LiPo/LiLo/Life/LIHV/NiZn and LTO batteries, 25-cell NiMH/NiCd batteries and 15-cell Lead-Acid batteries
  • Internal temperature sensors allowing control of the fan speed
  • Thermal shutdown for added protection
  • The DX8 can store up to 64 battery profiles
  • Full color 2.4" LCD display provides: current, voltage, electric quantity, power, internal resistance, control status, consumption time, temperature and more
    One-year manufacturer warranty handled by Buddy RC, a major iCharger distributor since 2009.
Specifications:
Net weight: 440g
Dimension: 97.5x128.5x40mm ±0.5mm
Input Voltage Range: 9-49VDC
Maximum Input Current Limit: 65A
Maximum Charge/Discharge Current: 30A x2 (50A Bridged)
Maximum Charge Power Capacity: 1100W x2 (1600W Bridged)
Maximum Discharge Power Capacity: 45W x2 (70W Bridged)
Maximum Regenerative Discharge Power Capacity: 1100W x2 (1600W Bridged)
Maximum Extra Discharge Power Capacity: 1050W @35V/30A (2100W Bridged)
Maximum Current Drain for Balancing: 2A x2 (4A Bridged)

WARNING NOTE: This charger is not compatible with Traxxas iD equipped LiPo Batteries; only Traxxas iD chargers properly charge Traxxas iD LiPo Batteries. NEVER, UNDER ANY CIRCUMSTANCES, use this charger to charge a Traxxas iD equipped LiPo Battery.

Orders are shipped from Columbus, the capital city of Ohio, USA.

An order placed before 2:00pm Eastern Standard Time will be shipped the same working day.

We ship on Monday-Friday by US postal service (USPS) and UPS, and Saturday morning by USPS if a local post office is open. Any order placed on Saturday morning may or may not be shipped the same day. Orders placed on Sunday and US holidays will be shipped the next working day.

Domestic:

Retail orders above $80 may be eligible for free shipping, including contiguous United States, Alaska, Guam, Hawaii, Puerto Rico, and APO addresses. We will use either USPS or UPS that most packages can be delivered in 3-5 working days, but not guaranteed. However, for packages contain large and heavy items, such as power supply, we may use parcel post service or UPS Surepost that may take up to 7 working days to be delivered.

USPS First Class Mail and Priority Mail, Express Mail, and UPS services can be used for domestic addresses. Tracking number and delivery confirmation will be provided to the customer when they are available. If you have not received a tracking information E-mail, please log into your account and click the "view order" link, then click "Track your order" link to find out the tracking number and ship method.

USPS Priority Mail is typically delivered in 3 working days. But very occasionally a priority mail package may be delayed for several days in the mailing system. If delivery time is extremely critical to your order, we would recommend Priority Mail Express or other couriers.

Domestic First Class Mail is only 1-2 days slower than Priority Mail in delivery. We suggest domestic customers choose First Class Mail for an order under 15 oz to save shipping cost.

Real shipping cost is calculated according to package weight and distance, and can be found in the checkout page after delivery address is specified in the fields.

Any order of $200 and above requires addressee's signature confirmation upon receipt of the package. Please contact us in advance or leave a comment in the message box if you want to waive signature confirmation.

We always check the legality of potential fraudulent orders. This procedure may lead to 1-2 working days delay in shipping in some rare cases.

We do not ship products to shipping forwarding companies. Any order shows this kind of address will be cancelled and refunded without notification.

International:

DHL, DHL Express, US Postal Service (USPS) First Class Mail, Priority Mail, and Express Mail (EMS), and UPS services can be selected for international addresses. Shipping cost is calculated according to package weight and distance, and can be found in the check out process. A package usually takes around 7-10 days to be delivered, or occasionally up to 45 days depending on the processing speed in your country, especially in some countries such as Brazil and Russia.

USPS First Class Mail is a budget shipping method. As soon as a First Class Mail package left USPS Chicago hub there will be no tracking information available. If you need detailed tracking information and timely delivery please do not use this shipping method.

Presently we cannot ship lithium batteries internationally by US Post Service or any other air shipping method. Please select UPS Ground if your order contains LiPo or LiFe battery.

We do not ship products to shipping forwarding companies. Any order shows this kind of address will be cancelled and refunded without notification.

iCharger DX8 Dual Port 8S 1600 Watts Charger
