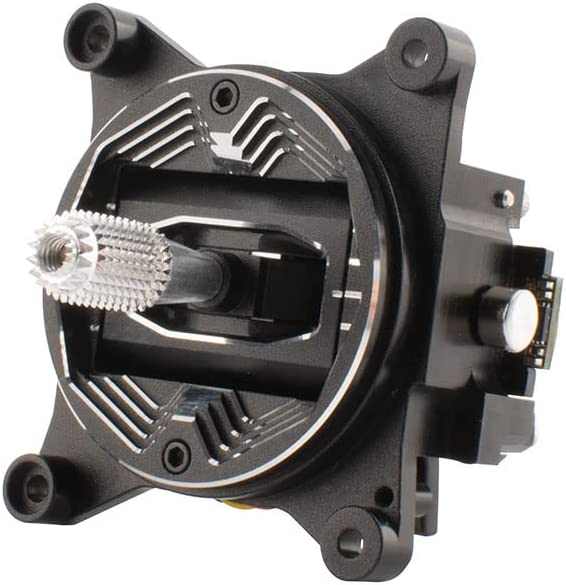

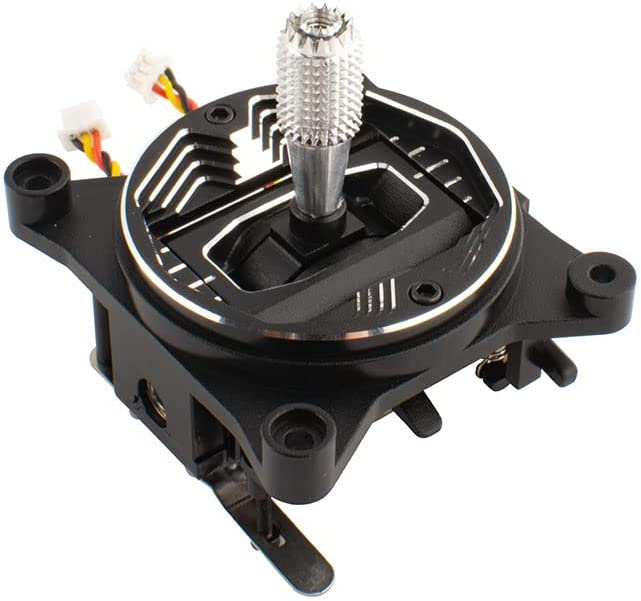

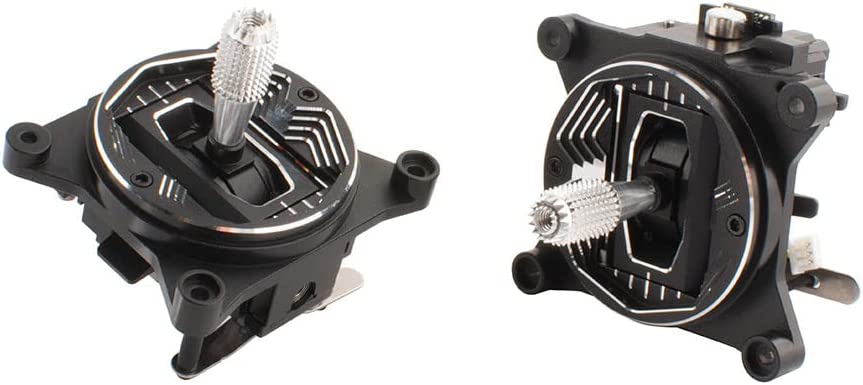

RadioMaster AG01 MINI CNC Hall Gimbals for TX12 & Zorro
The long-awaited AG01 Mini is finally here! Custom designed for the RadioMaster Zorro and TX12, these gimbals allow for unparalleled precision and stick feel.
From the aviation-grade aluminum construction, non-contact hall sensors, and pre-installed Sticky360 Mini Gimbal Sticks, be prepared to revolutionize your compact radio experience!
Key Features
- Made with CNC processed aviation grade aluminum.
- Sticky360 Mini Gimbal Sticks as standard.
- Non contact hall sensors for accurate control inputs and precise centering.
- Quad precision bearings for unparalleled stick feel.
- Adjustable vertical travel angle (Min. 38°, Max. 54°).
- Custom designed for RadioMaster Zorro & TX12.
Specifications
- Name: AG01 Mini CNC Hall Gimbal
- Sensor type: Hall Sensor
- Working voltage: DC 3.3V
- Linearity: Real-time (No delay)
- Adjustable vertical travel range: 38°—54°
- Self-centering adjustment: Yes
- Easy mode adjustment
- Adjustable tension & ratchet: Yes
- Quad bearing: Yes
- Temperature range: -20°C-85°C
- Size: 49*42*48mm
- Weight: 42g(±0.3g)
