Availability: 117 In Stock
Sku: AOK-4003

1. Support battery type: LiPo 3.7V / Li-Hv 3.8V
2. Support battery section: 1Cell
3. USB power supply interface input range: 5V±5% 0.5~2A
4. Battery charging interface voltage output range: 2.50~4.35V 1Cell LiPo or Li-Hv
5. Battery charging interface current output range: 500mA x 4CH USB 5V/2A
6. Battery charging termination voltage: LiPO type 4.20V±0.5%, Li-Hv type 4.35V ±0.5%
7. Battery charging interface power output range: 2.1W x 4CH USB 5V/2A
8. Display mode: 4 green LED indicator lights display three states independently(no batteries, charging, charging complete)
9. Support battery interface: mCPX, MOLEX, JST (model distinction)
10. Product dimensions: 102x22x12mm
11. Product weight: 15g


- USB standard power supply interface, simple operation, plug and play
- Four channels independent charging output, can charge four batteries simultaneously
- Also support lithium battery LiPO and high voltage lithium battery Li-Hv
- Support user key switch LiPO (3.7/4.20V) /Li-Hv (3.8/4.35V)
- The 4 LED lights indicate the charging state of the four channels independently, the charging process is flashing, and the charging is finished.

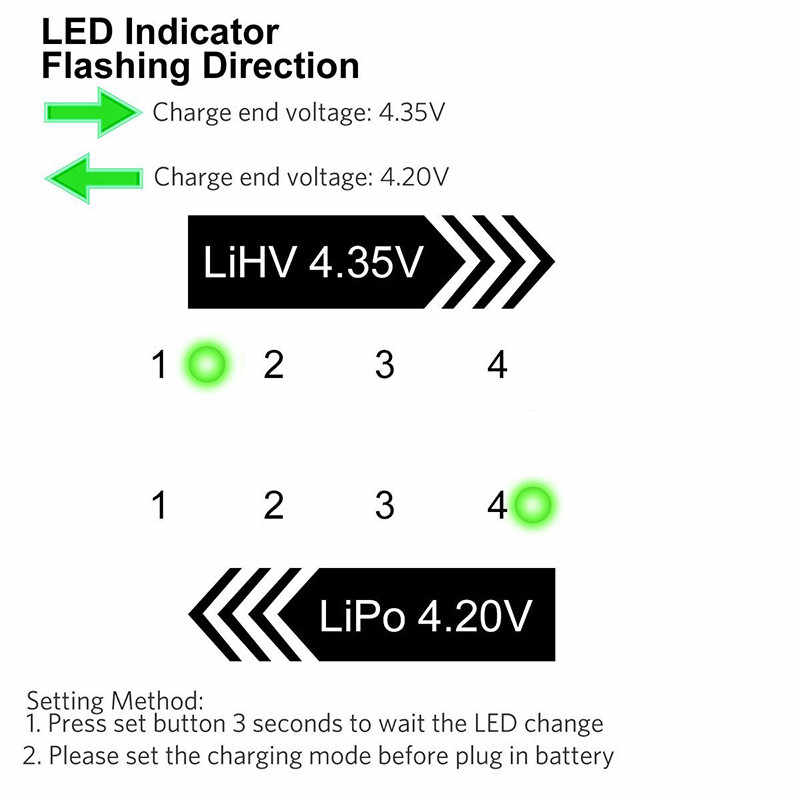

- Intelligent instructions to set the battery type, charging process LED slow flash for LiPO, charging process LED flash for Li-Hv
- Intelligent scanning battery access, no battery access, LED indicates the type of battery settings, from right to left for LiPO, left to right for Li-Hv

Package Included:

Orders are shipped from Columbus, the capital city of Ohio, USA.

An order placed before 2:00pm Eastern Standard Time will be shipped the same working day.

We ship on Monday-Friday by US postal service (USPS) and UPS, and Saturday morning by USPS if a local post office is open. Any order placed on Saturday morning may or may not be shipped the same day. Orders placed on Sunday and US holidays will be shipped the next working day.


Retail orders above $80 may be eligible for free shipping, including contiguous United States, Alaska, Guam, Hawaii, Puerto Rico, and APO addresses. We will use either USPS or UPS that most packages can be delivered in 3-5 working days, but not guaranteed. However, for packages contain large and heavy items, such as power supply, we may use parcel post service or UPS Surepost that may take up to 7 working days to be delivered.

USPS First Class Mail and Priority Mail, Express Mail, and UPS services can be used for domestic addresses. Tracking number and delivery confirmation will be provided to the customer when they are available. If you have not received a tracking information E-mail, please log into your account and click the "view order" link, then click "Track your order" link to find out the tracking number and ship method.

USPS Priority Mail is typically delivered in 3 working days. But very occasionally a priority mail package may be delayed for several days in the mailing system. If delivery time is extremely critical to your order, we would recommend Priority Mail Express or other couriers.

Domestic First Class Mail is only 1-2 days slower than Priority Mail in delivery. We suggest domestic customers choose First Class Mail for an order under 15 oz to save shipping cost.

Real shipping cost is calculated according to package weight and distance, and can be found in the checkout page after delivery address is specified in the fields.

Any order of $200 and above requires addressee's signature confirmation upon receipt of the package. Please contact us in advance or leave a comment in the message box if you want to waive signature confirmation.

We always check the legality of potential fraudulent orders. This procedure may lead to 1-2 working days delay in shipping in some rare cases.

We do not ship products to shipping forwarding companies. Any order shows this kind of address will be cancelled and refunded without notification.


DHL, DHL Express, US Postal Service (USPS) First Class Mail, Priority Mail, and Express Mail (EMS), and UPS services can be selected for international addresses. Shipping cost is calculated according to package weight and distance, and can be found in the check out process. A package usually takes around 7-10 days to be delivered, or occasionally up to 45 days depending on the processing speed in your country, especially in some countries such as Brazil and Russia.

USPS First Class Mail is a budget shipping method. As soon as a First Class Mail package left USPS Chicago hub there will be no tracking information available. If you need detailed tracking information and timely delivery please do not use this shipping method.

Presently we cannot ship lithium batteries internationally by US Post Service or any other air shipping method. Please select UPS Ground if your order contains LiPo or LiFe battery.

We do not ship products to shipping forwarding companies. Any order shows this kind of address will be cancelled and refunded without notification.

AOKoda 4in1 CX405 4CH PH2.0 Multi Micro USB Lipo Battery Charger

Customer Reviews

Based on 1 review
Christopher L.
Charges very slowly

It is very picky about power supply. A smart samsung wall wart charger with variable current and voltage will not work. A 5A 2A charger doesnt work. A 5V 1A charger does and a 5V 0.7A will as well. They just take hours to fully charge a 220 1s and cycle on and off from 0V to 4.3V at about 1Hertz.
