Description

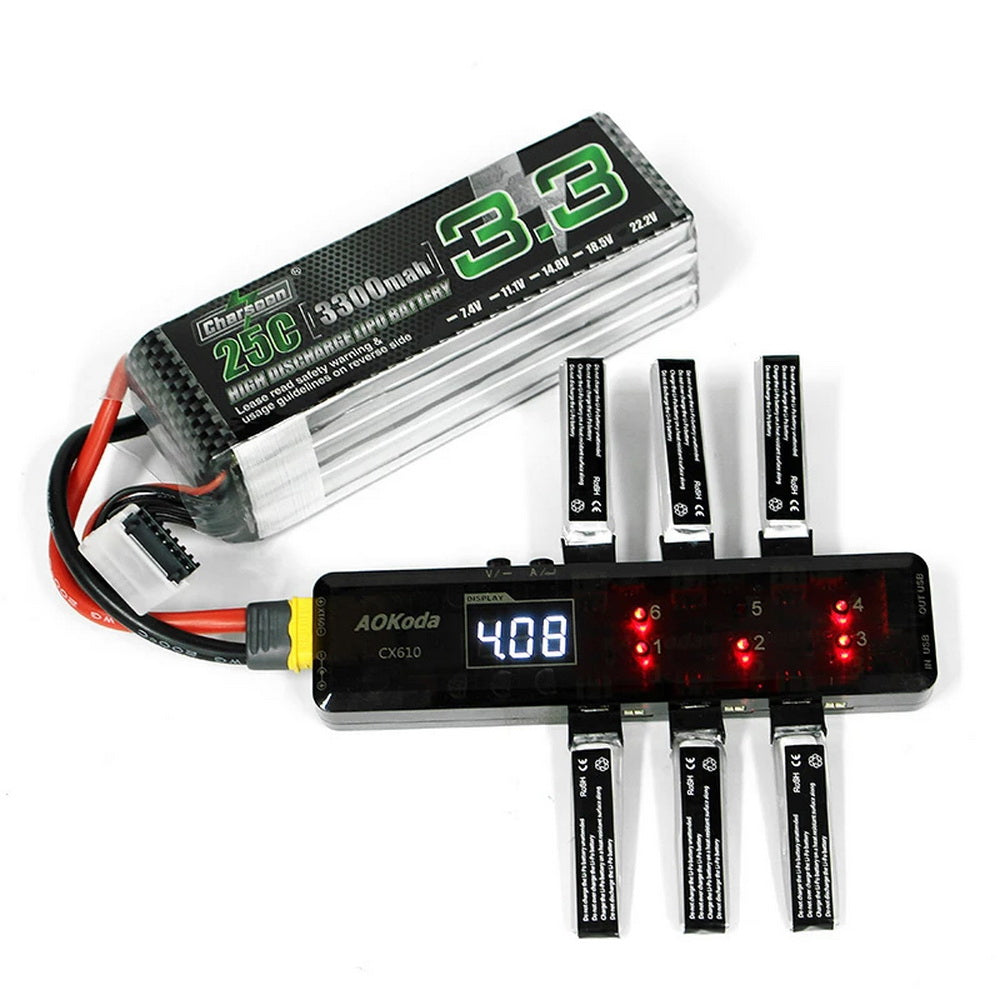

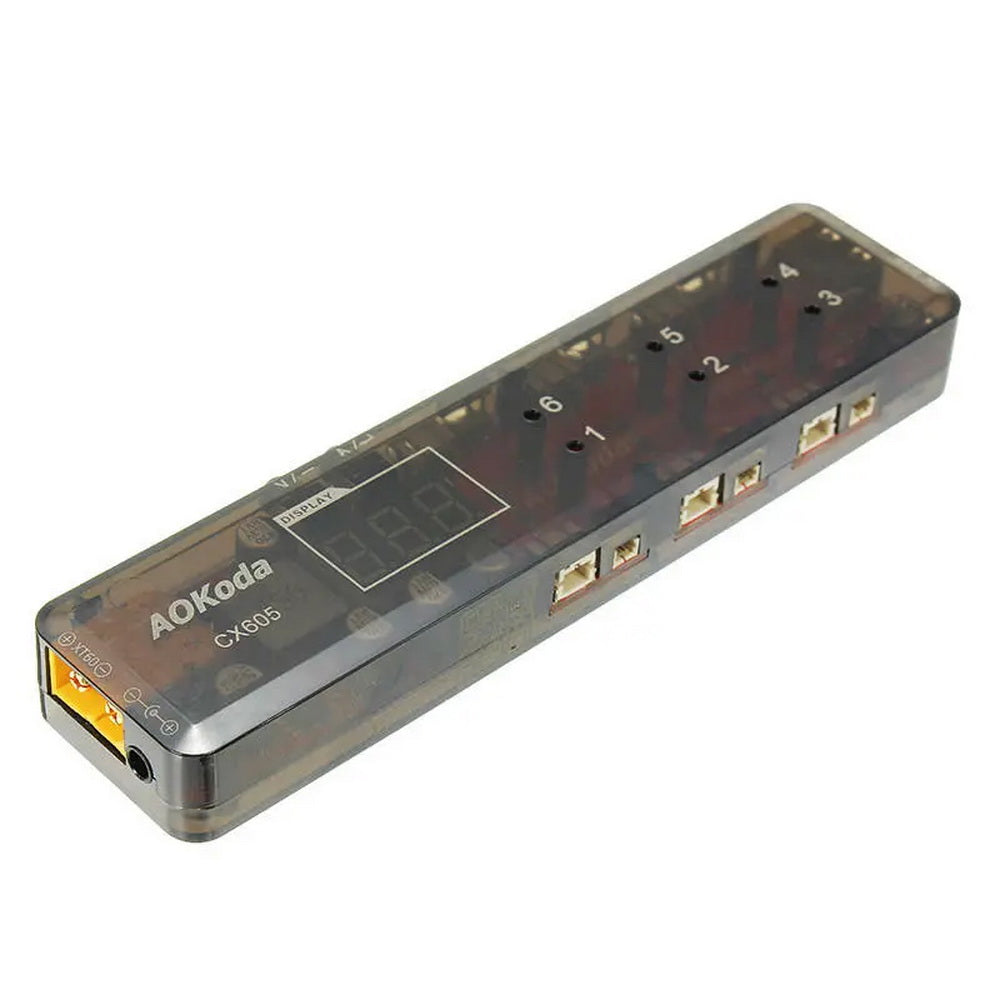

AOKoda CX605 CX610 6CH DC/XT60/USB Battery Charger for 3.7V 1S Lipo Battery - CX610 HV 4.35V
Features:
1. Simple operation, plug and play.
2. Internal chip intelligent temperature test, to ensure the safety of charging.
3. Six channels independent charging output, can charge six batteries simultaneously.

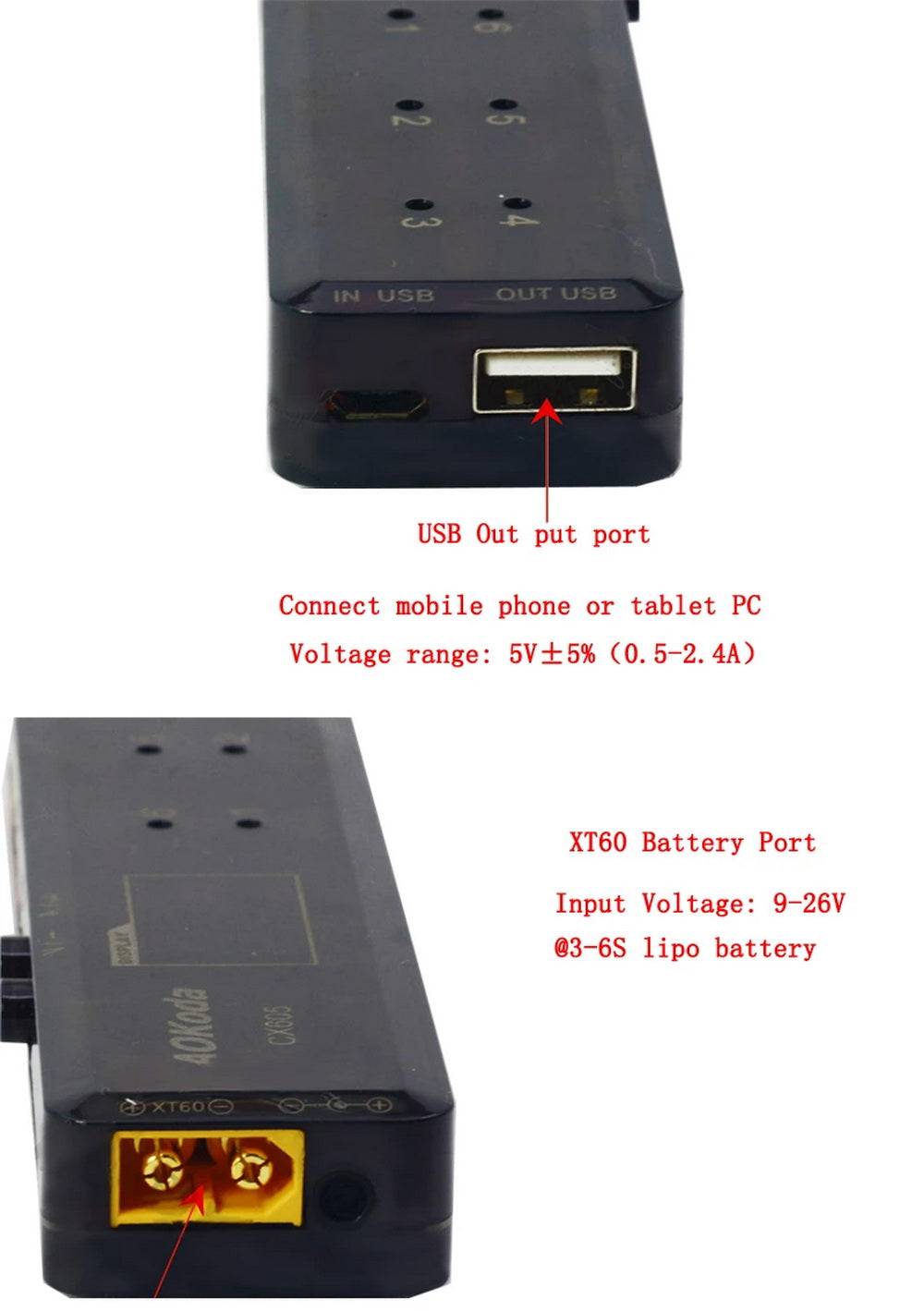

4. DC 3.5mm jack / battery dedicated XT60 interface / Micro USB, three input methods.
5. Charging current setting range 0.1A~1A@CX610 / 0.1A~0.5A@CX605.
6. LED digital tube shows input voltage, six channel battery voltage, input low voltage protection value and setting current value.
7. USB 5V@2.4A/2.0A/1.0A Smart fast charging interface to support apple, Android mobile fast charge protocol.
Description:
1. Round 3.5mm jack dc input range: 9V-26V@24W
2. XT60 battery specific interface voltage input range: 9V-26V @3~6S LiPo
3. Micro USB interface input voltage current range: 5V@1A/2A/2.4A
4. In the DC input mode, the setting range of the over discharge voltage: 9V~24V
5. XT60 battery interface, over voltage setting range: Smart settings and user manual tuning
6. Battery charging end voltage: 4.20V±1%
7. Battery charging power: 4Wx6ch@CX610
2Wx6ch@CX605
8. Battery charging current: (0.1-1.0A)x6ch@CX610
(0.1-0.5A)x6ch@CX605
9. Support battery type: LiPo
10. Support battery section count: 1Cell

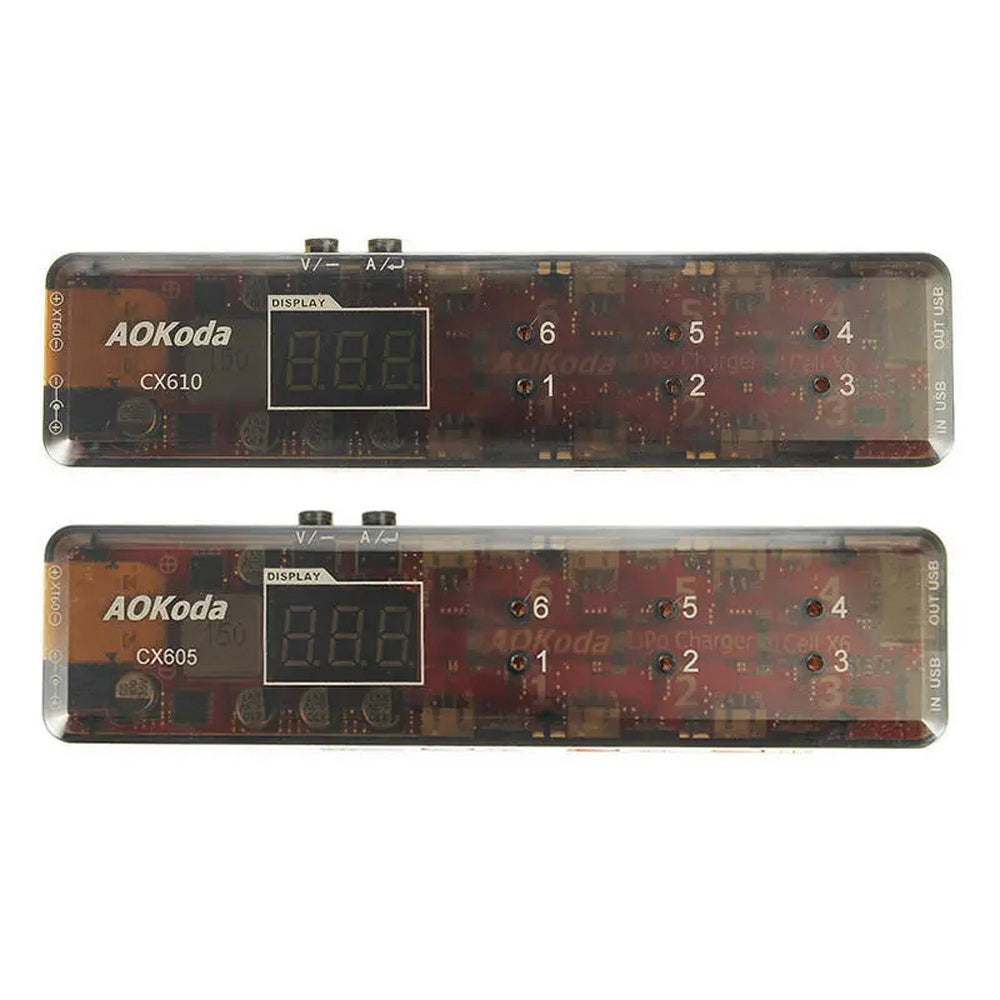

11. Display mode: White LED digital display @CX610, Red LED digital display @CX605
12. battery connector: mCPX,MCX (MOLEX,JST@ You need to use transit lines)
13. USB output interface: 5V@2.4A/2.0A/1.0AIntelligent fast charging interface (DC or XT60 input)

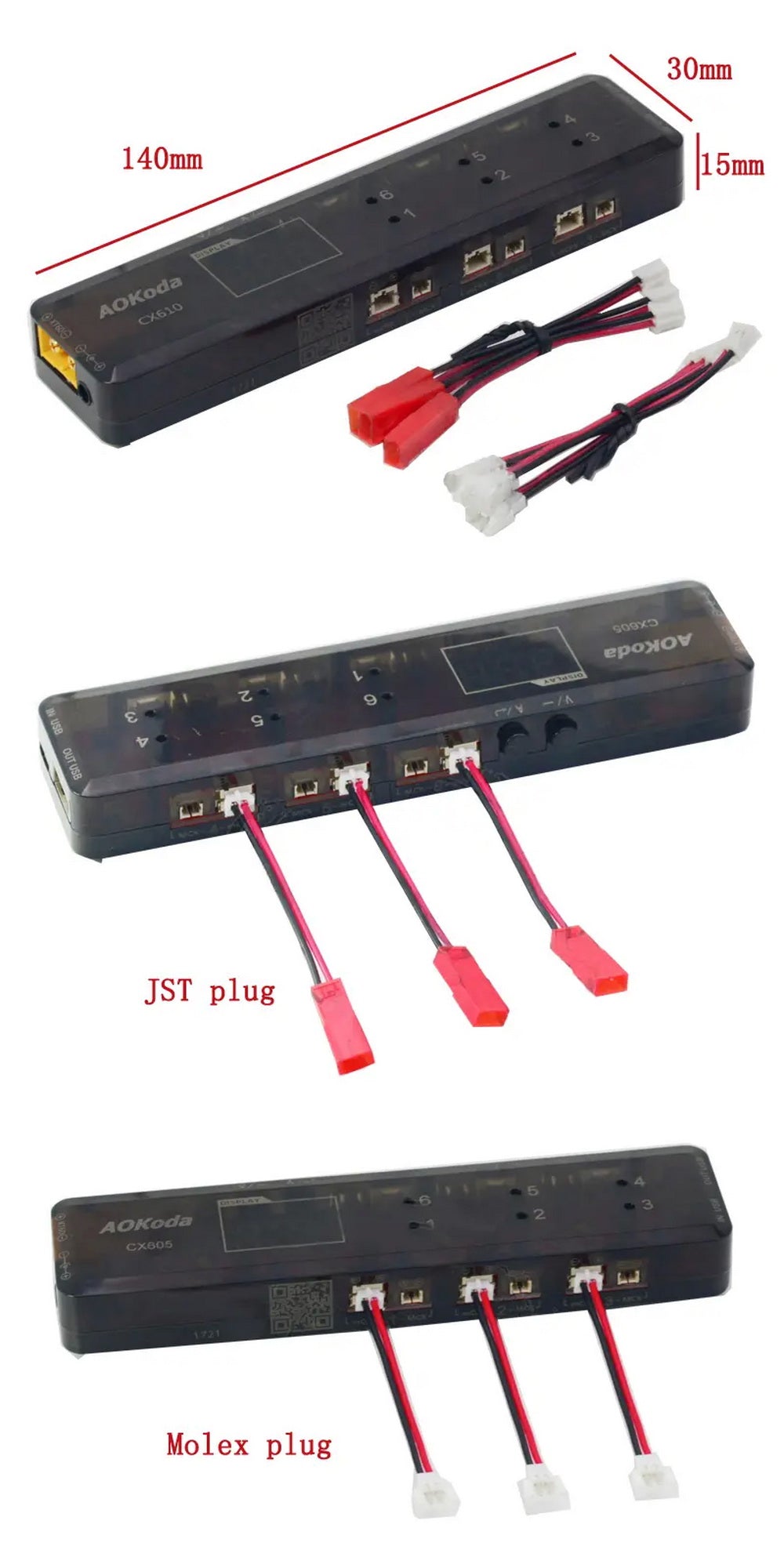

14. Product size: 142x34x17.5mm
15. Product weight: 60g
Package:
1 x AOKoda Portable 1S Lipo Battery Charger
6 x Charging Cables
