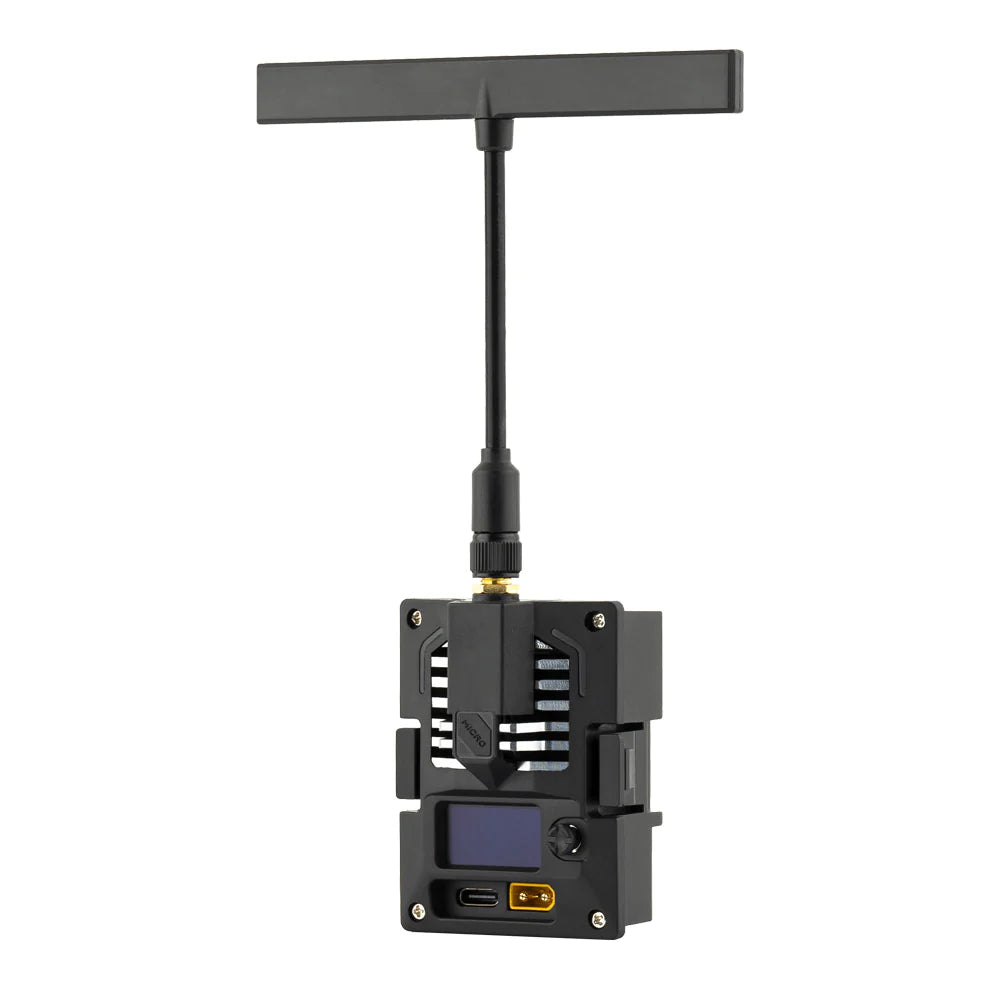

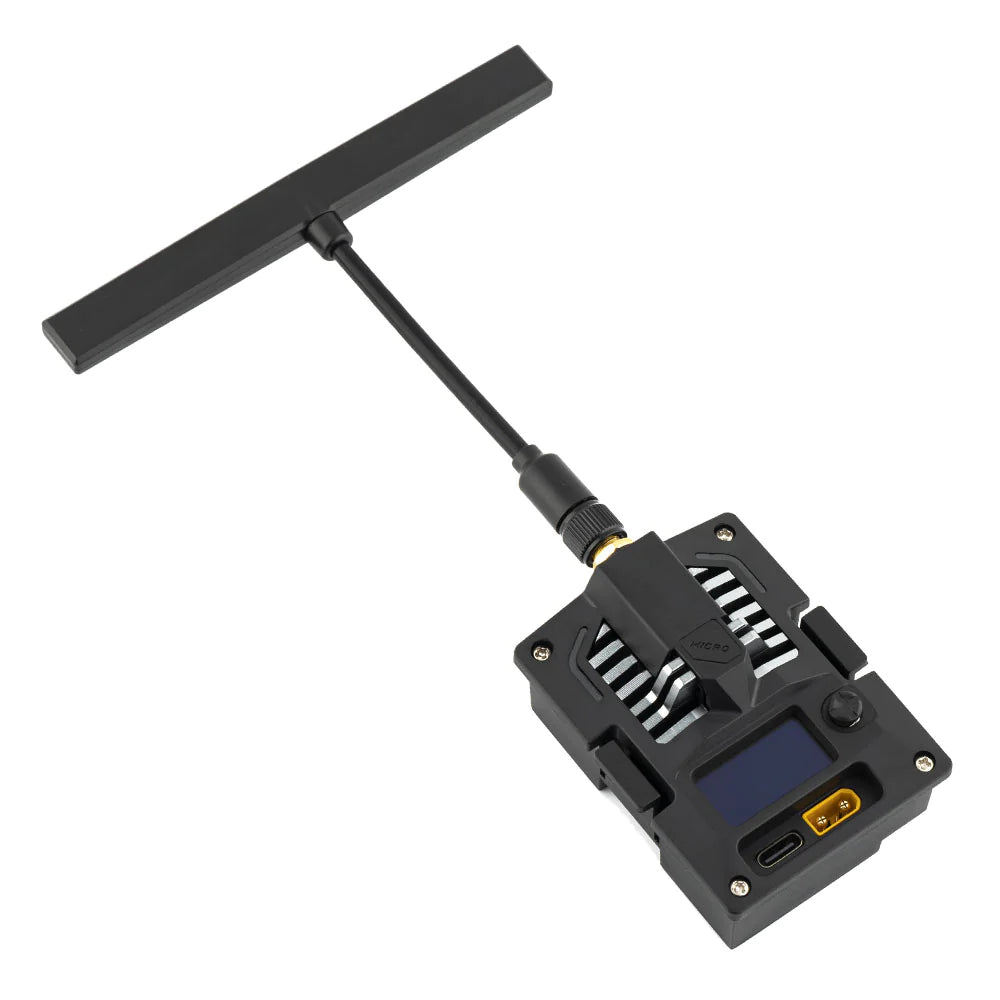

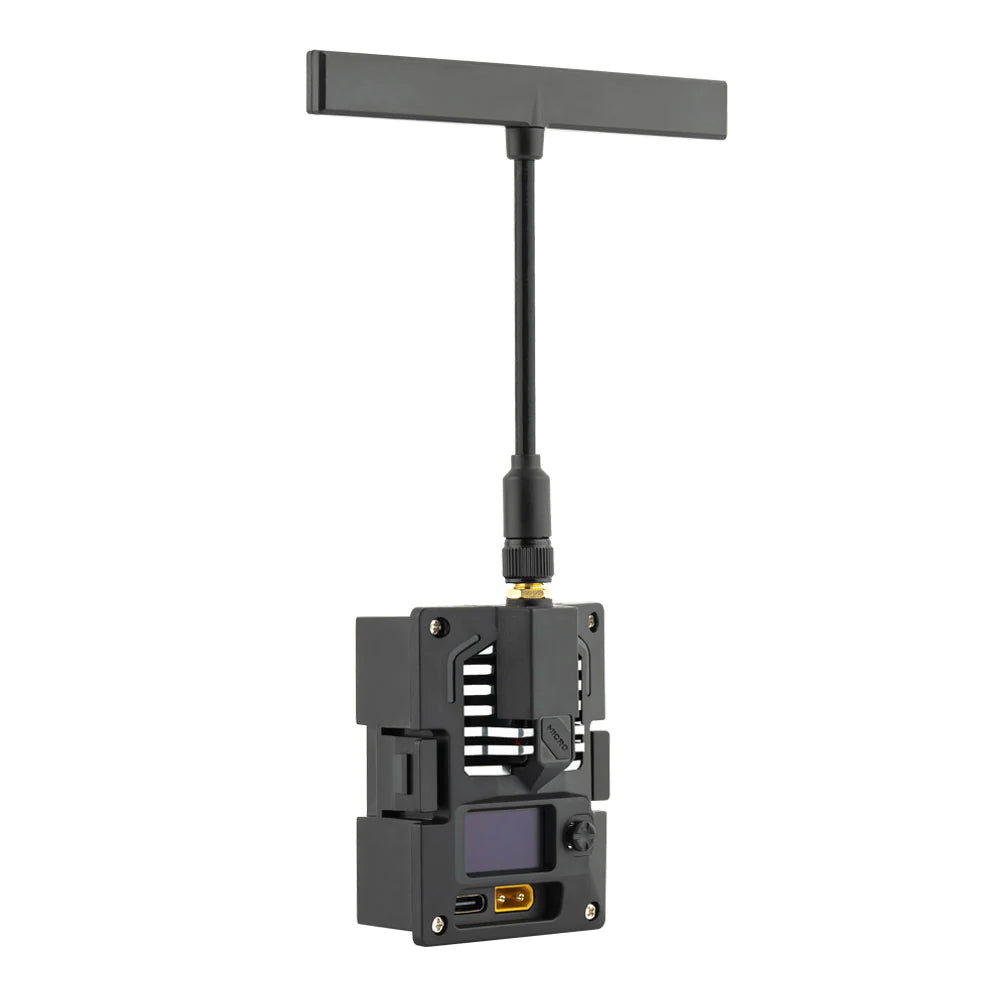

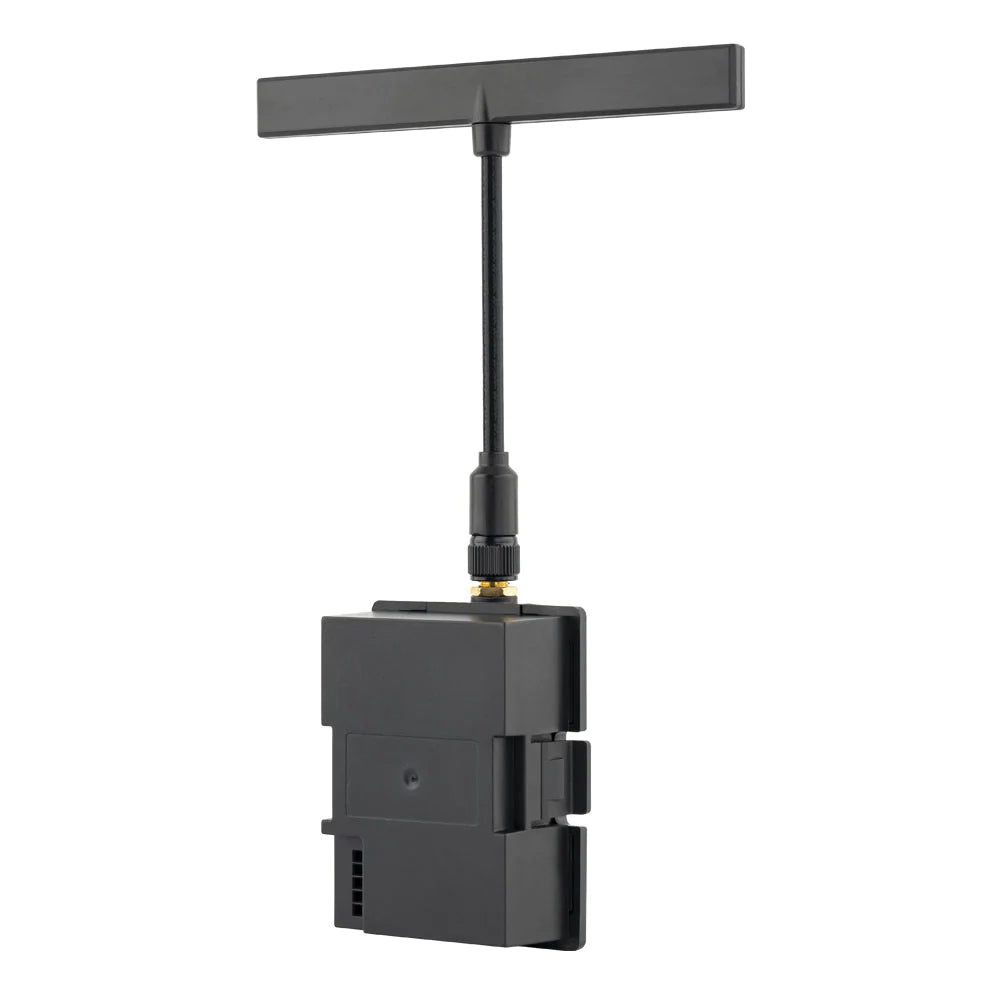

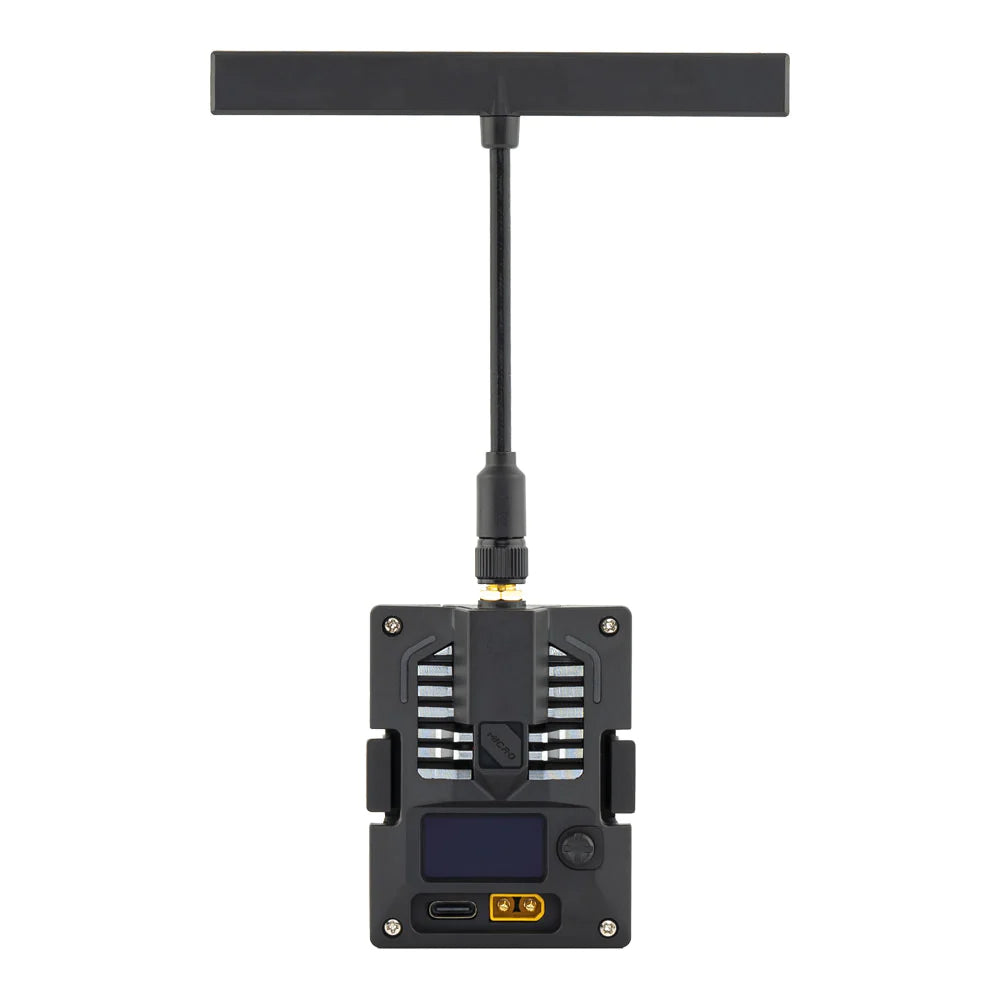

Bandit Micro ExpressLRS 915MHz RF Module

RadioMasterSKU: RMS-0063

Sale price$49.99

Customer Reviews

Be the first to write a review
Download Manual



  • Up to 1 Watt power output
  • Packet rates up to 200Hz
  • Optimized circuitry for ultra-low power consumption
  • Built-in TCXO oscillator
  • Low noise, high comfort
  • High contrast OLED display
  • Innovative convection cooling design
  • Wifi and Bluetooth support
  • Built-in ExpressLRS backpack
  • 5 Directional nav key
  • 915/868MHz T Antenna included
  • With the Micro connector, support TX16S MKII, Boxer, and TX12 MKII radio


  • Item: Bandit Micro ExpressLRS RF Module
  • Regulatory Domain: FCC915
  • MCU: ESP32(main), ESP8285(aux, as ESP backpack)
  • RF Chip: SEMTECH SX1276
  • Refresh Rate Min/Max: 25Hz/200Hz
  • RF Output Power: 1000mW/30dBm
  • Micro standard 5pin connector
  • Built-in OLED screen
  • XT30 Power Supply Voltage: DC 6V ~ 16.8V

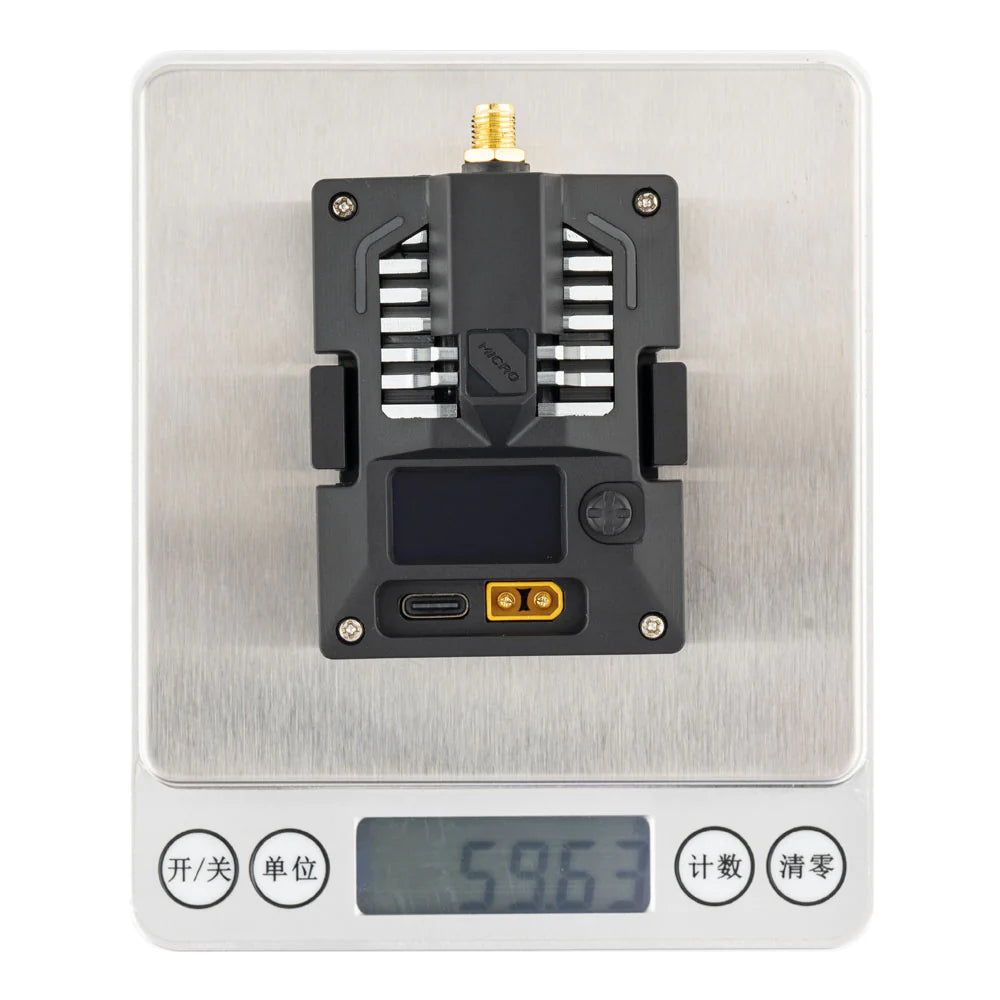

  • Weight: 78.0grams (with T antenna)
  • Dimension: 64.1*49.6*34.1mm

     Utilizing an inventive convection cooling mechanism and an integrated turbo fan, the Bandit Micro ExpressLRS module guarantees precise temperature regulation while maintaining a low noise level. Designed to seamlessly integrate with our TX16S MKII, Boxer, TX12 MKII, and other radios equipped with a Micro Module bay, the Bandit Micro form factor is set to deliver exceptional performance.

Intuitive Control at Your Fingertips

The Bandit Micro ExpressLRS features an OLED display, a five-directional navigation key, ensuring an unparalleled flying experience.

Versatile Antenna Options for Diverse Applications

The Bandit Micro ExpressLRS comes equipped with a RadioMaster T Antenna for general-purpose flying. The RadioMaster Moxon antenna is available separately for long-range directional applications. This versatility empowers you to adapt your setup to suit any flying scenario, from everyday recreational flights to professional drone and UAV operations.

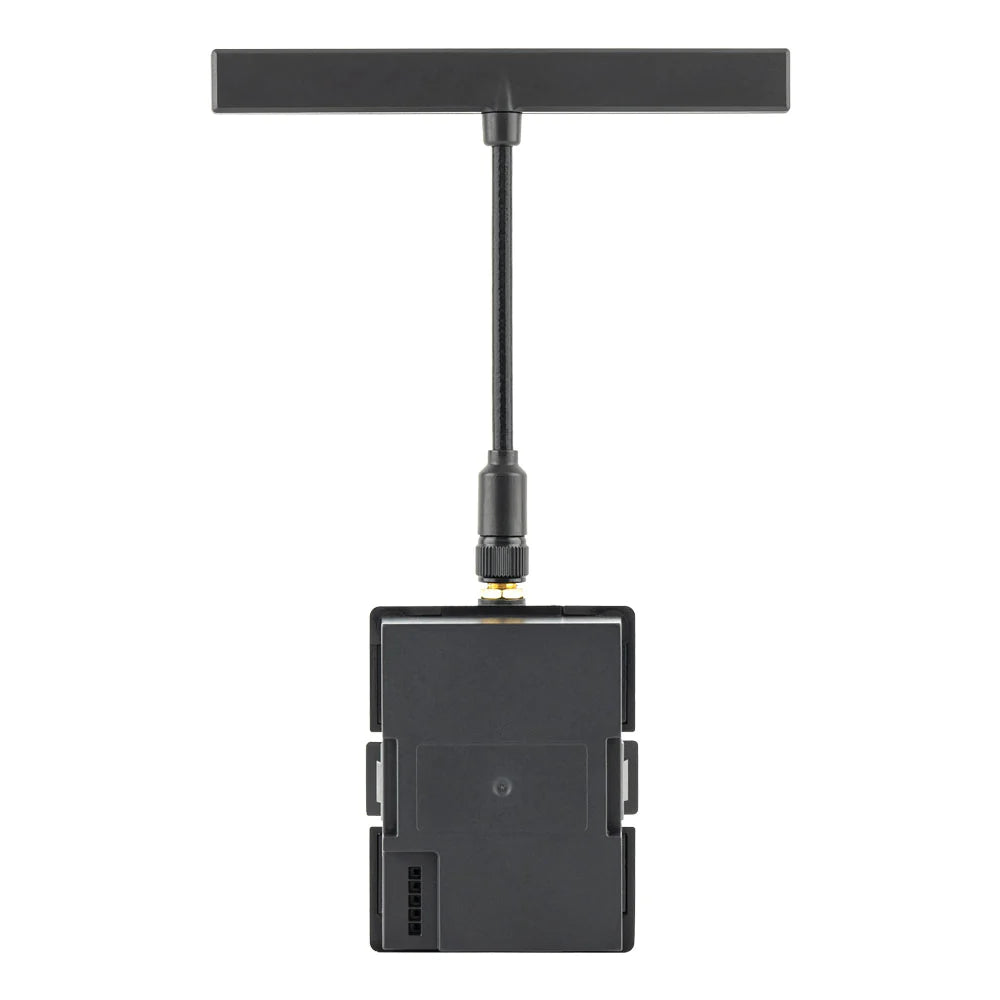

The Bandit Micro has UART solder pads on the PCB and may also be repurposed as a receiver! That's right, you can use the Bandit Micro as a 1000mW Telemetry receiver for ultra long range flights.

Whether you're an experienced drone enthusiast or a professional UAV operator, the Bandit Micro ExpressLRS RF Module is the perfect choice for your demanding applications. Its unmatched performance, rugged construction, intuitive controls, and versatile antenna options make it an indispensable tool for those seeking the very best in long-range drone and UAV technology.

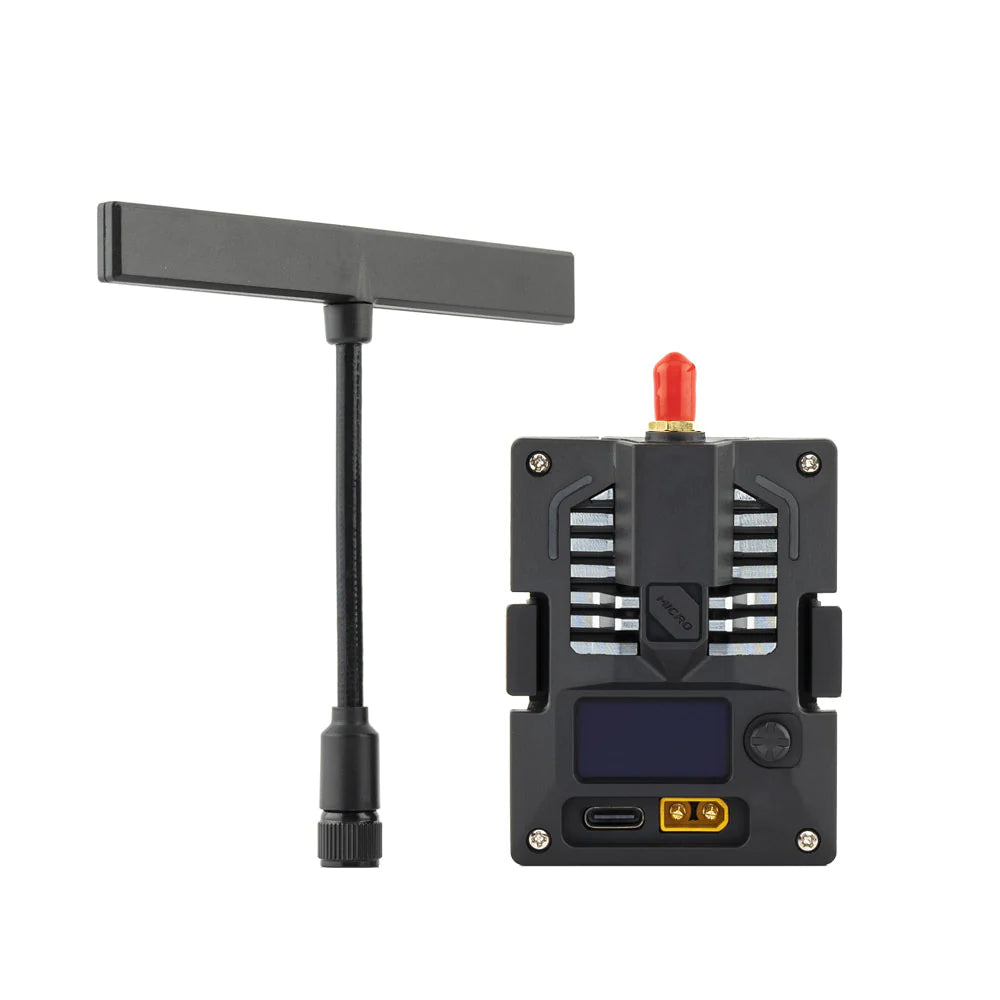

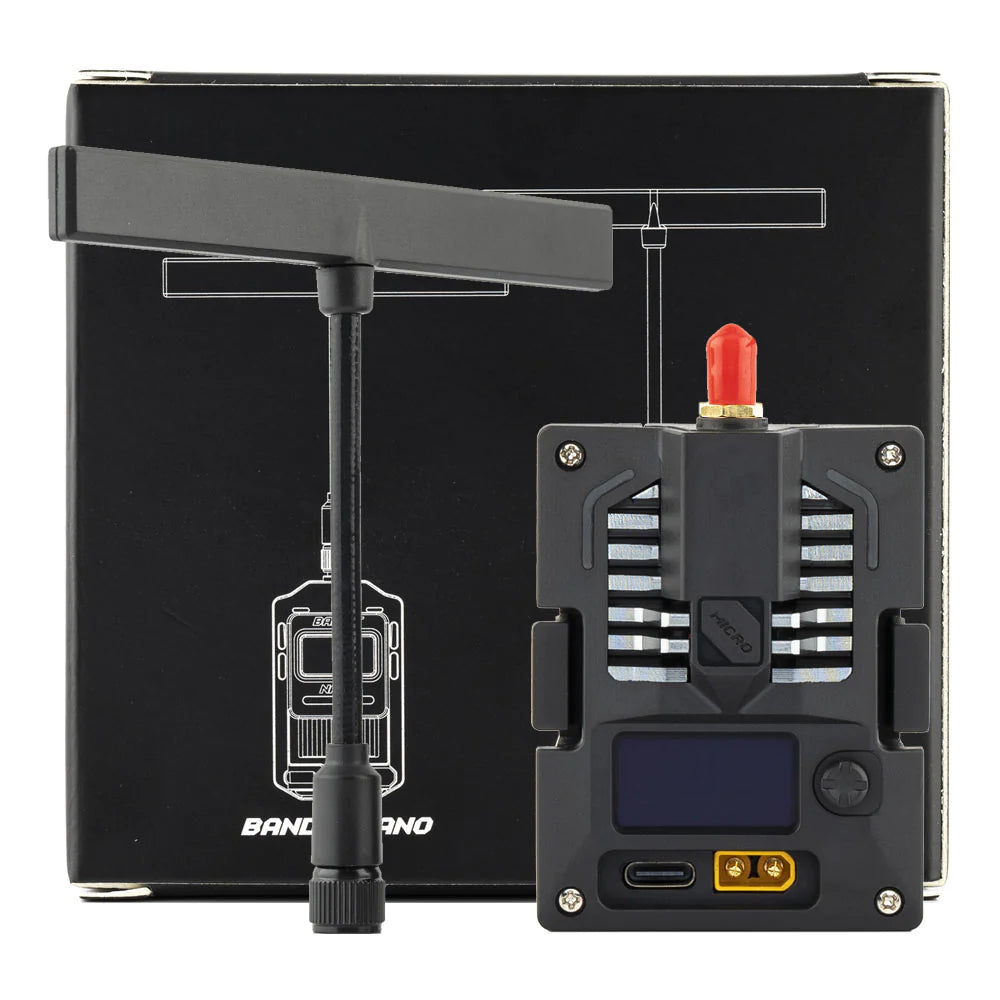

Package Includes

  • 1 * Bandit Micro ExpressLRS RF Module
  • 1 * 900Mhz T Antenna
  • 1 * Manual
