Description
Features
- Up to 1 Watt power output
- Packet rates up to 200Hz
- Optimized circuitry for ultra-low power consumption
- Built-in TCXO oscillator
- Low noise, high comfort
- High contrast OLED display
- High efficiency cooling system
- Wifi and Bluetooth support
- Built-in ExpressLRS backpack
- 5 Directional nav key
- 915/868MHz T Antenna included
- With the Nano connector, support Zorro, Pocket and MT12 Radio
Specifications
- Item: Bandit Nano ExpressLRS RF Module
- Regulatory Domain: FCC915
- MCU: ESP32(main), ESP8285(aux, as ESP backpack)
- RF Chip: SEMTECH SX1276
- Refresh Rate Min/Max: 25Hz/200Hz
- RF Output Power: 1000mW/30dBm
- Nano standard 8 pin connector
- Built-in OLED screen
- XT30 Power Supply Voltage: DC 6V ~ 16.8V

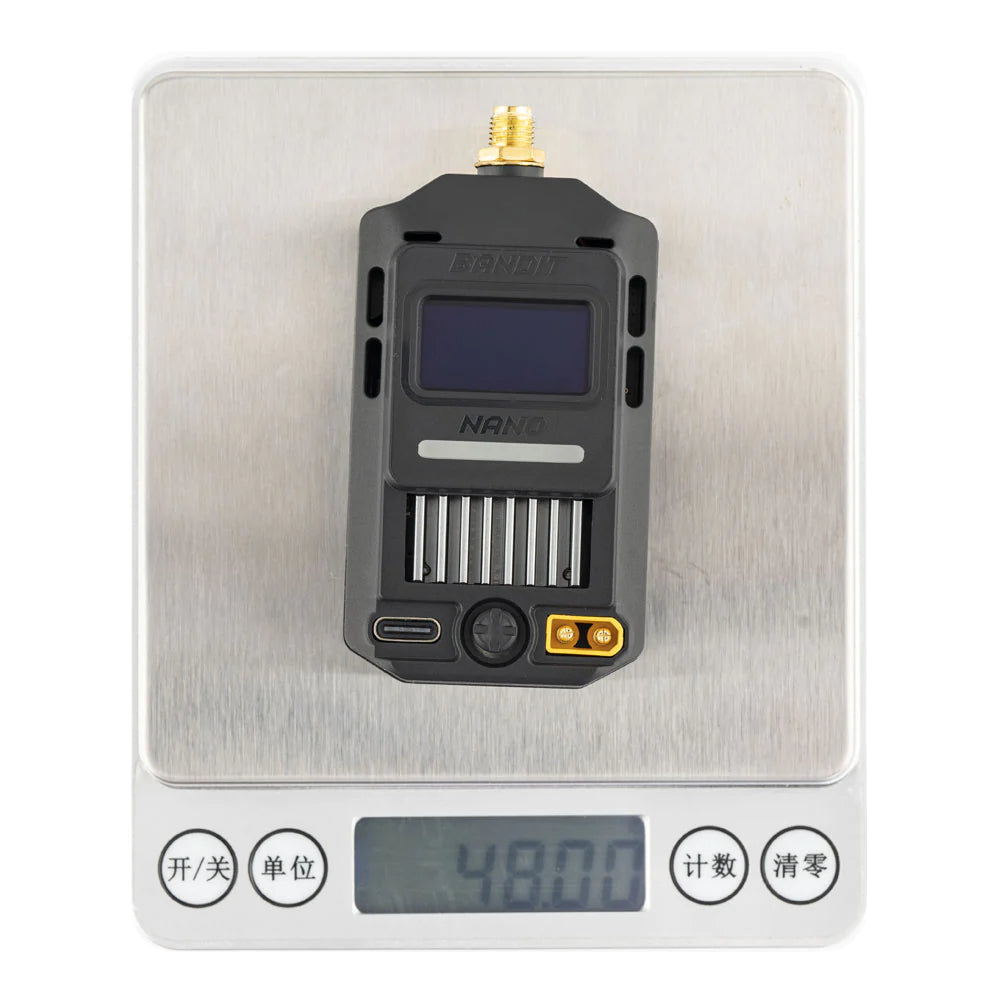

- Weight: 62.5grams (with T antenna）
- Dimension: 68.5*41.0*27.0mm
With its innovative convection cooling system and built-in turbo fan, the Bandit Nano ExpressLRS module ensures optimal temperature control and operates with minimal noise. The Bandit Nano form factor is ready to go with our Zorro, Pocket, MT12 and other radios with a "Nano" Module bay.
The Bandit Nano ExpressLRS features an OLED display, a five-directional navigation key, ensuring an unparalleled flying experience.
The Bandit Nano ExpressLRS comes equipped with a RadioMaster T Antenna for general-purpose flying. The RadioMaster Moxon antenna is available separately for long-range directional applications. This versatility empowers you to adapt your setup to suit any flying scenario, from everyday recreational flights to professional drone and UAV operations.
The Bandit Nano has UART solder pads on the PCB and may also be repurposed as a receiver! That's right, you can use the Bandit Nano as a 1000mW Telemetry receiver for ultra long range flights.
Whether you're an experienced drone enthusiast or a professional UAV operator, the Bandit Nano ExpressLRS RF Module is the perfect choice for your demanding applications. Its unmatched performance, rugged construction, intuitive controls, and versatile antenna options make it an indispensable tool for those seeking the very best in long-range drone and UAV technology.

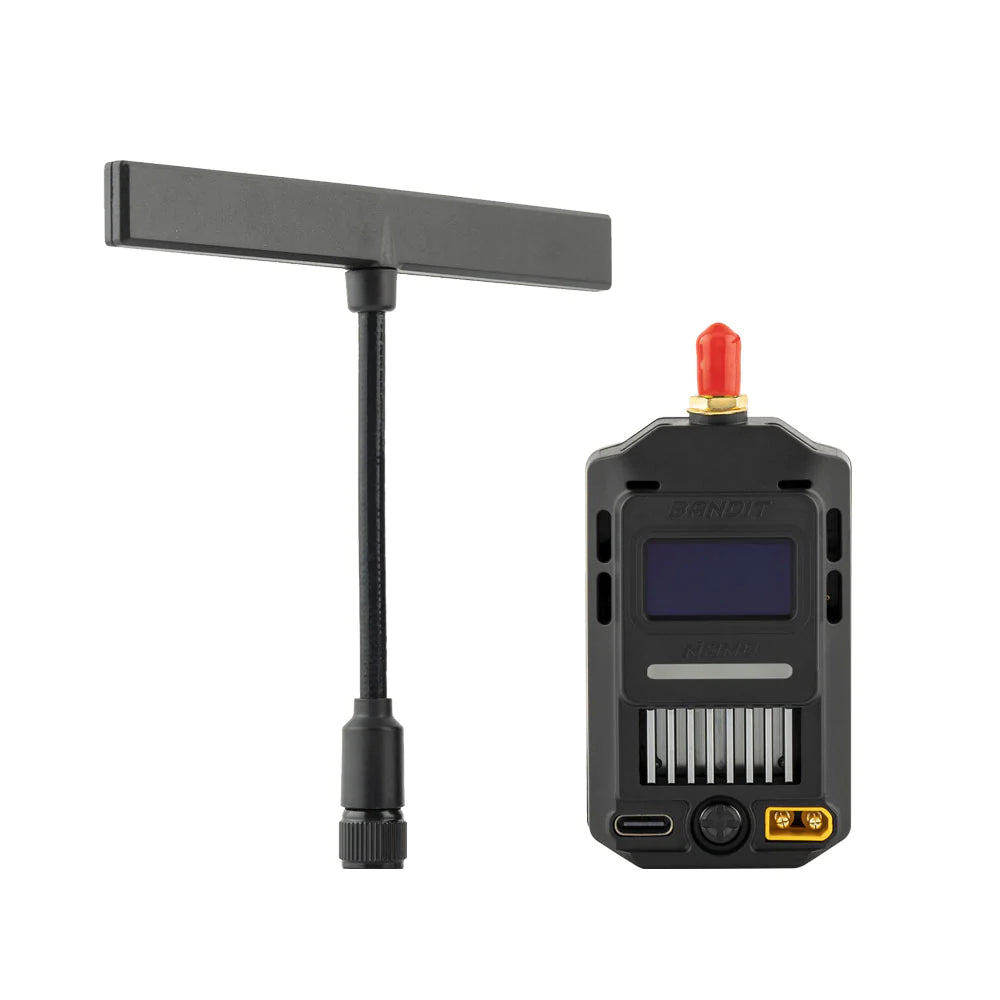

Package Includes
- 1 * Bandit Nano ExpressLRS RF Module
- 1 * 900Mhz T Antenna
- 1 * Manual
