Description
Buddy RC F7
Highlight
Made by a trusted OEM factory well known for quality and reliability products.
The FC supports up to 8 motors or additional servos.
Withstand up to 60V for high reliability
Built in barometer.
Support 2 cameras.
gives you all the essentials you need to get in the air and fly with the best components. Loaded with BLHeli32, and F7 chip, BEC, current sensor, and built-in OSD, all in a compact stack that doesn't require soldering.
Specifications
- Item name: X-Tower F7-55A
- Lipo cells: 3-6S
- Weight: 26g
- Size: 48.5x41.5x18mm
- Typical applications: 170-450 multirotors
- Highly integrated, simple and convenient
- Dual vibration damping, smooth flight
F7 Flight Controller
- FC voltage: 3.3V/5V/12V
- MCU: STM32F722
- Gyro: MPU-6000 SPI
- Support PPM, SBUS, SPEKTRUM1024/2408 receivers
- Support max 32G TF card
- Built-in OSD
- Firmware: OMNIBUSF4SD
55A BLHeli_32 4 IN 1 3-6S ESC
- Concurrent: 40A
- Burst current: 45A (10S)
- Lipo cells: 3-6S
- Working frequency: up to 48MHz
- Built-in current sensor
- BLHeli_32bit
- Support Dshot1200
- Support damped light

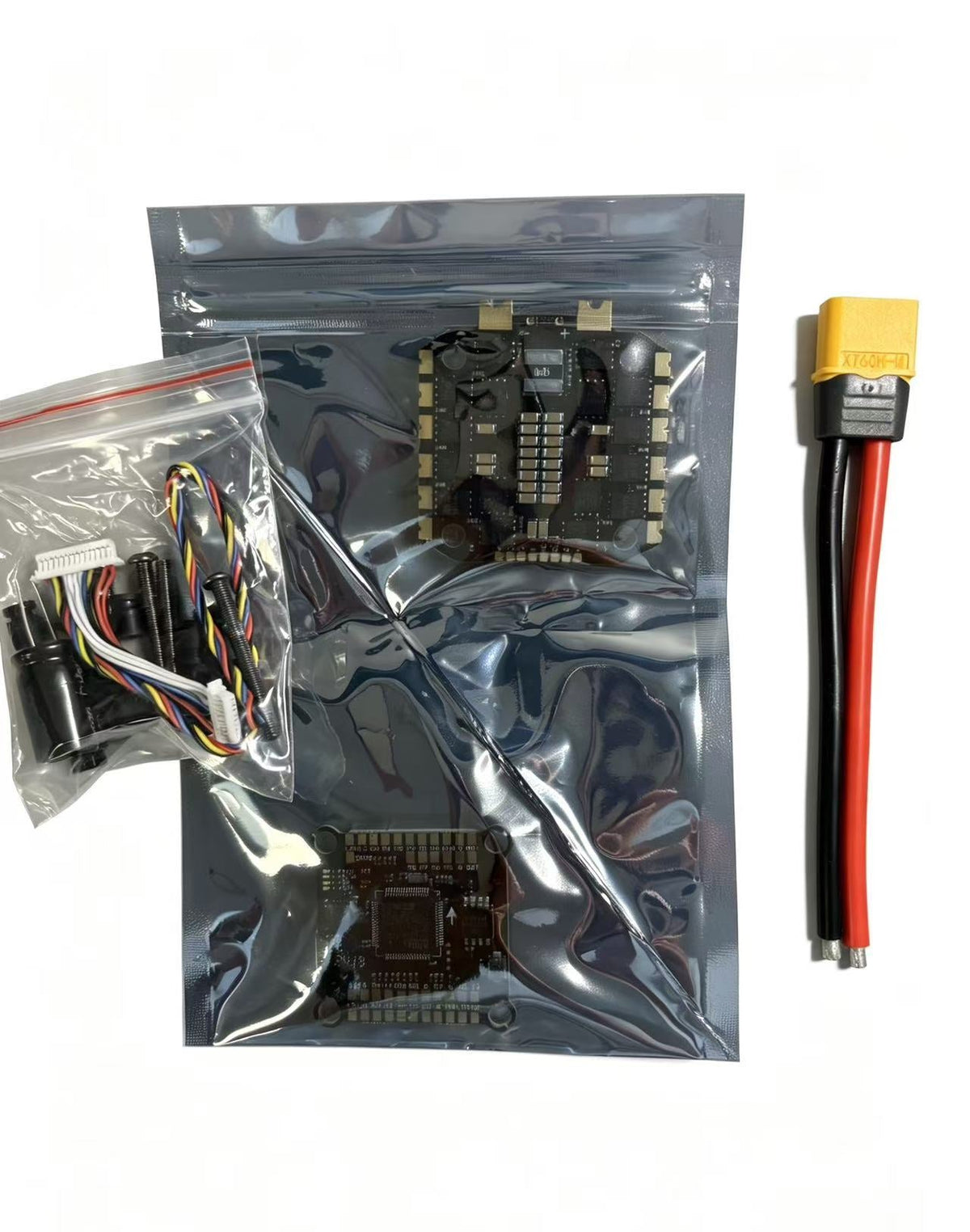

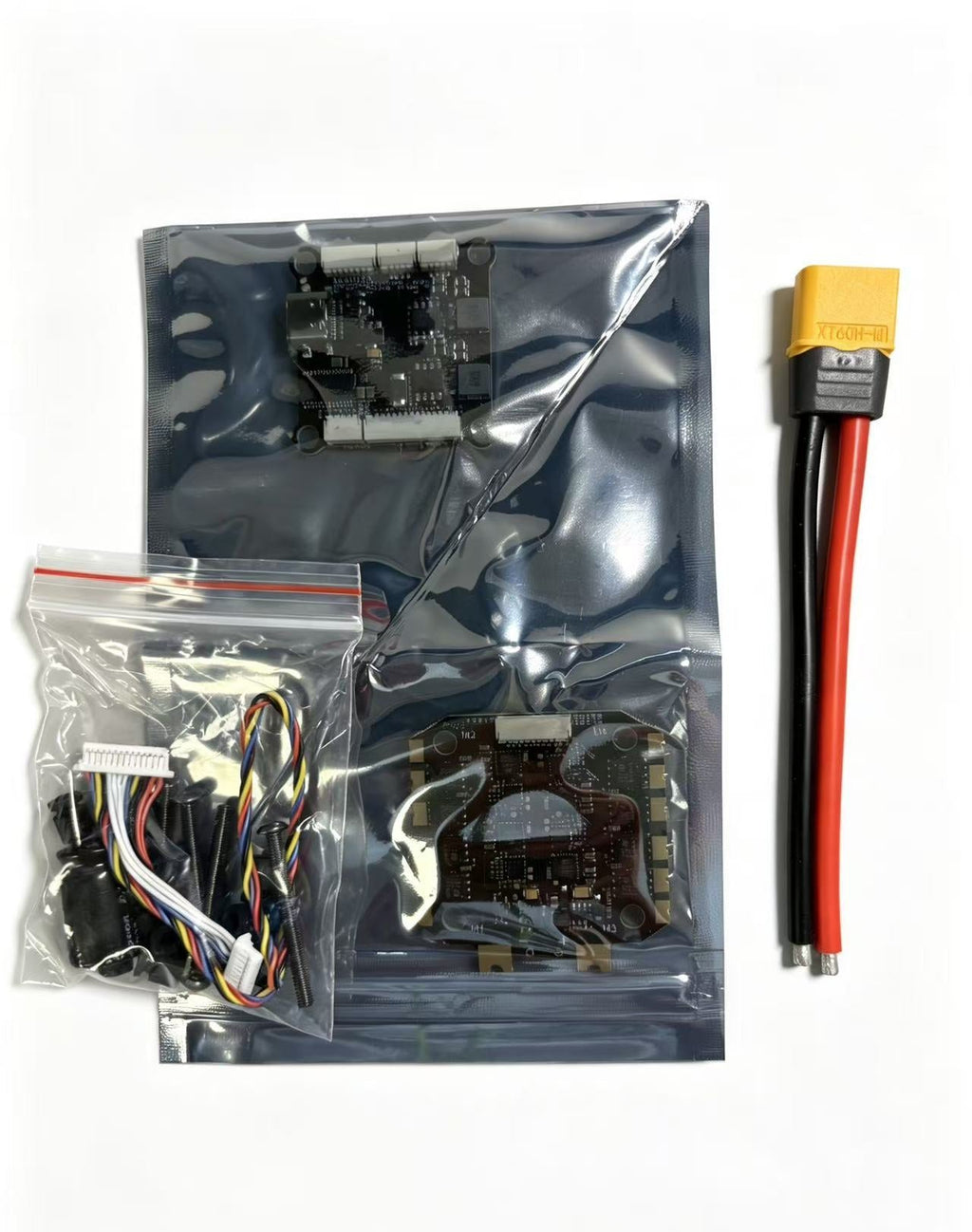

Includes
- 1 x F7 flight controller
- 1 x 55A BLHeli_32 4 IN 1 3-6S ESC
- 1 x 25v 330uf capacitor
- 4 x M3+4.5 damping screw
- 4 x M3 nylon nut
- 4 x O type rubber ring
- 4 x M3*12 nylon screw
