Description
- Tiny But Mighty — Built for Micro FPV: Featuring a mini VTX (30×30mm, only 5.1g) and featherweight camera (1.8g), this kit is designed for micro drones and tight builds—without compromising performance.
- Crisp 1080P/60fps Video with 22ms Latency: Supports 1080P/60fps and 720P/100fps HD video with an ultra-low average latency of 22ms, delivering smooth, responsive FPV visuals in real time—even during high-speed maneuvers.
- Wide-Angle Lens with True 170° FOV: Equipped with a 2.1mm lens and a true 170° field of view, the ultra-compact camera offers immersive, vivid imagery that captures every detail—perfect for freestyle flying in tight spaces.
- Built-in 8G Storage — No Extra Gear Required: Record 1080P or 720P footage directly to the onboard 8G storage—no need for external SD cards or action cameras. Reduces total drone weight and extends flight time while preserving crystal-clear video.
- Flexible Power Input for Versatile Builds: Supports 3.1V to 13V input and delivers up to 500mW output power. Designed to work across a wide range of 1S and small-format FPV drones with reliable signal strength and HD clarity.
- Full Canvas Mode Support with Custom OSD: Compatible with Betaflight, KISS, iNav, and ArduPilot. Enjoy full OSD integration with customizable fonts, colors, and layouts—easily adjusted via your transmitter.
Features:
| 3.1-13V | 500mW |
| 1080P/60fps | HDMI Out |
| Small Antenna | Canvas mode |
| 7.8g Light Weight | 22ms Low Latency |
| Built-in 8g Storage |
Bullet Points:

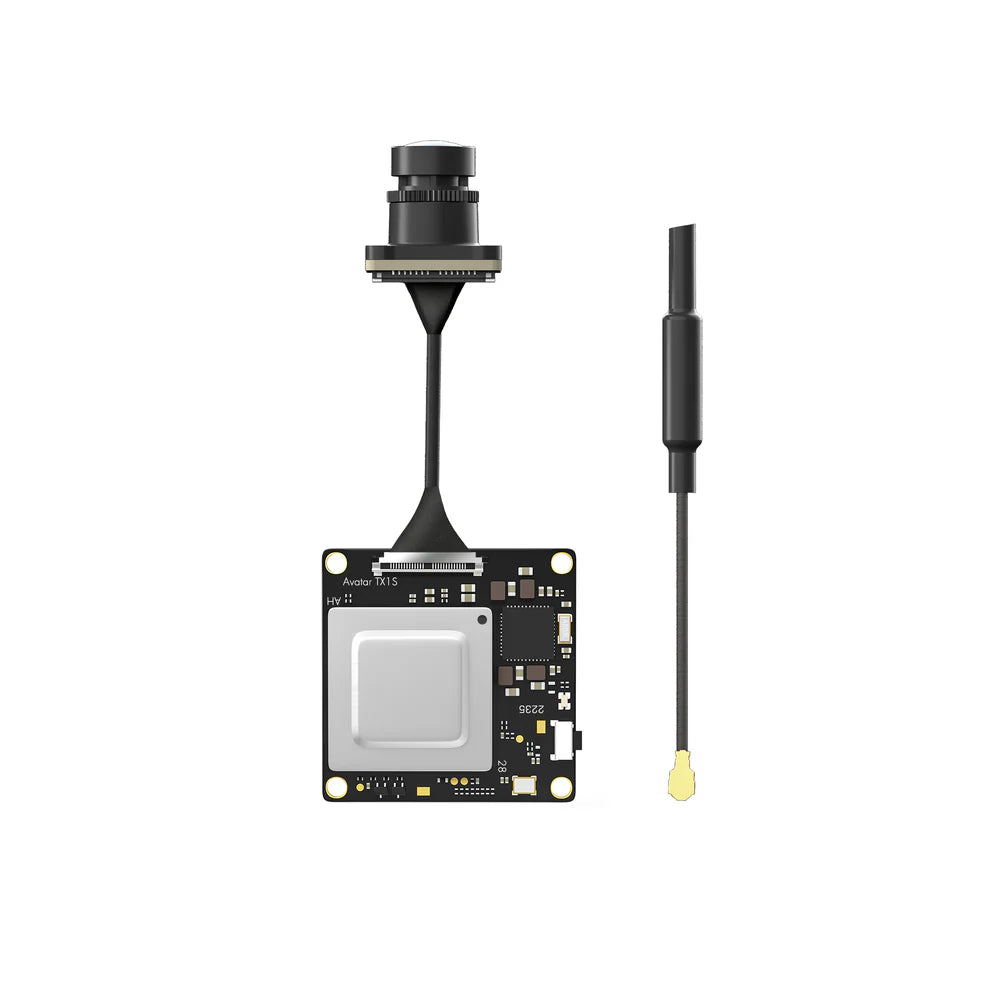

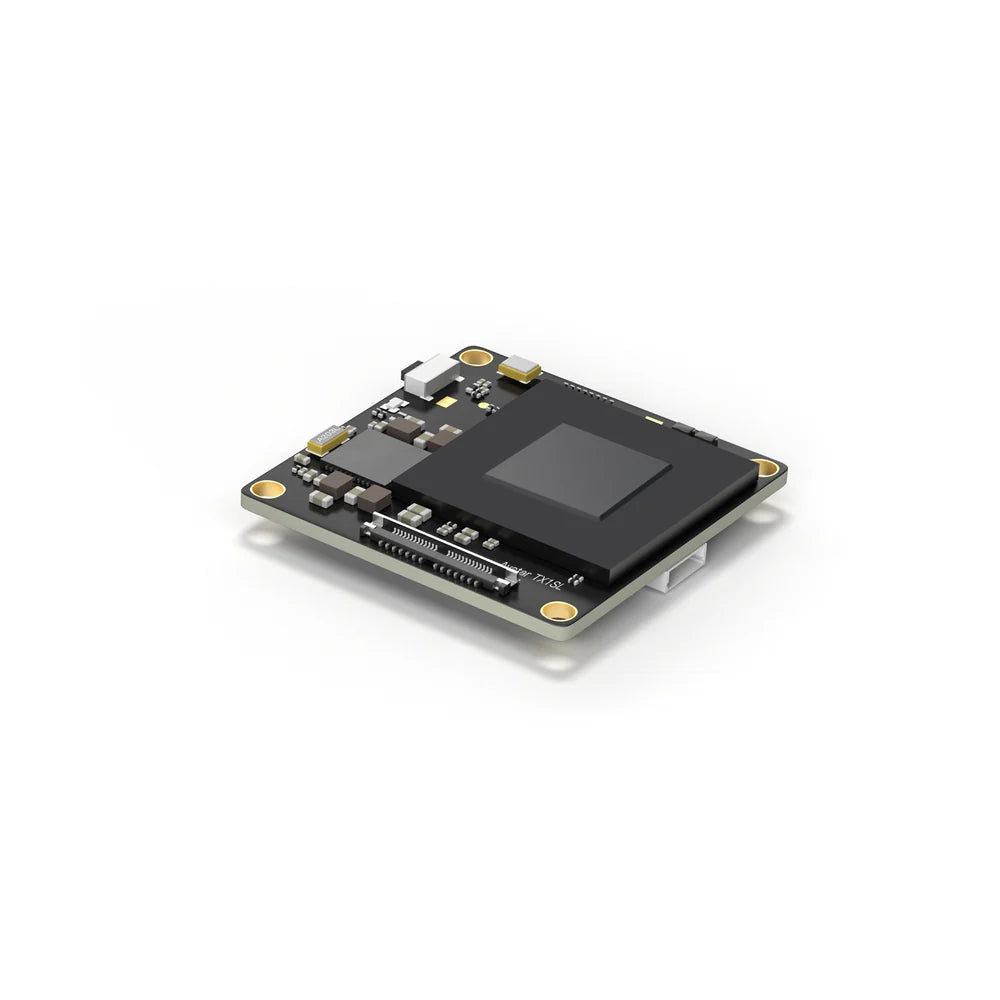

New version of VTX
Avatar HD mini 1S lite kit comes with the smaller, lighter and stronger new version VTX board, 30*30mm size, 5.1g, which can be installed in smaller drones.

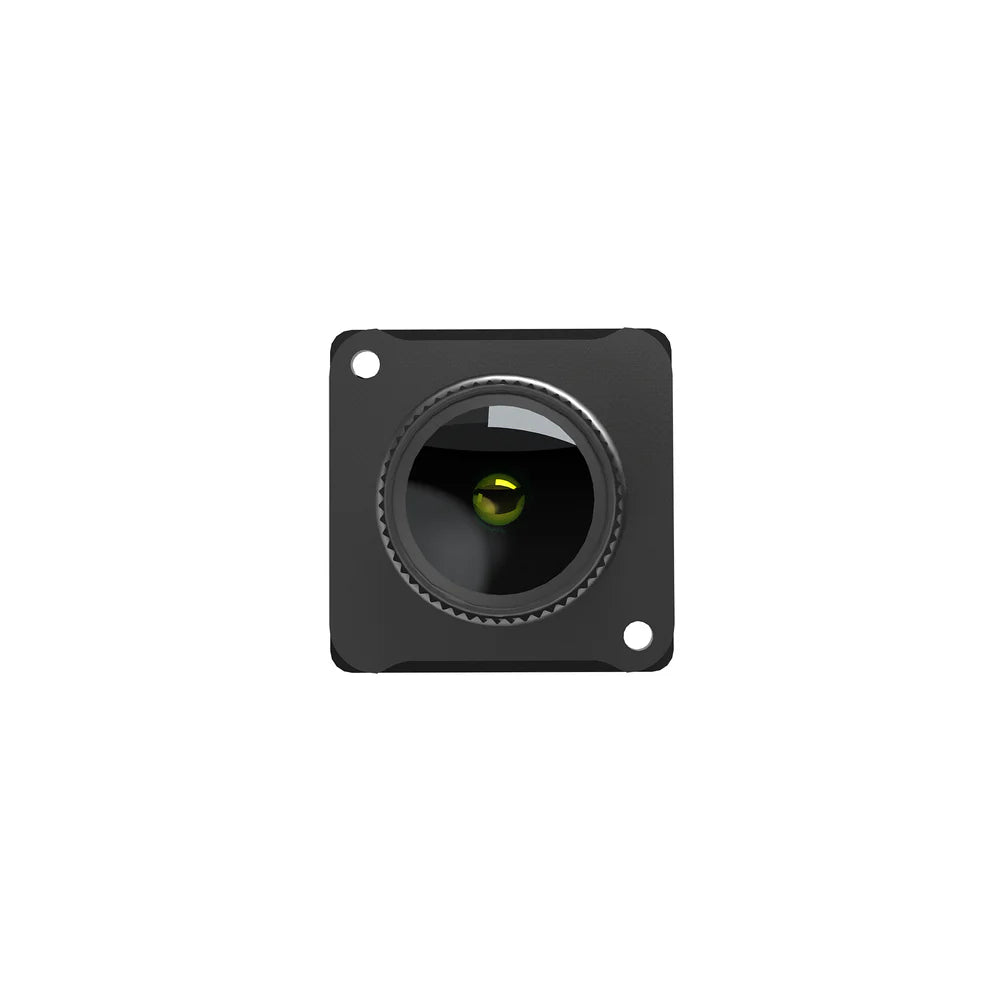

Brand new camera
Avatar HD lite camera weighs only 1.8g, but with 2.1mm lens and 170°FOV, which can bring you a clearer, more realistic image quality.
High quality, low latency
Weighing only 7.8g, but avatar mini 1s lite kit supports 1080P/60fps, 720P/100fps high definition FPV image quality with a average 22ms ultral-low latency, bring you a beautiful clear 1080P digital FPV video and an unforgettable flying experience.
8G Built-in Storage
The Avatar vtx comes with 8g built-in storage, it can record 1080p or 720p HD and interference-free flight footages without adding an extra SD card and an action camera, reducing the overall weight of the drones and extending the flight time, allowing you to experience a more comfortable flight while recording 1080 HD videos.
Canvas Mode
Supporting Betaflight, kiss, Inav, Ardu full OSD display and customization, you'll be able to customize various OSD fonts, colors and patterns you like and easily adjust the parameters you want via remote control.
3.1-13V input, max 500ms output
The avatar mini 1S lite kit is suitable for more types of drones, with 3.1-13V voltage input and 500mw power output, you'll be able to fly all kinds of tinywhoops in a amazing video quality and range.

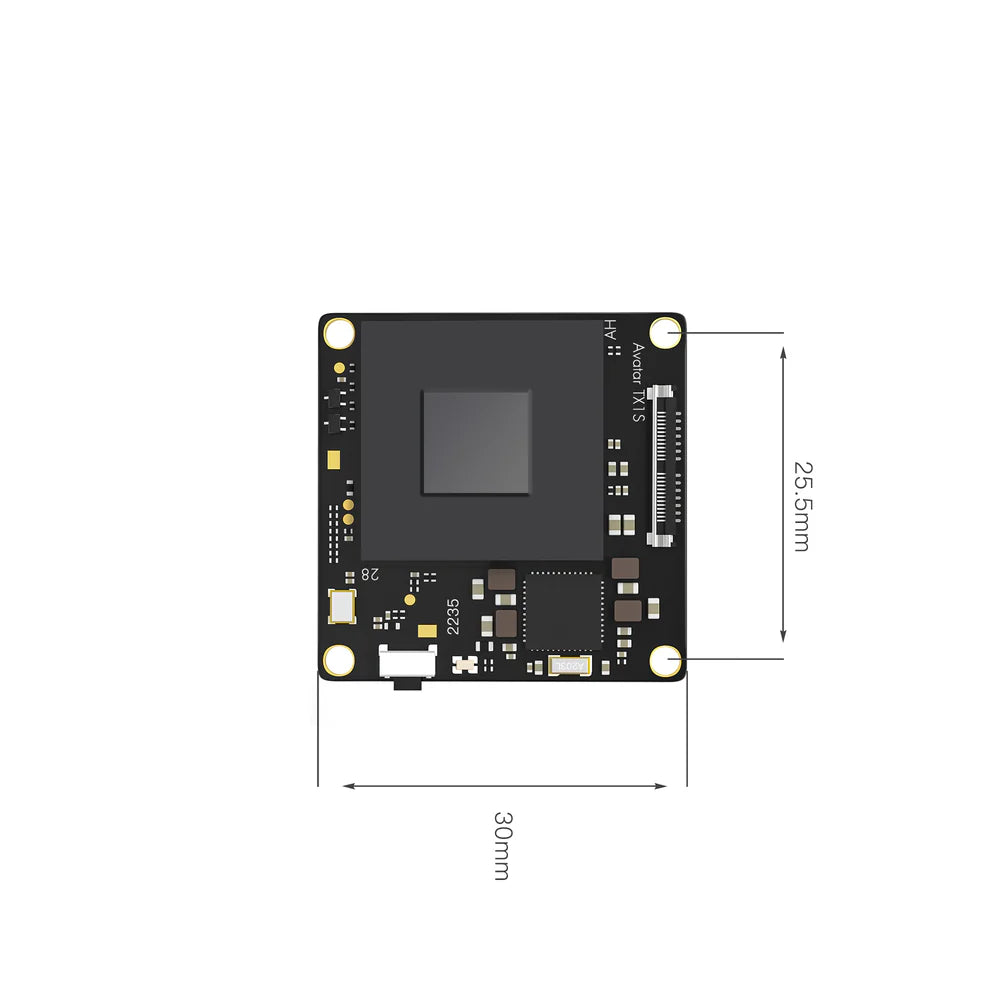

Product Size:
Specification |
|
| Camera | |
| Model | Avatar lite camera |
| Image Sensor | 1/2.7”1nch |
| Resolution | 1080P/60fps,720P/120fps,720P/60fps |
| Ratio | 16/9 4/3 |
| Lens | 2.1mm |
| FOV | 170° |
| Aperture | F2.0 |
| Shutter Rolling | Rolling shutter |
| Min.Illumination | 0.001Lux |
| Weight | 1.8g |
| Dimensions | 14*14*16mm |
| VTX | |
| Model | Avatar mini 1s module |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC:<27dBm; CE:<14dBm;SRRC:<20dBm; MIC:<25dBm |
| I/O Interface | JST1.0*6(Power in)JST0.8*4(USB) |
| Mounting Holes | 25.5*25.5mm |
| Dimensions | 30*30*6.5mm |
| Storage | 8G |
| Recording | 1080p/720p |
| Weight | 6.8g |
| Operating Temperature | -20-40℃ |
| Channels | 8 |
| Wide Power Input | 3.1V-5V(V2) / 3.1-13V(V3) |
| Supported FC System | Betaflight; Inav; Fettec; Kiss; ArduPliot |
| OSD | Canvas mode |
| Bitrate | 25mbps 50mbps |
| Latency | Average delay 22ms |
| Antenna | IPEX |
| 1s lite antenna | |
| Polarization | Linear |
| Frequency range | 5600-5900MHz |
| Gain | 1.6 dbi |
| VSWR | ≤1.5 |
| Input Impedance | 50Ω |
| Interface | IPEX-1 |
| Size | D5mm*L70mm |
| Weight | 0.5g |
