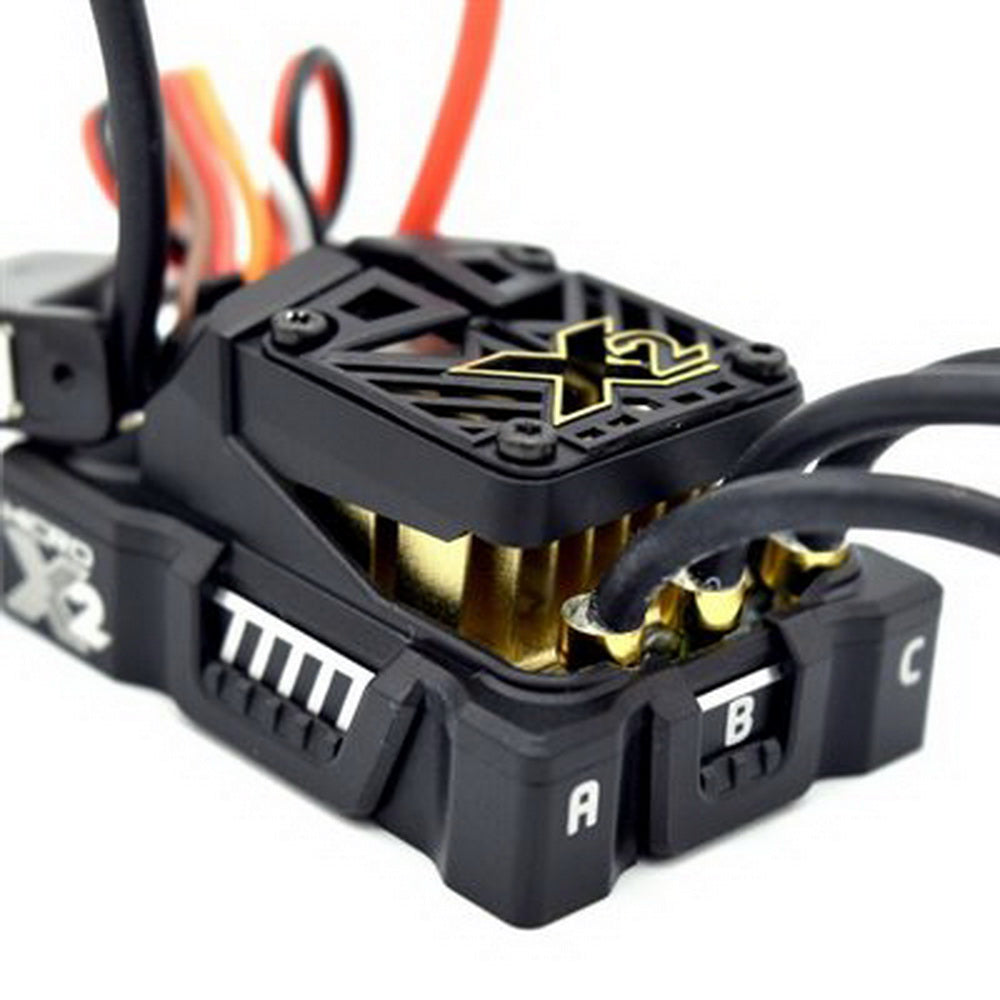

Castle Creations Mamba Micro X2 16.8V WP Sensored ESC 4.0mm

Castle CreationsSKU: CC-A171

Sale price$89.95

Customer Reviews

Be the first to write a review
Download Manual


The Mamba Micro X2 represents an upgraded version of our popular Mamba Micro X ESC. This innovative ESC introduces several enhancements, including an extended maximum input voltage of up to 4s. Notably, we've incorporated DATA LOGGING and our cutting-edge CRYO-DRIVE™ TECHNOLOGY, which optimizes ESC performance, ensuring it runs cooler and more efficiently, especially during partial throttle operation. Like its predecessor, the Mamba Micro X2 maintains its waterproof* feature and offers SENSORED MOTOR SUPPORT.

This ESC is a perfect choice for builders who prioritize weight savings or have limited space, making it suitable for low-speed crawling or trail running applications in vehicles weighing up to 8lbs when powered by 2s or 3s batteries. It can also accommodate slightly more aggressive setups, such as rock racing and extended hill climbing, in vehicles up to 4lbs. For optimal performance, we recommend Castle's "Slate" crawler motors (combos available) and the Holmes Hobbies Puller Pro 540 "Stubby" (≤ 2700kv) motors.

A noteworthy update as of June 14, 2023: The internal BEC (Battery Eliminator Circuit) is now reinstated! All Mamba Micro X2 ESCs produced on or after June 2023 come equipped with the internal BEC. To identify the manufacturing date, check the side of the ESC box or the ESC's receiver wire. ESCs manufactured between August 2022 and May 2023 do not include an internal BEC but come with an external 10-amp CC BEC; for more details, click here.

For those seeking a more aggressive setup in a heavier vehicle, particularly for rock racing and extended hill climbing, we recommend using the Mamba X ESC. Similar to its predecessor, it offers enhanced features tailored for rock crawling, including an active drag brake and drag brake ramp.

Key Features:

  • Accepts Input Voltage ranging from 2S to 4S
  • Maintains Waterproof Design
  • Supports Sensored Motors
  • Convenient Transmitter Programming with six adjustable settings
  • Additional settings and software updates accessible via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App with a B-LINK Bluetooth Adapter (available separately)
  • Telemetry Ready, compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX, and T7PXR transmitters
  • Auxiliary Wire Functionality for "on-the-fly" adjustments, such as Max Power and Max Brake
  • Audible Alerts to notify you of potential calibration issues and error conditions
  • Designed and manufactured in Olathe, Kansas, and backed by a 1-year warranty

Mamba Micro X2 ESC Purchase Includes:

  • Mamba Micro X2 ESC with 4mm Connectors
  • Sensor Harness
  • Coupon for a complimentary Castle Link USB adapter
  • Driver's Ed and Quick Start Guide
  • Castle Decals

Technical Specs
Input Voltage Range: 2S-4S LiPo (16.8V Max)
BEC Specifications: 2A Peak, 5.5v or 7.5v (5.5v default)
Operating Environment: Waterproof* design allows for use in nearly any environment; included CC BEC is not waterproof.
Brake: Proportional
Reversible: Yes, but may be disabled
On/Off Switch: Yes, waterproof
Cooling Fan: Coming soon, uses 25mm size fan
Size (L x W x H): 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")
Weight (with wires): 1.66 oz / 47 grams
Connectors: 4.0 mm bullets
Items Needed for Operation: Battery Connector required, 4 mm Castle Connectors are recommended.
Product Use Statements:
  • Applying voltages higher than 16.8 volts will cause irreparable damage to your controller, voiding your warranty.
  • Recommended battery capacity for 1:18 scale vehicles is 1500mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
  • Mamba Micro X has 4.0mm bullet connectors on the motor wires and the battery input wires are bare. You must add the connector of your choice to the battery leads. We recommend a high current connector rated for at least 40 amps.
Application Guidelines: 1:14 scale RC vehicles weighing up to 3lbs and 1:10 scale low speed crawler vehicles up to 9lbs.
Recommended Motors: Castle 1406-1900Kv Sensored Motor
Castle 1406-2280Kv Sensored Motor
Castle 1406-2850Kv Sensored Motor
Programmability: Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters.
Tech Notes:
*Although the Mamba Micro X2 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
