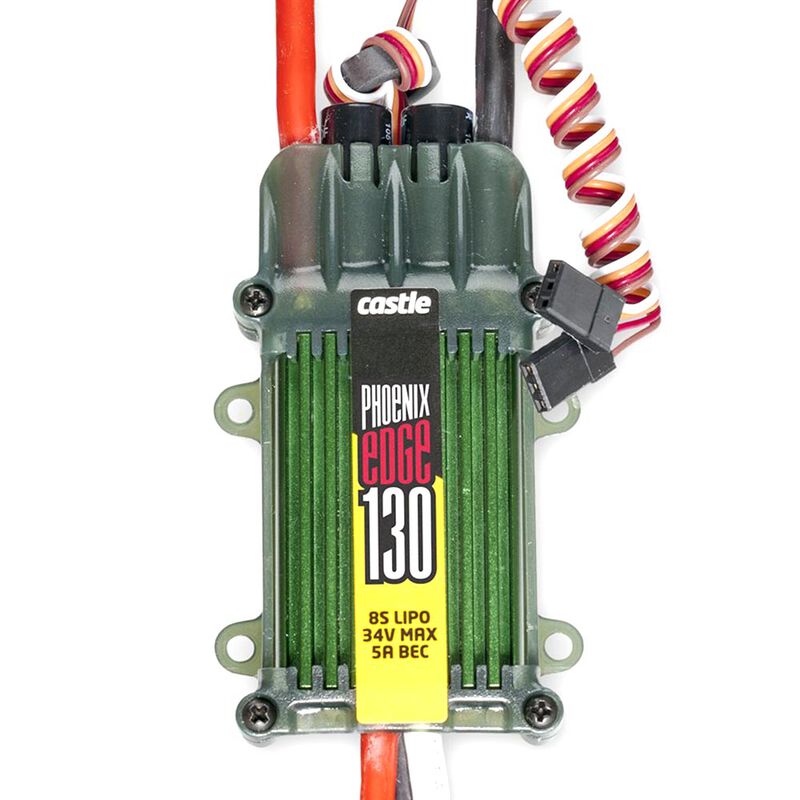

Castle Creations Phoenix Edge 130amp Brushless ESC

Castle CreationsSKU: PHEDGE-130

Sale price$214.95

Customer Reviews

Be the first to write a review
Download Manual


Get the Edge Over the Competition!

Phoenix Edge Series ESCs are the next evolution in speed controller technology. The white user-programmable auxiliary wire can be used for features such as helicopter governor gain input adjustments mid-flight, serving as an audible beacon after an “unexpected landing”, acting as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout included) , or as a receiver arming lock. Combined with data logging, access to Castle’s industry leading software functions, and USB programming capability via Castle Link USB Adapter (coupon included),or the new B-LINK Bluetooth Adapter and Castle Link for iOS, Phoenix Edge offers unparalleled versatility.

Data Logging

Available using Castle Link USB Adapter and the Castle Link Windows software to read, analyze and store the data recorded on the ESC.

Power System Alerts

The Edge ESCs are programmed to sound a number of tunes and codes using the motor as well as flashing LED patterns to alert users to certain conditions regarding their power system, such as over temperature, excessive load and locked head speed.

AUX Functionality

The Edge ESCs offer an AUX LINE, which is the extra white wire connected to the receiver cable. This line may be used for a variety of tasks such as helicopter governor gain input adjustments mid-flight, serve as an audible beacon after an "unexpected landing", act as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Key included) or as a receiver arming lock.

Telemetry Capable

Telemetry has the potential not only to improve the safety of our models by monitoring battery voltages, ESC temperature, and other critical parameters, but it also creates other opportunities to get even more fun out of flying because you’ve essentially reduced the risks of “unknown” inevitable crashes. Think of the benefits to be had from alarms that will sound to warn you when there's interference about or if your receiver battery is running unexpectedly low. Requires purchase of Castle Telemetry Link for S.BUS2 (Item CSE010015200) and compatible Futaba Radio or Castle Telemetry Link for X-BUS (Item CSE010014800) and a compatible Spektrum Radio.

Protection Features

Arming Lockout Key: When the Arm Lock Key is in the socket, the controller will be incapable of arming. (coupon for Arm Lock Key and Harness included with EDGE purchase) RC Arm Lock: The controller will not arm or run when the auxiliary channel is below 50% after connecting the AUX line to an open channel on your receiver that is programmed to serve as an arm lock switch.


Fully programmable Castle feature set using Castle Link USB Adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software, or the Castle Link iOS App and a B-Link Bluetooth Adapter. (A small subset of the settings available through Castle Link Windows software can be accessed via manual programming through the transmitter stick).

Firmware Upgrade

Users will receive free access to all firmware updates, including added features sets using the Castle Link USB Programming Kit.

Product Specifications

Programmable Yes
Product Width 2.0 in (50.8mm)
BEC Voltage 5.0-8.4V, user selectable
Input Voltage 2S-8S LiPo
Part Type Electronics
Product Height 0.9 in (23.2mm)
Application 550 or 600 class helicopters, 1.20 fixed wing
BEC Continous Current 5 amp peak
Product Weight 5.3 oz (150.6 g) with wires
Connector Type Open Ends
Product Length 3.3 in (83.6mm)
