Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description

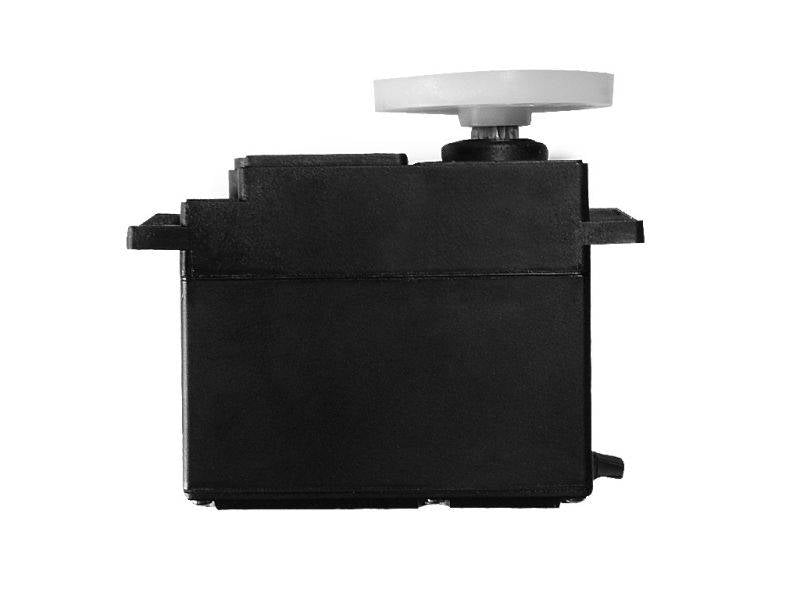

Known as the “monster” servo, the HS-805BB uses a heavy duty nylon gear train and a strong 10mm, 15 tooth output shaft to generate 343 oz./in. of torque that will easily move just about any large plane, car, truck or boat!
Features
- Economical Choice in a "Monster" Analog Servo
- Strong Three-Pole Ferrite Motor
- Heavy Duty, Nylon Gear Train
- Large 8mm Output Shaft with Dual Ball Bearings
- Solid Performance and Strong Gear Train
- Water and Dust-Resistant Case
Accessories
HS-805BB Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.19 ~ 0.14 |
| Maximum Torque Range oz. / in. | 275 ~ 343 |
| Maximum Torque Range kg. / cm. | 19.8 ~ 24.7 |
| Current Draw at Idle | 8 mA |
| No Load Operating Current Draw | 520 mA |
| Stall Current Draw | 6,000 mA |
| Dead Band Width | 8 µs |
| Physical Specifications | |

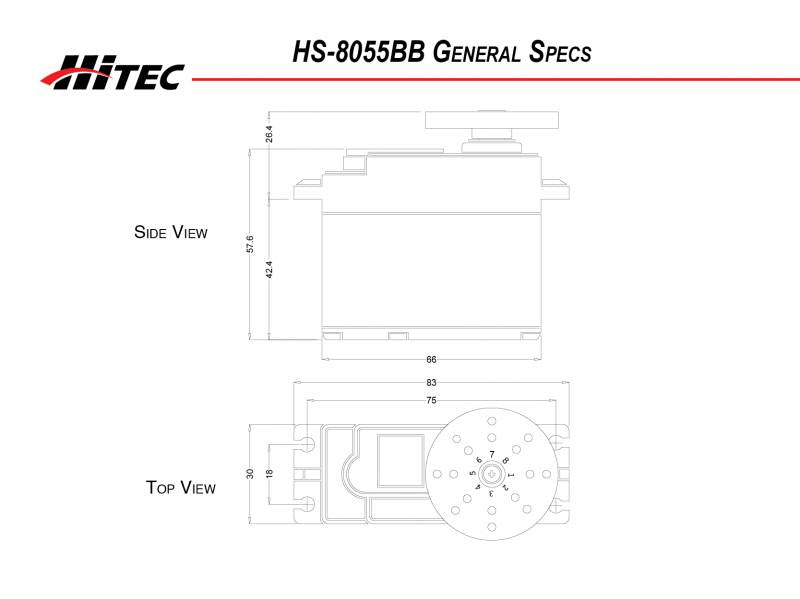

| Dimensions (Inches) | 2.59 x 1.18 x 2.26 |
| Dimensions (Metric) | 66.0 x 30.0 x 57.6 |
| Weight (Ounces) | 5.36 |
| Weight (Gram) | 152.0 |
| Circuit Type | HT7003 Analog MosFet |
| Motor Type | 3 Pole Carbon Brush Ferrite |
| Gear Material | Nylon |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | Mega 15 |
| Case Material | Plastic |
| Dust / Water Resistance | Splash Proof |
| Connector Gauge (AWG) / Strand Count | 22 / 60 |
| Radio Control Applications | |
| Parkflyer | N / A |
| Sport Plane | N / A |
| Sailplane | N / A |
| 3D Performance | N / A |
| Scale | 30-40% and >40% |
| Electric Helicopter | N / A |
| Gas Helicopter | N / A |
| On Road | N / A |
| Monster Truck | N / A |
| Buggies | N / A |
| Truggies | N / A |
| Short Course / Truck | N / A |
| Crawlers | N / A |
| Sail Boat | =>1M+ & Scale |
| Power Boat | 1/5th & Up |
