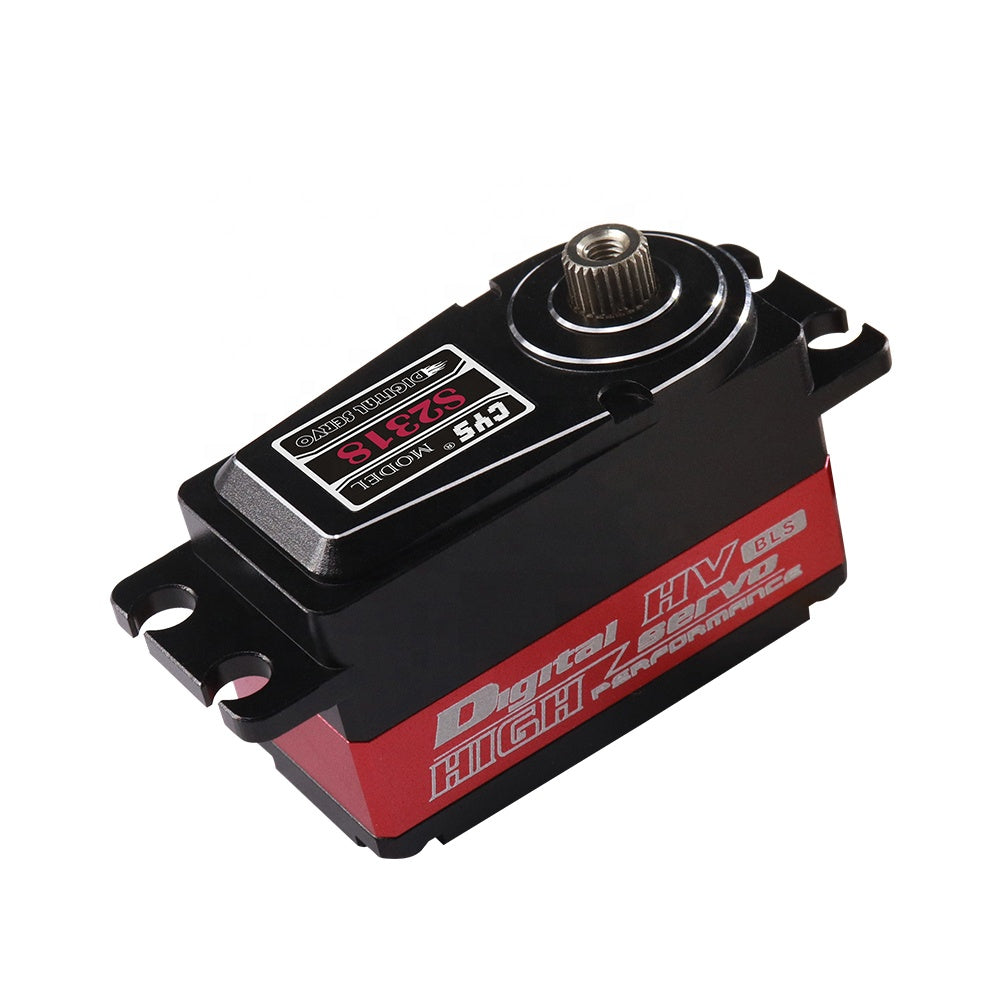

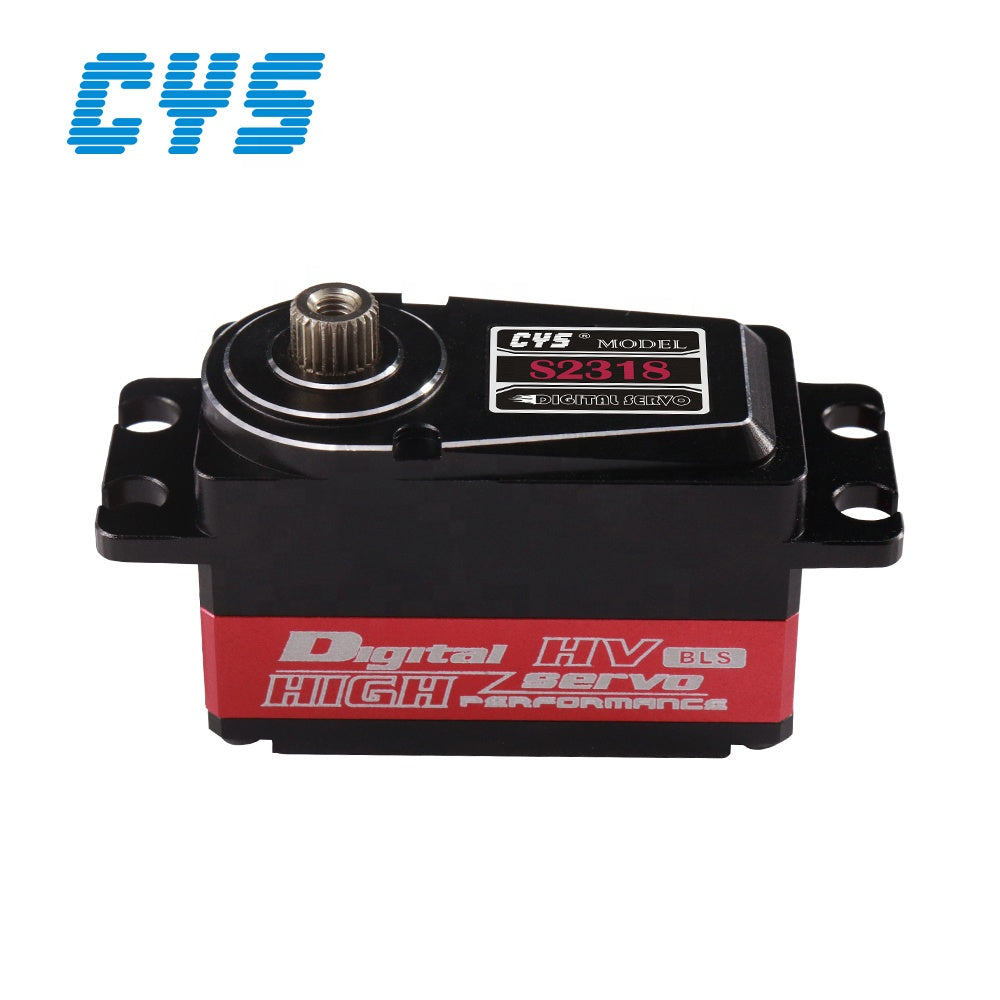

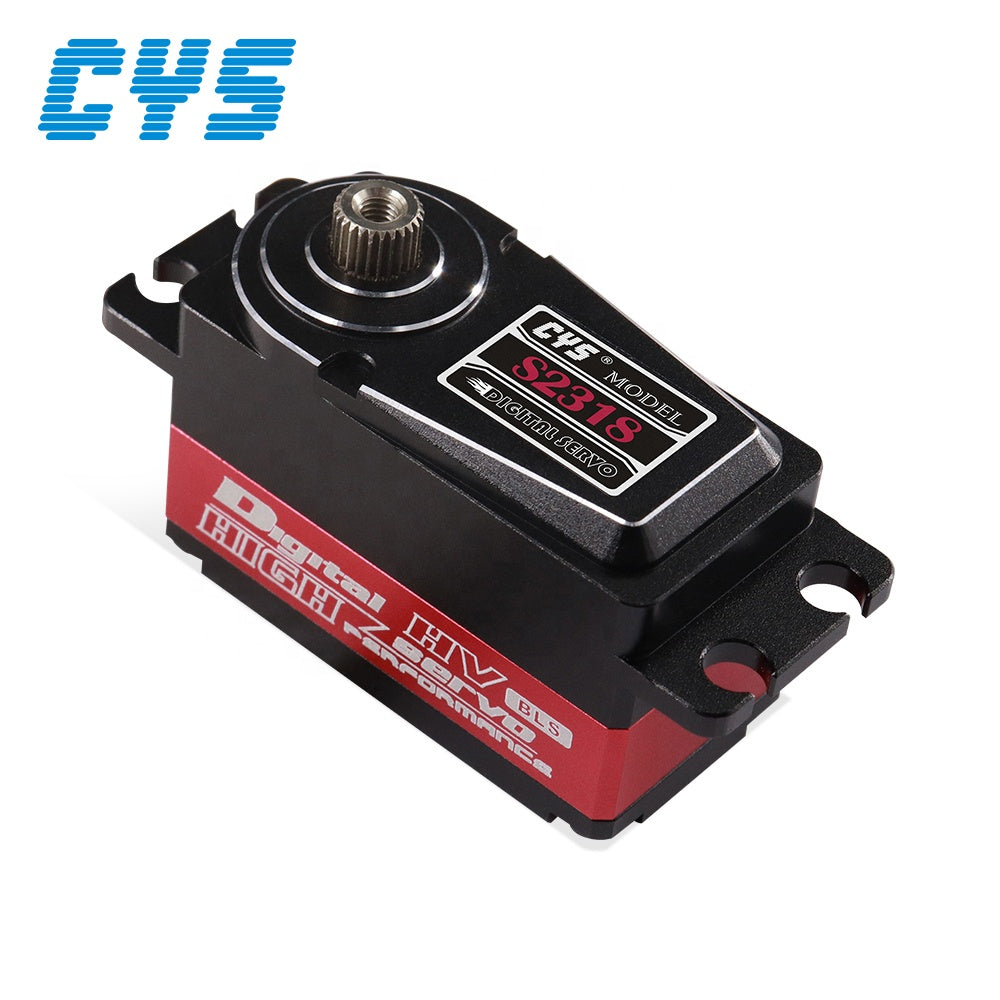

CYS S2318 Low Profile Waterproof 54g Metal Gear Digital Servo

CYSSKU: CYS-S2318

Price:
Sale price$59.99

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Download Manual

Description

Item NO.: CYS S2318

Description : Low Profile Waterproof 54g Metal Gear Digital Servo

Size : 40*20*25.2MM

Torque : 4.0Kg.cm ~ 5.0Kg.cm

Speed : 0.06sec ~ 0.05sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 54± 1 g

Item NO.
CYS-S2318
Type
Digital
Gear Type
Titanize Aluminum
Weight
54g
Size
40*20*25.5mm
Control System
(+)Pulse Width Control 1500μsec Neutral
Operating Voltage
6.0V-7.4V
Operating Temperature Range
(-)10 to +50 degree C
Operating Speed @ 6.0V-7.4V
0.06sec - 0.05sec at no load
Stall Torque @ 6.0V -7.4V
3.5kg.cm-4.5kg.cm
Current Drain (6.0V)
30mA/idle and 100mA no load operating
Current Drain (7.4V)
30mA/idle and 120mA no load operating
Stall Current
2.5A/2.8A
Dead Band Width
2μsec
Bearing Type
BB*2
Motor Type
Coreless
Horn gear spline
25T
Cable/Plug
300mm/JR
Wire information
Brown(N) Red (P) Orange(S)
Important Notes:

-Refer to the figure when installing the servo accessories.
-For engine powered airplanes and boats, rubber must be used to reduce vibration.
- Please choose correct model for your application.
-Torque over-loaded will damage the servo's mechanism-.
- Keep the servo clean and away from dust, corrosive gas and humid air.

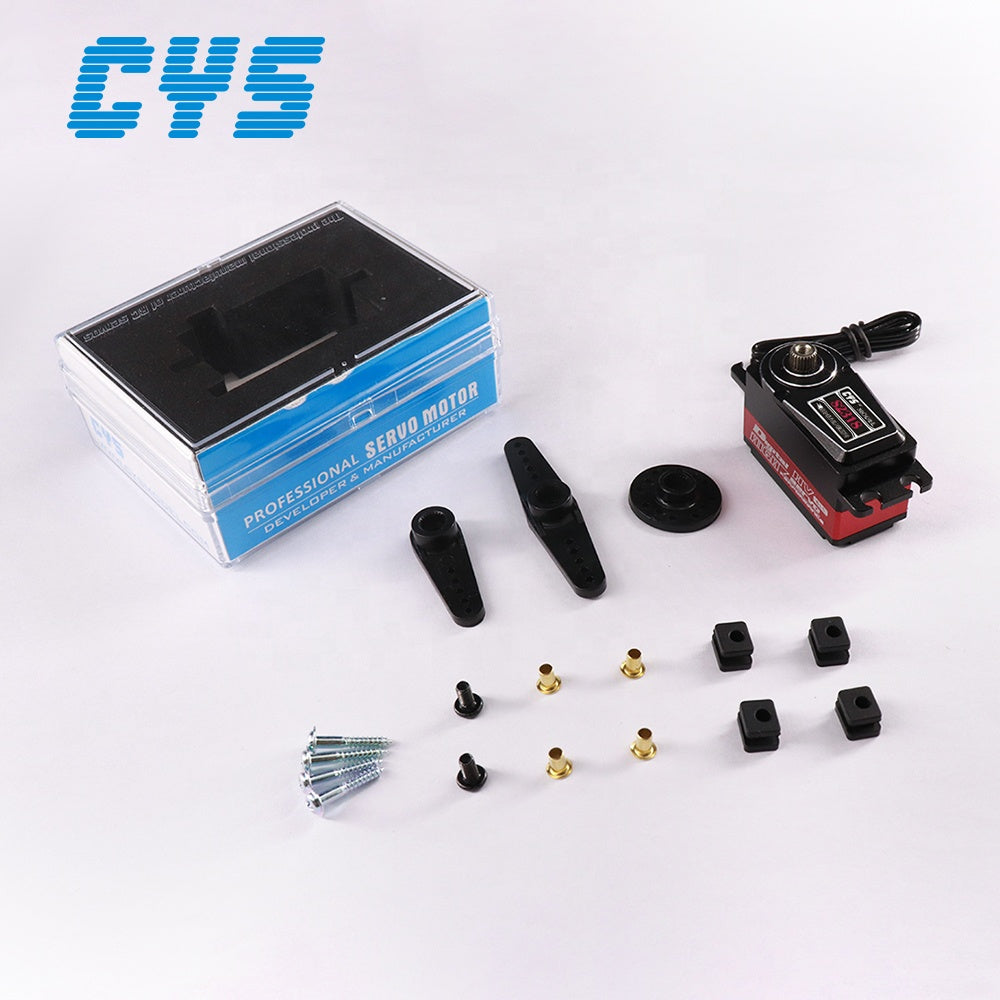

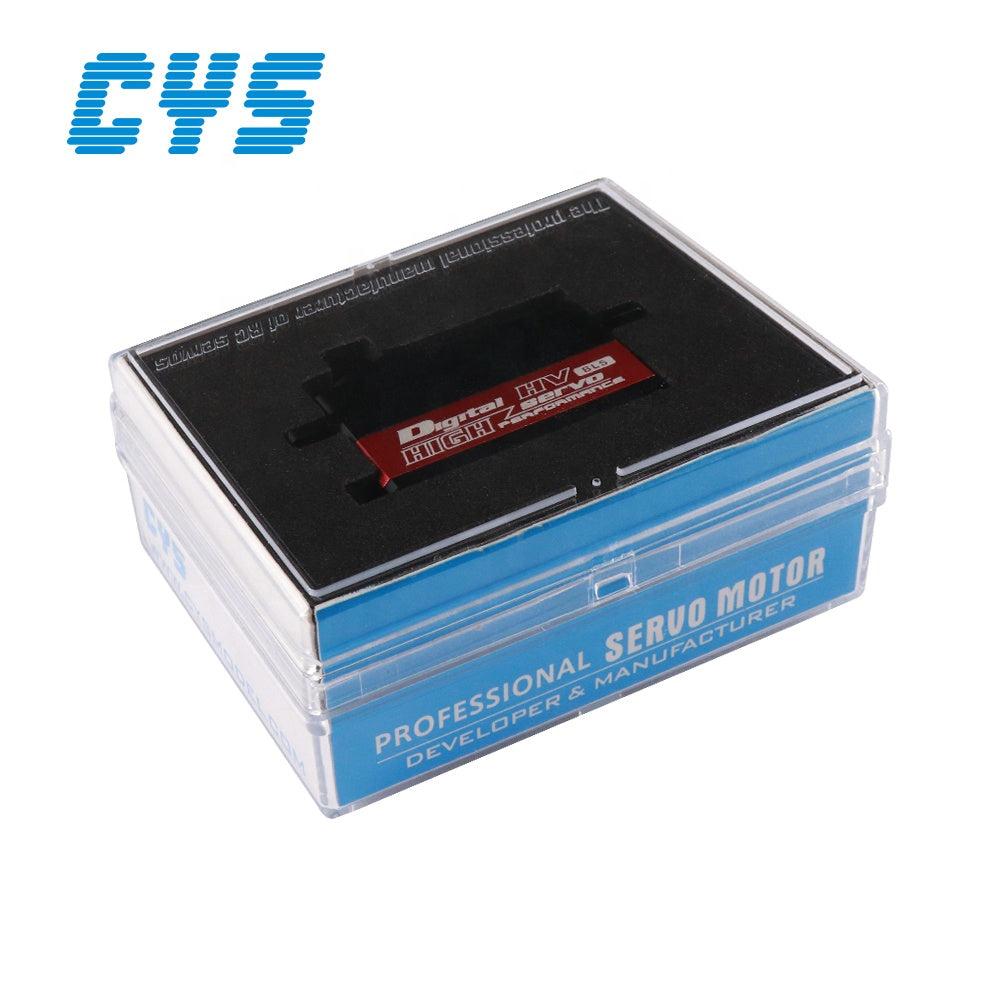

Package Included:
1 x CYS-S2318 Brushless Motor Metal Gear Servo
