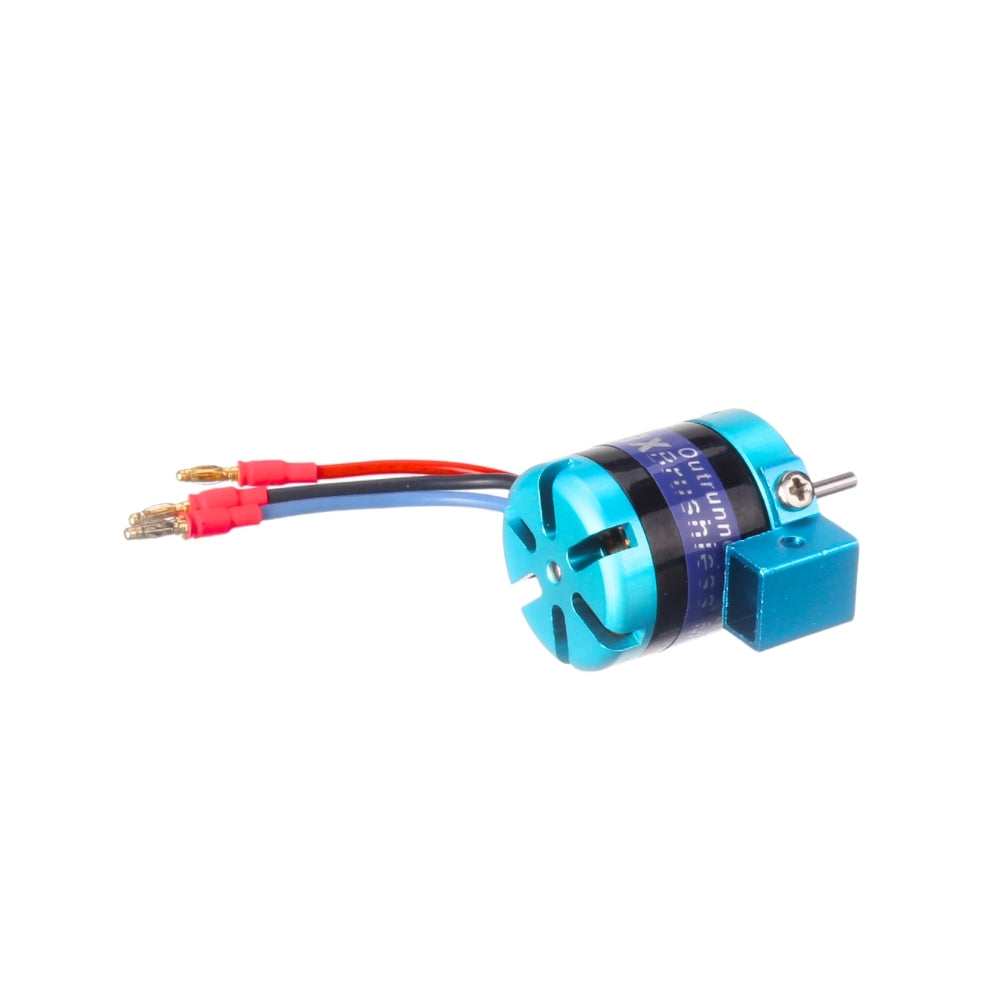

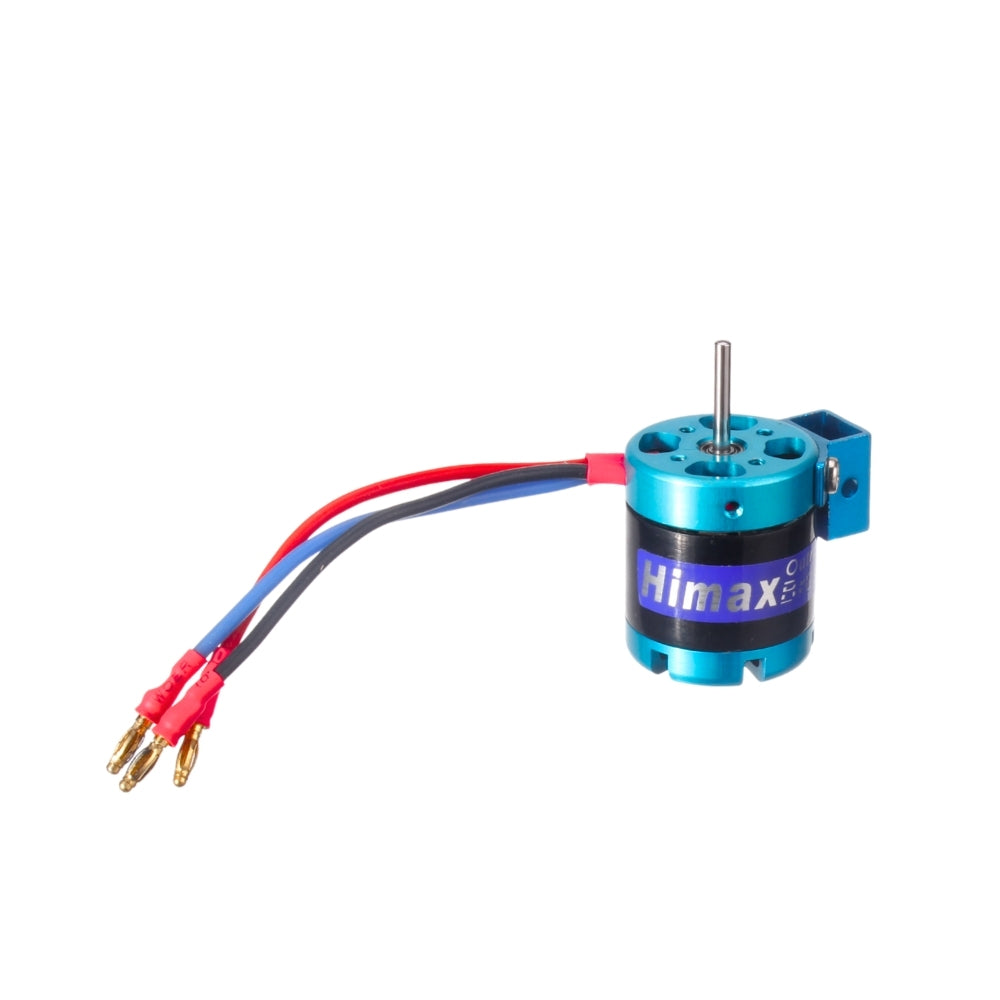

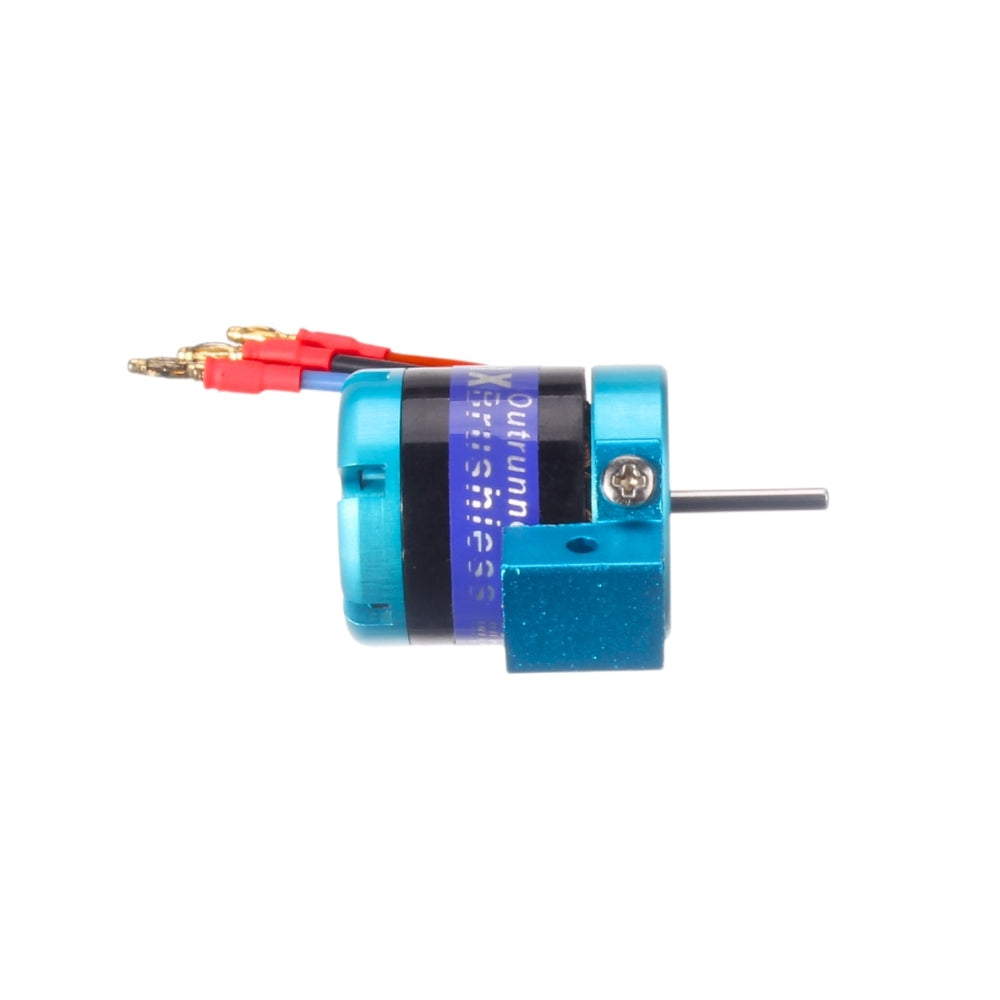

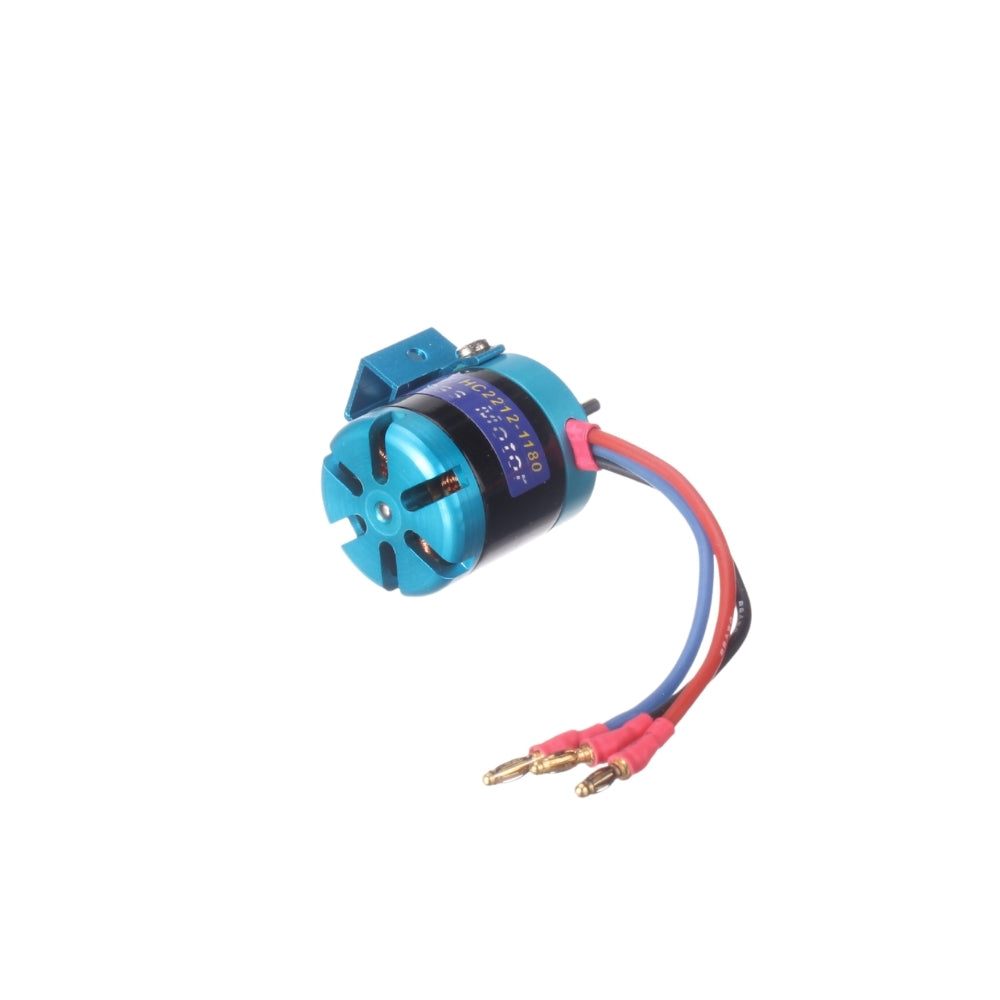

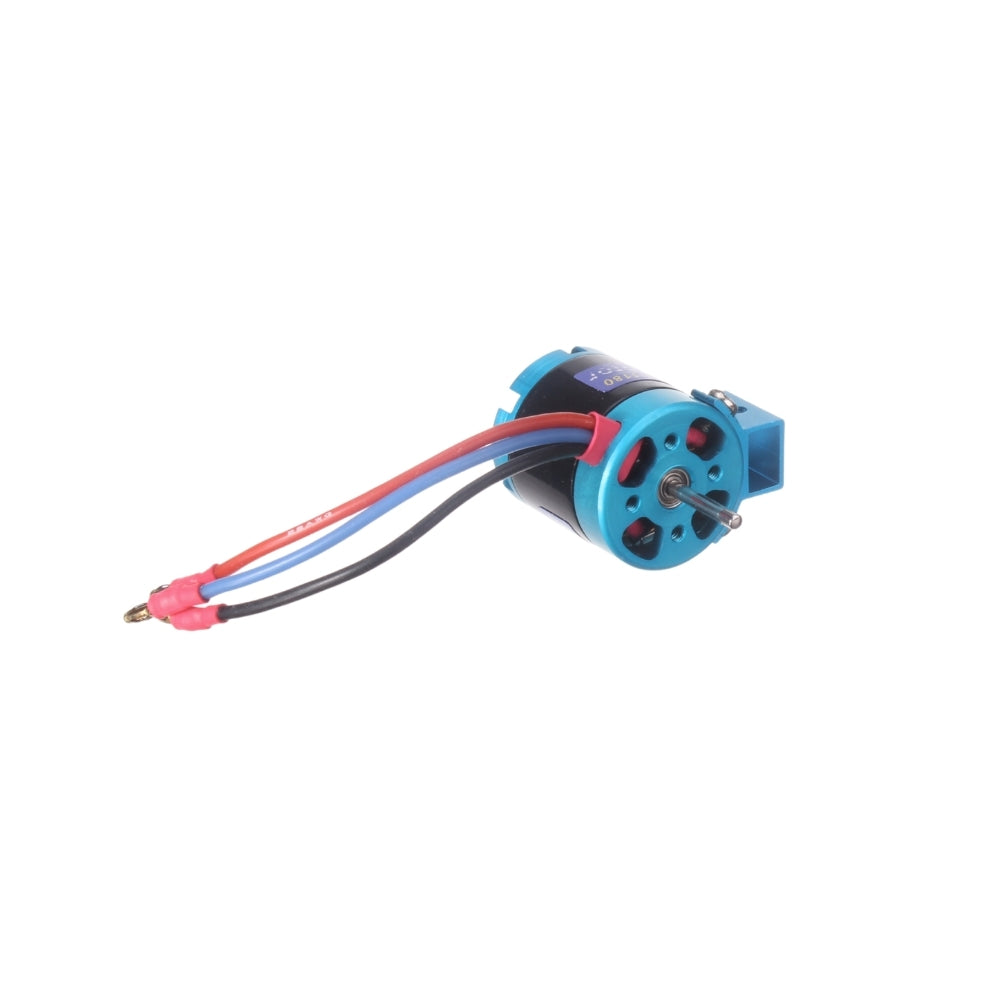

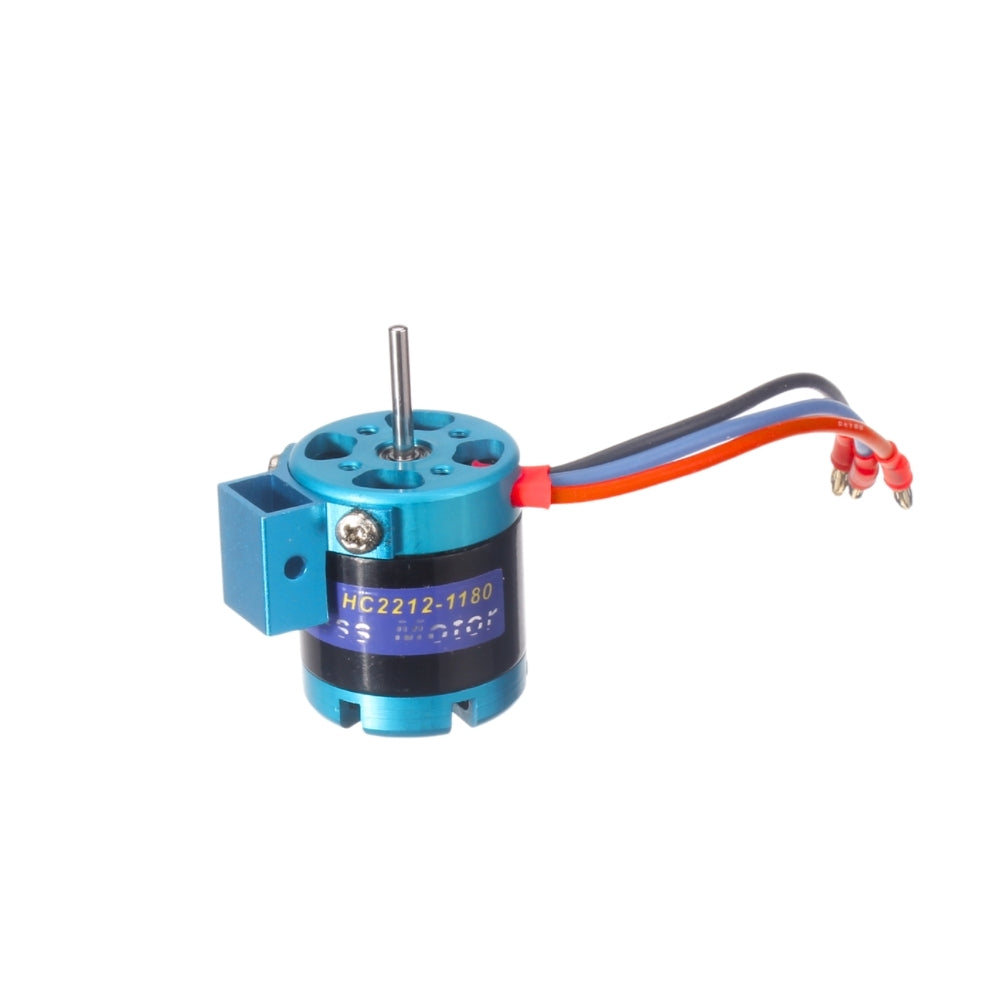

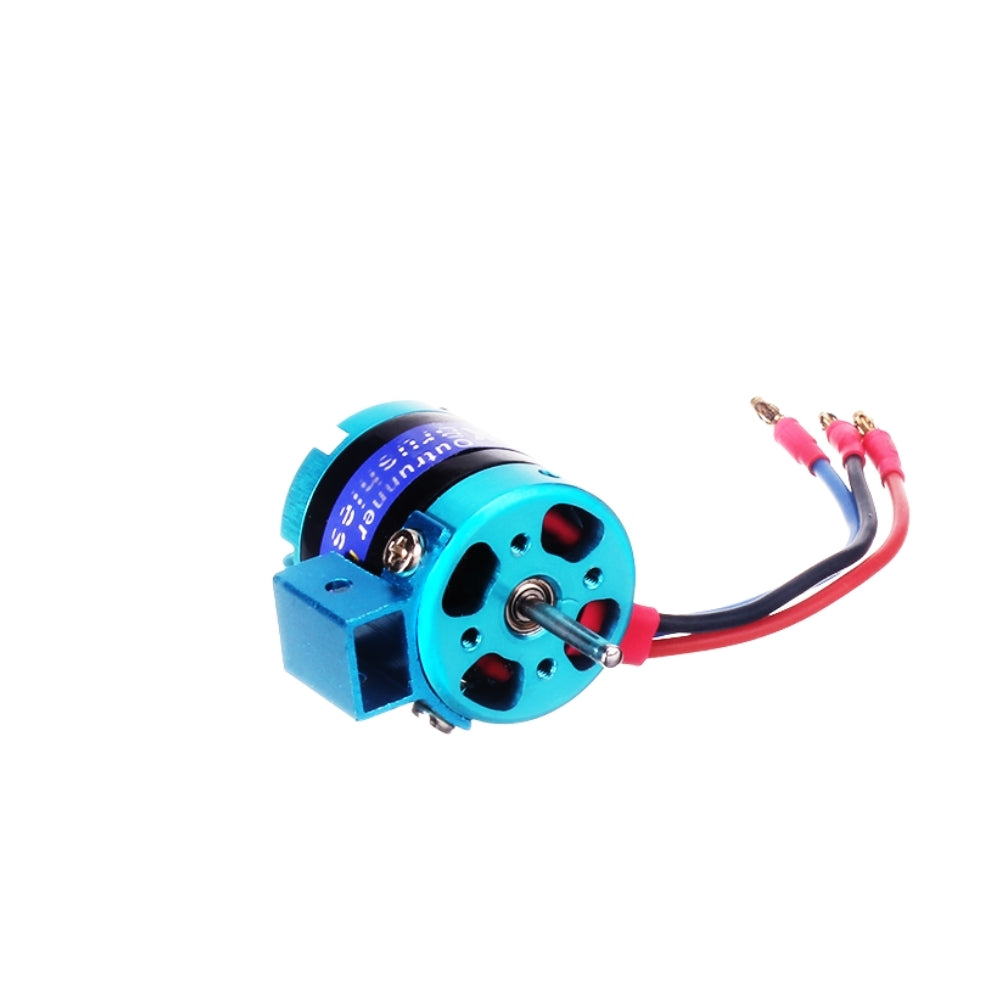

Himax HC2212 Outrunner Brushless Motors

MPISKU: HC22120840

Size: HC2212-0840
Sale price$42.99

Customer Reviews

Be the first to write a review
Download Manual


HC22 Outrunner
30-50 Watts

• Wide selections - 4 motors in 2 frame sizes,
• Tiny in size but BIG in power – high torque, direct drive,
• Dual ball bearings designed for durable and efficient operation,
• Three mounting options – stick mount, nose mount, or firewall mount,

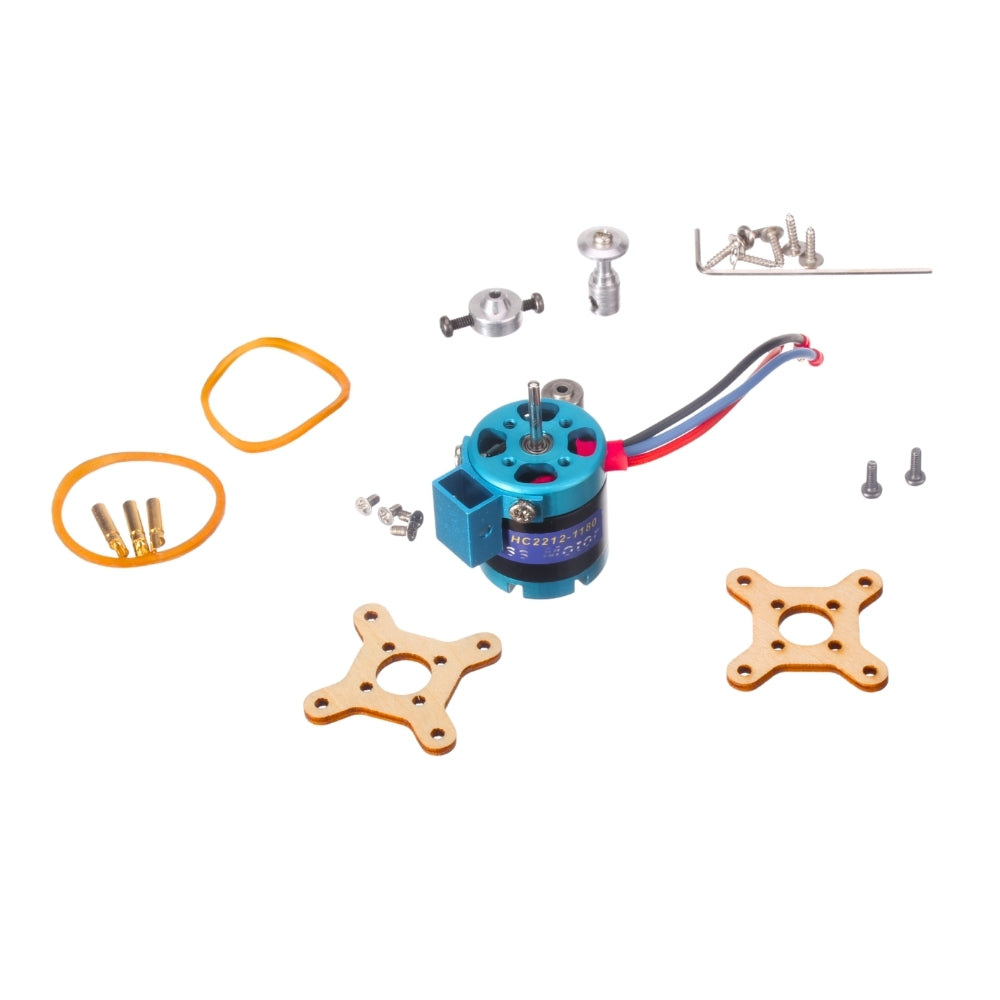

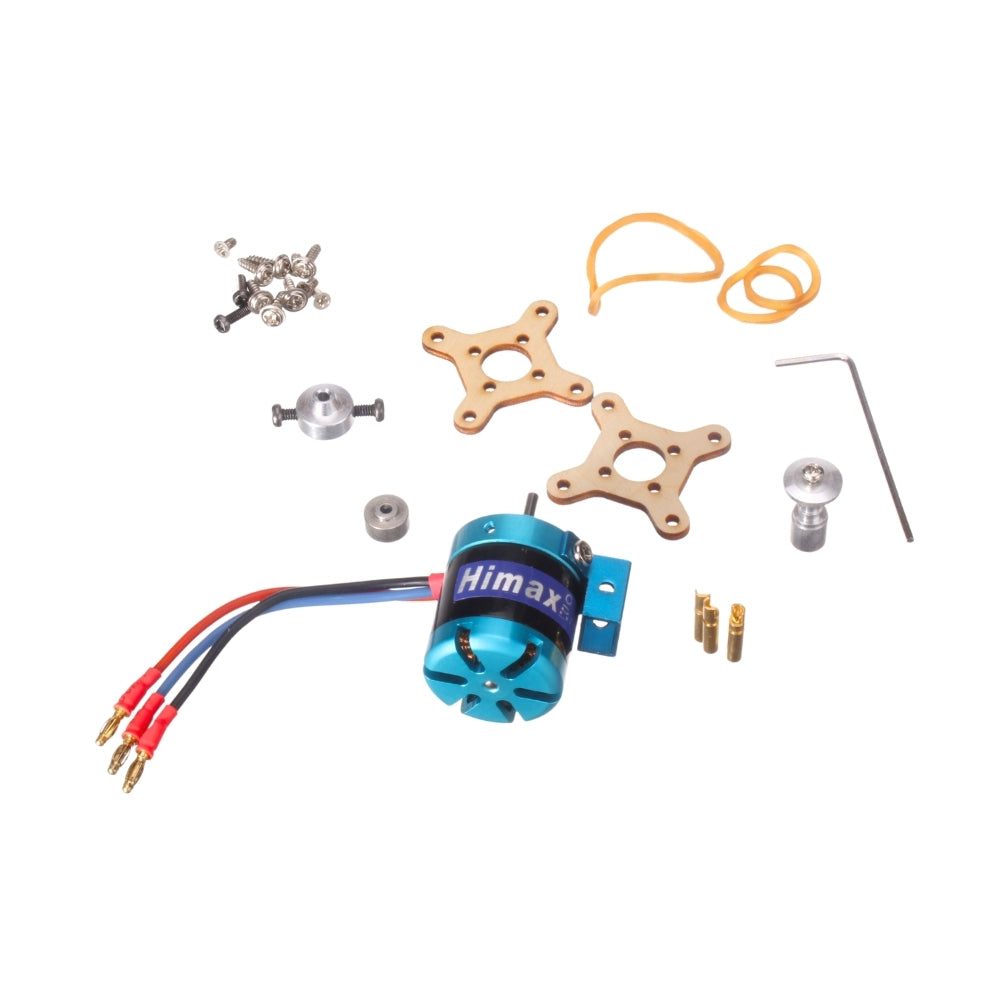

• Includes a prop adapter, mounting hardware, &connectors.

- This 50 watt motor is for very small models weight up to 12 oz . Replaces GWS IPSD gear motors, or 180 or 280 gear motors.

• For two-cell applications - use HC2212-1180
• For three-cell applications - use HC2212-0840
 Gas equivalent - .040

Part No. Dia mm Length mm Weight g Shaft Dia Prop Size* ESC Rating Kv Rm Io
Learn more
22 26 30 2mm 7x4-10x4.7 8 840 .70 .3
Learn more
22 26 30 2mm 6x4-9x4.7 8 1180 .3 .5
VERY IMPORTANT-If you are ordering HC2212-1180 for Multiplex Merlin ,please leave a note in the "Special Instruction Area" to tell us this is for Merlin and we will include a special part (ACC4871) without extra charge to fit this airplane kit.
*Caution- Prop size is highly dependent on battery choice. Check the manual for full information. Always monitor current when choosing prop.
