Hitec Mighty Mini Servos Analog HS-225BB

HitecSKU: HS-225BB

Price:
Sale price$20.99

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Download Manual

Description

Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description

The analog HS-225BB represents a good value with performance that rivals other larger and more expensive servos. Ideal for applications that call for a small, lightweight, high speed, high torque servo, the HS-225BB high performance mini servo features a top ball bearing and is built with state-of-the-art SMT technology.

Features

  • Full Size Performance in a Mini Package
  • Durable Nylon Gears
  • Top Ball Bearings
  • Perfect for Applications Requiring a Small, Lightweight, High Speed, High Torque Servo

Accessories

  • Nylon Gear Set | Link |
  • Plastic Case Set | Link |
  • Applicable Horns


HS-225BB Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.14 ~ 0.11
Maximum Torque Range oz. / in. 54 ~ 67
Maximum Torque Range kg. / cm. 3.9 ~ 4.8
Current Draw at Idle 8 mA
No Load Operating Current Draw 300 mA
Stall Current Draw 1,200 mA
Dead Band Width 8 µs

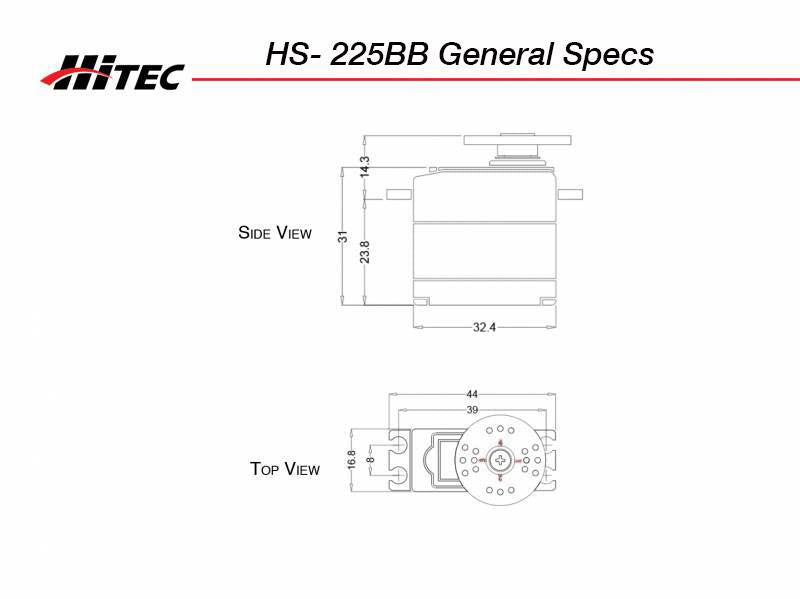

Physical Specifications
Dimensions (Inches) 1.27 x 0.66 x 1.22
Dimensions (Metric) 32.4 x 16.8 x 31.0
Weight (Ounces) 0.95
Weight (Gram) 27.0
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Nylon
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
Radio Control Applications
Parkflyer N / A
Sport Plane 50 - 64 oz.
Sailplane 3 Meter
3D Performance 50 - 64 oz.
Scale N / A
Electric Helicopter 500m
Gas Helicopter 50 - 59 Class
On Road 1/12th
Monster Truck N / A
Buggies 1/12th
Truggies N / A
Short Course / Truck N / A
Crawlers 1/18th
Sail Boat < 1 Meter
Power Boat 1/16th
