Description
Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description
Considered one of the most powerful servos in the micro class, the HS-65 is offered with a choice of “shock resistant” Metal or “zero wear” Karbonite gears. The 65 series features a top-ball bearing for long life and positive centering, 31 ounces/inches of power at 6 volts and is an excellent choice for higher performance micro helicopters, electric park flyers, and 1/18 scale cars.
Features
- Premium Feather Servo
- Strong Karbonite Gears
- Ball Bearing-Supported Output Shaft
- High Torque and High Speed
HS-65HB Servo Specifications
Performance Specifications | |
Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
Speed (Second @ 60°) | 0.16 ~ 0.13 |
Maximum Torque Range oz. / in. | 22 ~ 26 |
Maximum Torque Range kg. / cm. | 1.6 ~ 1.9 |
Current Draw at Idle | 7.7 mA |
No Load Operating Current Draw | 220 mA |
Stall Current Draw | 1,200 mA |
Dead Band Width | 5 µs |

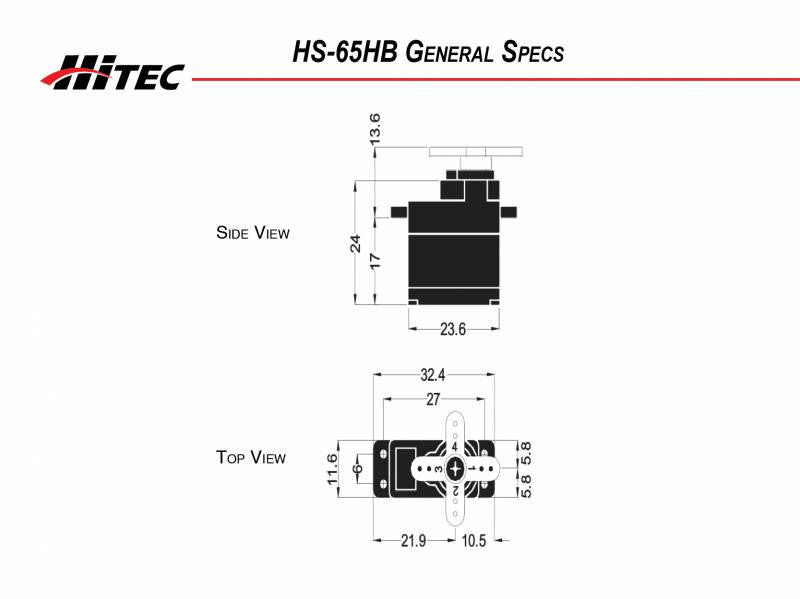

Physical Specifications | |
Dimensions (Inches) | 0.92 x 0.45 x 0.94 |
Dimensions (Metric) | 23.6 x 11.6 x 24.0 |
Weight (Ounces) | 0.39 |
Weight (Gram) | 11.2 |
Circuit Type | HT7003 Analog SMT |
Motor Type | 3 Pole Metal Brush Neodymium |
Gear Material | Karbonite |
Bearing Type | Top Ball Bearing |
Output Shaft (type / Ømm) | Feather 15 / 8 |
Case Material | Plastic |
Dust / Water Resistance | N / A |
Connector Gauge (AWG) / Strand Count | 28 / 20 |
Radio Control Applications | |
Parkflyer | < 42 oz. |
Sport Plane | 36 - 41 oz. |
Sailplane | < 2 meter / DLG |
3D Performance | Foamies |
Scale | N / A |
Electric Helicopter | 400 - 500mm |
Gas Helicopter | 30 - 39 Class |
On Road | N / A |
Monster Truck | N / A |
Buggies | N / A |
Truggies | N / A |
Short Course / Truck | 1/8th |
Crawlers | N / A |
Sail Boat | N / A |
Power Boat | 1/8th |
