Hitec HS-7115TH High Voltage, Titanium Gear, Slim Wing Ultra Premium Servo Special Order

HitecSKU: HS-7115TH

Sale price$102.99

Customer Reviews

Be the first to write a review
Download Manual


Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description

You can never be too rich or too thin! That's our philosophy with our new HS-7115TH Slim Wing servo: rich engineering in a thin design! The HS-7115TH will fulfill every pilot's dream when it comes to flying slim-wing aircraft. With its efficient, powerful three pole, metal-brushed motor and mighty titanium gear train, this servo brings the ultimate in high performance to your sailplanes, pylon racers and smaller scale models. The extremely thin, 8mm case with included mounting bracket allows it to fit into the tightest wings and most compact spaces. Constructed with dual ball bearings, the high voltage HS-7115TH provides an impressive 50 oz-in of torque at 7.4 volts.

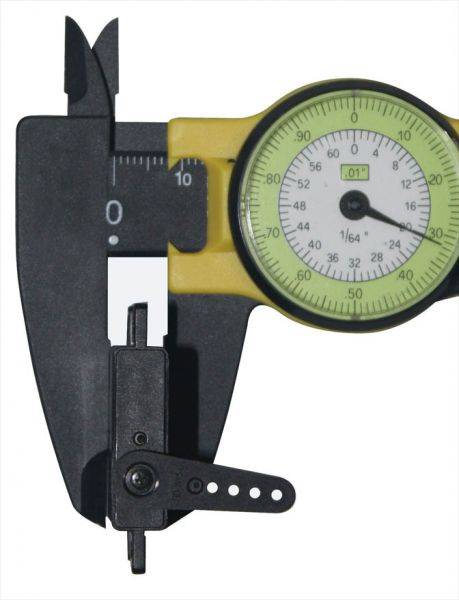

  • Slim 8mm Design Fits in the Thinnest Wings
  • Strong Three-Pole Ferrite Motor
  • Durable Titanium Gears
  • Dual Ball Bearing
  • 7.4v 2-Cell LiPo Capability
  • G2 Fully Programmable Digital Circuitry

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Overload Protection
  • Resolution
  • Data Save / Load
  • Program Reset


  • Titanium Gear Set | Link |
  • Plastic Case Set | Link |
  • Applicable Horns

HS-7115TH Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 6.0V ~ 7.4V
Speed (Second @ 60°) 0.12 ~ 0.10
Maximum Torque Range oz. / in. 44 ~ 54
Maximum Torque Range kg. / cm. 3.2 ~ 3.9
Current Draw at Idle 10 mA
No Load Operating Current Draw 130 mA
Stall Current Draw 1,500 mA
Dead Band Width 1 µs
Physical Specifications

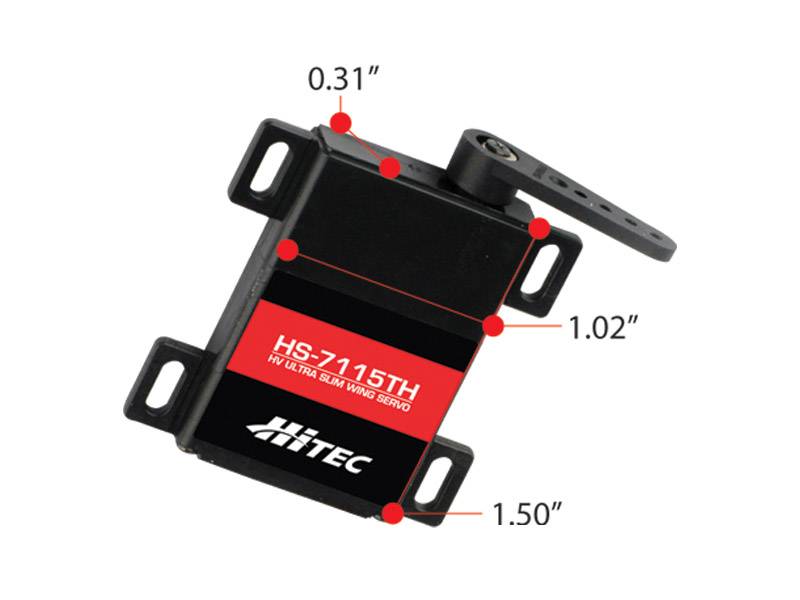

Dimensions (Inches) 1.02 x 0.31 x 1.50
Dimensions (Metric) 26.0 x 8.0 x 38.0
Weight (Ounces) 0.71
Weight (Gram) 20.0
Circuit Type G2 Programable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Titanium
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Feather 15
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 22 / 40
Radio Control Applications
Parkflyer N / A
Sport Plane 42 - 50 oz.
Sailplane 2 Meter and Up
3D Performance 42 - 50 oz.
Scale N / A
Electric Helicopter N / A
Gas Helicopter N / A
On Road N / A
Monster Truck N / A
Buggies N / A
Truggies N / A
Short Course / Truck N / A
Crawlers N / A
Sail Boat N / A
Power Boat N / A
