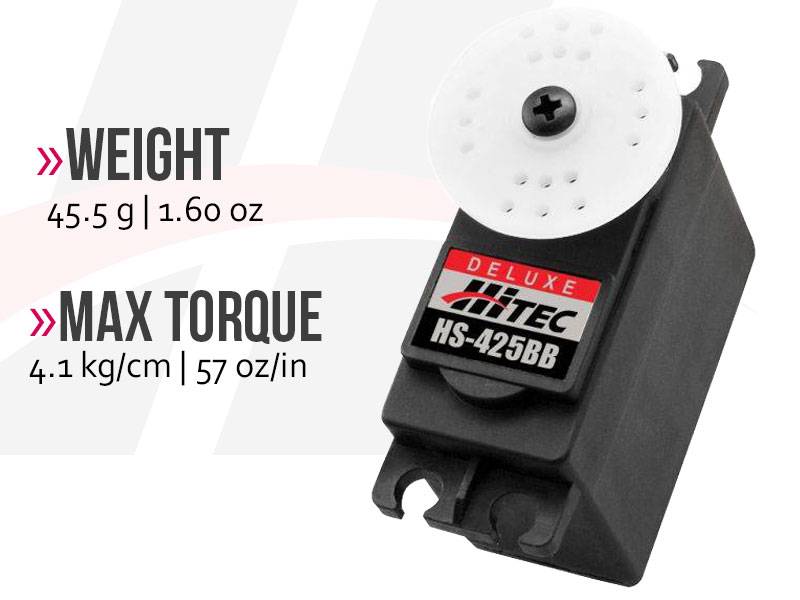

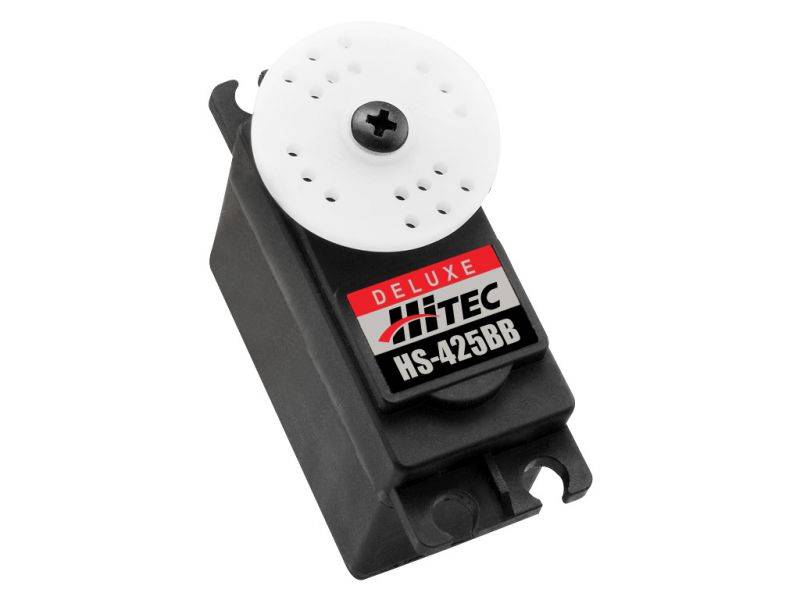

Hitec HS-425BB Deluxe Ball Bearing Standard Servo

HitecSKU: HS-425

Size: HS-425 Ball Bearing Servo
Price:
Sale price$17.49

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Download Manual

Description

Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description

The HS-425BB is offered with dual ball bearings, impact resin gears and high performance circuitry. As one of our longest running production servos, it has proven to be a durable and dependable product year after year.

Features

  • Durable and Dependable Construction
  • Durable Resin Gear Train
  • Dual Ball Bearings
  • High Performance Circuitry

Accessories

  • Nylon Gear Set | Link |
  • Plastic Case Set | Link |
  • Applicable Horns


HS-425BB Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.21 ~ 0.16
Maximum Torque Range oz. / in. 46 ~ 57
Maximum Torque Range kg. / cm. 3.3 ~ 4.1
Current Draw at Idle 8 mA
No Load Operating Current Draw 150 mA
Stall Current Draw 800 mA
Dead Band Width 8 µs

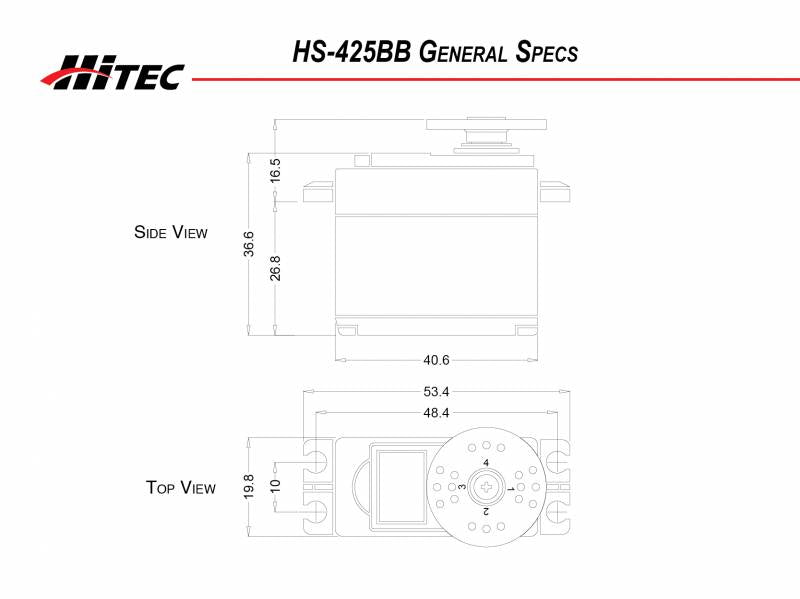

Physical Specifications
Dimensions (Inches) 1.59 x 0.77 x 1.44
Dimensions (Metric) 40.6 x 19.8 x 36.6
Weight (Ounces) 1.60
Weight (Gram) 45.5
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Nylon
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
Radio Control Applications
Parkflyer N / A
Sport Plane 50 - 64 oz.
Sailplane 2 meters and up
3D Performance N / A
Scale 50 - 64 oz.
Electric Helicopter N / A
Gas Helicopter N / A
On Road N / A
Monster Truck N / A
Buggies N / A
Truggies N / A
Short Course / Truck N / A
Crawlers N / A
Sail Boat < 1 meter
Power Boat 1/10th
