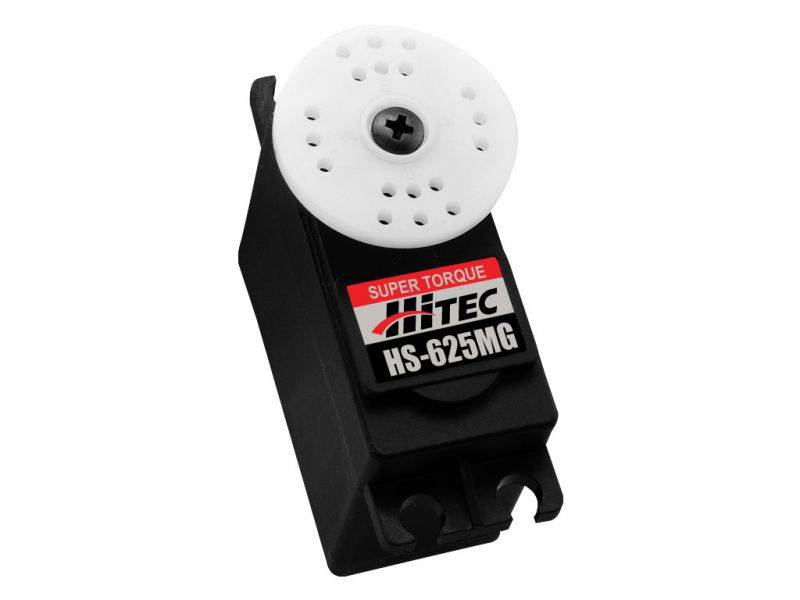

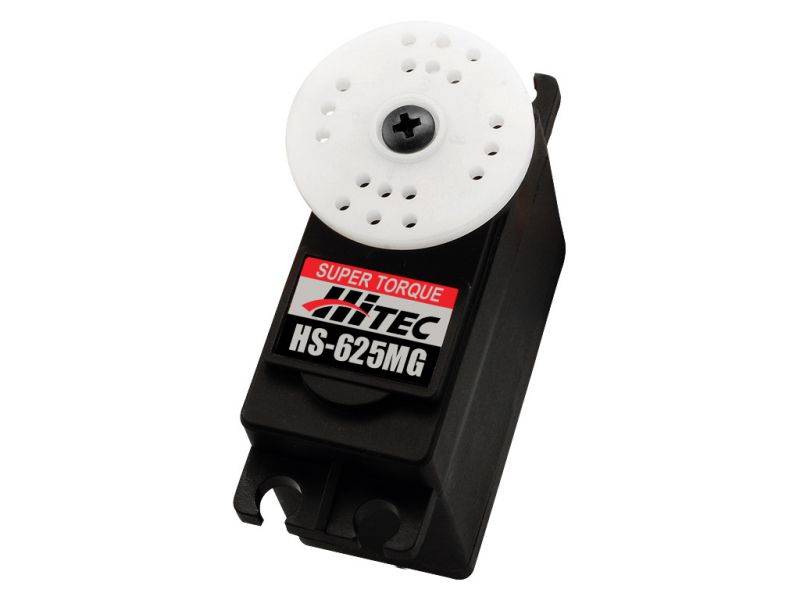

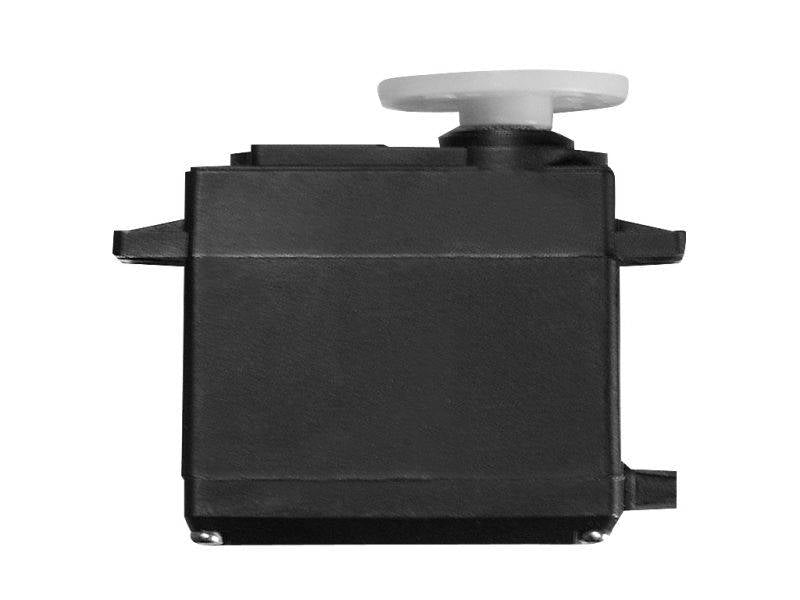

Hitec HS-625MG High Speed, Metal Gear Premium Sport Servo

HitecSKU: HS-625MG

Price:
Sale price$34.99

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Download Manual

Description

Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description

The powerful high speed HS-625MG is a perfect choice for those applications requiring a fast and strong standard size servo. Utilizing our M/P and metal gear train technology, the HS-625MG is a fantastic sport servo for larger planes and 10th scale sport vehicles.

Features

  • Affordable High Speed Metal Gear Servo
  • Strong Three-Pole Ferrite Motor
  • Heavy Duty Metal Gear Train
  • Revolutionary Metal/Plastic First Gear (MP Gear)
  • Dual Ball Bearing-Supported Output Shaft

Accessories

  • Metal Gear Set | Link |
  • Metal / Plastic 1st Gear Set | Link |
  • Plastic Case Set | Link |
  • Applicable Horns


HS-625MG Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.18 ~ 0.15
Maximum Torque Range oz. / in. 76 ~ 94
Maximum Torque Range kg. / cm. 5.5 ~ 6.8
Current Draw at Idle 9.1 mA
No Load Operating Current Draw 500 mA
Stall Current Draw 2,500 mA
Dead Band Width 8 µs

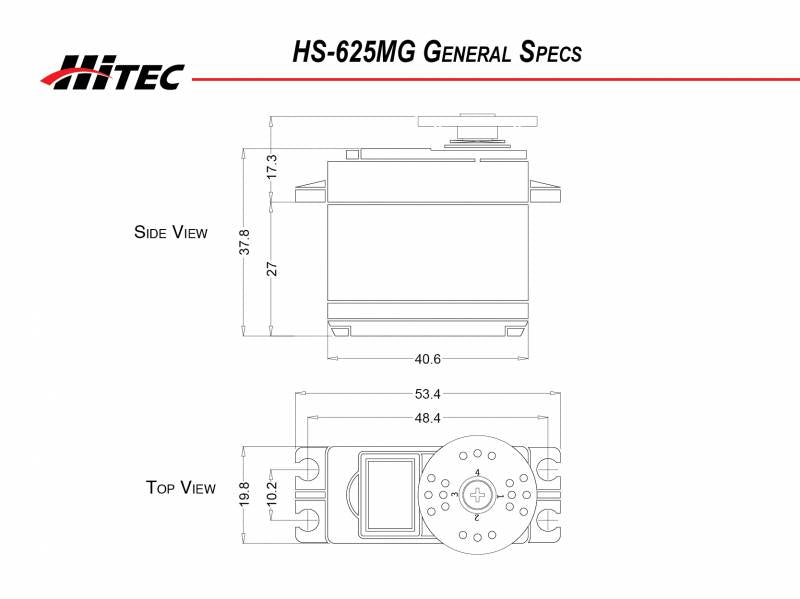

Physical Specifications
Dimensions (Inches) 1.59 x 0.77 x 1.48
Dimensions (Metric) 40.6 x 19.8 x 37.8
Weight (Ounces) 1.94
Weight (Gram) 55.2
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 22 / 60
Radio Control Applications
Parkflyer N / A
Sport Plane 4-12 lbs.
Sailplane 2 meters and up
3D Performance 4-12 lbs.
Scale 4-12 lbs.
Electric Helicopter 600mm
Gas Helicopter 50-59 Class
On Road 1/10th
Monster Truck 1/10th
Buggies 1/10th
Truggies 1/10th
Short Course / Truck 1/10th
Crawlers 1/10th
Sail Boat =>1M+ & Scale
Power Boat 1/10th
