Introducing the ISDT P10, powered by innovation, and packed with features to make your charging experience hassle-free.
Smart Dual Channel Charging: With a high-speed processor delivering parameters to each port, you can expect synchronous and efficient charging. Maximum charging power for a single port can reach up to 250W.
Synchronous Parallel Charging: The built-in high-speed processor allows for synchronous balance charging across two channels. Parallel charging power can reach up to 400W, while P10 delivers a charging current range of 10A to 16A.
USB Firmware Upgrade: Always maintain advanced performance and features with the ISDT P10. Connect to a computer through the USB-C interface to upgrade to the latest firmware.
Adjustable Digital Power Supply: With adjustable digital power supply mode, CH1 of the charger can become a DC power supply with a maximum power output of 120W. CC ranges from 0.2A to 5A, and CV ranges from 5V to 24V.

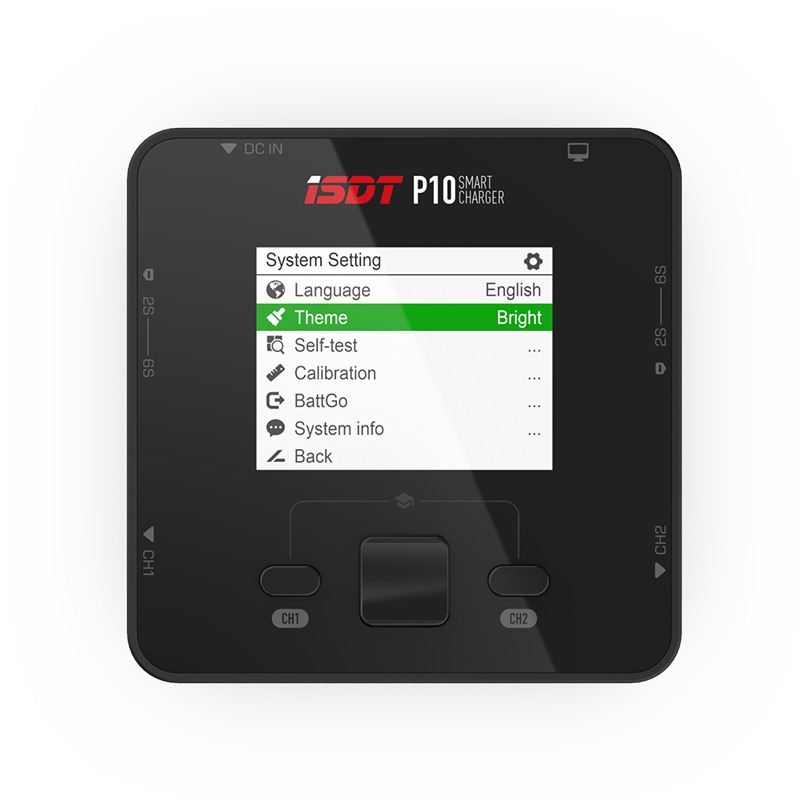

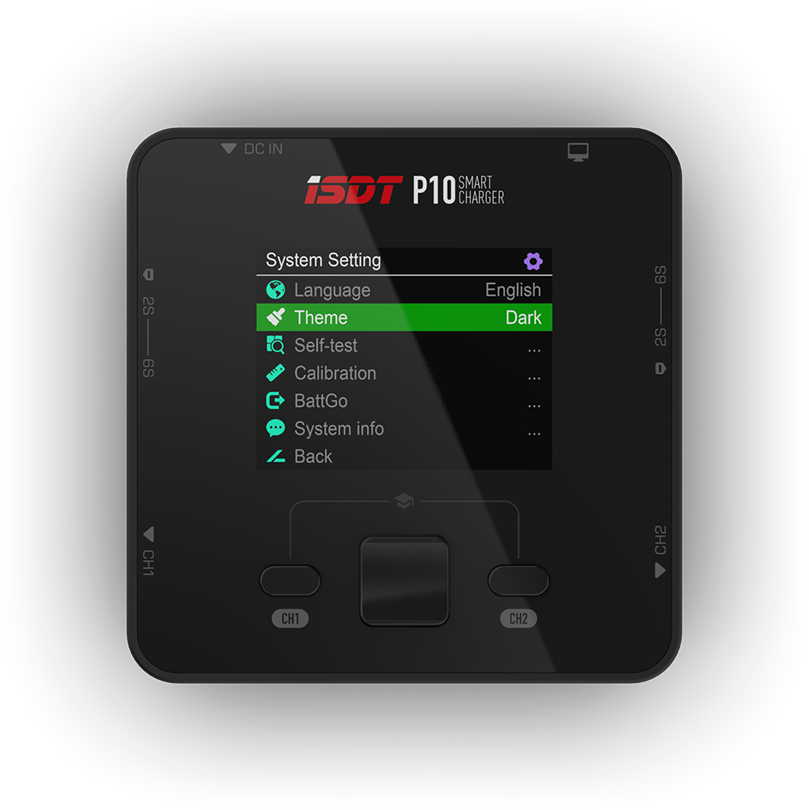

Dark Mode: Introducing the new dark mode feature with scOS 2.0. Suitable for low-light scenarios, the system adjusts the interface to a dark tone, reducing light damage to the user's eyes while maintaining the iconic and comfortable charging display style.
- Model No: P10
- Input voltage: DC 10~30V
- Output voltage: DC 1~26.4V
- Max. input current: 20A
- Charging current: 0.2~10.0A*2
- Balance current: 0.5A/Cell Max
- Max. charging power: 250W*2
- Abnormal voltage alarm: Supported
- Incorrect cell count setting alarm: Supported
- Supported Quick-charge: LiFe, LiIon, LiPo, LiHv 1-6S, Pb 1-10S; NiMH, Cd 1-16S
- Working temperature: 0~40℃
- Storage temperature: -20℃~60℃
- Dimension: 90.5×90.5x47mm
- Weight: About 250g
Packaging Included: 1 x ISDT P10 Charger
