Description

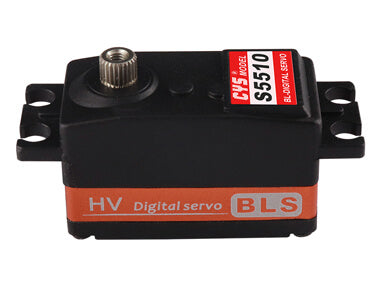

Item NO.: CYS-BLS5510 Low profile digital servo
Description : Brushless drifted servo motor for 1/10 RC car
Size : 40*20*25.2MM
Torque : 4.0Kg.cm ~ 5.0Kg.cm
Speed : 0.06sec ~ 0.05sec/60 degree
Voltage : 6.0Volts ~7.4Volts
Weight : 43± 1 g
Type | Digital |
---|---|
Weight | 45g±1g |
Size | 40.3*20.3*25.2mm |
Control System | (+)Pulse Width Control 1500usec Neutral |
Operating Voltage | 6.0~7.4Volts |
Operating Temperature Range | (-)10 to +50 degree C |
Operating Speed (6.0V) | 0.045ec/60° at no load |
Operating Speed (7.4V) | 0.035sec/60° at no load |
Stall Torque (6.0V) | 3.5kg.cm |
Stall Torque (7.4V) | 4.5kg.cm |
Operating Angle | 45deg.one side pulse traveling 500 usec |
360 Modifiable | No |
Direction | Anticlockwise/Pulse Traveling 1000~2000usec |
Current Drain (6.0V) | 30mA/idle and 100mA no load operating |
Current Drain (7.4V) | 30mA/idle and 150mA no load operating |
Stall Current | 3.2A/3.9A |
Dead Band Width | 2usec |
Motor Type | Brushless |
Bearing Type | Double ball bearing |
Horn gear spline | 25T |
Gear Type | Titanize |
Connector Wire Length | 180mm±5mm |
Wire info | Brown/Black = Negative |
Red = Positive | |
Orange/White = Signal |
