Description

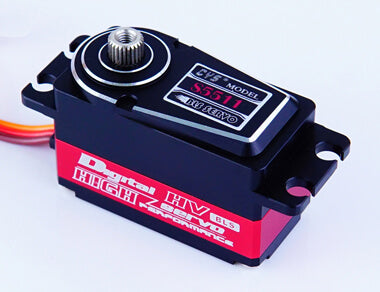

Item NO.: CYS-BLS5511 Full aluminum case
Description : High speed low profile digital brushless servo
Size : 40*20*25.2MM
Torque : 4.0Kg.cm ~ 5.0Kg.cm
Speed : 0.04sec ~ 0.03sec/60 degree
Voltage :6.0Volts ~7.4Volts
Weight : 52± 1 g
Application&Features
| Type | Digital |
|---|---|
| Weight | 52g±1g |
| Size | 40*20*25.2mm |
| Control System | (+)Pulse Width Control 1500usec Neutral |
| Operating Voltage | 6.0~7.4Volts |
| Operating Temperature Range | (-)10 to +50 degree C |
| Operating Speed (6.0V) | 0.045sec/60° at no load |
| Operating Speed (7.4V) | 0.035sec/60° at no load |
| Stall Torque (6.0V) | 3.5kg.cm |
| Stall Torque (7.4V) | 4.5kg.cm |
| Operating Angle | 45deg.one side pulse traveling 500 usec |
| 360 Modifiable | No |
| Direction | Anticlockwise/Pulse Traveling 1000~2000usec |
| Current Drain (6.0V) | 20mA/idle and 100mA no load operating |
| Current Drain (7.4V) | 20mA/idle and 120mA no load operating |
| Stall Current | 3A/3.5A |
| Dead Band Width | 2usec |
| Motor Type | Brushless motor |
| Bearing Type | Double ball bearing |
| Horn gear spline | 25T |
| Gear Type | Titanize |
| Connector Wire Length | 180mm±5mm |
| Wire info | Brown/Black = Negative |
| Red = Positive | |
| Orange/White = Signal |
