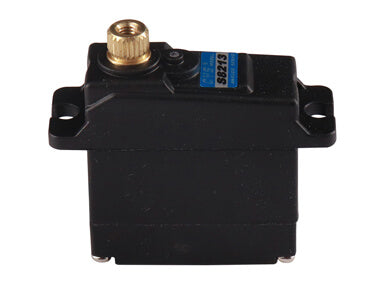

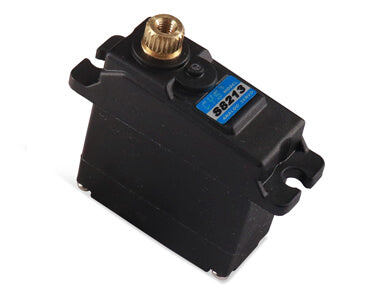

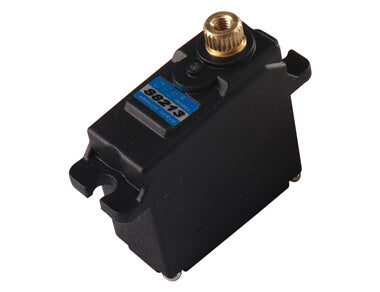

CYS-S8213 20g servo for aircraft – robotics

CYSSKU: CYS-S8213

Price:
Sale price$11.95

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Judith a.M.C.
Great Servo for the price

Will buy more

M
Meritt N.
Servos

Working great

Download Manual

Description

Item NO.: CYS-S8213 20g servo motor

Description :  Robotics servo motor – servo motor for aircraft

Size : 29*13.5*30.4MM

Torque : 2.8Kg.cm ~ 3.0Kg.cm

Speed : 0.18sec ~ 0.16sec/60 degree

Voltage : 4.8Volts ~6.0Volts

Weight : 20± 1 g

Application&Features



Specification Sheet
Item No. S8213
Type Analog
Weight 20g
Size 29*13.5*30.4mm
Control System (+)Pulse Width Control 1500usec Neutral
Operating Voltage 4.8~6.0Volts
Operating Temperature Range (-)10 to +50 degree C
Operating Speed (6.0V) 0.14sec/60° at no load
Operating Speed (7.4V) 0.12sec/60° at no load
Stall Torque (6.0V) 2.8kg.cm
Stall Torque (7.4V) 3.0kg.cm
Operating Angle 45deg.one side pulse traveling 500 usec
360 Modifiable No
Direction Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V) 20mA/idle and 120mA no load operating
Current Drain (7.4V) 20mA/idle and 150mA no load operating
Stall Current 1A/1.3A
Dead Band Width 4usec
Motor Type Iron core
Bearing Type ball bearing
Horn gear spline 25T
Gear Type Metal
Connector Wire Length 300mm
Wire info Brown/Black = Negative
Red = Positive
Orange/White = Signal
