Description

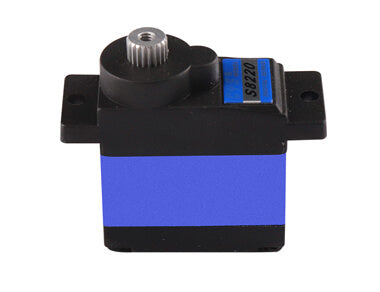

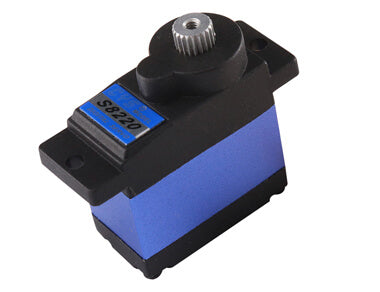

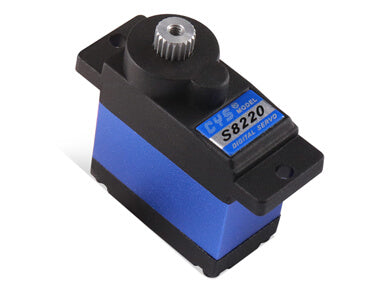

Item NO.: CYS-S8220
Description : 9g digital servo for 450 classes helicopter
Size : 23*12*25.4MM
Torque : 1.8Kg.cm ~ 2.5Kg.cm
Speed : 0.11sec ~ 0.09sec/60 degree
Voltage : 4.8Volts ~6.0Volts
Weight : 14± 1 g
Application&Features
| Type | Digital |
|---|---|
| Weight | 13g |
| Size | 22.9*12*25.4mm |
| Control System | (+)Pulse Width Control 1500usec Neutral |
| Operating Voltage | 4.8~6.0Volts |
| Operating Temperature Range | (-)10 to +50 degree C |
| Operating Speed (6.0V) | 0.12sec/60° at no load |
| Operating Speed (7.4V) | 0.10sec/60° at no load |
| Stall Torque (6.0V) | 1.2kg.cm |
| Stall Torque (7.4V) | 1.5kg.cm |
| Operating Angle | 45deg.one side pulse traveling 500 usec |
| Direction | Anticlockwise/Pulse Traveling 1000~2000usec |
| Current Drain (6.0V) | 10mA/idle and 120mA no load operating |
| Current Drain (7.4V) | 10mA/idle and 140mA no load operating |
| Stall Current | 0.9A/1A |
| Dead Band Width | 2usec |
| Motor Type | Iron core |
| Bearing Type | single bearing |
| Horn gear spline | 21T |
| Gear Type | Metal |
| Connector Wire Length | 180mm |
| Wire info | Brown/Black = Negative |
| Red = Positive | |
| Orange/White = Signal |
