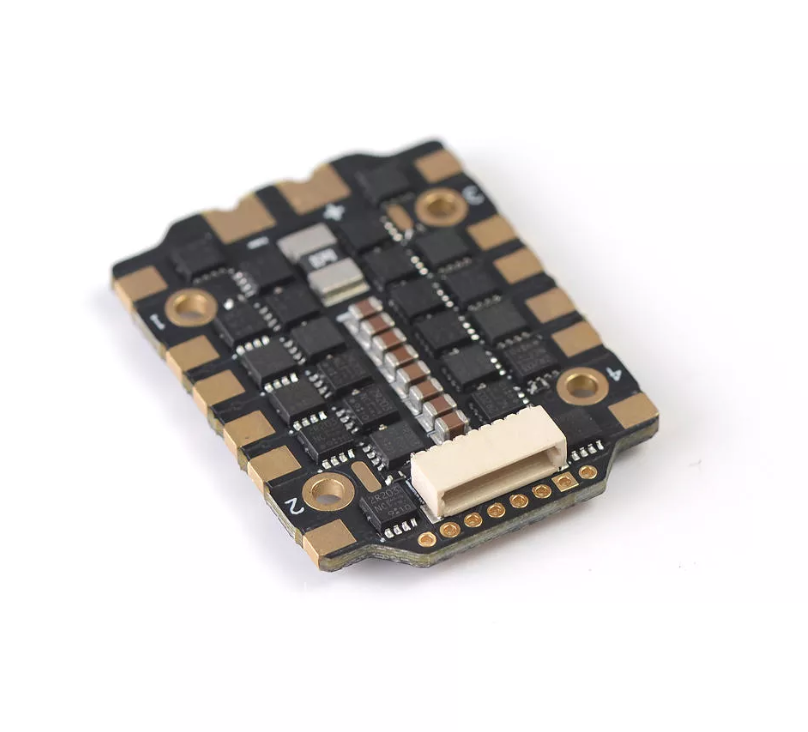

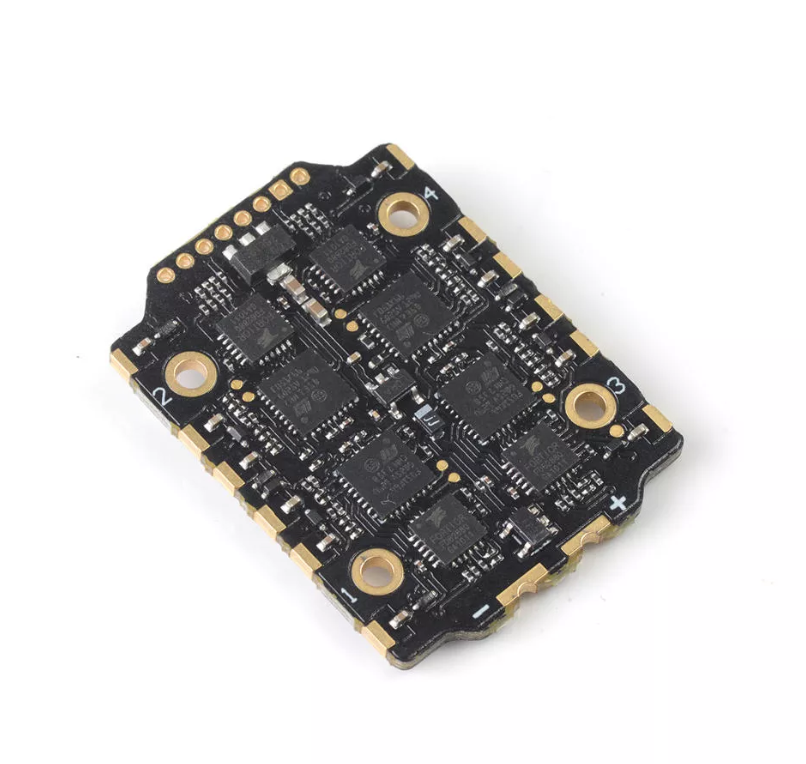

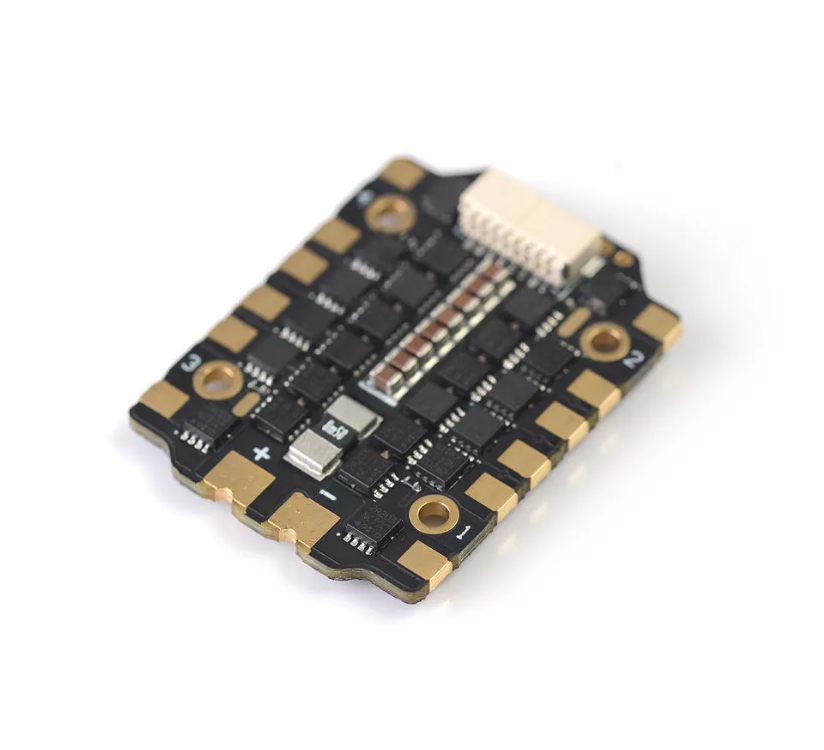

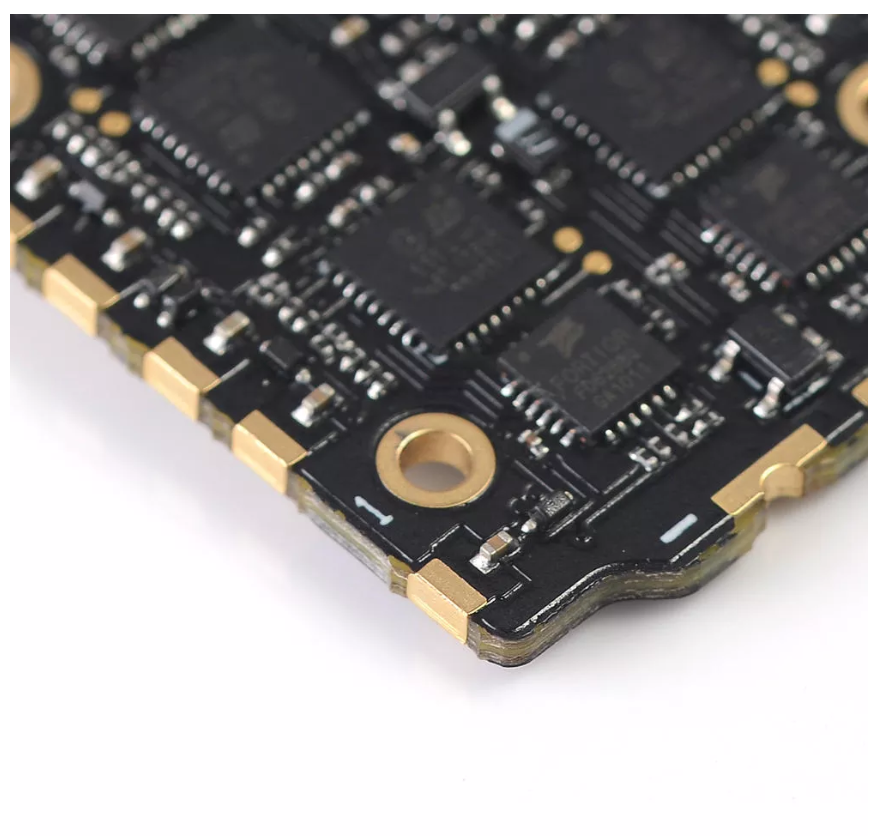

Product Name: MAMBA 306 Dshot1200 4IN1 ESC 30A 6S
Product Size: 27×35×6.4mm
The MAMBA 306 is a 4IN1 ESC designed for high-performance multirotors. It features a compact size of 27×35×6.4mm and a weight of only 6.6g. The ESC is capable of handling input voltages of 2
6S LiPo (7.4V25V) and has a continuous current rating of 30A×4, with a burst current of 35A (10S). It supports Dshot300/600/1200 soft protocols and has a mounting pattern of 20mm/M2.
The ESC is equipped with a Panasonic High-Frequency 470uF/35V capacitor to ensure stable performance and prevent voltage spikes.
Note: The ESC does not include a BEC.
