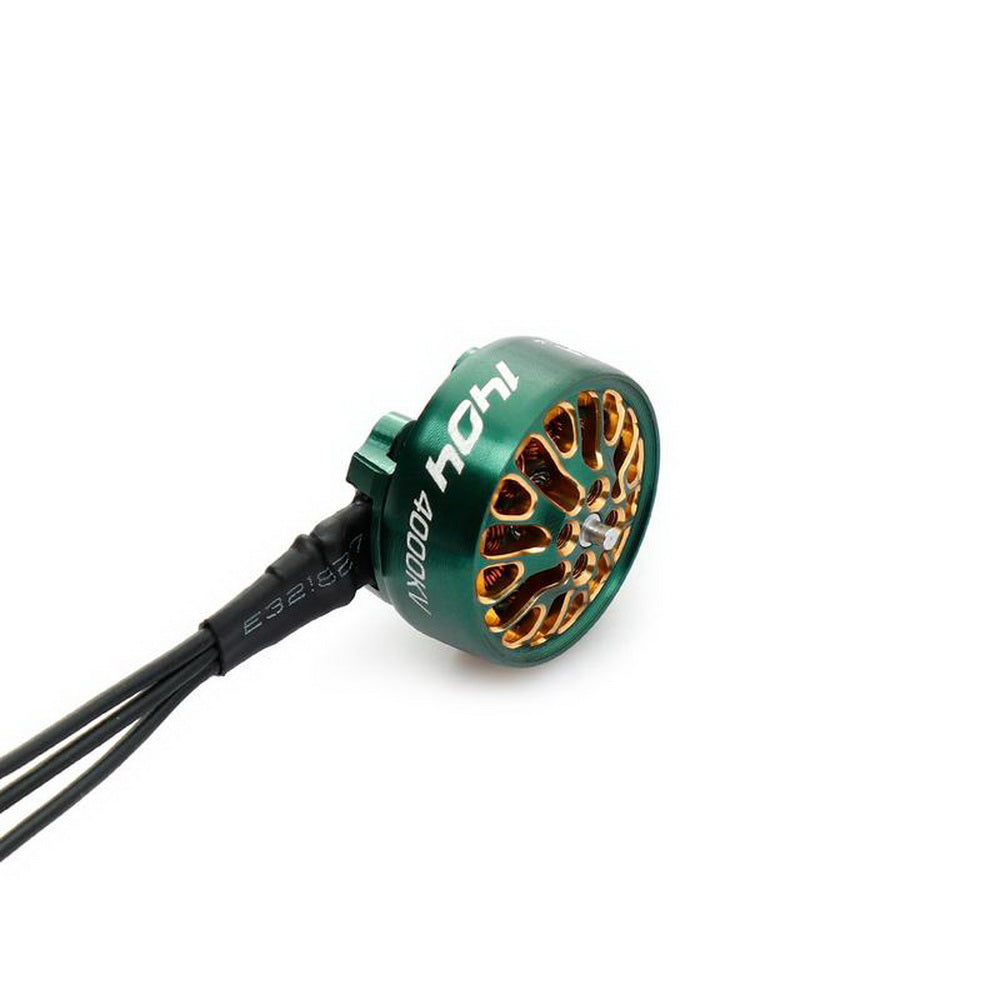

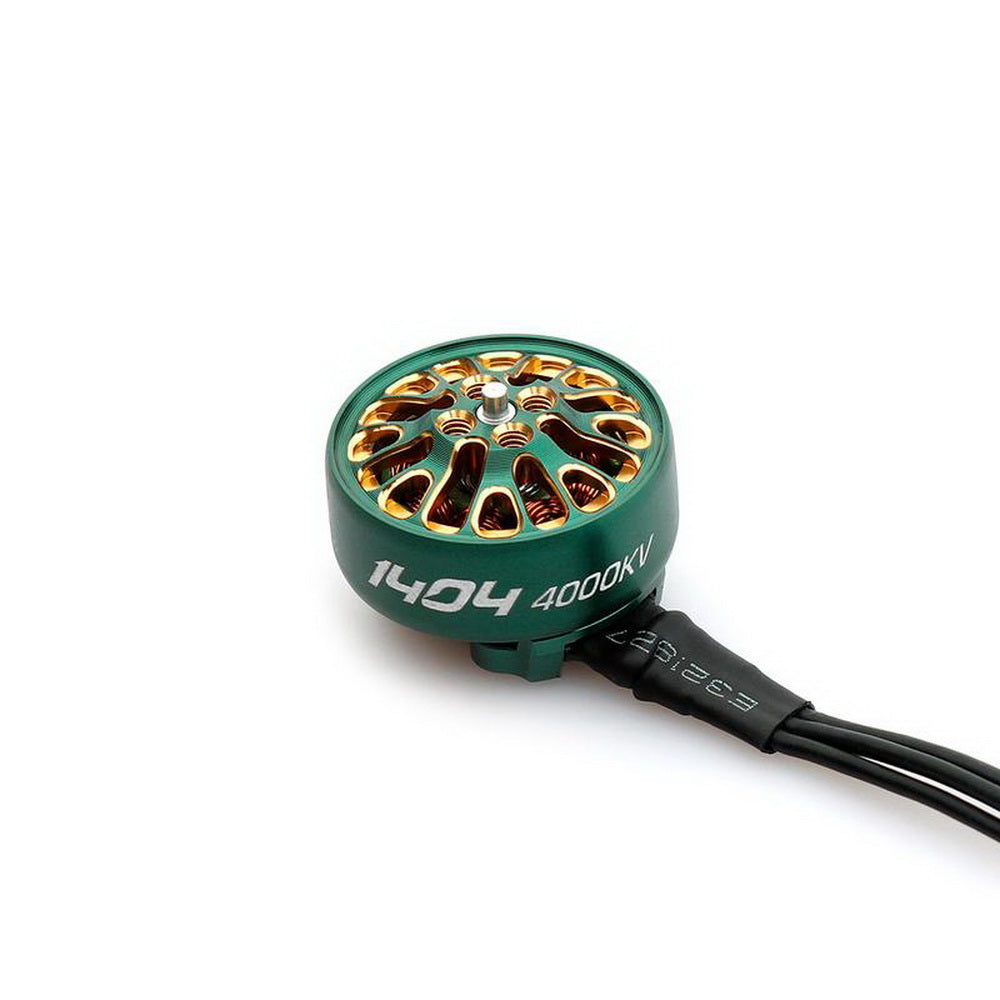

DIATONE MAMBA TOKA 1404 3000KV or 4000KV Racing Motor Green

DiatoneSKU: DAT-JH60293

Style: 3000kv
Price:
Sale price$12.99

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Download Manual

Description

DIATONE MAMBA TOKA 1404 3000KV or 4000KV Racing Motor Green

Specification:

MAMBA TOKA 1404 3000KV Racing Motor Green

Overall Dimension:Φ20.5×15mm
prop mounting shaft diameter:1.5mm
Installation hole position:12×12mmM2
Prop: 2.5inch~4inch(Toothpick)
Bearing 5*2*2.5
Shaft Diameter:2mm
Lead Wire Size24AWG×150mm
slots/poles:9N12P
Magnet Wire: 240 Enameled Wire

Stator Diamter14mm
Stator Height:4mm
Rated Voltage:3S~6S (12.6V~25.2V)
Peak Current: 11.95A
ldle Current10V/0.3~1.0A
Maximum Power: 286.8W
Internal Resistance310Ω

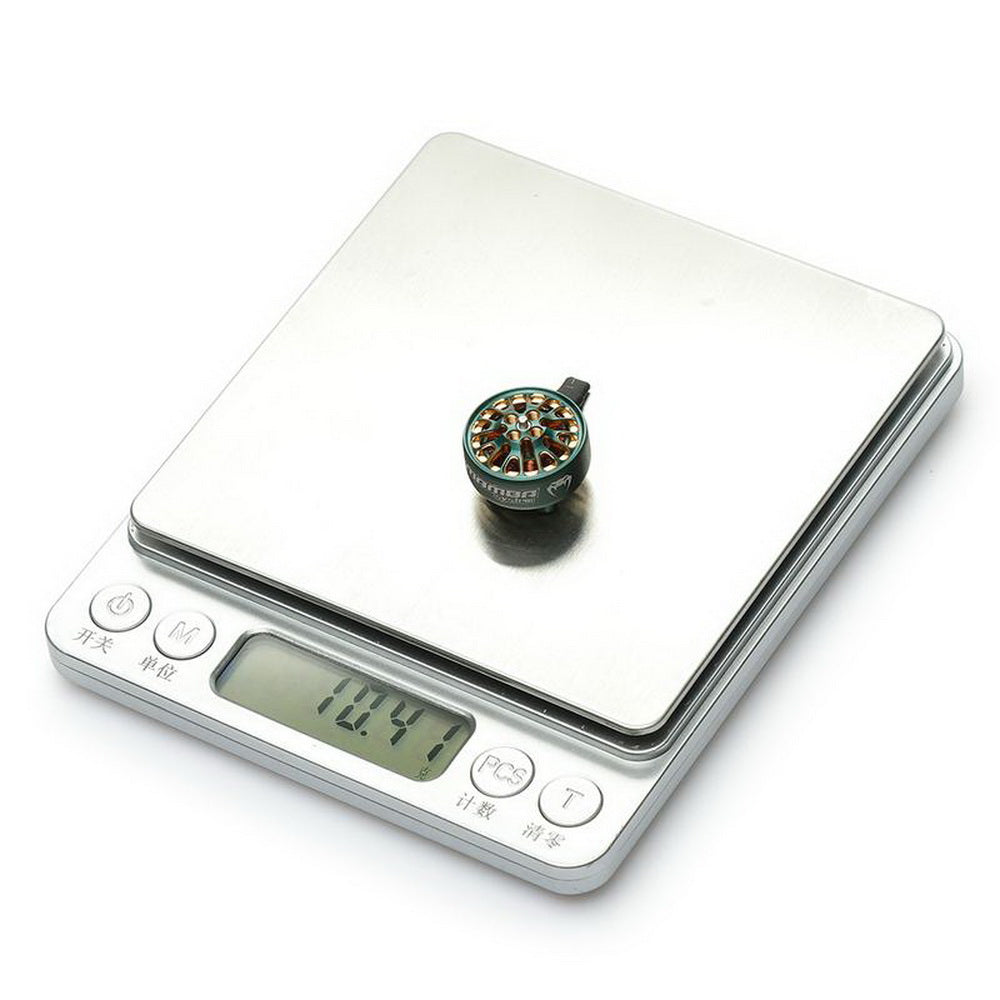

Weight: 10.5g

 1404 3000KV table

MAMBA TOKA 1404 4000KV Racing Motor Green

Overall Dimension:Φ20.5×15mm
prop mounting shaft diameter:1.5mm
Installation hole position:12×12mm,M2
Prop: 2.5inch~4inch(Toothpick)
Bearing: 5*2*2.5
Shaft Diameter:2mm
Lead Wire Size:24AWG×150mm
slots/poles:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter:14mm
Stator Height:4mm
Rated Voltage:3S~4S (12.6V~16.8V)
Peak Current: 13.48A
ldle Current:10V/0.5~1.2A
Maximum Power: 215.6W
Internal Resistance:175Ω

Weight: 10.5g

1404 4000KV table
