Description

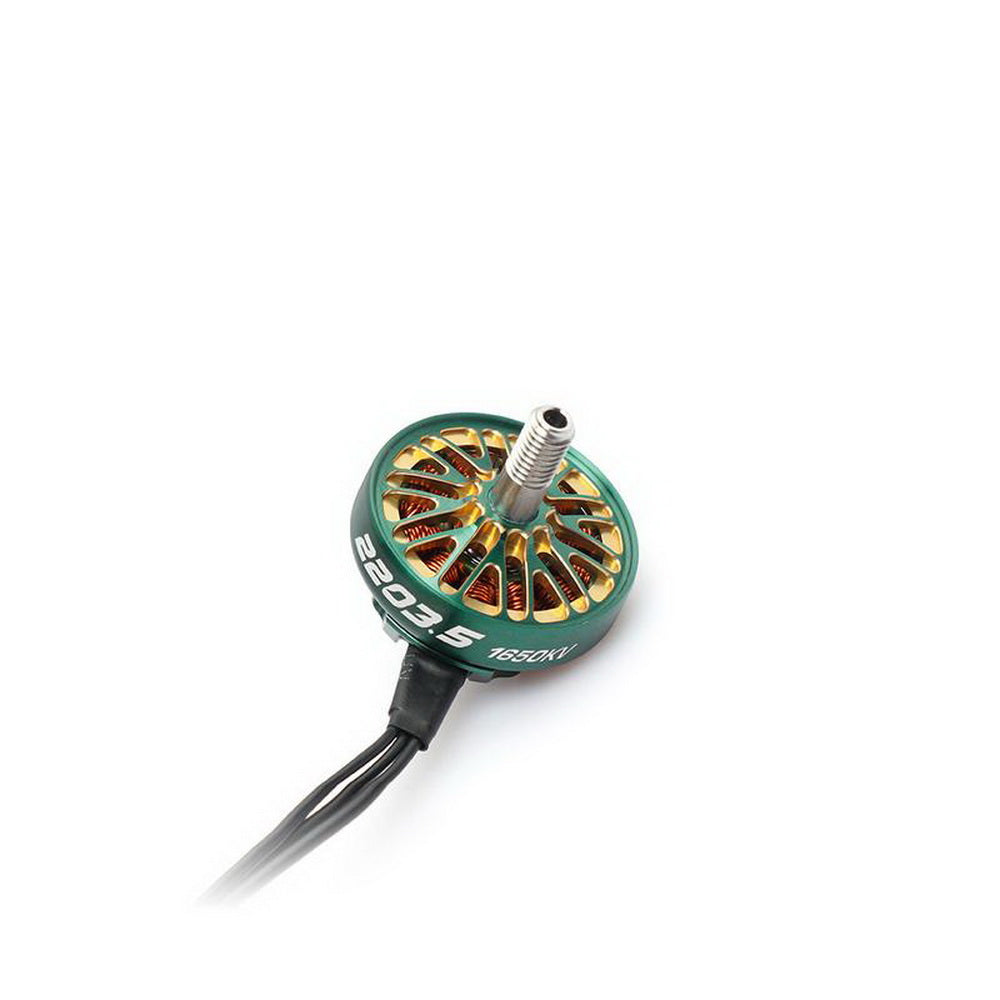

MAMBA TOKA 2203.5 1650KV Racing Motor Green
Specifications:
- Overall Dimension: Φ28.9×29.4mm
- Prop Mounting Shaft Diameter: 5mm
- Installation Hole Position: 16×16mm，M3
- Compatible Prop Size: 5 inches
- Bearing Size: 944
- Shaft Diameter: 4.0mm
- Lead Wire Size: 24AWG×190mm
- Slots/Poles: 12N14P
- Magnet Wire: 240℃ Enameled Wire
- Stator Diameter: 22mm
- Stator Height: 3.5mm
- Rated Voltage: 4
6S (16.8V25.2V) - Peak Current: 15.59A
- Idle Current: 10V/0.3~1.0A
- Maximum Power: 380.8W
- Internal Resistance: 232Ω
Notes:
- Suitable for racing drone applications
- High-quality materials and construction
- Efficient design for longer battery life and more power
- Green color for a distinctive look on your drone

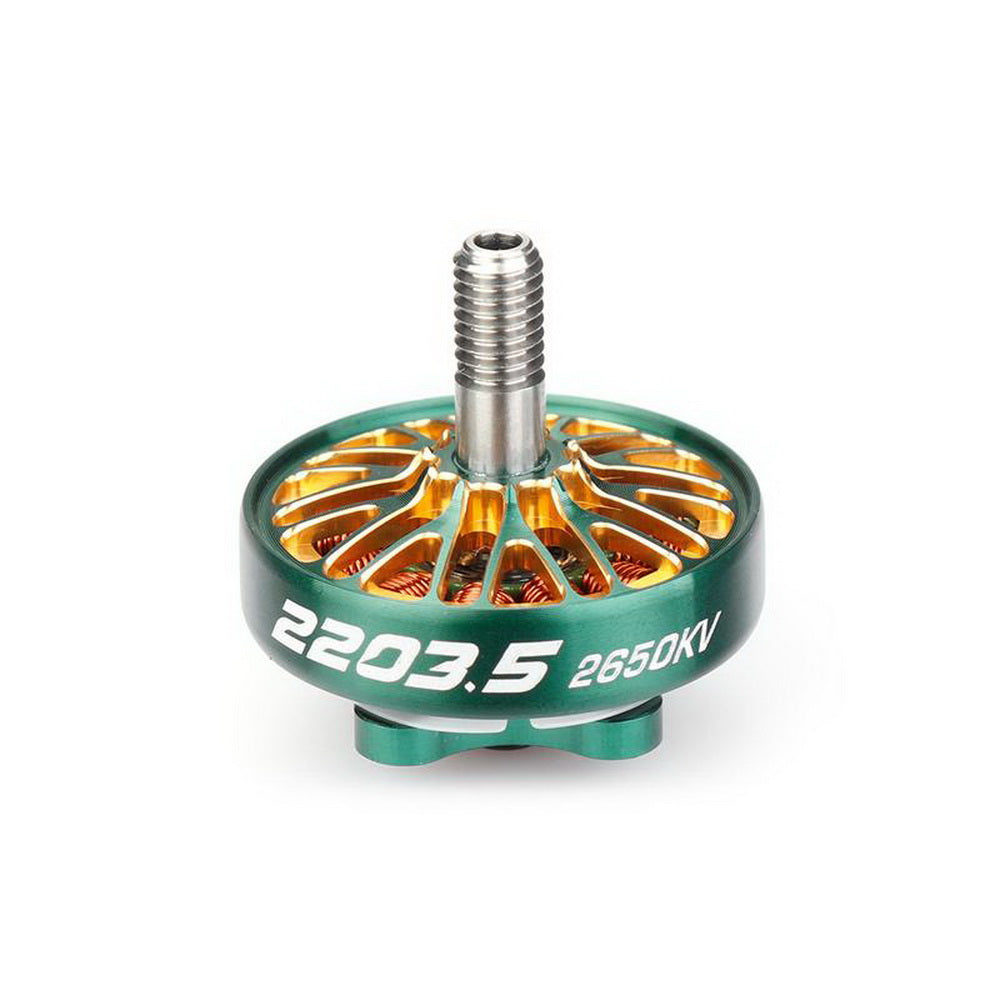

MAMBA TOKA 2203.5 2650KV Racing Motor Green
Overall Dimension:Φ28.9×29.4mm
prop mounting shaft diameter:5mm
Installation hole position:16×16mm，M3
Prop: 5inch
Bearing：9*4*4
Shaft Diameter:4.0mm
Lead Wire Size：24AWG×190mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：22mm
Stator Height:3.5mm
Pated Voltage:3~4S (12.6V~16.8V)
Peak Current: 27.64A
ldle Current：10V/0.9~1.9A
Maximum Power: 441.24W
Internal Resistance：120Ω

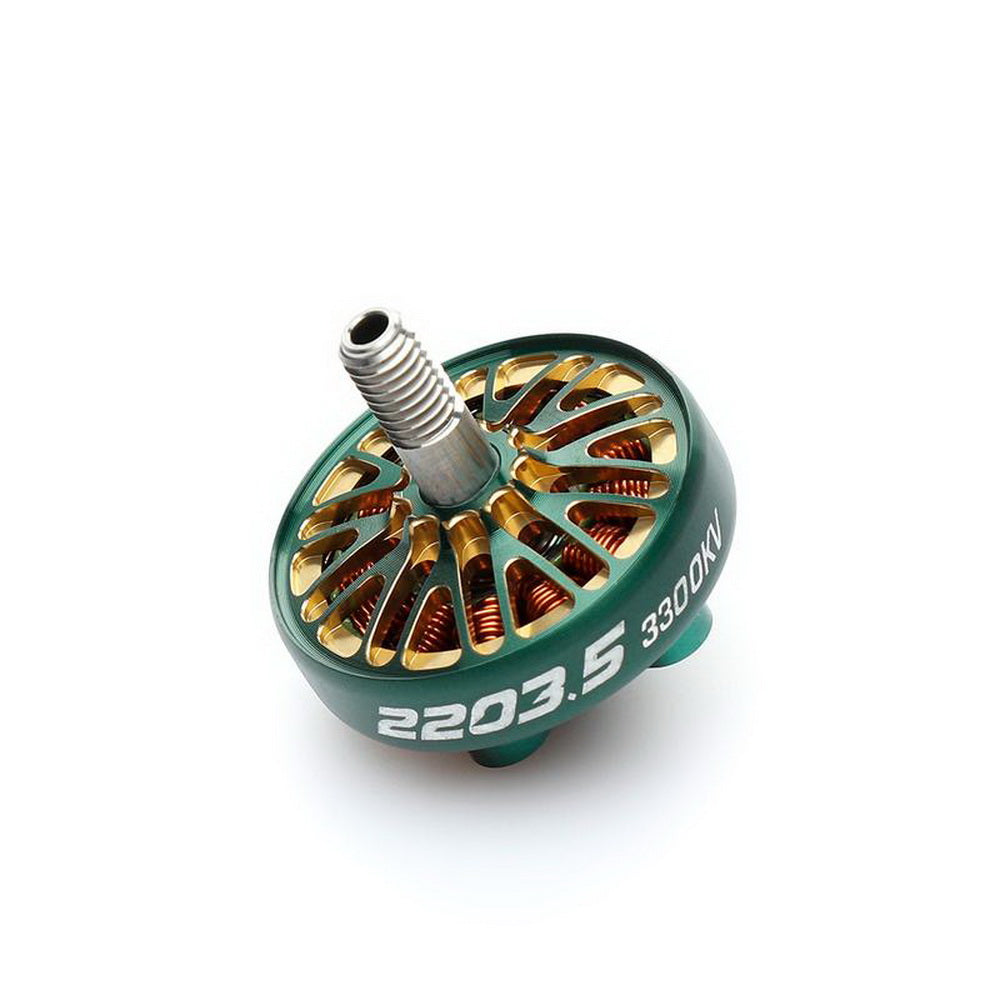

Mamba Toka 2203.5 3300KV Racing Motor Green
Overall Dimension:Φ28.9×29.4mm
Prop mounting shaft diameter:5mm
Installation hole position:16×16mm，M3
Prop: 3.5inch
Bearing：9*4*4
Shaft Diameter:4.0mm
Lead Wire Size：24AWG×190mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：22mm
Stator Height:3.5mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 29.78A
ldle Current：10V/1.5~2.2A
Maximum Power: 475.1W
Internal Resistance：80Ω
