Description

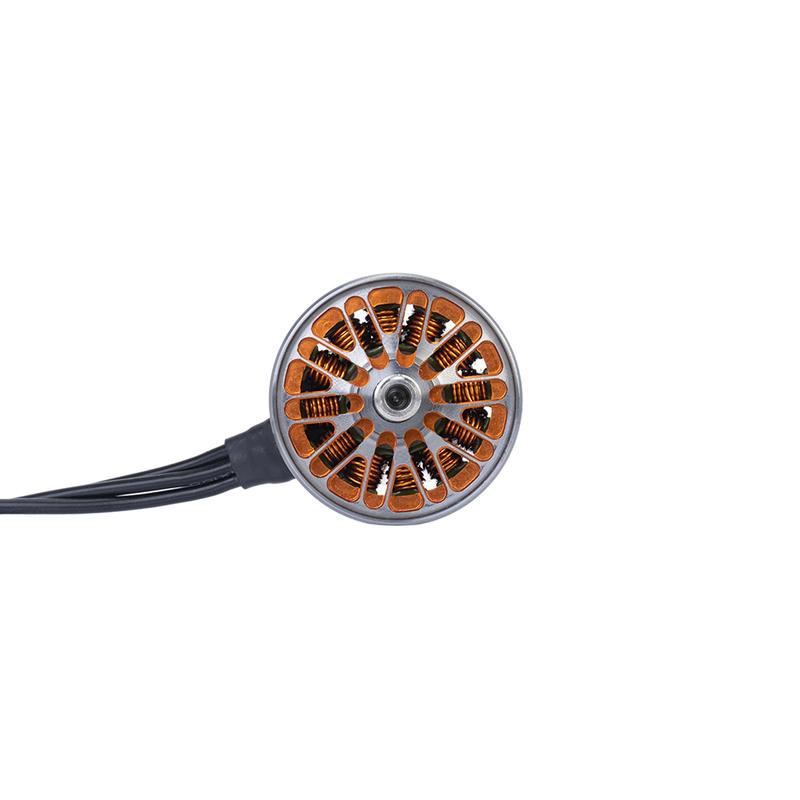

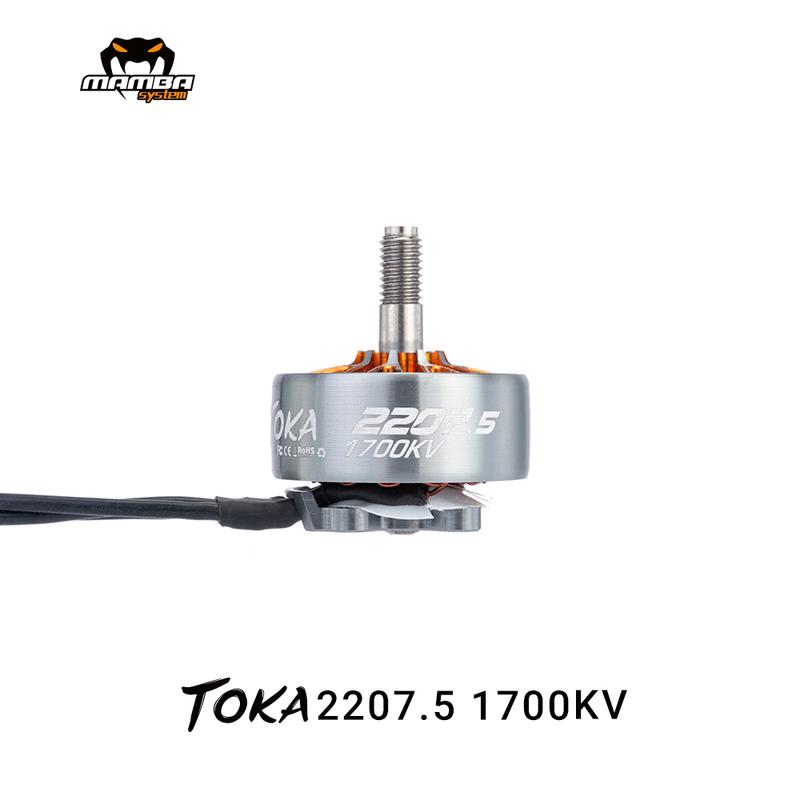

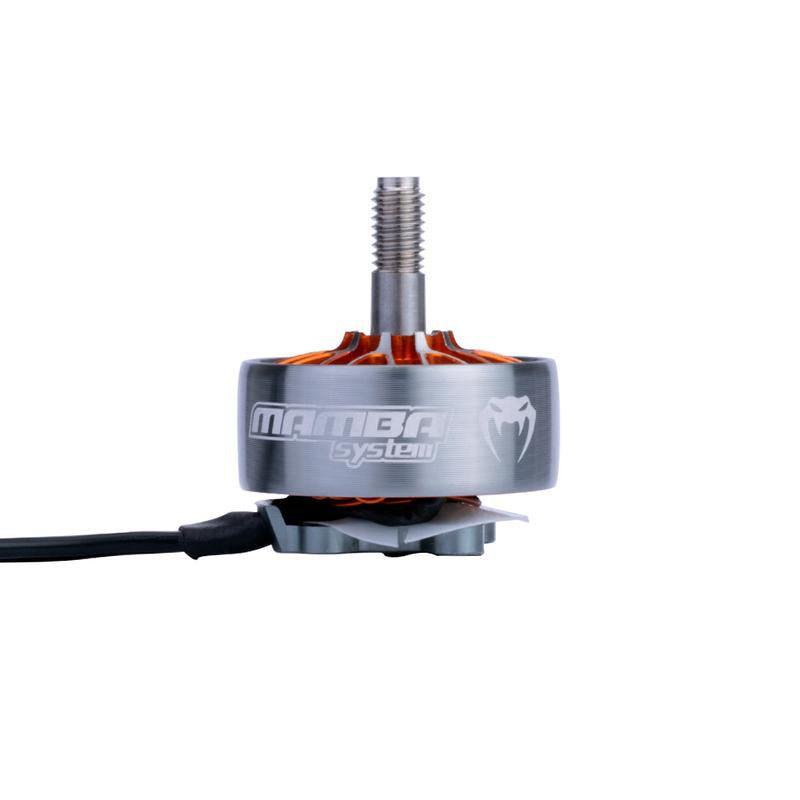

DIATONE MAMBA TOKA 2207.5 Series Racing Motor with 1700kv, 1800kv, 2450kv or 2650kv
Specifications:
Model: 2207.5 KV: 1700/1800/2450/2650 Overall Dimension: Φ28.5×32.65mm Prop Mounting Shaft Diameter: M5 Installation Hole Position: 16×16mm, M3 Prop Compatibility: 5-6 inches Bearing: 494 Shaft Diameter: 4mm Lead Wire Size: 24AWG × 190mm Slots/Poles: 12N14P Magnet Wire: Class H, 220℃ Enameled Wire Stator Diameter: 22mm Stator Height: 7.5mm Rated Voltage: 46S (16.8V25.2V) for 1700kv and 1800kv; 34S (12.6V16.8V) for 2450kv and 2650kv Peak Current: 38.5A for 1700kv, 42.1A for 1800kv, 44.1A for 2450kv, and 51.2A for 2650kv Maximum Power: 924W for 1700kv, 1011W for 1800kv, 706W for 2450kv, and 819W for 2650kv.
