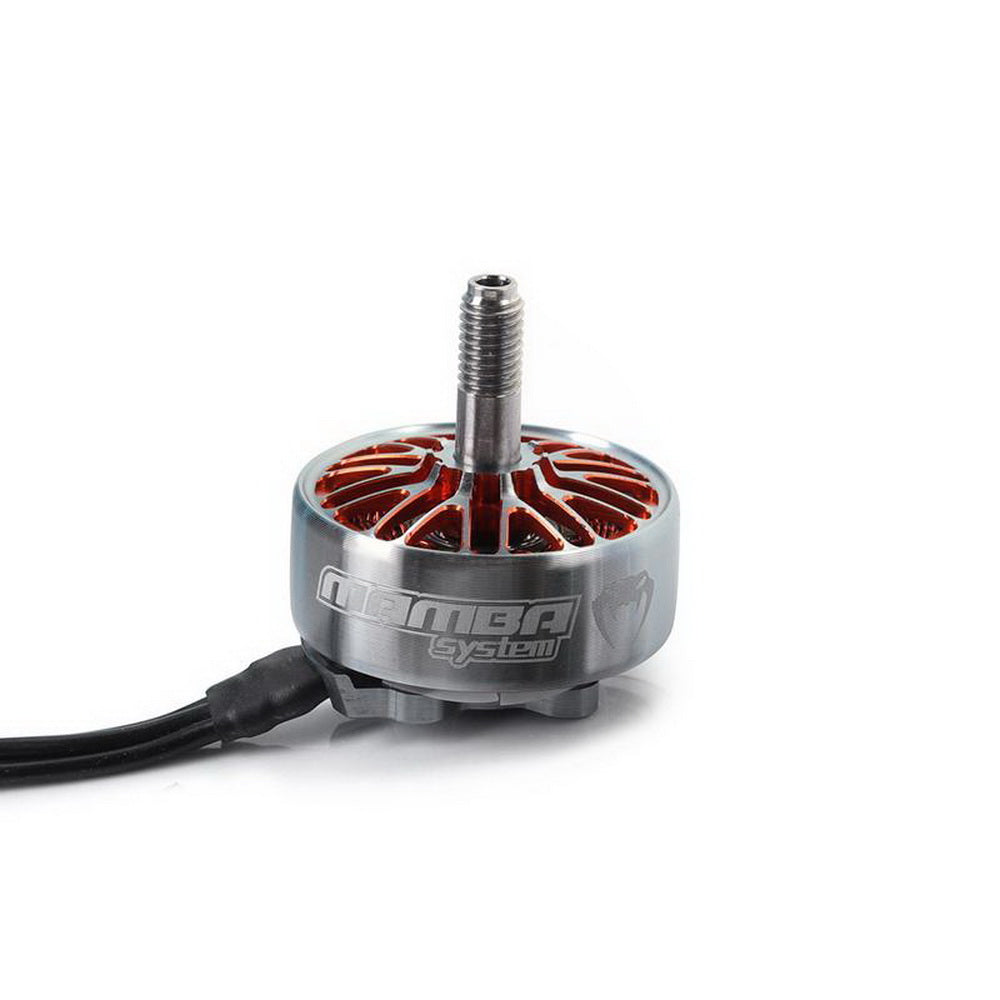

DIATONE Mamba TOKA 2306.5 1700kv, 2450kv or 2650kv Racing motor

DiatoneSKU: DAT-JH60186

Style: 2650kv
Price:
Sale price$19.99

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Download Manual

Description

DIATONE Mamba TOKA 2306.5 1700kv, 2450kv or 2650kv Racing motor

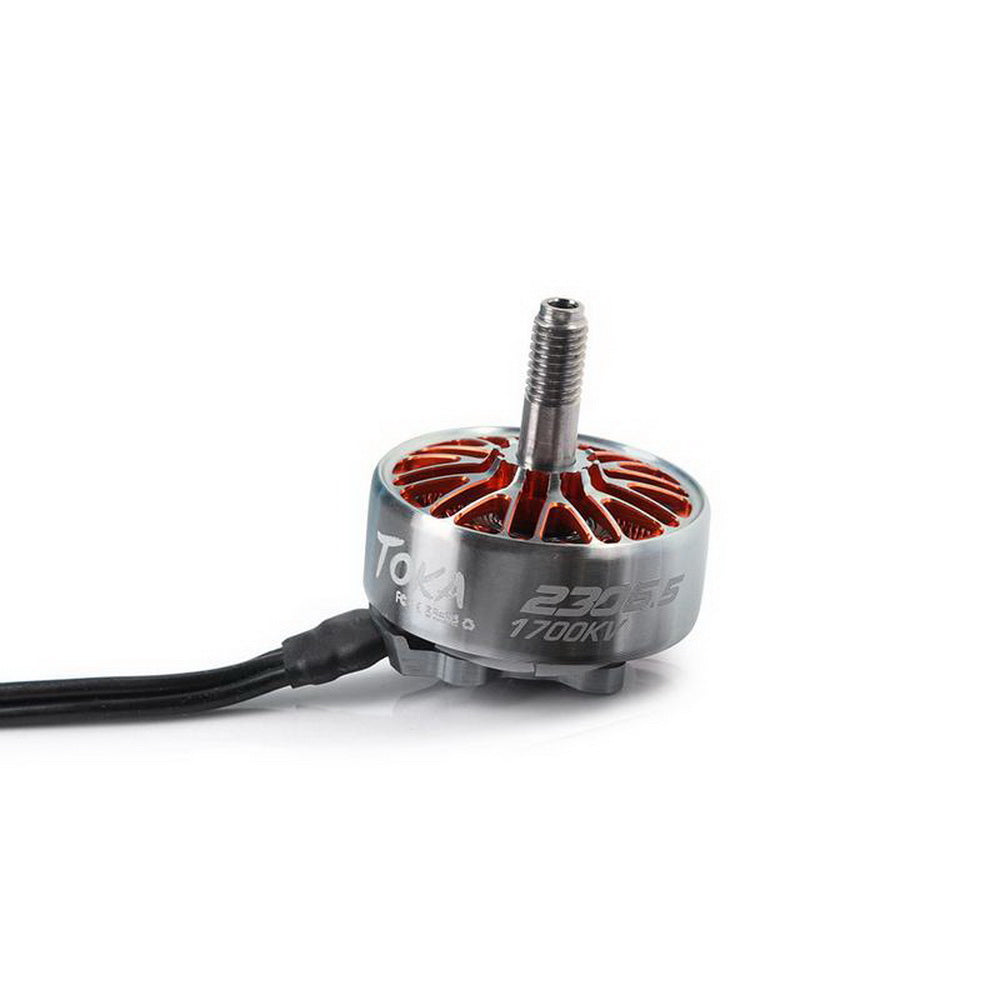

MAMBA TOKA 2306.5 1700KV MOTOR

MOTOR TABLE

Overall Dimension:Φ29.7×18.7mm
prop mounting shaft diameter: M5

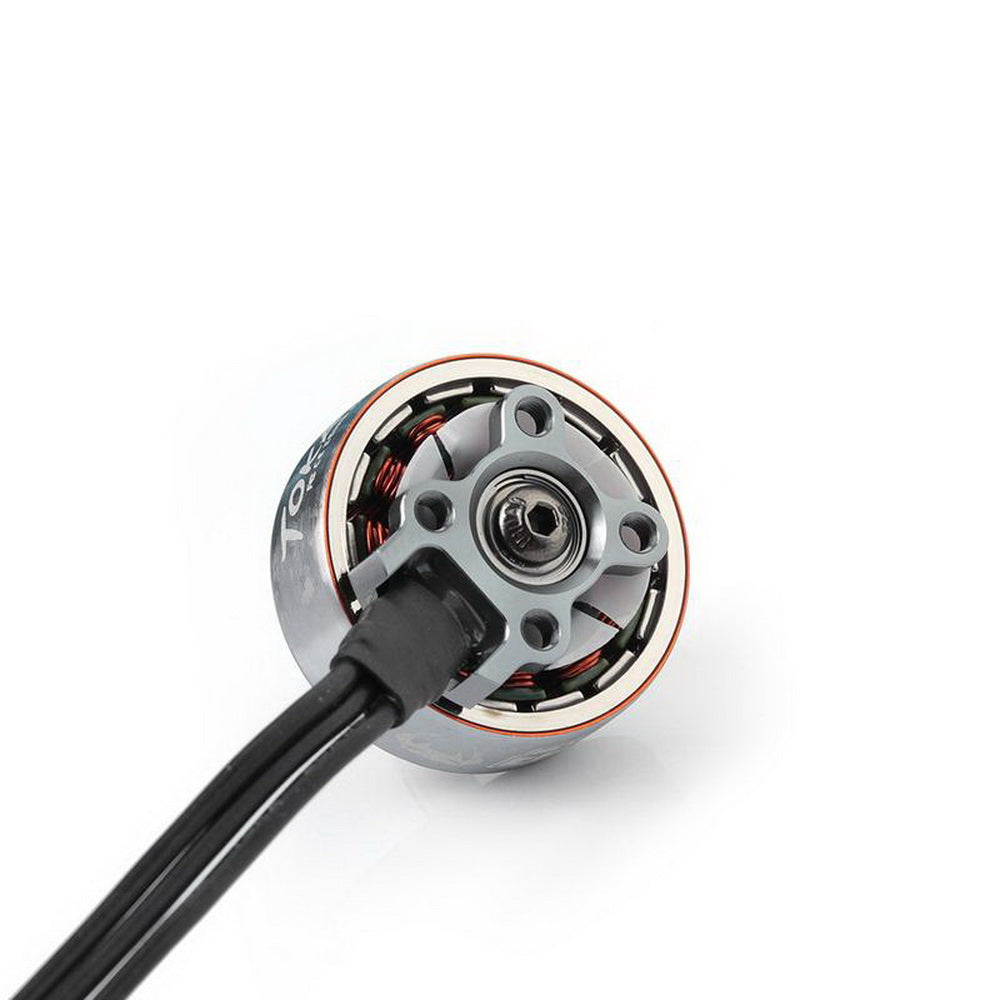

Installation hole position:16×16mmM3
Prop: 5inch
Bearing:9*4*4
Shaft Diameter:4.0mm
Lead Wire Size24AWG×100mm
slots/poles:12N14P
Magnet Wire: 240 Enameled Wire
Stator Diamter:23mm
Stator Height:6mm
Rated Voltage:4~6S (16.8V~25.2V)
Peak Current: 45A
ldle Current:10V/1.17A
Maximum Power: 1100W
Internal Resistance:77Ω

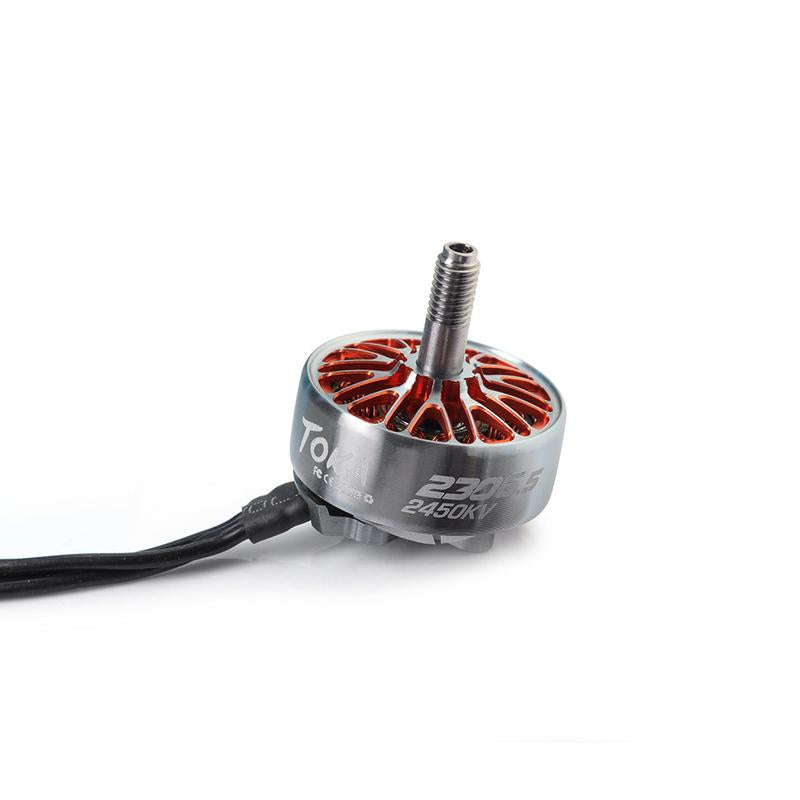

MAMBA TOKA 2306.5 2450KV MOTOR

Overall Dimension:Φ29.7×18.7mm
prop mounting shaft diameter: M5
Installation hole position:16×16mm,M3
Prop: 5inch
Bearing:9*4*4
Shaft Diameter:4.0mm
Lead Wire Size:24AWG×100mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter:23mm
Stator Height:6mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 45A
 ldle Current:10V/1.98A
Maximum Power: 730W
Internal Resistance:52Ω

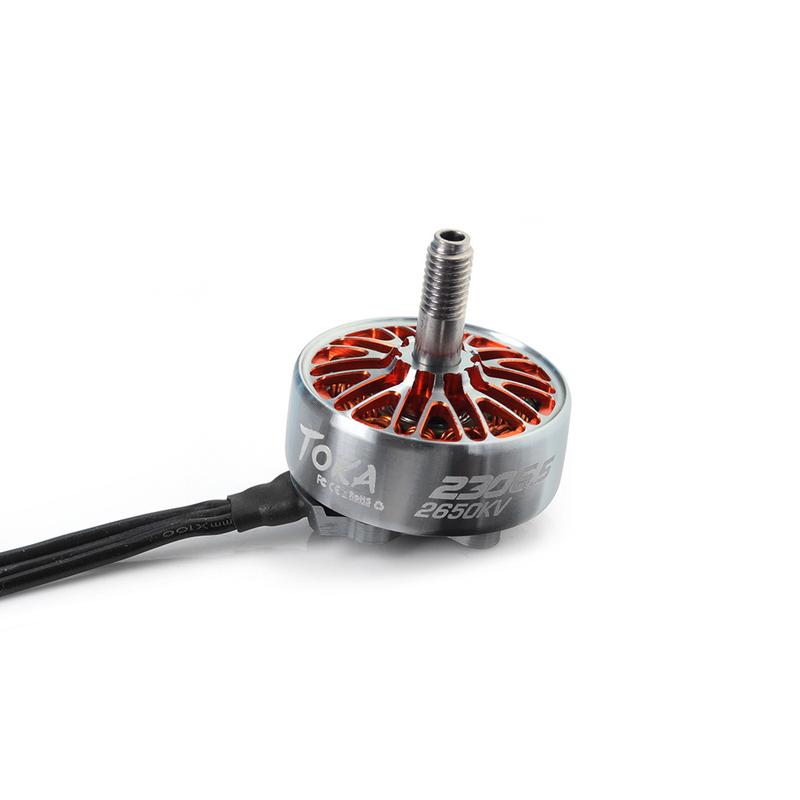

MAMBA TOKA 2306.5 2650KV MOTOR

Overall Dimension:Φ29.7×18.7mm
prop mounting shaft diameter: M5
Installation hole position:16×16mm,M3
Prop: 5inch
Bearing:9*4*4
Shaft Diameter:4.0mm
Lead Wire Size:24AWG×100mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter:23mm
Stator Height:6mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 59A
ldle Current:10V/2.5A
Maximum Power: 940W
Internal Resistance:38Ω
