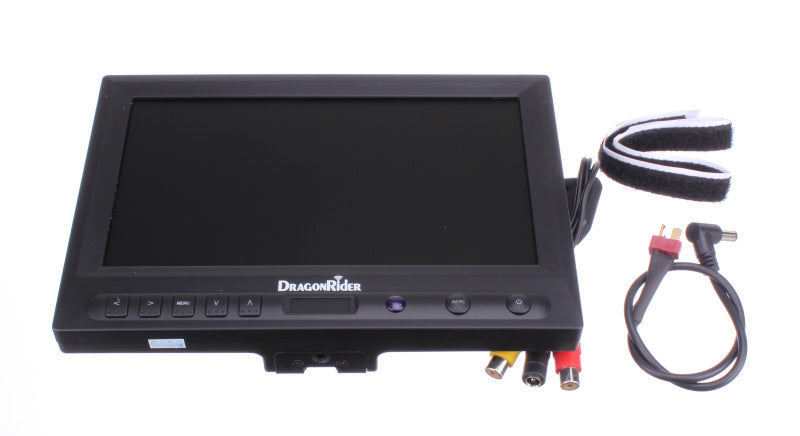

Dragon Rider M80 8 inch Bright FPV Monitor

Save $57.47
DragonriderSKU: DGR-M80

Sale price$57.48 Regular price$114.95
Download Manual


Dragon Rider M80G is a high bright FPV TFT LCD monitor designed for FPV application.

Ultra Bright 450cd/m*m High-Definition Display
Supports Composite Video RCA Input
Display Resolution up to 800*480 Pixels
16:9 or 4:3 Adjustable Display Ratio
Designed for FPV Application
Connect with the camera, as a monitor or secondary monitor of aerial
1/4-20" Thread hole is included in the bottom, easily to mount on the tripod
High brightness, contrast ratio & Dizzy-proof monitor with sun shade, to see clearly under sunshine

Panel Size: 8-inch
Resolution: 800 x3 (RGB) x 480
Backlight: LED
Horizontal frequency range: 30~60KHz
Field frequency range: 50~75Hz
Dot pitch: 0.0736 (W) x 0.2072 (H) mm
Aspect Ratio: 16:9
Brightness: 450 cd/m*m
Contrast Ratio: 500:1
Response time: 15ms
Viewing Angle: 70°/70°, 50°/70° (L/R,U/D)
Input Voltage: DC 6-18V
Power Consumption: 7W Watts
Inputs: Compostie 1 Video RCA Input, 1 Audio RCA Input
Speaker: Built in, 1 Watt
Mount: 1/4-20" Thread and VESA mounting socket (75mm)
Storage Temperature: -20°C to 60°C
Operating Temperature: -30°C to 70°C
Size: 210mm x 148mm x 35mm
Net weight: 540g
