Description

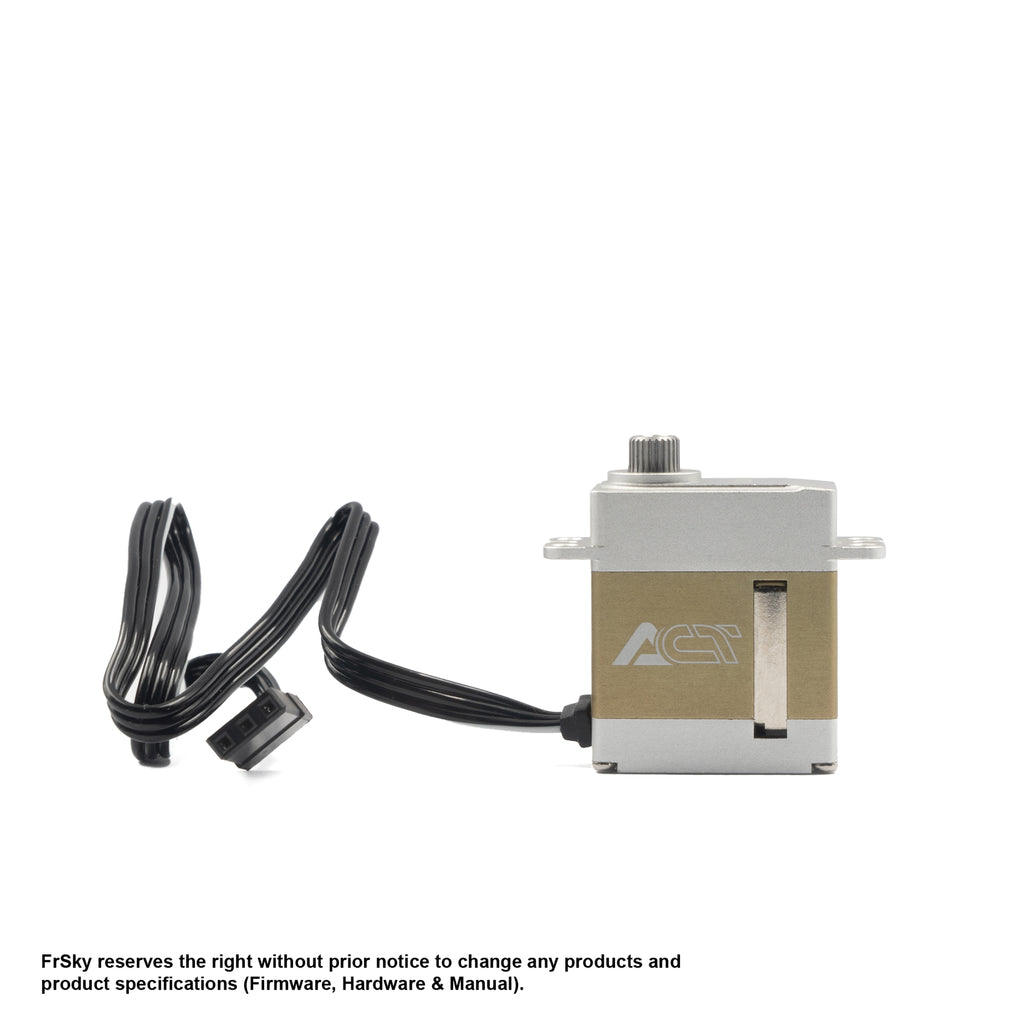

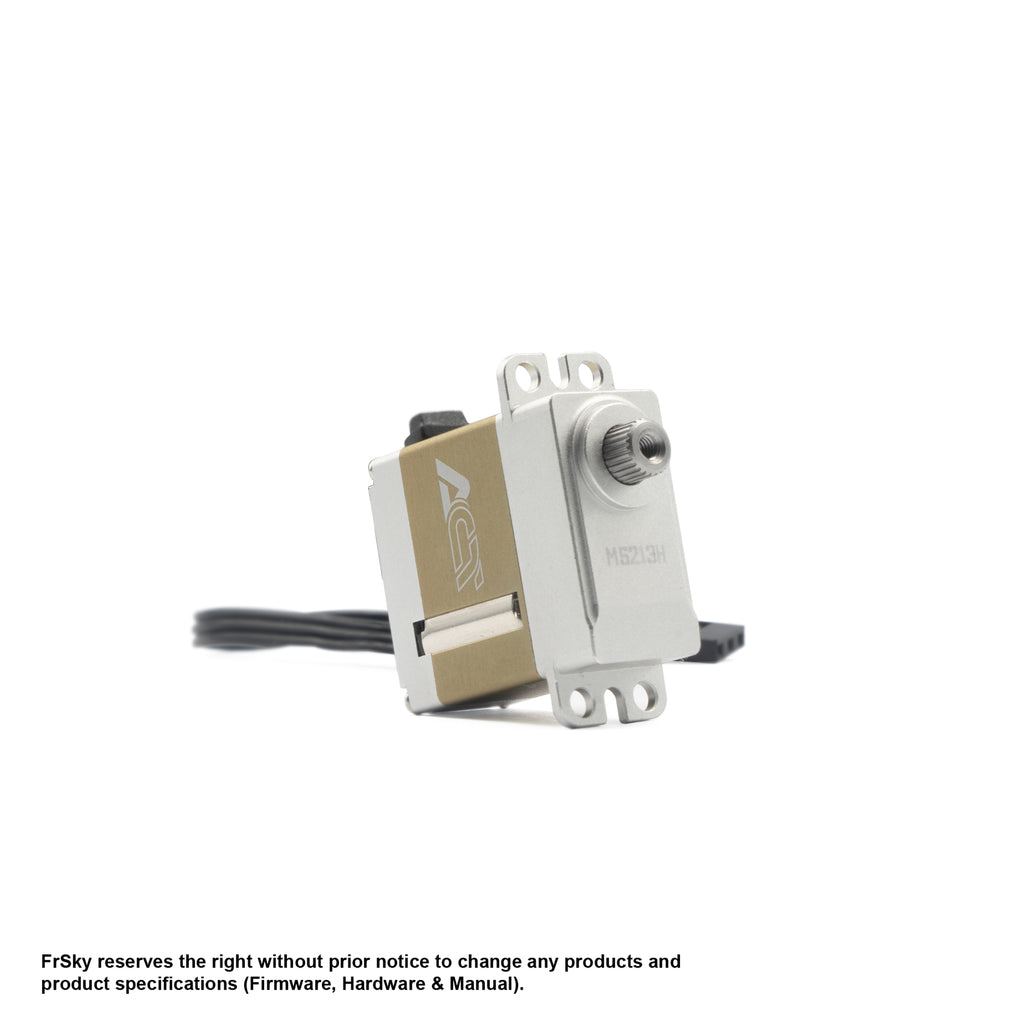

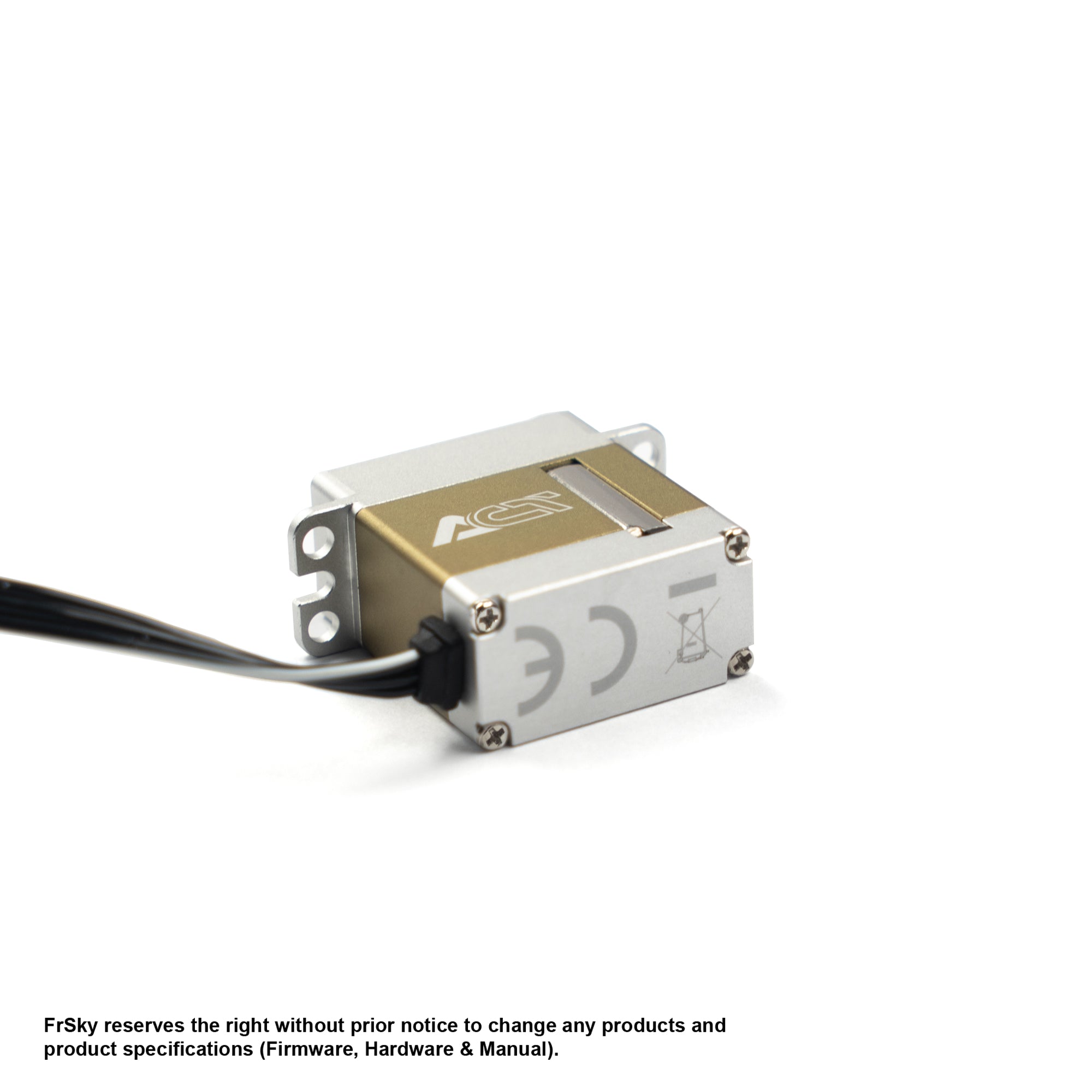

The Act series coreless servos utilize a fully CNC machined aluminum protective case and benefit from metal gears. These high-voltage servos are capable of supporting up to 8.4V and offer both high speed and torque performance.
| Act Coreless 5200 Series High-Voltage Servos | ||||||

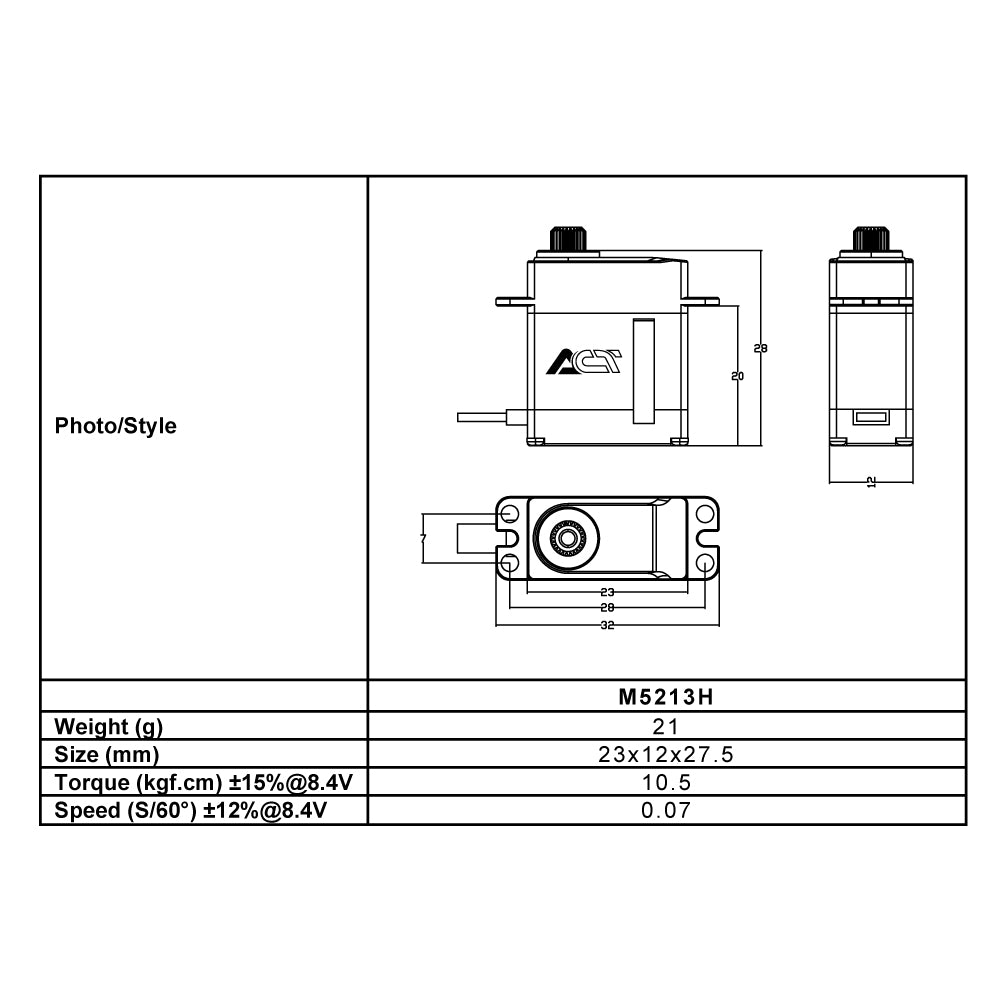

| DIMENSION | 23×12×27.5mm (L×W×H) | |||||
| WEIGHT | 21g | |||||
| HORN SPLINE | Φ5 25T | |||||
| STALL CURRENT | 1.9A@6.0V / 2.2A@7.4V / 2.5A@8.4V | |||||
| OPERATING VOLTAGE RANGE | 5.0~8.4V | |||||
| REFLASH RATE | 1520us/333Hz | |||||
| PERFORMANCE | TORQUE|SPEED @6.0V | TORQUE|SPEED @7.4V | TORQUE|SPEED @8.4V | |||
| M5213H | 7.4 kgf.cm 103 Oz-in |
0.11 sec/60° | 9.5 kgf.cm 132 Oz-in |
0.08 sec/60° | 10.5 kgf.cm 146 Oz-in |
0.07 sec/60° |
