Description
DUAL 2.4G RADIO SYSTEM

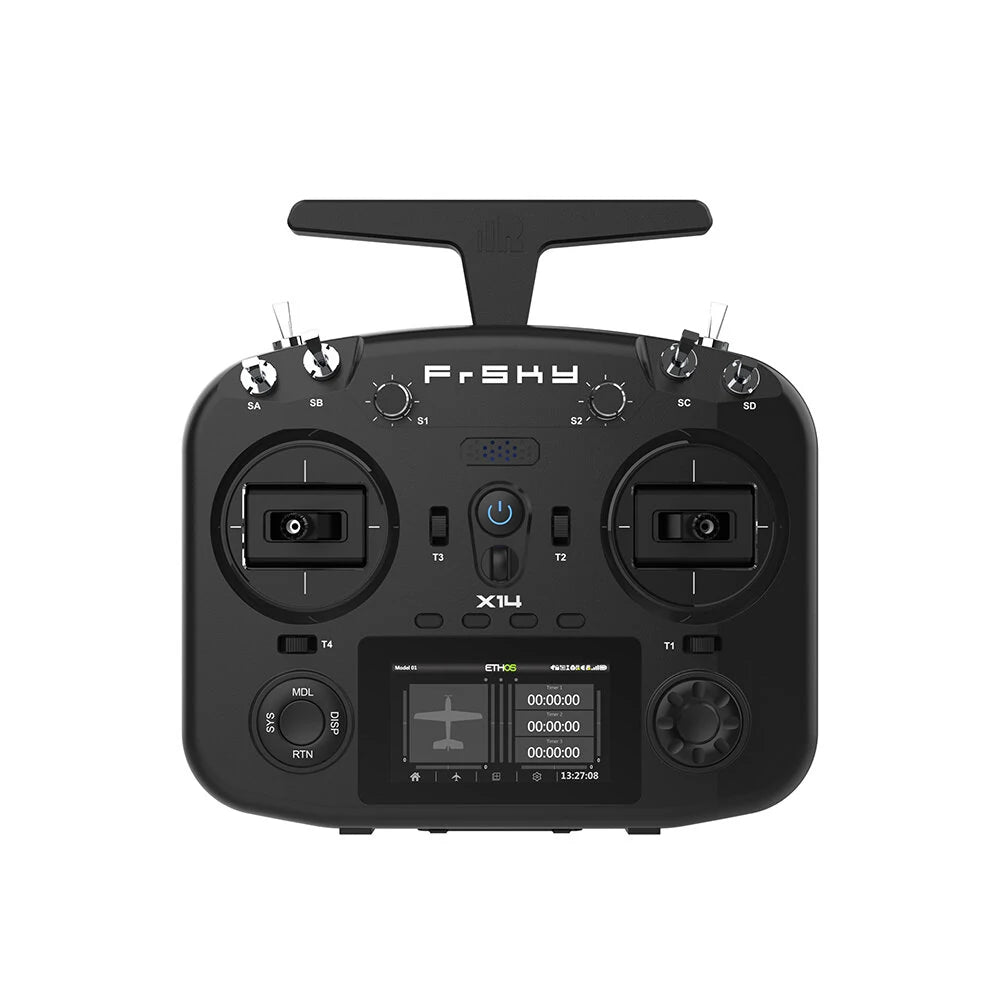

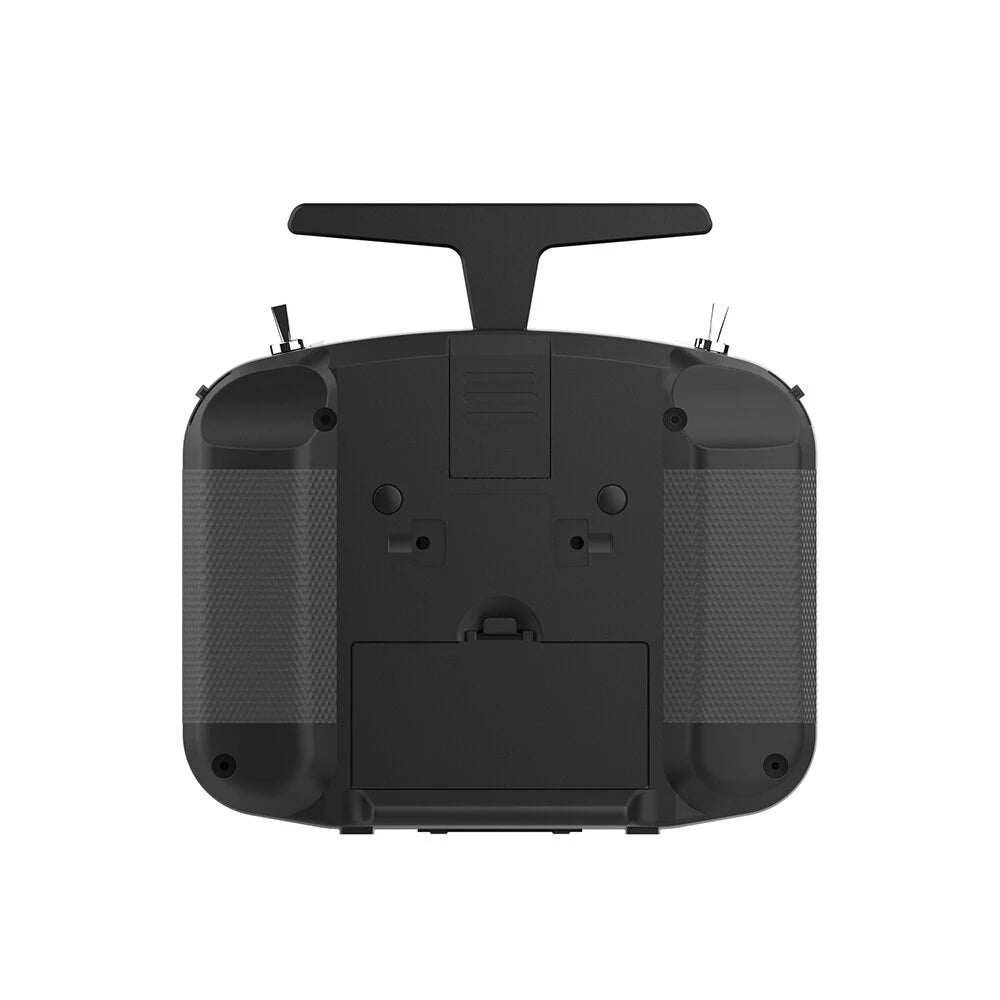

The TWIN X14S stands out as a robust radio system, boasting the capability of utilizing dual 2.4G frequencies simultaneously on the same receiver in TW mode. Different from standard active-standby redundancy solutions, the TW active-active protocol ensures both 2.4G frequency bands are actively engaged on the TWIN series RF module and receiver simultaneously.
Equipped with two internal 2.4G RF antennas, the TWIN X14S offers expansive multi-directional coverage for transmitting signals. Leveraging these attributes alongside the exterior antenna mounting frame, the Twin system provides less latency, higher reliability, and faster data rates with confidence. In addition to the TW mode, TWIN X14S also supports ACCST D16 and ACCESS modes, this means users can benefit from a wide range of compatible receiver options to choose from and bind to when building the RC model.
Features
- Ergonomic and Compact Lightweight Design with Comfortable Rounded Hand Grips
- Easy-to-reach Top Switches and Sliders
- 2.95” 640×360 Resolution Color TFT Display Screen
- 4 Trims & 4 Quick-Mode Custom Buttons (Front) & 2 Momentary Buttons (Rear)
- Integrate Flash Storage but keep the TF Card Slot for Storage Extension
- High-Precision Hall-Sensor Gimbals with a Metal Panel
- Lite Type External Module Bay
- Built-in 6-axis Gyroscope Sensor
- Haptic Vibration Alerts and Voice Speech Outputs
- Supports Recharge System for 2S Li Battery (USB Type-C Interface)
- High-Speed PARA Wireless Training System
- MC18 All CNC High-Precision Hall-Sensor Gimbals with 10 Ball-Bearing
– Adjustable 45° / 60° stick travel (Additional Travel Limiter Tool is required) - ETHOS Operating System
- CNC Aluminum Backshell Stand Holder (Optional)
-
Dual 2.4G Band TW-ISRM Internal RF Module
Supports multiple RF protocols: ACCST D16 / ACCESS / TW modes
TW Mode
– Highly resilient RF module providing dual 2.4G signals working simultaneously
– Long-range control (Tens of kilometers, range varies based on the RF Power settings.)
– Low-latency (＜4ms) supporting full telemetry
- Less Latency Capability with More Range and Higher Reliability at a Faster Data Rate
Specifications
- Dimension: 192×193×72mm (L×W×H)
- Weight: 610g (Battery Excl.)
- Operating System: ETHOS
- Internal RF Module: TW-ISRM
- 2.95” Color TFT Display Screen Resolution: 640×360
- Number of Channels: Up to 24 Channels
- Operating Voltage Range: 6.5V ~ 8.4V (2S Li-Battery)
- Operating Current: 330mA@7.4V (typ.)
- Operating Temperature: -10℃ ~ 60℃ (14℉~140℉)
- Built-in 512MB Flash Storage
- Battery Bay Size: 69.5×38.5×20mm (L×W×H)
- Data Transmission & Charging Interface: USB Type-C
- USB Adaptor Voltage and Current: 5V+0.2V, ≥2.0A
- Compatibility: ACCST D16 / ACCESS / TW modes
Package:
TWIN X14S Transmitter x1
Battery x1
