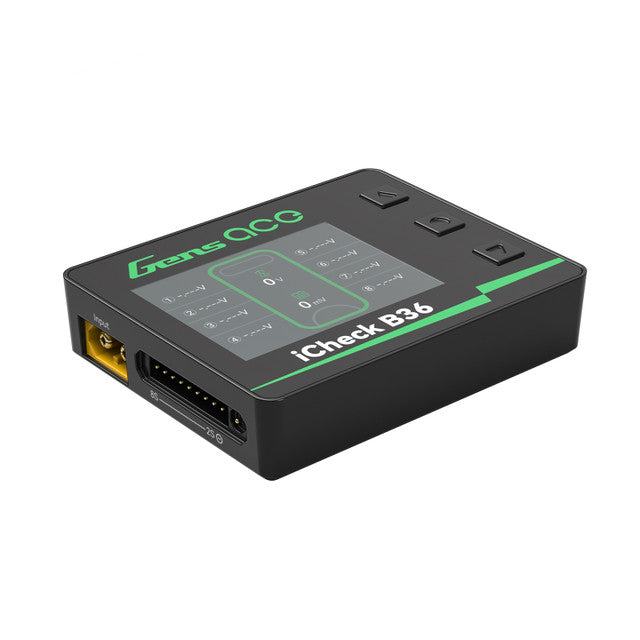

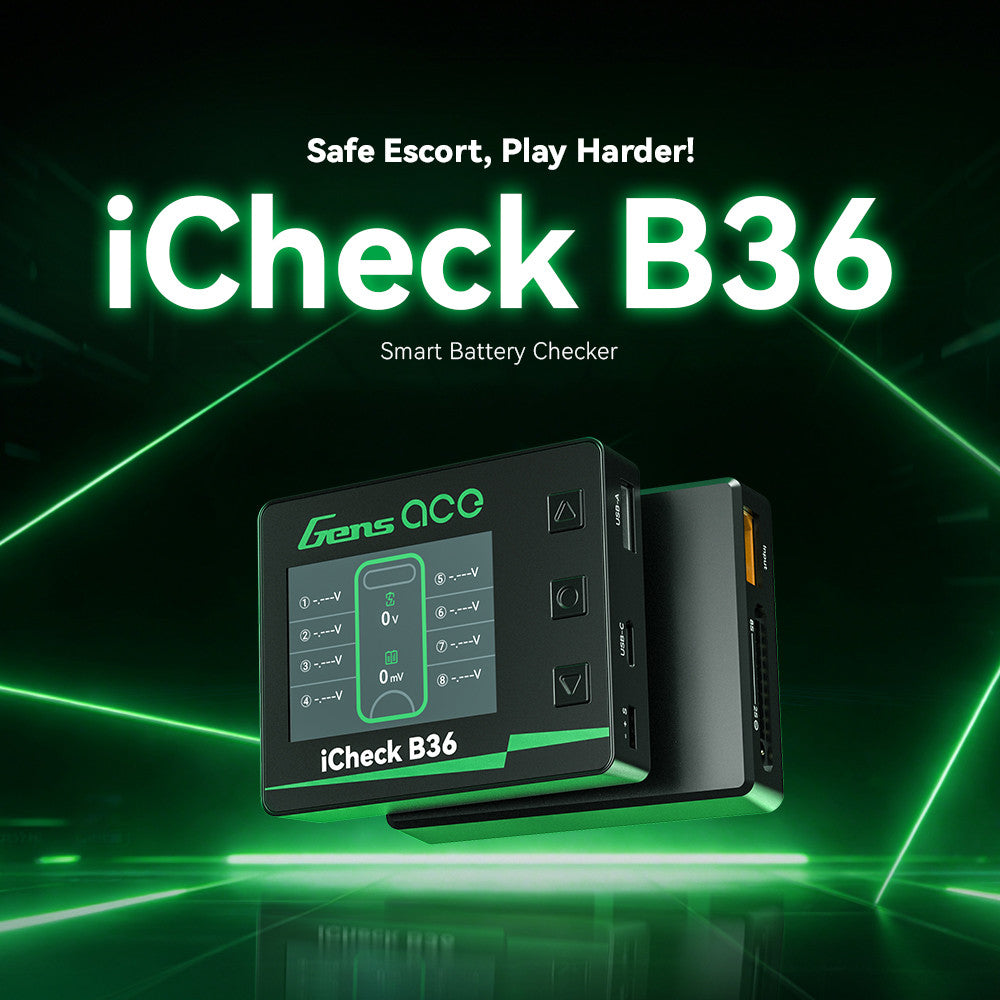

Gens ace iCheck B36 — Smart RC battery checker. Instantly monitor voltage, cell balance & health anytime. Prevent over-discharge & surprises, so you can push harder and enjoy the thrill worry-free!
Features

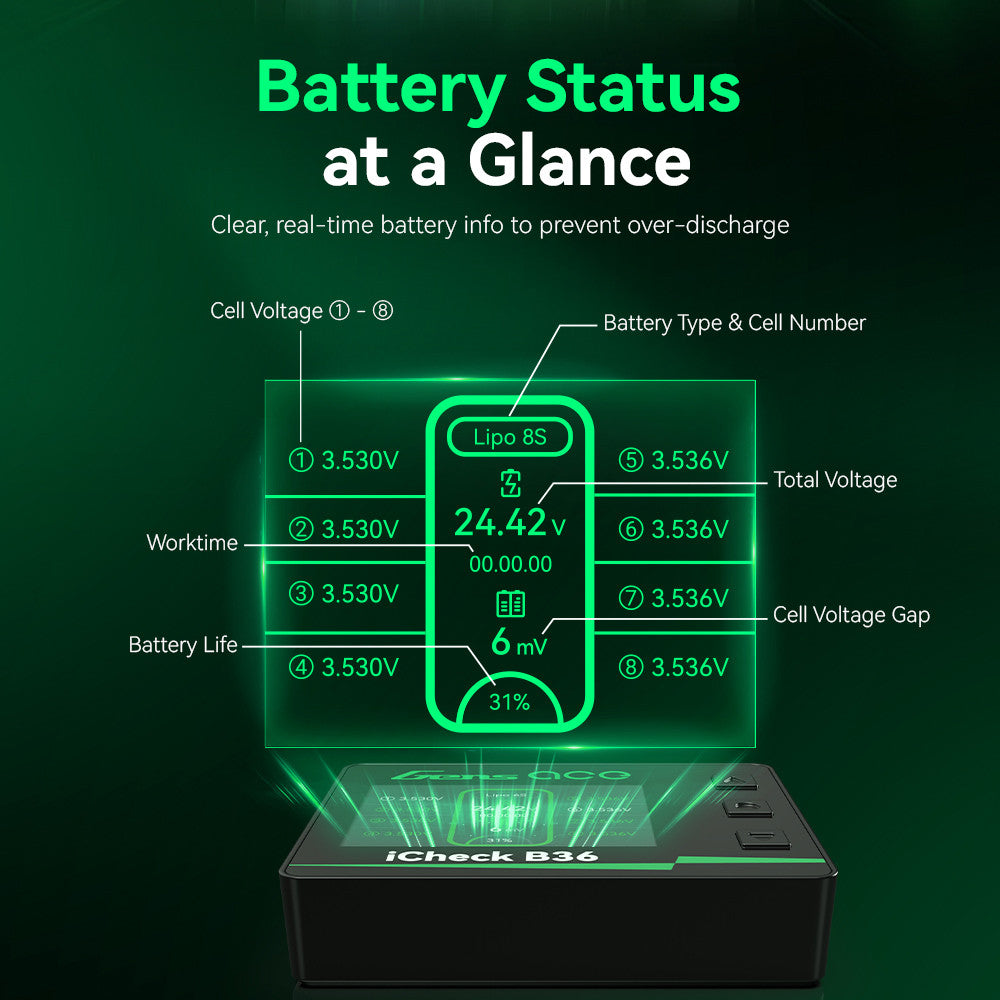

- Real-time battery monitoring
- View detailed working parameters
- Active cell balancing

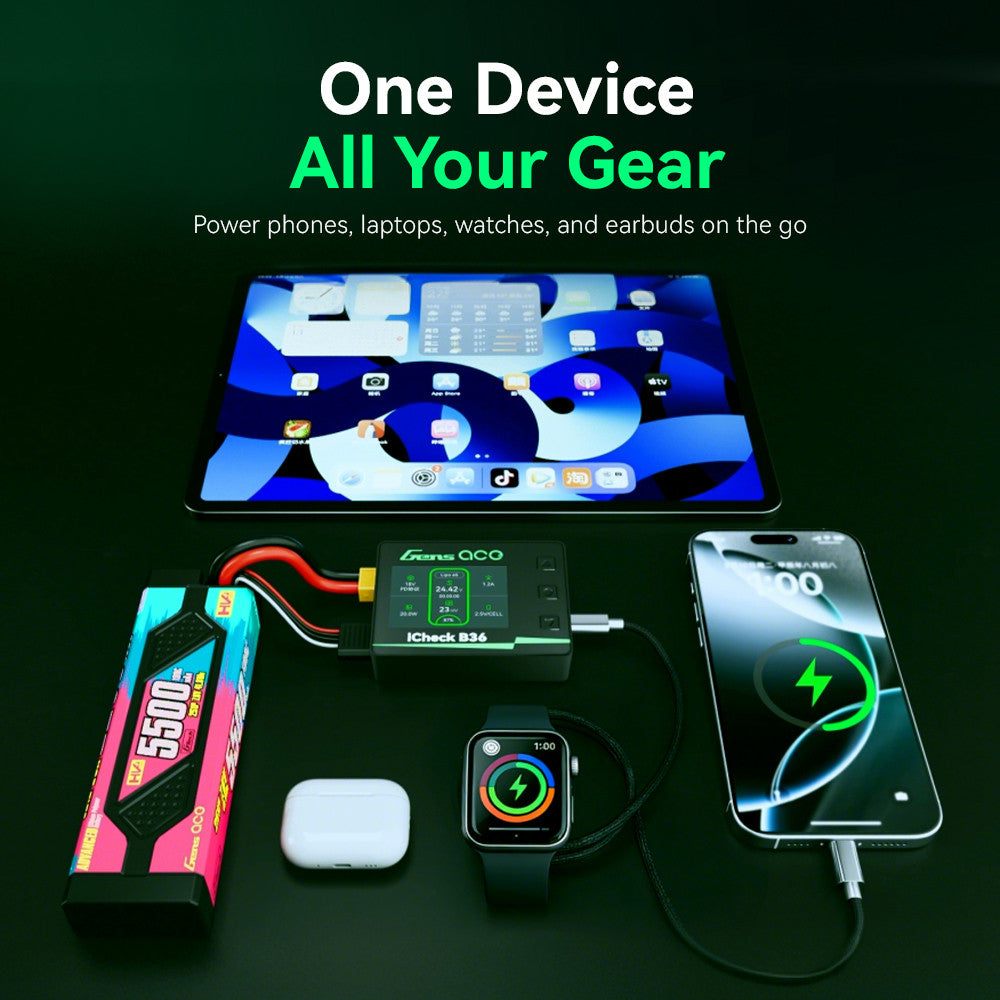

- USB charging output USB
- Built-in multi-safety protections
- Smart auto-stop
- Portable & easy one-touch operation

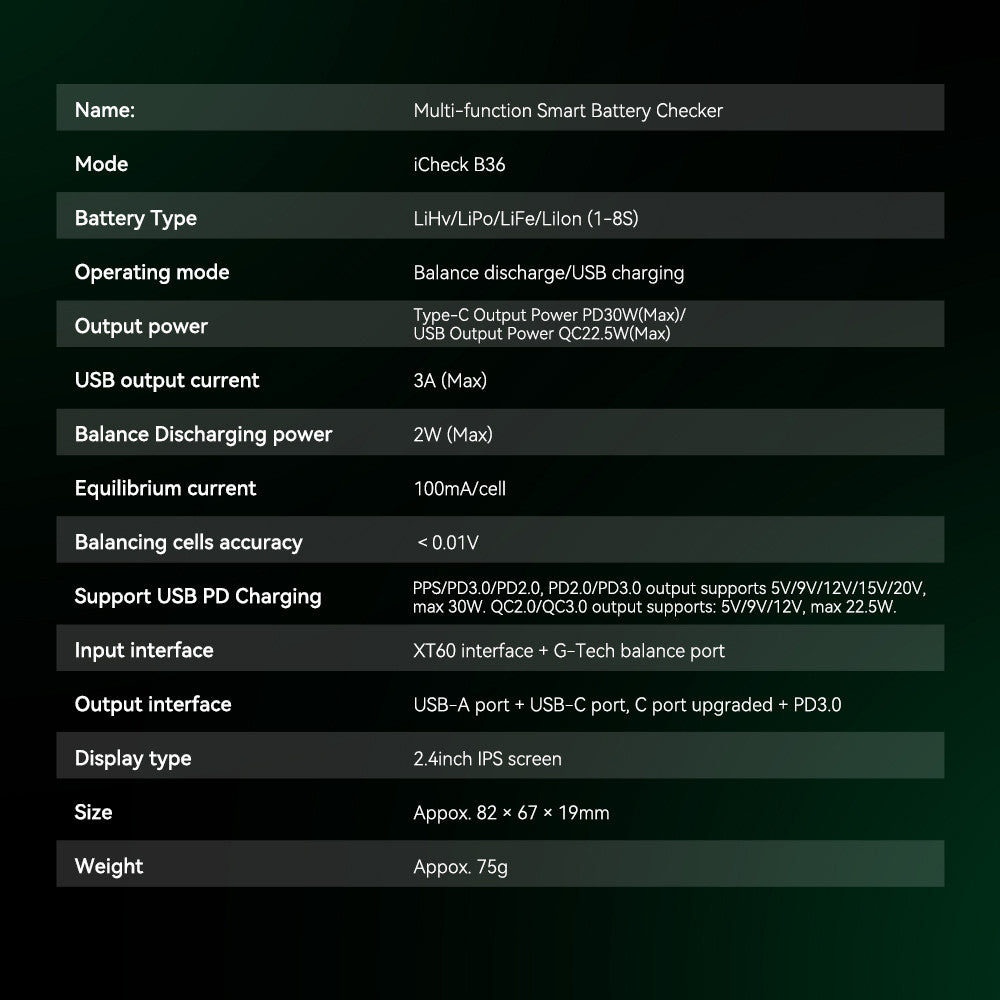

Specification
- Name: Multi-function Smart Battery Checker
- Mode: iCheck B36
- Battery Type: LiHv/LiPo/LiFe/LiIon (1-8S)
- Operating mode: Balance discharge/USB charging
- Output power: Type-C Output Power PD30W(Max)/USB Output Power QC22.5W(Max)
- USB output current: 3A (Max)
- Balance Discharging power: 2W (Max)
- Equilibrium current: 100mA/cell
- Balancing cells accuracy: ＜0.01V
- Support USB PD Charging: PPS/PD3.0/PD2.0, PD2.0/PD3.0 output supports 5V/9V/12V/15V/20V, max 30W. QC2.0/QC3.0 output supports: 5V/9V/12V, max 22.5W.
- Input interface: XT60 interface + G-Tech balance port
- Output interface: USB-A port + USB-C port, C port upgraded + PD3.0
- Display type: 2.4-inch IPS screen

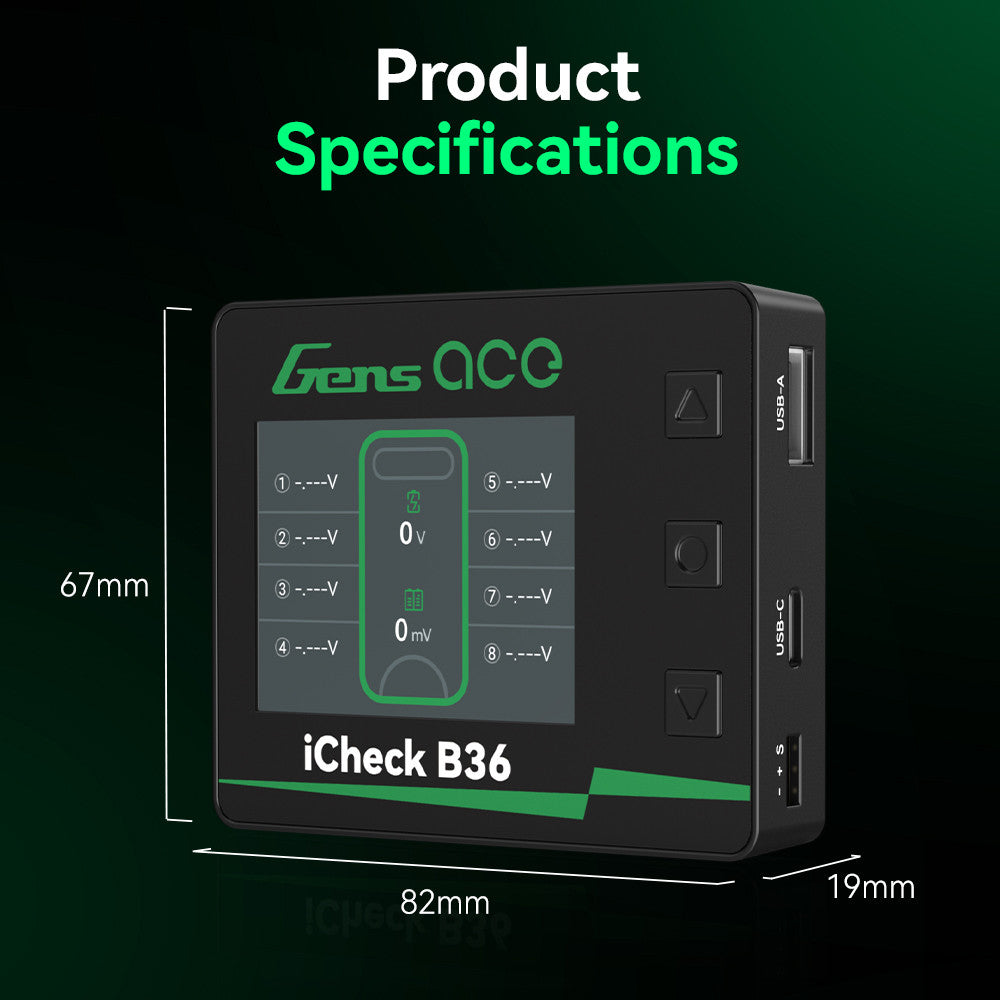

- Size: Approx. 82 × 67 × 19mm
- Weight: Approx. 75g
| Brand: | Gens ace |
| Length(±5mm):: | 82 |
| Width(±2mm):: | 67 |
| Height(±2mm):: | 19 |
| Battery type: | G-Tech 1-8S Lipo/ LiFe/ LiHV battery |
| Balance cells: | 1S-8S |
| Manuals: | iCheckB36-V1.0.9.rar |
