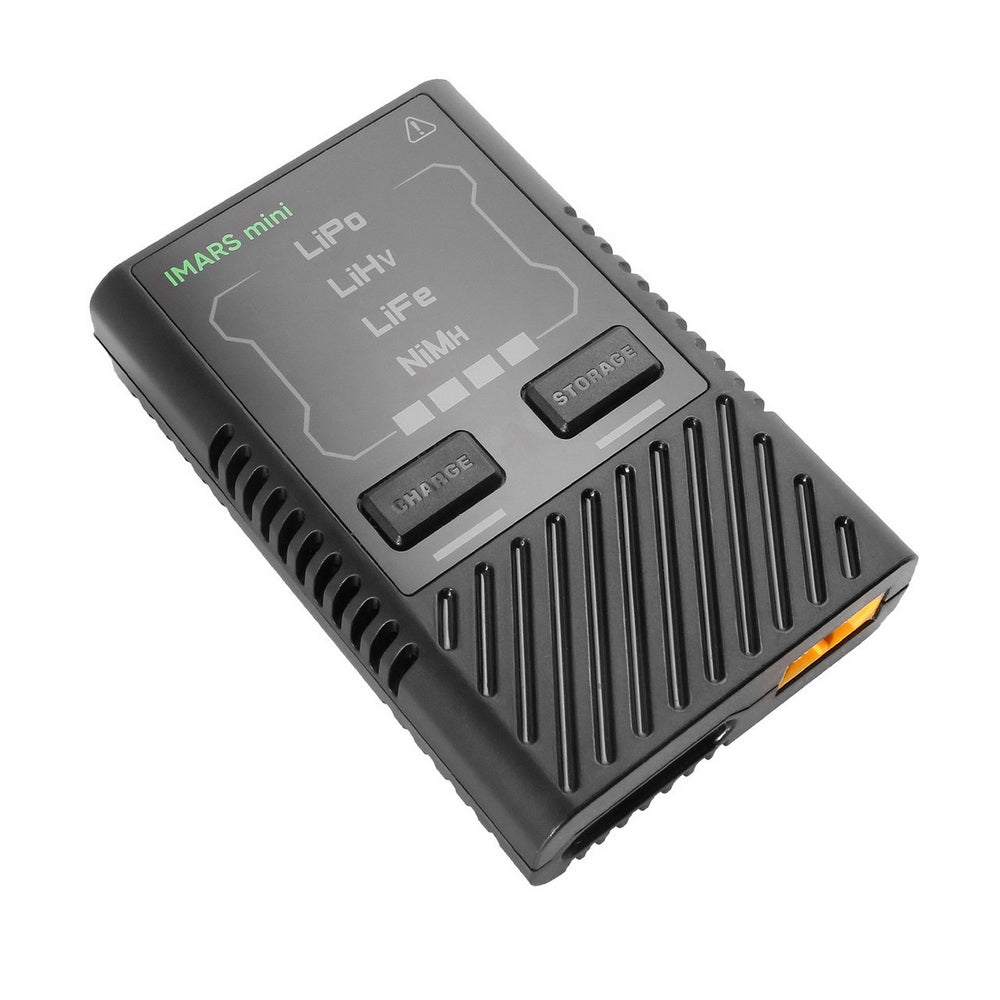

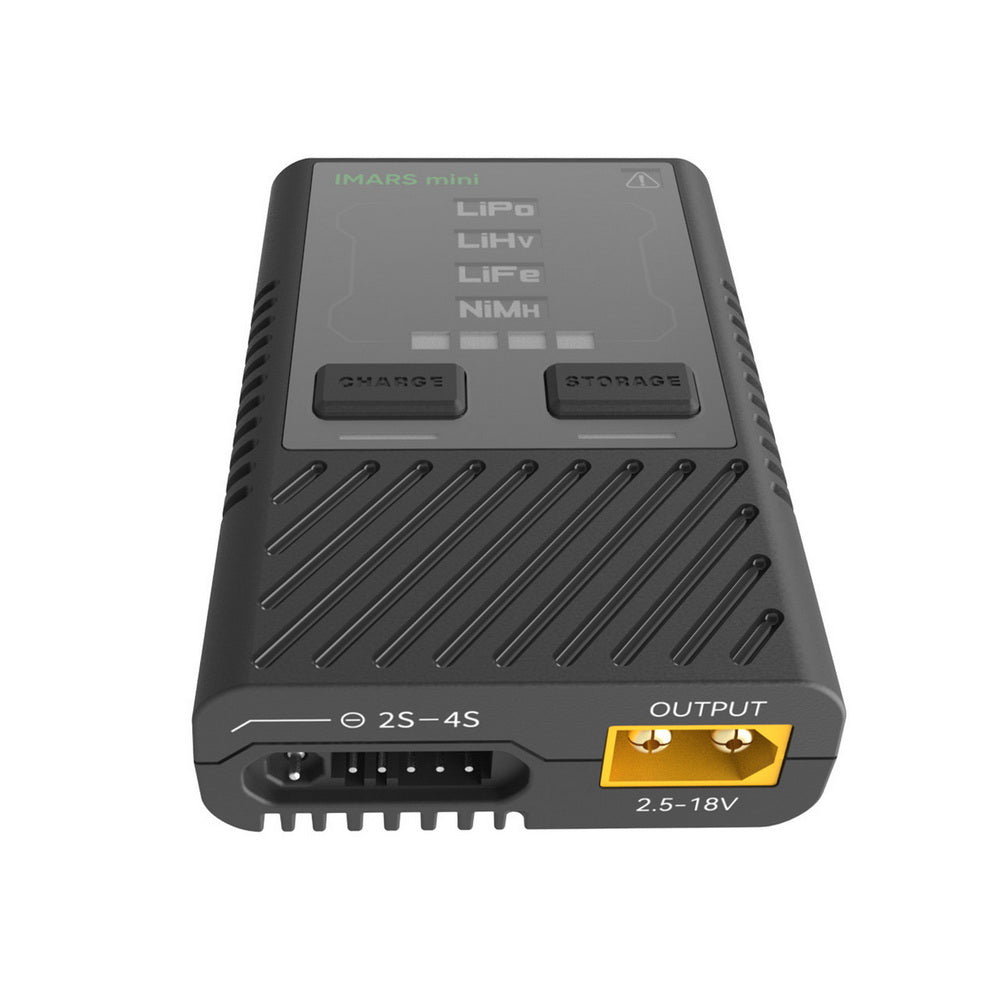

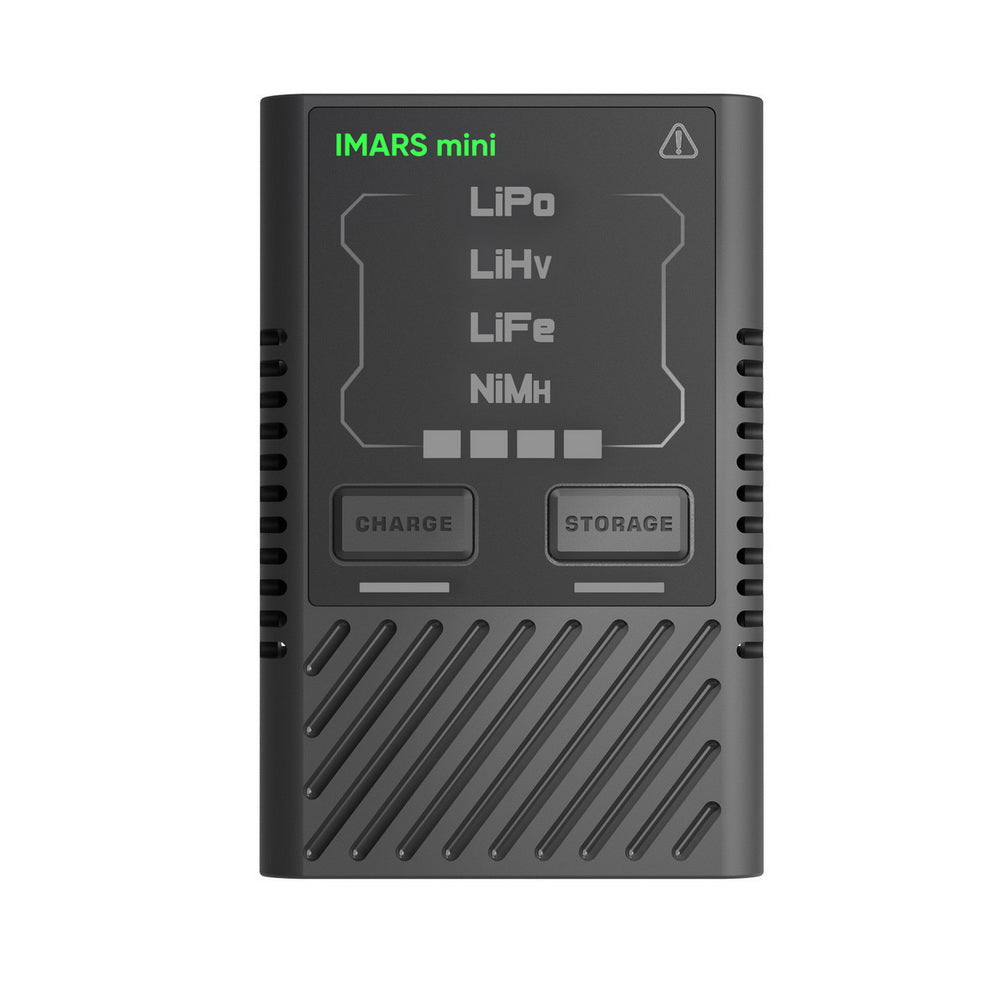

Gens Ace IMARS Mini G-Tech 60W RC Battery Charger - Eco Friendly Version

Gens aceSKU: GEA60WC2

Price:
Sale price$24.99

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Download Manual

Description

The Gens Ace IMARS Mini G-Tech 60W RC Battery Charger is a versatile charger that is compatible with both Gens Ace G-Tech smart batteries and non-smart batteries. It is the first charger in the Gens Ace G-Tech Smart Eco family and is designed to be eco-friendly.

When a Gens Ace G-Tech battery is connected to the IMARS Mini charger, the charger will automatically detect the battery type, voltage, and recommended charging current through the smart balance connector. Charging will begin automatically within 5 seconds of connecting the G-Tech smart battery.

For non-smart batteries, users must manually select the battery type and the required working mode to begin charging. The charger can adjust the charging current intelligently based on the charging voltage flow of the battery.

Product Features:

  • Charges 2-4S LiPo, LiHV, LiFe, and 2-12S NiMH batteries
  • Intelligently recognizes G-Tech smart battery information through an IC chip for safe and easy charging
  • Automatic storage function, making it the smallest charger with auto storage
  • New interface design and increased balance connector durability
  • Small and lightweight, portable design

Product Specifications:

  • Max. Charge Power: 60W
  • Charge Current: 1-5A, Max. 5A (Auto Adjustment)
  • Max. Storage Power: 3W discharge, 60W charge
  • Input Voltage: 5-20V
  • Max. Input Current: DC 3A
  • Balance Current: 0.4A/Cell X 2
  • Input Port: QC/PD/BC1.2/USB-C V1.4/SDP/CDP/DCP/Apple 5V/2.4A (Does not support 5V/1A adapter input)
  • Abnormal Battery Voltage Alarm: Yes
  • Supported Battery Types: LiPo/LiHv/LiFe (2~4S), NiMH (2-12S)
  • Working Temperature: 0℃~40℃
  • Storage Temperature: -20℃~60℃
  • Dimension: 855521mm
  • Net Weight: Approx. 64g

What's in the Box?

  • IMARS Mini 60W Smart Charger x 1
  • XT60 female to EC3 male adapter x 1
  • XT60 female to EC5 male adapter x 1
  • Product Manual x 1

Please note that this is the eco-friendly version, which does not include the USB-C power supply adapter. If you need the version with the USB-C power supply adapter, click here. You can purchase the USB-C power supply adapter only by clicking here.

Our Advantage:

  1. Your orders will be dispatched via FedEx or UPS from the USA directly.
  2. Fast shipping and excellent local after-sale service guaranteed in the USA.
  3. Service-priority in the online shop, like the long warranty period and the lower price.
  4. Energy Density: Specially adapted to each UAV type and RC car/boat/heli type. Very high according to capacity/weight. In fact, we are specialists in High Power Lipo Batteries. It is our unique technology; the highest power of our battery is 120C. Another technology is our batteries are able to be stably discharged simultaneously.
  5. Low IR: Provides stable voltage until the end of your mission.
  6. Safety: Gens Ace and its partners fulfill the ISO9001 and ISO14001 standards.
