Gofly Triple Feed Patch Antenna

GoFlySKU: GFY-9817

Price:
Sale price$9.95

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Download Manual

Description

Gofly Triple Feed Patch Antenna The Triple Feed Patch antenna is a directional circularly polarized antenna, which was designed by Marteen and Robin Theunis. Good radiation efficiency. Most FR4-based patches have terrible efficiency because FR4 is very lossy at 5.8 GHz. Good axial ratio, not just directly perpendicular to the patch but also off-center. Cheap and easy to manufacture with high accuracy, even for a hobbyist.

Specifications:
Center frequency: 5.8 GHz
Bandwidth: 660 MHz (5.47 – 6.13 GHz)
Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Axial ratio: < 1.3
Antenna gain: 9.4 dBi
Half power beam width: 55° (horizontal and vertical)
Radiation efficiency: 83.5%

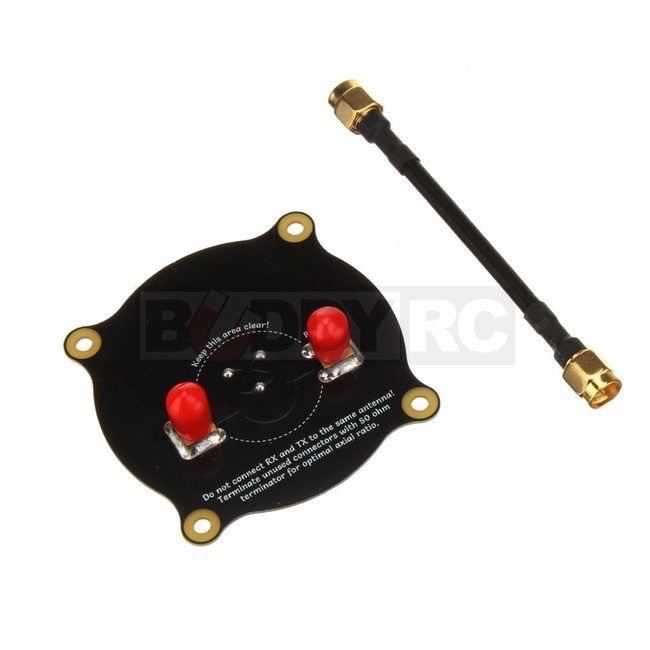

Package Includes:
Triple Feed Patch antenna x1
semi-rigid coax (SMA male – SMA male) x1
